BB50L-ZRMSWW1 (1996)

Toyota Coaster

Production May 1996 - Jul 1999
Engine 15BFT
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9605- )15BFT

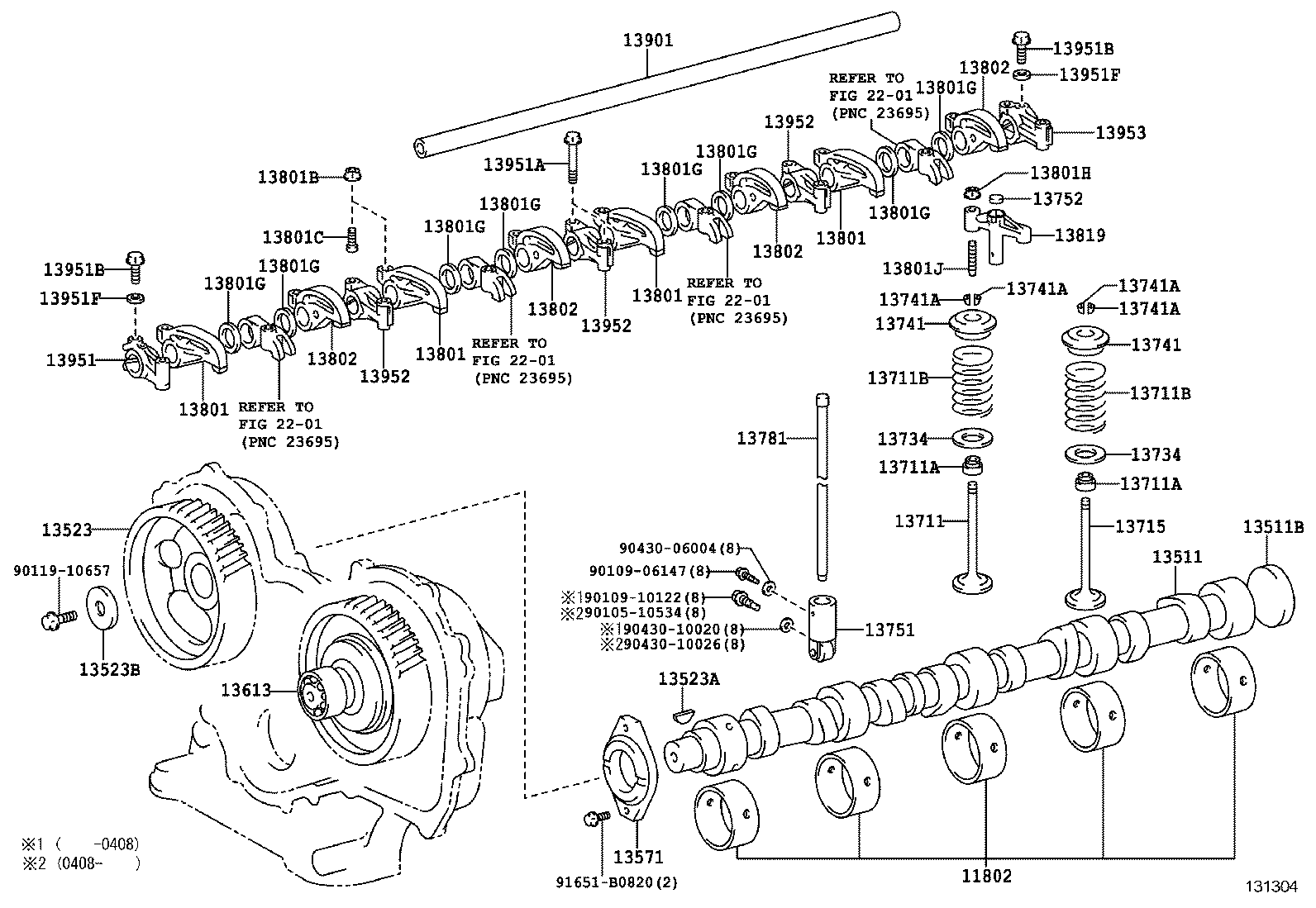

Click highlighted areas on diagram

diagram 11802 13511 13511B 13523 13523A 13523B 13571 13613 13711 13711A 13711A 13711B 13711B 13715 13734 13734 13741 13741 13741A 13741A 13741A 13741A 13751 13752 13781 13801 13801 13801 13801 13801B 13801C 13801G 13801G 13801G 13801G 13801G 13801G 13801G 13801G 13801H 13801J 13802 13802 13802 13802 13819 13901 13951 13951A 13951B 13951B 13951F 13951F 13952 13952 13952 13953 2201 2201 2201 2201 9010510534 9010906147 9010910122 9011910657 9043006004 9043010020 9043010026 91651B0820
Part # Description Qty Price
11802 - BEARING SET, CAMSHAFT
11802-56030

14B,15BFT,3B..BB4#,5#

STD

 1
11802-56031

14B,15BFT,3B..BB4#,5#

STD

 1
13511 - CAMSHAFT
13511-58020

15BFT..BB43,5#

 1
13511B - PLUG, EXPANSION(FOR CAMSHAFT)
90331-58001

14B,15BFT,3B..BB4#,5#

 1
13523A - KEY, WOODRUFF(FOR TIMING GEAR)
95161-30519

14B,15BFT,3B..BB4#,5#

 1
13523B - WASHER, PLATE(FOR TIMING GEAR)
90201-10227

14B,15BFT,3B..BB4#,5#

 1
13571 - PLATE, CAMSHAFT THRUST
13571-56030

14B,15BFT,3B..BB4#,5#

 1
13711 - VALVE, INTAKE
13711-58030

15BFT..BB43,5#

 8
13711A - SEAL OR RING, O(FOR VALVE STEM OIL)
90913-02108

15BFT..BB43,5#

 16
90913-02096

15BFT..BB43,5#

 16
13711A - SEAL OR RING, O(FOR VALVE STEM OIL)
90913-02108

15BFT..BB43,5#

 16
90913-02096

15BFT..BB43,5#

 16
13711B - SPRING, COMPRESSION(FOR INNER)
90501-35027

15BFT..BB43,5#

 16
13711B - SPRING, COMPRESSION(FOR INNER)
90501-35027

15BFT..BB43,5#

 16
13715 - VALVE, EXHAUST
13715-58070

15BFT..BB43,5#

 8
13734 - SEAT, VALVE SPRING
13734-62020

15BFT..BB43,5#

 16
13734 - SEAT, VALVE SPRING
13734-62020

15BFT..BB43,5#

 16
13741 - RETAINER, VALVE SPRING
13741-17010

15BFT..BB43,5#

 16
13741 - RETAINER, VALVE SPRING
13741-17010

15BFT..BB43,5#

 16
13741A - LOCK, VALVE SPRING RETAINER
90913-03027

15BFT..BB43,5#

 32
13741A - LOCK, VALVE SPRING RETAINER
90913-03027

15BFT..BB43,5#

 32
13741A - LOCK, VALVE SPRING RETAINER
90913-03027

15BFT..BB43,5#

 32
13741A - LOCK, VALVE SPRING RETAINER
90913-03027

15BFT..BB43,5#

 32
13751 - LIFTER, VALVE
13750-58010

14B,15BFT,3B..BB4#,50

 8
13750-58011

14B,15BFT,3B..BB4#,5#

 8
13752 - PAD, VALVE LIFTER
13752-58010

15BFT..BB43,5#

 8
13781 - ROD, VALVE PUSH
13781-58010

15BFT..BB43,5#

 8
13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1
13811-58010

15BFT..BB43,5#

 4
13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1
13811-58010

15BFT..BB43,5#

 4
13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1
13811-58010

15BFT..BB43,5#

 4
13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1
13811-58010

15BFT..BB43,5#

 4
13801G - WASHER, PLATE(FOR VALVE ROCKER ARM)
90206-19002

15BFT..BB43,5#

 8
13801G - WASHER, PLATE(FOR VALVE ROCKER ARM)
90206-19002

15BFT..BB43,5#

 8
13801G - WASHER, PLATE(FOR VALVE ROCKER ARM)
90206-19002

15BFT..BB43,5#

 8
13801G - WASHER, PLATE(FOR VALVE ROCKER ARM)
90206-19002

15BFT..BB43,5#

 8
13801G - WASHER, PLATE(FOR VALVE ROCKER ARM)
90206-19002

15BFT..BB43,5#

 8
13801G - WASHER, PLATE(FOR VALVE ROCKER ARM)
90206-19002

15BFT..BB43,5#

 8
13801G - WASHER, PLATE(FOR VALVE ROCKER ARM)
90206-19002

15BFT..BB43,5#

 8
13801G - WASHER, PLATE(FOR VALVE ROCKER ARM)
90206-19002

15BFT..BB43,5#

 8
13801H - NUT
90179-08248

15BFT..BB43,5#

 8
13801J - SCREW, VALVE ADJUSTING
90913-05024

15BFT..BB43,5#

 8
13802 - ARM SUB-ASSY, VALVE ROCKER, NO.2
13812-58010

15BFT..BB43,5#

 4
13802 - ARM SUB-ASSY, VALVE ROCKER, NO.2
13812-58010

15BFT..BB43,5#

 4
13802 - ARM SUB-ASSY, VALVE ROCKER, NO.2
13812-58010

15BFT..BB43,5#

 4
13802 - ARM SUB-ASSY, VALVE ROCKER, NO.2
13812-58010

15BFT..BB43,5#

 4
13819 - BRIDGE, VALVE
13819-58010

15BFT..BB43,5#

 8
13901 - SHAFT SUB-ASSY, VALVE ROCKER, NO.1
13901-56030

14B,15BFT,3B..BB4#,5#

 1
13951 - SUPPORT, VALVE ROCKER, NO.1
13951-58010

15BFT..BB43,5#

 1
13951A - BOLT(FOR ROCKER SUPPORT SET)
90105-08165

15BFT..BB43,5#

 10
13951B - SCREW OR BOLT(FOR VALVE ROCKER SHAFT LOCK)
13958-56010

14B,15BFT,3B..BB4#,5#

 2
13951B - SCREW OR BOLT(FOR VALVE ROCKER SHAFT LOCK)
13958-56010

14B,15BFT,3B..BB4#,5#

 2
13951F - WASHER, PLATE(FOR VALVE ROCKER SUPPORT)
90201-06350

14B,15BFT,3B..BB4#,5#

 2
13951F - WASHER, PLATE(FOR VALVE ROCKER SUPPORT)
90201-06350

14B,15BFT,3B..BB4#,5#

 2
13952 - SUPPORT, VALVE ROCKER, NO.2
13952-58010

15BFT..BB43,5#

 3
13952 - SUPPORT, VALVE ROCKER, NO.2
13952-58010

15BFT..BB43,5#

 3
13952 - SUPPORT, VALVE ROCKER, NO.2
13952-58010

15BFT..BB43,5#

 3
13953 - SUPPORT, VALVE ROCKER, NO.3
13953-58010

15BFT..BB43,5#

 1
Common parts
90105-10534
90109-06147
90109-10122
90119-10657
90430-06004
90430-10020
90430-10026
91651-B0820
Linked diagrams
2201
