8716 - HEATING & AIR CONDITIONING - WATER PIPING

BB50L-ZRMRW1 (1997)

Toyota Coaster

Production Nov 1997 - Aug 2001

Engine 15BFT

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 3 OF 3(9301-9907)RHD..IV ; (9301-9907)GCC..4FC ; (9301-9907)BB42..LHD..WOC..GEN ; (9301-9

Click highlighted areas on diagram

Part #	Description	Period	Qty
87208E - PIPE SUB-ASSY, HEATER WATER, E
87208-36700	BB50..WOC..5F;BB50..LHD..TDEFI;BB42,5#,HZB50,RZB40,50..LHD..CBU	07/1999 - 08/2001	1
Common parts
87124-36240
87124-36250
87124-36260
87124-36270
90179-08017
91651-B0820
94130-00802
96112-10360

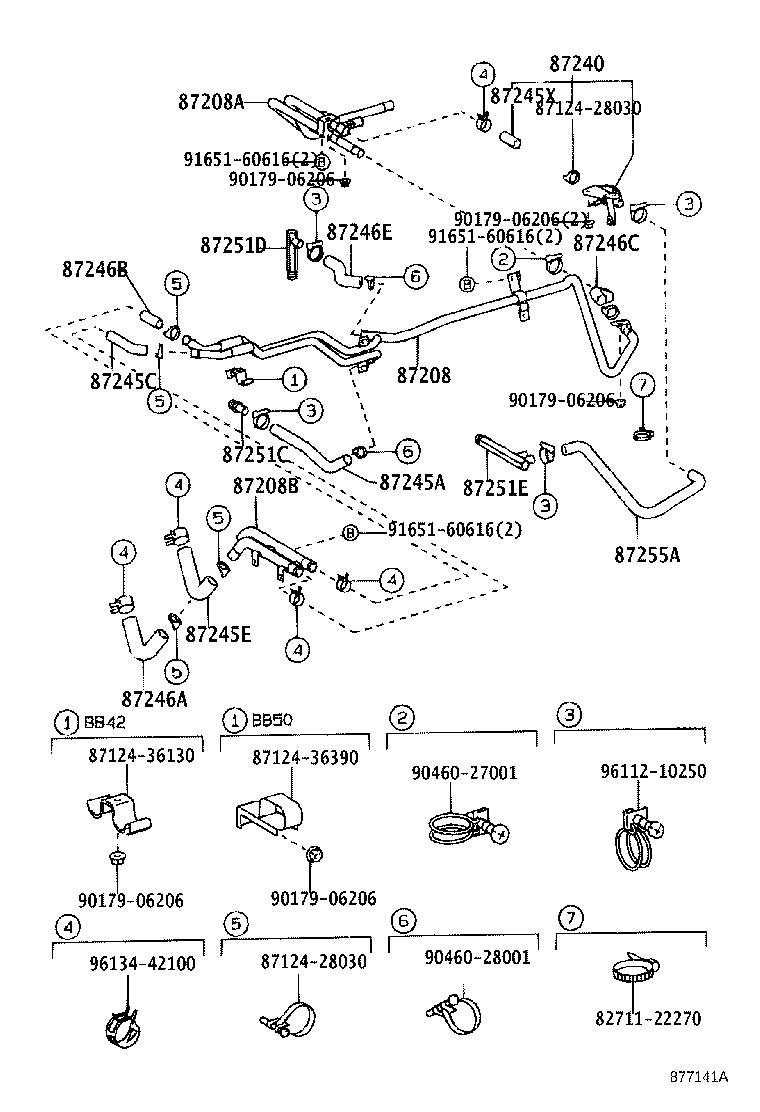

ILLUST NO. 1 OF 3(9301-9907)BB42..LHD..GEN ; (9705-9907)BB5#..LHD

Click highlighted areas on diagram

FRONT

Part #	Description	Period	Qty
87208 - PIPE SUB-ASSY, HEATER WATER
87208-36661	BB50..WOC..5F;BB50..CBU..6F	07/1999 - 08/2001	1
87208A - PIPE SUB-ASSY, HEATER WATER, A
87208-36190	RZB40,50..GEN;BB42..LHD..WC..GEN FR MANUAL HEATER,W/O(FILTER) & RR HEATER	01/1993 - 05/1995	1
87208-36731	BB50..WOC..5F;BB42..RHD..HRF..WOC;BB42,RZB40..22S..GEN;BB42,RZB40..WOC..GCC	07/1999 - 08/2001	1
87208B - PIPE SUB-ASSY, HEATER WATER, B
87208-36480	BB42,HZB50,RZB40,50..LHD	01/1993 - 05/1997	1
87240 - VALVE ASSY, HEATER WATER
87240-36030	HZB50..30S..4FC;BB4#,50,HZB50,RZB40,50..(ARL,EUR,GCC,GEN)..5F W(REAR HEATER)	01/1993 - 05/1997	1
87240-36120	BB50..WOC..5F;HZB50..RHD..EX;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;BB42,50,RZB40..(19S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN	07/1999 - 08/2001	1
87245A - HOSE, HEATER WATER, INLET A
87245-3C661	BB50..WOC..5F	07/1999 - 08/2001	1
87245C - HOSE, HEATER WATER ,INLET C
87245-3B420	BB42,HZB50,RZB40,50..LHD	01/1993 - 05/1997	1
87245-3C520	BB50..WOC..5F	07/1999 - 08/2001	1
87245E - HOSE, HEATER WATER, INLET E
87245-3B490	BB42,HZB50,RZB40,50..LHD	01/1993 - 05/1997	1
87245X - HOSE, HEATER WATER
99556-30100	HZB50..30S..4FC;BB4#,50,HZB50,RZB40,50..(ARL,EUR,GCC,GEN)..5F *H,L=55	01/1993 - 05/1997	1
87246A - HOSE, HEATER WATER, OUTLET A
87245-3B500	BB42,HZB50,RZB40,50..LHD	01/1993 - 05/1997	1
87245-3C510	BB50..WOC..5F;BB50..CBU..6F	07/1999 - 08/2001	1
87246B - HOSE, HEATER WATER, OUTLET B
99556-30065	BB42,HZB50,RZB40,50..LHD *H,L=65	01/1993 - 05/1997	1
87245-3C380	BB50..WOC..5F;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;HZB50..RHD..(20S,22S)..GEN;BB42,50,RZB40..(19S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN	07/1999 - 08/2001	1
87246C - HOSE, HEATER WATER, OUTLET C
87245-3B410	BB42,HZB50,RZB40,50..LHD	01/1993 - 05/1997	1
87246E - HOSE, HEATER WATER, OUTLET E
87245-3C651	BB50..WOC..5F	07/1999 - 08/2001	1
87251C - JOINT, WATER HOSE THROUGH
87251-30200	BB50..WOC..5F;BB50..EX..GEN;BB42..WOC..GCC;BB42,50..19S,22S;BB42..RHD..HRF..WOC	07/1999 - 08/2001	1
87251D - JOINT, WATER, NO.1
87251-30200	BB50..WOC..5F;BB50..CBU..6F	07/1999 - 08/2001	1
87251E - JOINT, WATER, NO.2
87251-36020	BB50..WOC..5F	07/1999 - 08/2001	1
87255A - HOSE, REAR HEATER WATER INLET, A(FROM ENGINE)
87245-3C530	BB50..WOC..5F	07/1999 - 08/2001	1
Common parts
82711-22270
87124-28030
87124-36130
87124-36390
90179-06206
90460-27001
90460-28001
91651-60616
96112-10250
96134-42100

ILLUST NO. 1 OF 3(9301-9907)BB4#,5#,RZB40,50

Click highlighted areas on diagram

FRONT

Part #	Description	Period	Qty
87208 - PIPE SUB-ASSY, HEATER WATER
87208-36661	BB50..WOC..5F;BB50..CBU..6F	07/1999 - 08/2001	1
87208A - PIPE SUB-ASSY, HEATER WATER, A
87208-36190	RZB40,50..GEN;BB42..LHD..WC..GEN FR MANUAL HEATER,W/O(FILTER) & RR HEATER	01/1993 - 05/1995	1
87208-36731	BB50..WOC..5F;BB42..RHD..HRF..WOC;BB42,RZB40..22S..GEN;BB42,RZB40..WOC..GCC	07/1999 - 08/2001	1
87208B - PIPE SUB-ASSY, HEATER WATER, B
87208-36480	BB42,HZB50,RZB40,50..LHD	01/1993 - 05/1997	1
87240 - VALVE ASSY, HEATER WATER
87240-36030	HZB50..30S..4FC;BB4#,50,HZB50,RZB40,50..(ARL,EUR,GCC,GEN)..5F W(REAR HEATER)	01/1993 - 05/1997	1
87240-36120	BB50..WOC..5F;HZB50..RHD..EX;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;BB42,50,RZB40..(19S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN	07/1999 - 08/2001	1
87245A - HOSE, HEATER WATER, INLET A
87245-3C661	BB50..WOC..5F	07/1999 - 08/2001	1
87245C - HOSE, HEATER WATER ,INLET C
87245-3B420	BB42,HZB50,RZB40,50..LHD	01/1993 - 05/1997	1
87245-3C520	BB50..WOC..5F	07/1999 - 08/2001	1
87245E - HOSE, HEATER WATER, INLET E
87245-3B490	BB42,HZB50,RZB40,50..LHD	01/1993 - 05/1997	1
87245X - HOSE, HEATER WATER
99556-30100	HZB50..30S..4FC;BB4#,50,HZB50,RZB40,50..(ARL,EUR,GCC,GEN)..5F *H,L=55	01/1993 - 05/1997	1
87246A - HOSE, HEATER WATER, OUTLET A
87245-3B500	BB42,HZB50,RZB40,50..LHD	01/1993 - 05/1997	1
87245-3C510	BB50..WOC..5F;BB50..CBU..6F	07/1999 - 08/2001	1
87246B - HOSE, HEATER WATER, OUTLET B
99556-30065	BB42,HZB50,RZB40,50..LHD *H,L=65	01/1993 - 05/1997	1
87245-3C380	BB50..WOC..5F;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;HZB50..RHD..(20S,22S)..GEN;BB42,50,RZB40..(19S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN	07/1999 - 08/2001	1
87246C - HOSE, HEATER WATER, OUTLET C
87245-3B410	BB42,HZB50,RZB40,50..LHD	01/1993 - 05/1997	1
87255A - HOSE, REAR HEATER WATER INLET, A(FROM ENGINE)
87245-3C530	BB50..WOC..5F	07/1999 - 08/2001	1
Common parts
87124-28030
87124-36130
90179-06206
90339-16001
90460-27001
91651-60616
96112-10250
96134-42100
