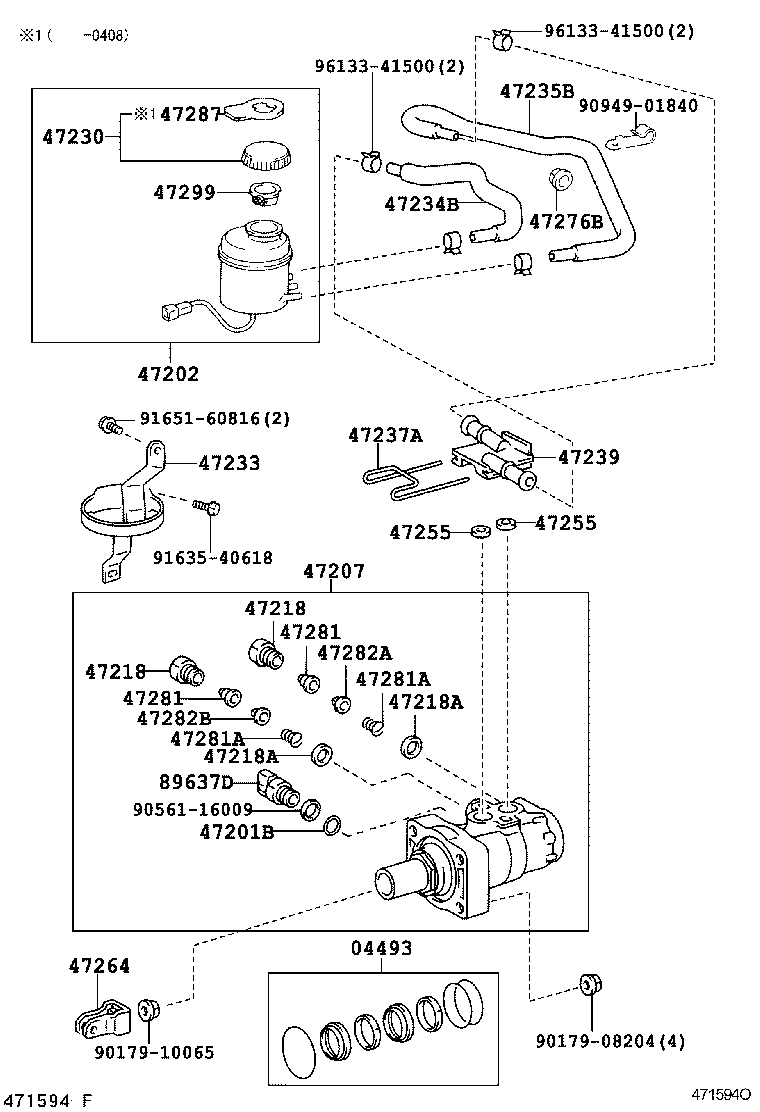

BB50L-ZRMRW1 (1997)
Toyota Coaster
(9907- )BB50..LHD..6F ; (0610- )LHD..IV
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04493 - CYLINDER KIT, BRAKE MASTER | ||||
| 04493-37022 |
BB50..WOC..5F;HZB50..RHD..EX;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,20S,22S)..GEN W(FRONT DRUM BRAKE) |
1 | ||
| 47202 - RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER | ||||
| 47220-36090 |
BB50..WOC..5F;BB42,5#,HZB50,RZB40,50..LHD..(17S,20S,22S,23S,26S,30S) |
1 | ||
| 47220-36090 |
BB50..GEN..IV;BB42,58,HZB50,RZB40,50..LHD..CBU..5F |
1 | ||
| 47218 - PLUG, MASTER CYLINDER FLUID OUTLET | ||||
| 47218-36070 |
BB50..EUR;BB50..WC..GEN;BB40,42,58,HZB50,RZB40,50 |
1 | ||
| 47218 - PLUG, MASTER CYLINDER FLUID OUTLET | ||||
| 47218-36070 |
BB50..EUR;BB50..WC..GEN;BB40,42,58,HZB50,RZB40,50 |
1 | ||
| 47218A - GASKET(FOR FLUID OUTLET PLUG) | ||||
| 90430-11001 |
BB50..EUR;BB50..WC..GEN;BB40,42,58,HZB50,RZB40,50 |
1 | ||
| 90430-11001 |
BB50..WOC..5F;HZB50..RHD..EX;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,20S,22S)..GEN |
1 | ||
| 47218A - GASKET(FOR FLUID OUTLET PLUG) | ||||
| 90430-11001 |
BB50..EUR;BB50..WC..GEN;BB40,42,58,HZB50,RZB40,50 |
1 | ||
| 90430-11001 |
BB50..WOC..5F;HZB50..RHD..EX;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,20S,22S)..GEN |
1 | ||
| 47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER | ||||
| 47230-24010 |
BB50..EX;BB50..GEN..IV;BB4#,58,HZB50,RZB40,50..CBU |
1 | ||
| 47230-24010 |
BB50..EX;BB50..WOC..5F;BB50..STD..CBU..5F;BB4#,58,HZB50,RZB40,50 |
1 | ||
| 47233 - BRACKET, RESERVOIR | ||||
| 47233-36070 |
BB50..WOC..5F;BB42,RZB40..WOC..GCC;BB42,50,RZB40..(19S,22S)..GEN |
1 | ||
| 47233-36070 |
BB42,5#,HZB50,RZB40,50..LHD |
1 | ||
| 47234B - TUBE, RESERVOIR, NO.1 | ||||
| 47234-36170 |
BB42,5#,HZB50,RZB40,50..LHD |
1 | ||
| 47234-36170 |
BB50..WOC..5F;BB42,RZB40..22S..GEN;BB42,RZB40..WOC..GCC |
1 | ||
| 47235B - TUBE, BRAKE MASTER CYRINDER RESERVOIR, NO.2 | ||||
| 47235-36170 |
BB42,5#,HZB50,RZB40,50..LHD |
1 | ||
| 47235-36170 |
BB50..WOC..5F;BB42,RZB40..22S..GEN;BB42,RZB40..WOC..GCC |
1 | ||
| 47264 - CLEVIS, MASTER CYLINDER PUSH ROD | ||||
| 47264-50010 |
BB50..WOC..5F;BB50..EX..GEN;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,19S,22S)..GEN |
1 | ||
| 47264-50010 |
BB4#,5#,HZB50,RZB40,50 |
1 | ||
| 47276B - GROMMET(FOR BRAKE MASTER CYLINDER BRACKET) | ||||
| 90480-27006 |
BB42,5#,HZB50,RZB40,50..LHD |
1 | ||
| 90480-27006 |
BB50..WOC..5F;BB42,RZB40..WOC..GCC;BB42,50,RZB40..(19S,22S)..GEN |
1 | ||
| 47281 - VALVE, BRAKE MASTER CYLINDER OUTLET CHECK | ||||
| 47281-30020 |
BB50..WOC..5F;HZB50..RHD..EX;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,20S,22S)..GEN |
2 | ||
| 47281 - VALVE, BRAKE MASTER CYLINDER OUTLET CHECK | ||||
| 47281-30020 |
BB50..WOC..5F;HZB50..RHD..EX;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,20S,22S)..GEN |
2 | ||
| 47299 - STRAINER, BRAKE MASTER CYLINDER RESERVOIR | ||||
| 47299-17010 |
BB50..WOC..5F;BB50..EX..GEN;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,19S,22S)..GEN |
1 | ||
| 47299-17010 |
BB4#,5#,HZB50,RZB40,50 |
1 | ||
| Common parts | ||||
| 90179-08204 | ||||
| 90179-10065 | ||||
| 90561-16009 | ||||
| 90949-01840 | ||||
| 91635-40618 | ||||
| 91651-60816 | ||||
| 96133-41500 | ||||
(9301-9907)LHD ; (9907-0908)BB50..LHD..5F ; (9907-0908)BB42,58,HZB50,RZB40,50,TRB40
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04493 - CYLINDER KIT, BRAKE MASTER | ||||
| 04493-37022 |
BB50..WOC..5F;HZB50..RHD..EX;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,20S,22S)..GEN W(FRONT DRUM BRAKE) |
1 | ||
| 04493-37022 |
BB50..WOC..5F;HZB50..RHD..EX;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,20S,22S)..GEN W(FRONT DRUM BRAKE) |
1 | ||
| 47201 - CYLINDER SUB-ASSY, BRAKE MASTER | ||||
| 47201-36390 |
BB50..WOC..GEN;BB42,58,HZB50,RZB40..LHD..CBU W(FRONT DRUM BRAKE) |
1 | ||
| 47201-36390 |
BB50..WOC..GEN;BB42,58,HZB50,RZB40..LHD..CBU W(FRONT DRUM BRAKE) |
1 | ||
| 47201-36430 |
BB50..LHD..IV;BB58,HZB50,RZB50..LHD W(FRONT DISC BRAKE) |
1 | ||
| 47201-36430 |
BB50..LHD..IV;BB58,HZB50,RZB50..LHD W(FRONT DISC BRAKE) |
1 | ||
| 47201-36392 |
BB50..WOC..5F;BB42,RZB40..22S..GEN;BB42,RZB40..WOC..GCC |
1 | ||
| 47201-36392 |
BB50..WOC..5F;BB42,RZB40..22S..GEN;BB42,RZB40..WOC..GCC |
1 | ||
| 47202 - RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER | ||||
| 47220-36090 |
BB50..WOC..5F;BB42,5#,HZB50,RZB40,50..LHD..(17S,20S,22S,23S,26S,30S) |
1 | ||
| 47220-36090 |
BB50..WOC..5F;BB42,5#,HZB50,RZB40,50..LHD..(17S,20S,22S,23S,26S,30S) |
1 | ||
| 47220-36090 |
BB50..GEN..IV;BB42,58,HZB50,RZB40,50..LHD..CBU..5F |
1 | ||
| 47220-36090 |
BB50..GEN..IV;BB42,58,HZB50,RZB40,50..LHD..CBU..5F |
1 | ||
| 47210J - GASKET(FOR MASTER CYLINDER) | ||||
| 90430-06104 |
BB50..WOC..5F;HZB50..RHD..SRF;BB50,HZB50..RHD..EX;BB42,RZB40..WOC..GCC;BB4#,RZB40..(17S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN |
1 | ||
| 90430-06104 |
BB50..WOC..5F;HZB50..RHD..SRF;BB50,HZB50..RHD..EX;BB42,RZB40..WOC..GCC;BB4#,RZB40..(17S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN |
1 | ||
| 90430-06104 |
BB4#,5#,HZB50,RZB40,50 |
1 | ||
| 90430-06104 |
BB4#,5#,HZB50,RZB40,50 |
1 | ||
| 47210T - BOLT(FOR BRAKE MASTER CYLINDER) | ||||
| 90109-06008 |
BB4#,5#,HZB50,RZB40,50 |
1 | ||
| 90109-06008 |
BB4#,5#,HZB50,RZB40,50 |
1 | ||
| 90109-06008 |
BB50..WOC..5F;HZB50..RHD..SRF;BB50,HZB50..RHD..EX;BB42,RZB40..WOC..GCC;BB4#,RZB40..(17S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN |
1 | ||
| 90109-06008 |
BB50..WOC..5F;HZB50..RHD..SRF;BB50,HZB50..RHD..EX;BB42,RZB40..WOC..GCC;BB4#,RZB40..(17S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN |
1 | ||
| 47218 - PLUG, MASTER CYLINDER FLUID OUTLET | ||||
| 47218-36070 |
BB50..EUR;BB50..WC..GEN;BB40,42,58,HZB50,RZB40,50 |
1 | ||
| 47218-36070 |
BB50..EUR;BB50..WC..GEN;BB40,42,58,HZB50,RZB40,50 |
1 | ||
| 47218A - GASKET(FOR FLUID OUTLET PLUG) | ||||
| 90430-11001 |
BB50..EUR;BB50..WC..GEN;BB40,42,58,HZB50,RZB40,50 |
1 | ||
| 90430-11001 |
BB50..EUR;BB50..WC..GEN;BB40,42,58,HZB50,RZB40,50 |
1 | ||
| 90430-11001 |
BB50..WOC..5F;HZB50..RHD..EX;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,20S,22S)..GEN |
1 | ||
| 90430-11001 |
BB50..WOC..5F;HZB50..RHD..EX;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,20S,22S)..GEN |
1 | ||
| 47219A - GASKET(FOR FLUID OUTLET PLUG REAR SIDE) | ||||
| 90430-11001 |
BB50..EUR;BB50..WC..GEN;BB40,42,58,HZB50,RZB40,50 |
1 | ||
| 90430-11001 |
BB50..EUR;BB50..WC..GEN;BB40,42,58,HZB50,RZB40,50 |
1 | ||
| 90430-11001 |
BB50..WOC..5F;HZB50..RHD..EX;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,20S,22S)..GEN |
1 | ||
| 90430-11001 |
BB50..WOC..5F;HZB50..RHD..EX;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,20S,22S)..GEN |
1 | ||
| 47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER | ||||
| 47230-24010 |
BB50..EX;BB50..GEN..IV;BB4#,58,HZB50,RZB40,50..CBU |
1 | ||
| 47230-24010 |
BB50..EX;BB50..GEN..IV;BB4#,58,HZB50,RZB40,50..CBU |
1 | ||
| 47230-24010 |
BB50..EX;BB50..WOC..5F;BB50..STD..CBU..5F;BB4#,58,HZB50,RZB40,50 |
1 | ||
| 47230-24010 |
BB50..EX;BB50..WOC..5F;BB50..STD..CBU..5F;BB4#,58,HZB50,RZB40,50 |
1 | ||
| 47233 - BRACKET, RESERVOIR | ||||
| 47233-36070 |
BB50..WOC..5F;BB42,RZB40..WOC..GCC;BB42,50,RZB40..(19S,22S)..GEN |
1 | ||
| 47233-36070 |
BB50..WOC..5F;BB42,RZB40..WOC..GCC;BB42,50,RZB40..(19S,22S)..GEN |
1 | ||
| 47233-36070 |
BB42,5#,HZB50,RZB40,50..LHD |
1 | ||
| 47233-36070 |
BB42,5#,HZB50,RZB40,50..LHD |
1 | ||
| 47234B - TUBE, RESERVOIR, NO.1 | ||||
| 47234-36170 |
BB42,5#,HZB50,RZB40,50..LHD |
1 | ||
| 47234-36170 |
BB42,5#,HZB50,RZB40,50..LHD |
1 | ||
| 47234-36170 |
BB50..WOC..5F;BB42,RZB40..22S..GEN;BB42,RZB40..WOC..GCC |
1 | ||
| 47234-36170 |
BB50..WOC..5F;BB42,RZB40..22S..GEN;BB42,RZB40..WOC..GCC |
1 | ||
| 47235B - TUBE, BRAKE MASTER CYRINDER RESERVOIR, NO.2 | ||||
| 47235-36170 |
BB42,5#,HZB50,RZB40,50..LHD |
1 | ||
| 47235-36170 |
BB42,5#,HZB50,RZB40,50..LHD |
1 | ||
| 47235-36170 |
BB50..WOC..5F;BB42,RZB40..22S..GEN;BB42,RZB40..WOC..GCC |
1 | ||
| 47235-36170 |
BB50..WOC..5F;BB42,RZB40..22S..GEN;BB42,RZB40..WOC..GCC |
1 | ||
| 47264 - CLEVIS, MASTER CYLINDER PUSH ROD | ||||
| 47264-50010 |
BB50..WOC..5F;BB50..EX..GEN;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,19S,22S)..GEN |
1 | ||
| 47264-50010 |
BB50..WOC..5F;BB50..EX..GEN;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,19S,22S)..GEN |
1 | ||
| 47264-50010 |
BB4#,5#,HZB50,RZB40,50 |
1 | ||
| 47264-50010 |
BB4#,5#,HZB50,RZB40,50 |
1 | ||
| 47276B - GROMMET(FOR BRAKE MASTER CYLINDER BRACKET) | ||||
| 90480-27006 |
BB42,5#,HZB50,RZB40,50..LHD |
1 | ||
| 90480-27006 |
BB42,5#,HZB50,RZB40,50..LHD |
1 | ||
| 90480-27006 |
BB50..WOC..5F;BB42,RZB40..WOC..GCC;BB42,50,RZB40..(19S,22S)..GEN |
1 | ||
| 90480-27006 |
BB50..WOC..5F;BB42,RZB40..WOC..GCC;BB42,50,RZB40..(19S,22S)..GEN |
1 | ||
| 47281 - VALVE, BRAKE MASTER CYLINDER OUTLET CHECK | ||||
| 47281-30020 |
BB50..WOC..5F;HZB50..RHD..EX;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,20S,22S)..GEN |
2 | ||
| 47281-30020 |
BB50..WOC..5F;HZB50..RHD..EX;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,20S,22S)..GEN |
2 | ||
| 47281 - VALVE, BRAKE MASTER CYLINDER OUTLET CHECK | ||||
| 47281-30020 |
BB50..WOC..5F;HZB50..RHD..EX;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,20S,22S)..GEN |
2 | ||
| 47281-30020 |
BB50..WOC..5F;HZB50..RHD..EX;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,20S,22S)..GEN |
2 | ||
| 47299 - STRAINER, BRAKE MASTER CYLINDER RESERVOIR | ||||
| 47299-17010 |
BB50..WOC..5F;BB50..EX..GEN;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,19S,22S)..GEN |
1 | ||
| 47299-17010 |
BB50..WOC..5F;BB50..EX..GEN;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,19S,22S)..GEN |
1 | ||
| 47299-17010 |
BB4#,5#,HZB50,RZB40,50 |
1 | ||
| 47299-17010 |
BB4#,5#,HZB50,RZB40,50 |
1 | ||
| Common parts | ||||
| 90179-08204 | ||||
| 90179-10065 | ||||
| 90467-25004 | ||||
| 90501-05012 | ||||
| 90949-01840 | ||||
| 91635-40618 | ||||
| 91651-60816 | ||||
| 96133-41500 | ||||
