BB42R-ZRMRS (1993)
Toyota Coaster

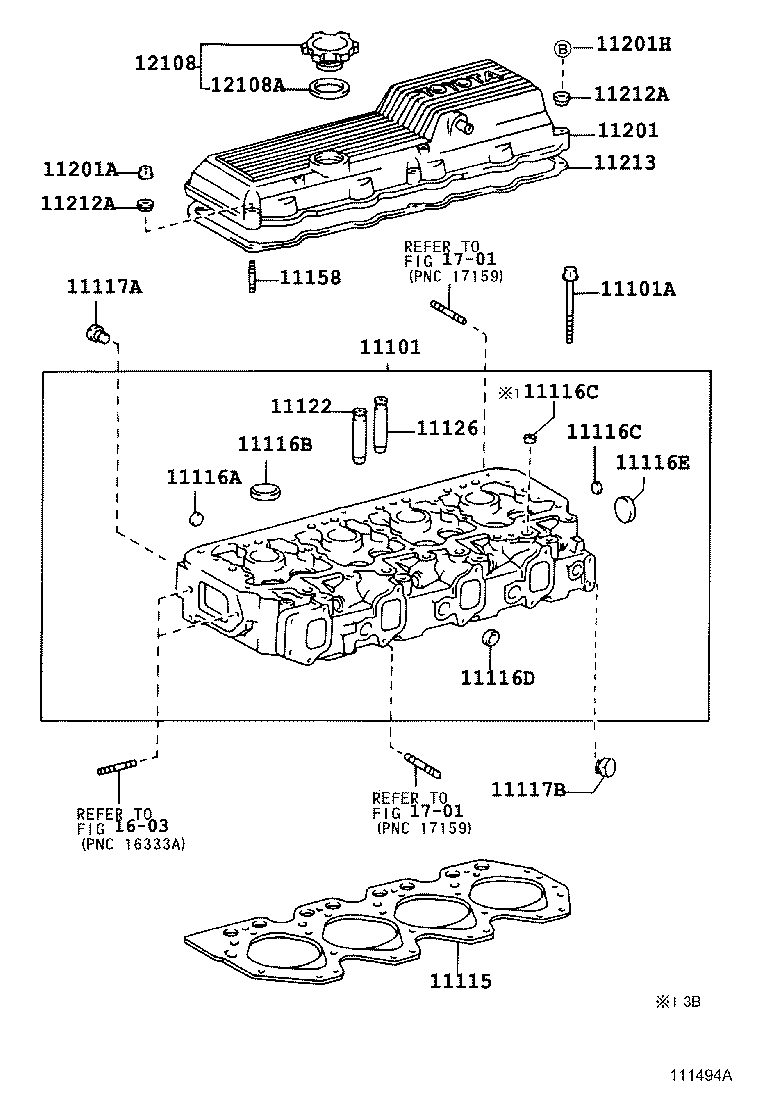

(9505- )14B,3B
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11101 - HEAD SUB-ASSY, CYLINDER | ||||
| 11101-58040 |
14B..BB42 |
1 | ||
| 11101-58041 |
14B..BB42 |
1 | ||
| 11101-58041 |
14B..BB42..22S;14B..BB42..WOC..GCC;14B..BB42..RHD..HRF..WOC |
1 | ||
| 11101A - BOLT(FOR CYLINDER HEAD SET) | ||||
| 90910-02084 |
14B..BB42..WOC..GCC;15BFT..BB50..WOC..5F;15BFT..BB50..EX..GEN;14B..BB42..RHD..HRF..WOC;14B,15BFT..BB4#,50..17S,19S,22S |
18 | ||
| 90910-02084 |
14B,15BFT,3B..BB4#,5# |
18 | ||
| 11115 - GASKET, CYLINDER HEAD | ||||
| 11115-58070 |
14B..BB42 T=1.50 |
1 | ||
| 11115-58100 |
14B..BB42 T=1.70 |
1 | ||
| 11115-58090 |
14B..BB42 T=1.60 |
1 | ||
| 11115-58090 |
14B..BB42..22S;14B..BB42..WOC..GCC;14B..BB42..RHD..HRF..WOC T=1.60 |
1 | ||
| 11115-58070 |
14B..BB42..22S;14B..BB42..WOC..GCC;14B..BB42..RHD..HRF..WOC T=1.50 |
1 | ||
| 11115-58100 |
14B..BB42..22S;14B..BB42..WOC..GCC;14B..BB42..RHD..HRF..WOC T=1.70 |
1 | ||
| 11116A - PLUG, TIGHT, NO.1 | ||||
| 90331-12004 |
14B,3B..BB40,42 |
4 | ||
| 90331-12004 |
14B..BB42..22S;14B..BB42..WOC..GCC;14B..BB42..RHD..HRF..WOC |
4 | ||
| 96411-41200 |
14B,3B..BB4# |
4 | ||
| 11116B - PLUG, TIGHT, NO.2 | ||||
| 96411-44000 |
14B,3B..BB4# |
4 | ||
| 96411-64000 |
14B,3B..BB4# |
4 | ||
| 96411-64000 |
14B..BB42..22S;14B..BB42..WOC..GCC;14B..BB42..RHD..HRF..WOC |
4 | ||
| 11116C - PLUG, TIGHT, NO.3 | ||||
| 96411-62000 |
14B..BB42..22S;14B..BB42..WOC..GCC;14B..BB42..RHD..HRF..WOC |
1 | ||
| 90331-21001 |
14B..BB42 |
1 | ||
| 96411-62000 |
14B..BB42 |
1 | ||
| 11116C - PLUG, TIGHT, NO.3 | ||||
| 96411-62000 |
14B..BB42..22S;14B..BB42..WOC..GCC;14B..BB42..RHD..HRF..WOC |
1 | ||
| 90331-21001 |
14B..BB42 |
1 | ||
| 96411-62000 |
14B..BB42 |
1 | ||
| 11116D - PLUG, TIGHT, NO.4 | ||||
| 96411-42800 |
14B,3B..BB4# |
3 | ||
| 96411-62800 |
14B..BB42..22S;14B..BB42..WOC..GCC;14B..BB42..RHD..HRF..WOC |
3 | ||
| 96411-62800 |
14B,3B..BB40,42 |
3 | ||
| 11116E - PLUG, TIGHT, NO.5 | ||||
| 96411-64000 |
14B,3B..BB4# |
1 | ||
| 96411-44000 |
14B,3B..BB4# |
1 | ||
| 96411-64000 |
14B..BB42..22S;14B..BB42..WOC..GCC;14B..BB42..RHD..HRF..WOC |
1 | ||
| 11117A - PLUG, W/HEAD TAPER SCREW, NO.1 | ||||
| 90345-54005 |
14B,3B..BB40,42;15BFT..BB50..EUR |
1 | ||
| 90345-54005 |
14B..BB42..22S;14B..BB42..WOC..GCC;14B..BB42..RHD..HRF..WOC |
1 | ||
| 11117B - PLUG, W/HEAD TAPER SCREW, NO.2 | ||||
| 90345-54005 |
14B..BB42..GCC,GEN |
1 | ||
| 90345-54005 |
14B..BB42 |
1 | ||
| 90345-54005 |
14B..BB42..22S;14B..BB42..WOC..GCC;14B..BB42..RHD..HRF..WOC |
1 | ||
| 11122 - BUSH, INTAKE VALVE GUIDE | ||||
| 11122-56030 |
14B,3B..BB40,42 STD |
4 | ||
| 11122-56030 |
14B..BB42..22S;14B..BB42..WOC..GCC;14B..BB42..RHD..HRF..WOC STD |
4 | ||
| 11126 - BUSH, EXHAUST VALVE GUIDE | ||||
| 11122-56030 |
14B,3B..BB40,42 STD |
4 | ||
| 11122-56030 |
14B..BB42..22S;14B..BB42..WOC..GCC;14B..BB42..RHD..HRF..WOC STD |
4 | ||
| 11158 - BOLT, STUD(FOR HEAD TO CYLINDER HEAD COVER) | ||||
| 92112-60850 |
14B..BB42..22S;14B..BB42..WOC..GCC;14B..BB42..RHD..HRF..WOC |
2 | ||
| 92112-60850 |
14B,3B..BB40,42 |
2 | ||
| 90116-08282 |
14B,3B..BB4# L=60 |
6 | ||
| 11201 - COVER SUB-ASSY, CYLINDER HEAD | ||||
| 11201-56101 |
14B,3B..BB4# |
1 | ||
| 11201-58050 |
14B,3B..BB40,42 |
1 | ||
| 11201-58050 |
14B..BB42..22S;14B..BB42..WOC..GCC;14B..BB42..RHD..HRF..WOC |
1 | ||
| 11201A - NUT, CAP(FOR CYLINDER HEAD COVER) | ||||
| 90179-08159 |
14B,3B..BB4# |
6 | ||
| 90179-08025 |
14B,15BFT,3B..BB4#,5# |
2 | ||
| 90179-08040 |
14B,15BFT,3B..BB4#,5# |
2 | ||
| 90179-08040 |
14B..BB42..WOC..GCC;15BFT..BB50..WOC..5F;15BFT..BB50..EX..GEN;14B..BB42..RHD..HRF..WOC;14B,15BFT..BB4#,50..17S,19S,22S |
2 | ||
| 90176-08038 |
14B,3B..BB4# |
6 | ||
| 11201H - BOLT(FOR CYLINDER HEAD COVER) | ||||
| 91511-60850 |
14B,3B..BB40,42 |
4 | ||
| 91511-B0850 |
14B..BB42..22S;14B..BB42..WOC..GCC;14B..BB42..RHD..HRF..WOC |
4 | ||
| 11212A - CUSHION, CYLINDER HEAD COVER | ||||
| 11228-56010 |
14B..BB42..WOC..GCC;15BFT..BB50..WOC..5F;15BFT..BB50..EX..GEN;14B..BB42..RHD..HRF..WOC;14B,15BFT..BB4#,50..17S,19S,22S |
6 | ||
| 11228-56010 |
14B,15BFT,3B..BB4#,5# |
6 | ||
| 11212A - CUSHION, CYLINDER HEAD COVER | ||||
| 11228-56010 |
14B..BB42..WOC..GCC;15BFT..BB50..WOC..5F;15BFT..BB50..EX..GEN;14B..BB42..RHD..HRF..WOC;14B,15BFT..BB4#,50..17S,19S,22S |
6 | ||
| 11228-56010 |
14B,15BFT,3B..BB4#,5# |
6 | ||
| 11213 - GASKET, CYLINDER HEAD COVER | ||||
| 11213-58030 |
14B,3B..BB40,42 |
1 | ||
| 11213-58030 |
14B..BB42..22S;14B..BB42..WOC..GCC;14B..BB42..RHD..HRF..WOC |
1 | ||
| 11213-56030 |
14B,3B..BB4# |
1 | ||
| 12108 - CAP SUB-ASSY, OIL FILLER | ||||
| 12180-13030 |
14B,3B..BB4# |
1 | ||
| 12180-55010 |
14B,15BFT,3B..BB4#,5# |
1 | ||
| 12180-55010 |
14B..BB42..WOC..GCC;15BFT..BB50..WOC..5F;15BFT..BB50..EX..GEN;14B..BB42..RHD..HRF..WOC;14B,15BFT..BB4#,50..17S,19S,22S |
1 | ||
| 12108A - GASKET(FOR OIL FILLER CAP) | ||||
| 90430-37140 |
14B,15BFT,3B..BB4#,5# |
1 | ||
| 90430-37140 |
14B..BB42..WOC..GCC;15BFT..BB50..WOC..5F;15BFT..BB50..EX..GEN;14B..BB42..RHD..HRF..WOC;14B,15BFT..BB4#,50..17S,19S,22S |
1 | ||
| Linked diagrams | ||||
| 1603 | ||||
| 1701 | ||||

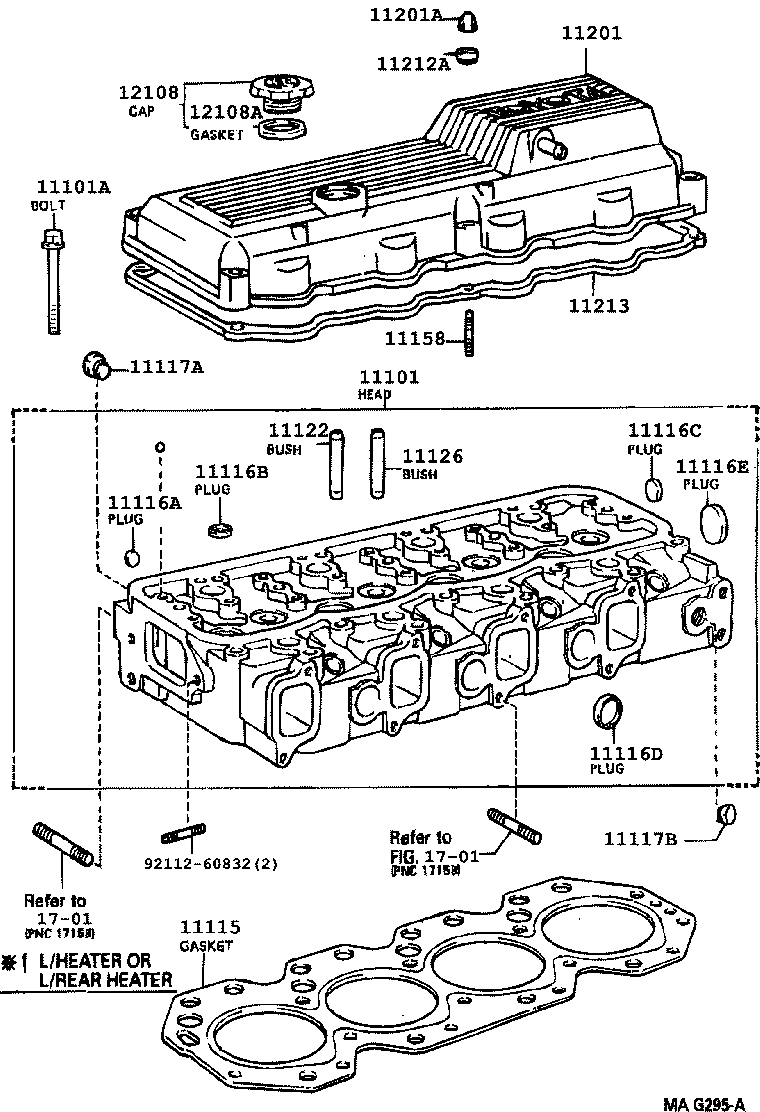

(9301-9505)14B,3B
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11101 - HEAD SUB-ASSY, CYLINDER | ||||
| 11101-58040 |
14B..BB42 |
1 | ||
| 11101-58041 |
14B..BB42 |
1 | ||
| 11101-58041 |
14B..BB42..22S;14B..BB42..WOC..GCC;14B..BB42..RHD..HRF..WOC |
1 | ||
| 11101A - BOLT(FOR CYLINDER HEAD SET) | ||||
| 90910-02084 |
14B..BB42..WOC..GCC;15BFT..BB50..WOC..5F;15BFT..BB50..EX..GEN;14B..BB42..RHD..HRF..WOC;14B,15BFT..BB4#,50..17S,19S,22S |
18 | ||
| 90910-02084 |
14B,15BFT,3B..BB4#,5# |
18 | ||
| 11115 - GASKET, CYLINDER HEAD | ||||
| 11115-58070 |
14B..BB42 T=1.50 |
1 | ||
| 11115-58100 |
14B..BB42 T=1.70 |
1 | ||
| 11115-58090 |
14B..BB42 T=1.60 |
1 | ||
| 11115-58090 |
14B..BB42..22S;14B..BB42..WOC..GCC;14B..BB42..RHD..HRF..WOC T=1.60 |
1 | ||
| 11115-58070 |
14B..BB42..22S;14B..BB42..WOC..GCC;14B..BB42..RHD..HRF..WOC T=1.50 |
1 | ||
| 11115-58100 |
14B..BB42..22S;14B..BB42..WOC..GCC;14B..BB42..RHD..HRF..WOC T=1.70 |
1 | ||
| 11116A - PLUG, TIGHT, NO.1 | ||||
| 90331-12004 |
14B,3B..BB40,42 |
4 | ||
| 90331-12004 |
14B..BB42..22S;14B..BB42..WOC..GCC;14B..BB42..RHD..HRF..WOC |
4 | ||
| 96411-41200 |
14B,3B..BB4# |
4 | ||
| 11116B - PLUG, TIGHT, NO.2 | ||||
| 96411-44000 |
14B,3B..BB4# |
4 | ||
| 96411-64000 |
14B,3B..BB4# |
4 | ||
| 96411-64000 |
14B..BB42..22S;14B..BB42..WOC..GCC;14B..BB42..RHD..HRF..WOC |
4 | ||
| 11116C - PLUG, TIGHT, NO.3 | ||||
| 96411-62000 |
14B..BB42..22S;14B..BB42..WOC..GCC;14B..BB42..RHD..HRF..WOC |
1 | ||
| 90331-21001 |
14B..BB42 |
1 | ||
| 96411-62000 |
14B..BB42 |
1 | ||
| 11116D - PLUG, TIGHT, NO.4 | ||||
| 96411-42800 |
14B,3B..BB4# |
3 | ||
| 96411-62800 |
14B..BB42..22S;14B..BB42..WOC..GCC;14B..BB42..RHD..HRF..WOC |
3 | ||
| 96411-62800 |
14B,3B..BB40,42 |
3 | ||
| 11116E - PLUG, TIGHT, NO.5 | ||||
| 96411-64000 |
14B,3B..BB4# |
1 | ||
| 96411-44000 |
14B,3B..BB4# |
1 | ||
| 96411-64000 |
14B..BB42..22S;14B..BB42..WOC..GCC;14B..BB42..RHD..HRF..WOC |
1 | ||
| 11117A - PLUG, W/HEAD TAPER SCREW, NO.1 | ||||
| 90345-54005 |
14B,3B..BB40,42;15BFT..BB50..EUR |
1 | ||
| 90345-54005 |
14B..BB42..22S;14B..BB42..WOC..GCC;14B..BB42..RHD..HRF..WOC |
1 | ||
| 11117B - PLUG, W/HEAD TAPER SCREW, NO.2 | ||||
| 90345-54005 |
14B..BB42..GCC,GEN |
1 | ||
| 90345-54005 |
14B..BB42 |
1 | ||
| 90345-54005 |
14B..BB42..22S;14B..BB42..WOC..GCC;14B..BB42..RHD..HRF..WOC |
1 | ||
| 11122 - BUSH, INTAKE VALVE GUIDE | ||||
| 11122-56030 |
14B,3B..BB40,42 STD |
4 | ||
| 11122-56030 |
14B..BB42..22S;14B..BB42..WOC..GCC;14B..BB42..RHD..HRF..WOC STD |
4 | ||
| 11126 - BUSH, EXHAUST VALVE GUIDE | ||||
| 11122-56030 |
14B,3B..BB40,42 STD |
4 | ||
| 11122-56030 |
14B..BB42..22S;14B..BB42..WOC..GCC;14B..BB42..RHD..HRF..WOC STD |
4 | ||
| 11158 - BOLT, STUD(FOR HEAD TO CYLINDER HEAD COVER) | ||||
| 92112-60850 |
14B..BB42..22S;14B..BB42..WOC..GCC;14B..BB42..RHD..HRF..WOC |
2 | ||
| 92112-60850 |
14B,3B..BB40,42 |
2 | ||
| 90116-08282 |
14B,3B..BB4# L=60 |
6 | ||
| 11201 - COVER SUB-ASSY, CYLINDER HEAD | ||||
| 11201-56101 |
14B,3B..BB4# |
1 | ||
| 11201-58050 |
14B,3B..BB40,42 |
1 | ||
| 11201-58050 |
14B..BB42..22S;14B..BB42..WOC..GCC;14B..BB42..RHD..HRF..WOC |
1 | ||
| 11201A - NUT, CAP(FOR CYLINDER HEAD COVER) | ||||
| 90179-08159 |
14B,3B..BB4# |
6 | ||
| 90179-08025 |
14B,15BFT,3B..BB4#,5# |
2 | ||
| 90179-08040 |
14B,15BFT,3B..BB4#,5# |
2 | ||
| 90179-08040 |
14B..BB42..WOC..GCC;15BFT..BB50..WOC..5F;15BFT..BB50..EX..GEN;14B..BB42..RHD..HRF..WOC;14B,15BFT..BB4#,50..17S,19S,22S |
2 | ||
| 90176-08038 |
14B,3B..BB4# |
6 | ||
| 11212A - CUSHION, CYLINDER HEAD COVER | ||||
| 11228-56010 |
14B..BB42..WOC..GCC;15BFT..BB50..WOC..5F;15BFT..BB50..EX..GEN;14B..BB42..RHD..HRF..WOC;14B,15BFT..BB4#,50..17S,19S,22S |
6 | ||
| 11228-56010 |
14B,15BFT,3B..BB4#,5# |
6 | ||
| 11213 - GASKET, CYLINDER HEAD COVER | ||||
| 11213-58030 |
14B,3B..BB40,42 |
1 | ||
| 11213-58030 |
14B..BB42..22S;14B..BB42..WOC..GCC;14B..BB42..RHD..HRF..WOC |
1 | ||
| 11213-56030 |
14B,3B..BB4# |
1 | ||
| 12108 - CAP SUB-ASSY, OIL FILLER | ||||
| 12180-13030 |
14B,3B..BB4# |
1 | ||
| 12180-55010 |
14B,15BFT,3B..BB4#,5# |
1 | ||
| 12180-55010 |
14B..BB42..WOC..GCC;15BFT..BB50..WOC..5F;15BFT..BB50..EX..GEN;14B..BB42..RHD..HRF..WOC;14B,15BFT..BB4#,50..17S,19S,22S |
1 | ||
| 12108A - GASKET(FOR OIL FILLER CAP) | ||||
| 90430-37140 |
14B,15BFT,3B..BB4#,5# |
1 | ||
| 90430-37140 |
14B..BB42..WOC..GCC;15BFT..BB50..WOC..5F;15BFT..BB50..EX..GEN;14B..BB42..RHD..HRF..WOC;14B,15BFT..BB4#,50..17S,19S,22S |
1 | ||
| Common parts | ||||
| 92112-60832 | ||||
| Linked diagrams | ||||
| 1701 | ||||
