BB42R-BRMSS (2011)
Toyota Coaster

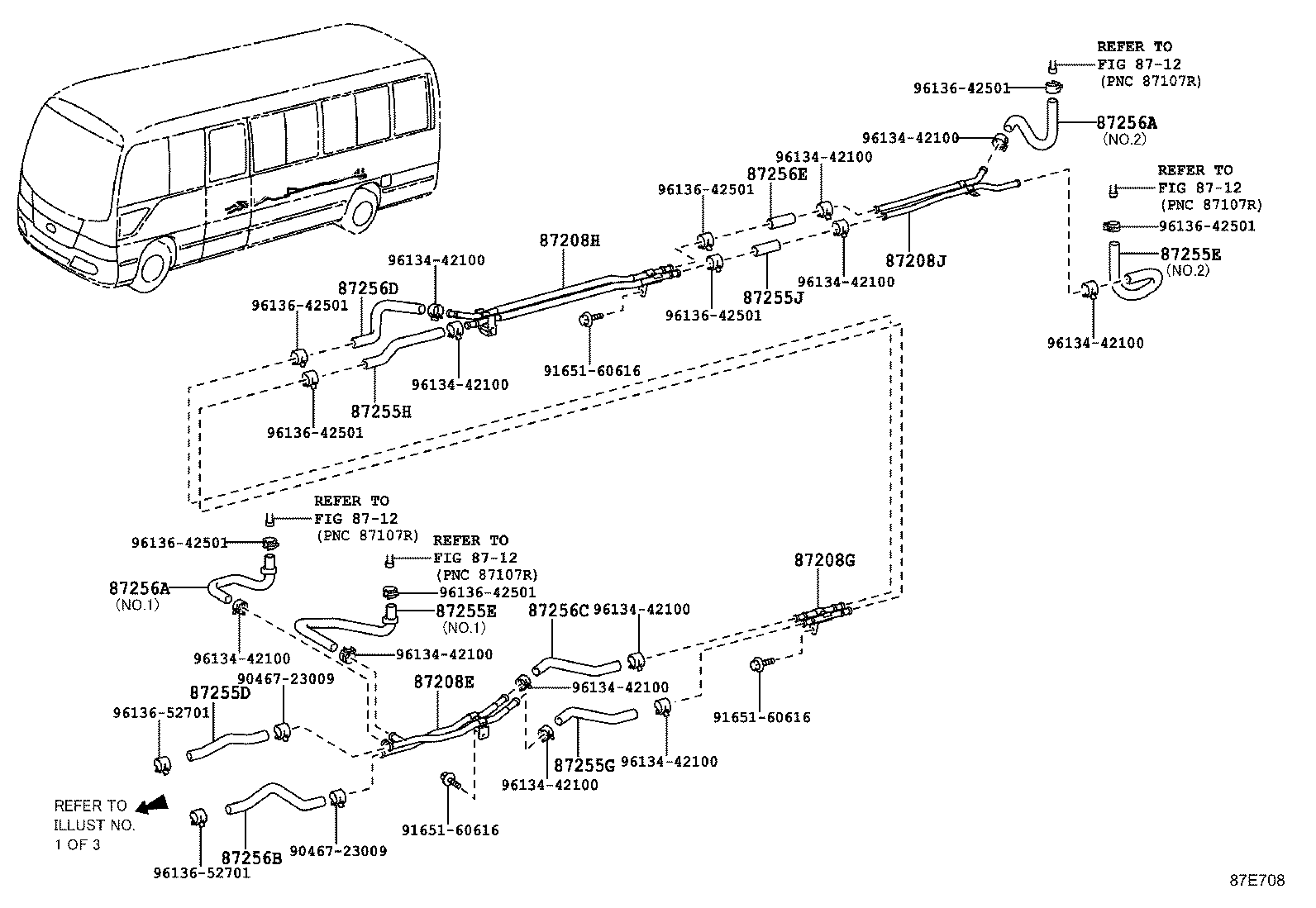

ILLUST NO. 2 OF 3(1501- )BB42..RHD
REAR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87208E - PIPE SUB-ASSY, HEATER WATER, E | ||||
| 87208-36D30 |
BB42,HZB50..RHD |
1 | ||
| 87208G - PIPE SUB-ASSY, HEATER WATER, G | ||||
| 87208-36540 |
BB4#,HZB50..RHD..(ARL,EUR,GEN) |
1 | ||
| 87208-36670 |
HZB50..LHD;BB42,TRB40,50,XZB40,50..(21S,26S,30S)..(GCC,GEN,TAIW) |
1 | ||
| 87208H - PIPE SUB-ASSY, HEATER WATER, H | ||||
| 87208-36590 |
BB4#..RHD..(ARL,GEN) |
1 | ||
| 87208-36D90 |
BB42..RHD |
1 | ||
| 87208J - PIPE SUB-ASSY, HEATER WATER, J | ||||
| 87208-36530 |
BB4#,HZB50..ARL,EUR,GCC,GEN |
1 | ||
| 87208-36690 |
BB42,HZB50,XZB50..RHD..(DX,STD) |
1 | ||
| 87255D - HOSE, REAR HEATER WATER INLET, D | ||||
| 87245-36G10 |
BB42,HZB50..RHD |
1 | ||
| 87255E - HOSE, REAR HEATER WATER INLET, E(TO HEATER UNIT) | ||||
| 87245-3B680 |
BB4#..RHD..(19S,26S);HZB50..RHD..(DX,STD) |
1 | ||
| 87245-36G30 |
BB42,HZB50..RHD NO.1 |
1 | ||
| 87245-3C560 |
BB42,HZB50,XZB50..RHD..(DX,STD) NO.2 |
1 | ||
| 87255E - HOSE, REAR HEATER WATER INLET, E(TO HEATER UNIT) | ||||
| 87245-3B680 |
BB4#..RHD..(19S,26S);HZB50..RHD..(DX,STD) |
1 | ||
| 87245-36G30 |
BB42,HZB50..RHD NO.1 |
1 | ||
| 87245-3C560 |
BB42,HZB50,XZB50..RHD..(DX,STD) NO.2 |
1 | ||
| 87255G - HOSE, REAR HEATER WATER INLET, G | ||||
| 87245-36G70 |
BB42..RHD |
1 | ||
| 87255H - HOSE, HEATER WATER INLET, H | ||||
| 87245-3B660 |
BB4#,HZB50..RHD..(ARL,EUR,GEN) |
1 | ||
| 87245-36K30 |
BB42..RHD |
1 | ||
| 87255J - HOSE, HEATER WATER INLET, J | ||||
| 87245-3B820 |
BB4#..RHD..(ARL,GEN) |
1 | ||
| 87245-3C710 |
BB42,HZB50,XZB50..RHD..(DX,STD) |
1 | ||
| 87256A - HOSE, REAR HEATER WATER OUTLET, A (FROM HEATER UNIT) | ||||
| 87245-3C550 |
BB42,HZB50,XZB50..RHD..(DX,STD) NO.2 |
1 | ||
| 87245-36G20 |
BB42,HZB50..RHD NO.1 |
1 | ||
| 87256A - HOSE, REAR HEATER WATER OUTLET, A (FROM HEATER UNIT) | ||||
| 87245-3C550 |
BB42,HZB50,XZB50..RHD..(DX,STD) NO.2 |
1 | ||
| 87245-36G20 |
BB42,HZB50..RHD NO.1 |
1 | ||
| 87256B - HOSE, REAR HEATER WATER OUTLET, B | ||||
| 87245-36G00 |
BB42,HZB50..RHD |
1 | ||
| 87256C - HOSE, REAR HEATER WATER OUTLET, C | ||||
| 87245-36G60 |
BB42..RHD |
1 | ||
| 87256D - HOSE, REAR HEATER WATER OUTLET, D | ||||
| 87245-36K40 |
BB42..RHD |
1 | ||
| 87256E - HOSE, REAR HEATER WATER OUTLET, E (TO ENGINE) | ||||
| 87245-3C710 |
BB42,HZB50,XZB50..RHD..(DX,STD) |
1 | ||
| Common parts | ||||
| 90467-23009 | ||||
| 91651-60616 | ||||
| 96134-42100 | ||||
| 96136-42501 | ||||
| 96136-52701 | ||||
| Linked diagrams | ||||
| 8712 | ||||
ILLUST NO. 1 OF 3(1501- )BB42..RHD
FRONT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87208 - PIPE SUB-ASSY, HEATER WATER | ||||
| 87208-36390 |
BB4#..RHD..(ARL,GEN) |
1 | ||
| 87208-36392 |
BB42..RHD |
1 | ||
| 87208A - PIPE SUB-ASSY, HEATER WATER, A | ||||
| 87208-36190 |
BB42..WC..GCC;BB42..LHD..WOC;BB42..RHD..GEN;BB40,RZB40,50..ARL,GCC |
1 | ||
| 87208-36C50 |
BB42..RHD |
1 | ||
| 87240 - VALVE ASSY, HEATER WATER | ||||
| 87240-36030 |
HZB50..30S..4FC;BB4#,50,HZB50,RZB40,50..(ARL,EUR,GCC,GEN)..5F W(REAR HEATER) |
1 | ||
| 87240-36120 |
BB42,HZB50,TRB40,50,XZB40,50..21S,26S,30S |
1 | ||
| 87245A - HOSE, HEATER WATER, INLET A | ||||
| 87245-3B430 |
BB4#..ARL,GCC,GEN W(REAR HEATER) |
1 | ||
| 87245-3B432 |
BB42..RHD |
1 | ||
| 87245B - HOSE, HEATER WATER, INLET B | ||||
| 87245-3C360 |
BB42,HZB50..RHD |
1 | ||
| 87245X - HOSE, HEATER WATER | ||||
| 87245-3B230 |
BB4#..RHD..(19S,26S);HZB50..RHD..(DX,STD) NO.1 |
1 | ||
| 99556-30100 |
BB4#..RHD..(19S,26S);HZB50..RHD..(DX,STD) *H,L=85,NO.3 |
2 | ||
| 99556-30100 |
HZB50..30S..4FC;BB4#,50,HZB50,RZB40,50..(ARL,EUR,GCC,GEN)..5F *H,L=55 |
1 | ||
| 87245-3B220 |
BB4#..RHD..(19S,26S);HZB50..RHD..(DX,STD) NO.2 |
1 | ||
| 87245-3C410 |
BB42,HZB50,TRB40,50,XZB40,50..21S,26S,30S |
1 | ||
| 87246A - HOSE, HEATER WATER, OUTLET A | ||||
| 87245-3B400 |
BB4#,HZB50..RHD |
1 | ||
| 87245-3C370 |
BB42,HZB50..RHD |
1 | ||
| 87246B - HOSE, HEATER WATER, OUTLET B | ||||
| 87245-3B410 |
BB42..RHD..GEN;BB40,HZB50..RHD |
1 | ||
| 87245-3C380 |
HZB50..RHD;BB42,XZB40,50..21S,26S,30S |
1 | ||
| 87246E - HOSE, HEATER WATER, OUTLET E | ||||
| 87245-3B440 |
BB4#..ARL,GCC,GEN |
1 | ||
| 87245-3B442 |
BB42..RHD |
1 | ||
| 87251C - JOINT, WATER HOSE THROUGH | ||||
| 87251-30200 |
BB4#..RHD;BB42..GCC |
1 | ||
| 87251-30200 |
BB42 |
1 | ||
| 87251D - JOINT, WATER, NO.1 | ||||
| 87251-60010 |
BB4# |
1 | ||
| 87251-95403 |
BB42 |
1 | ||
| 87251E - JOINT, WATER, NO.2 | ||||
| 87251-90B00 |
BB4# |
1 | ||
| 87251-95400 |
BB42 |
1 | ||
| 87255A - HOSE, REAR HEATER WATER INLET, A(FROM ENGINE) | ||||
| 87245-36180 |
BB4#..ARL,GCC,GEN |
1 | ||
| 87245-36181 |
BB42 |
1 | ||
| Common parts | ||||
| 87124-36130 | ||||
| 90179-06206 | ||||
| 91651-60616 | ||||
| 96136-42501 | ||||
| 96136-52701 | ||||
| 96138-42501 | ||||
| Linked diagrams | ||||
| 1104 | ||||
| 1601 | ||||
| 1603 | ||||
| 8712 | ||||
