BB42R-BRMSS (2011)
Toyota Coaster
ILLUST NO. 1 OF 4(9301- )
HEATER CONTROL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55519 - PLATE, HEATER CONTROL NAME | ||||
| 55519-36020 |
RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;BB4#,5#,RZB40..WC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL |
1 | ||
| 55519-36020 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5#..WC |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-36030 |
BB42..RHD..SRF..WC FRONT MANUAL HEATER |
8 | ||
| 55905-36030 |
BB42,HZB50,TRB40,50,XZB40,50..(26S,30S)..WC |
2 | ||
| 55905-36030 |
BB42,HZB50,TRB40,50,XZB40,50..(21S,26S,30S)..WC FRONT MANUAL HEATER |
8 | ||
| 55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL | ||||
| 55906-36070 |
BB4#,50,HZB50..RHD |
1 | ||
| 55906-36070 |
BB42,BZB40,50,HZB50,XZB40,5#..RHD |
1 | ||
| 55907A - CABLE SUB-ASSY, WATER VALVE CONTROL | ||||
| 55907-36070 |
BB4#,HZB50..RHD |
1 | ||
| 55907-36070 |
BB42,HZB50,XZB5#..RHD |
1 | ||
| 55907F - CABLE SUB-ASSY, WATER VALVE CONTROL | ||||
| 55907-36050 |
HZB50..RHD..(ARL,EUR,GEN)..5F;BB40,42,50..RHD..STD..(ARL,EUR,GEN) |
1 | ||
| 55907-36050 |
BB42,HZB50,XZB50..RHD..(DX,STD) |
1 | ||
| 55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL | ||||
| 55908-36040 |
BB4#,5#,HZB50,RZB40,50 |
1 | ||
| 55908-36040 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# |
1 | ||
| 55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR | ||||
| 55910-36140 |
RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;HZB50..LHD..SRF..WC;BB42,RZB40..WC..(GCC,GEN);HZB50..HRF..WC..(GCC,GEN)..5F W/O(HEATER),MARK E |
1 | ||
| 55910-36140 |
BB42,HZB50,TRB40,50,XZB40,50..(26S,30S)..WC MARK E |
1 | ||
| 55910-36121 |
BB42,HZB50..RHD..WC FRONT MANUAL HEATER,MARK A |
1 | ||
| Common parts | ||||
| 82711-22270 | ||||
| 90179-06206 | ||||
| 90189-04088 | ||||
| 90461-10723 | ||||
| 90461-10731 | ||||
| 90464-00298 | ||||
| 90464-00401 | ||||
| 90464-00458 | ||||
| 90464-00509 | ||||
| 90949-01C82 | ||||
| 91651-60616 | ||||
| 91656-60616 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 8401 | ||||

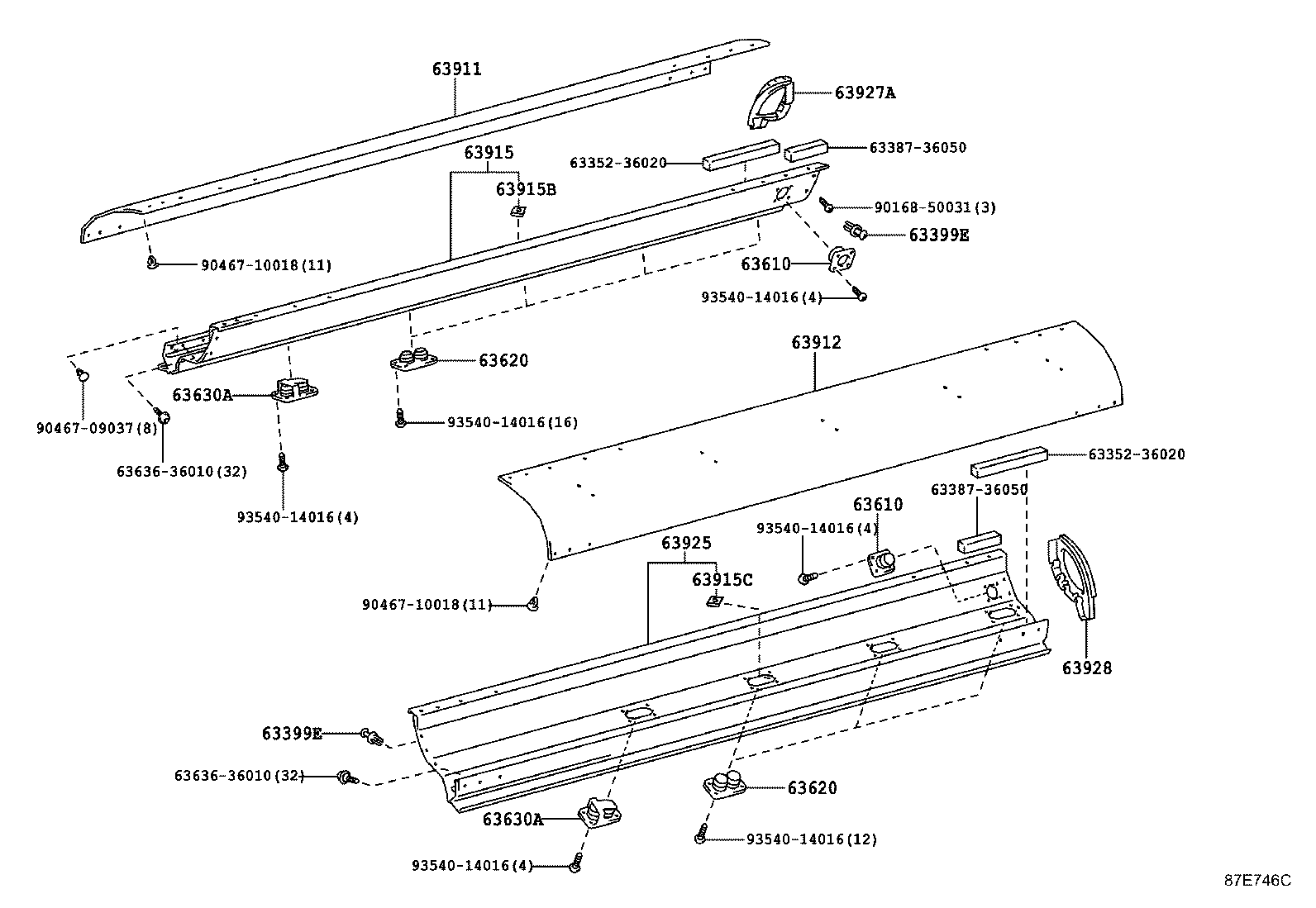

ILLUST NO. 4 OF 4(1501- )BB42..RHD
ROOF AIR DUCT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63399E - CLIP, ROOF HEADLINING | ||||
| 63399-36030A0 |
RZB50..GCC;BB4#,RZB40..WC;HZB50..GCC..4FC;RZB50..HRF..GEN;HZB50..LHD..WC..5F..DSL IVORY,TRIM4# |
16 | ||
| 63399-36030B0 |
BB42,HZB50,TRB40,50,XZB40..SRF..WC MD.CHARCOAL,TRIM1# |
16 | ||
| 63399E - CLIP, ROOF HEADLINING | ||||
| 63399-36030A0 |
RZB50..GCC;BB4#,RZB40..WC;HZB50..GCC..4FC;RZB50..HRF..GEN;HZB50..LHD..WC..5F..DSL IVORY,TRIM4# |
16 | ||
| 63399-36030B0 |
BB42,HZB50,TRB40,50,XZB40..SRF..WC MD.CHARCOAL,TRIM1# |
16 | ||
| 63610 - REGISTER ASSY, AIR OUTLET, NO.1 | ||||
| 63610-90B00B0 |
BB42,HZB50,TRB40,50,XZB40..SRF..WC MD.CHARCOAL,TRIM1# |
6 | ||
| 63610 - REGISTER ASSY, AIR OUTLET, NO.1 | ||||
| 63610-90B00B0 |
BB42,HZB50,TRB40,50,XZB40..SRF..WC MD.CHARCOAL,TRIM1# |
6 | ||
| 63620 - REGISTER ASSY, AIR OUTLET, NO.2 | ||||
| 63620-90B00A0 |
BB42,RZB40..SRF..WC IVORY,TRIM4# |
9 | ||
| 63640-36010B0 |
BB42,TRB40,XZB40..SRF..WC MD.CHARCOAL,TRIM1# |
9 | ||
| 63620 - REGISTER ASSY, AIR OUTLET, NO.2 | ||||
| 63620-90B00A0 |
BB42,RZB40..SRF..WC IVORY,TRIM4# |
9 | ||
| 63640-36010B0 |
BB42,TRB40,XZB40..SRF..WC MD.CHARCOAL,TRIM1# |
9 | ||
| 63630A - REGISTER ASSY, AIR DUCT, NO.3 | ||||
| 63630-36010A0 |
BB4#..WC;HZB50..GCC..4FC;HZB50..LHD..SRF..WC;HZB50..HRF..WC..5F..DSL IVORY,TRIM4# |
2 | ||
| 63630-36010B0 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5#..WC MD.CHARCOAL,TRIM1# |
2 | ||
| 63630A - REGISTER ASSY, AIR DUCT, NO.3 | ||||
| 63630-36010A0 |
BB4#..WC;HZB50..GCC..4FC;HZB50..LHD..SRF..WC;HZB50..HRF..WC..5F..DSL IVORY,TRIM4# |
2 | ||
| 63630-36010B0 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5#..WC MD.CHARCOAL,TRIM1# |
2 | ||
| 63911 - DUCT, COOLER, OUTER RH | ||||
| 63911-36030 |
BB42,RZB40..SRF..WC |
1 | ||
| 63911-36110 |
BB42,TRB40,XZB40..SRF..WC |
1 | ||
| 63912 - DUCT, COOLER, OUTER LH | ||||
| 63911-36030 |
BB42,RZB40..SRF..WC |
1 | ||
| 63911-36110 |
BB42,TRB40,XZB40..SRF..WC |
1 | ||
| 63915 - DUCT, COOLER, INNER NO.1 RH | ||||
| 63915-36050A0 |
BB42,RZB40..SRF..WC IVORY,TRIM4# |
1 | ||
| 63915-36030A0 |
BB4#..RHD..WC IVORY,TRIM4# |
1 | ||
| 63915-36340B0 |
BB42..RHD..SRF..WC MD.CHARCOAL,TRIM1# |
1 | ||
| 63915-36340B0 |
BB42..RHD..WC MD.CHARCOAL,TRIM1# |
1 | ||
| 63915B - NUT, SPRING | ||||
| 90183-04056 |
HZB50,TRB50..SRF..WC;BB42,BZB50,HZB50,XZB50..RHD..WC |
24 | ||
| 63915C - NUT, SPRING, NO.2 | ||||
| 90183-04056 |
TRB40..HRF;BB42..RHD..WC |
20 | ||
| 63925 - DUCT, COOLER, INNER NO.1 LH | ||||
| 63925-36030A0 |
BB4#..RHD..WC IVORY,TRIM4# |
1 | ||
| 63925-36050A0 |
BB42,RZB40..SRF..WC IVORY,TRIM4# |
1 | ||
| 63925-36340B0 |
BB42..RHD..SRF..WC MD.CHARCOAL,TRIM1# |
1 | ||
| 63925-36340B0 |
BB42..RHD..WC MD.CHARCOAL,TRIM1# |
1 | ||
| 63927A - COVER, COOLER DUCT END, NO.1 | ||||
| 63927-36050 |
BB42,HZB50,TRB40,50,XZB40..SRF..WC |
1 | ||
| 63928 - COVER, COOLER DUCT END, NO.2 | ||||
| 63928-36050 |
BB42,HZB50,TRB40,50,XZB40..SRF..WC |
1 | ||
| Common parts | ||||
| 63352-36020 | ||||
| 63387-36050 | ||||
| 63636-36010 | ||||
| 90168-50031 | ||||
| 90467-09037 | ||||
| 90467-10018 | ||||
| 93540-14016 | ||||
ILLUST NO. 3 OF 4(1501- )
DUCT W/O(DESTINATION EXPRESS BOX)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63610 - REGISTER ASSY, AIR OUTLET, NO.1 | ||||
| 63610-90B00B0 |
BB42,HZB50,TRB40,50,XZB40..SRF..WC MD.CHARCOAL,TRIM1# |
6 | ||
| 63610 - REGISTER ASSY, AIR OUTLET, NO.1 | ||||
| 63610-90B00B0 |
BB42,HZB50,TRB40,50,XZB40..SRF..WC MD.CHARCOAL,TRIM1# |
6 | ||
| 63610 - REGISTER ASSY, AIR OUTLET, NO.1 | ||||
| 63610-90B00B0 |
BB42,HZB50,TRB40,50,XZB40..SRF..WC MD.CHARCOAL,TRIM1# |
6 | ||
| 63610 - REGISTER ASSY, AIR OUTLET, NO.1 | ||||
| 63610-90B00B0 |
BB42,HZB50,TRB40,50,XZB40..SRF..WC MD.CHARCOAL,TRIM1# |
6 | ||
| 63620 - REGISTER ASSY, AIR OUTLET, NO.2 | ||||
| 63620-90B00A0 |
BB42,RZB40..SRF..WC IVORY,TRIM4# |
9 | ||
| 63640-36010B0 |
BB42,TRB40,XZB40..SRF..WC MD.CHARCOAL,TRIM1# |
9 | ||
| 63620 - REGISTER ASSY, AIR OUTLET, NO.2 | ||||
| 63620-90B00A0 |
BB42,RZB40..SRF..WC IVORY,TRIM4# |
9 | ||
| 63640-36010B0 |
BB42,TRB40,XZB40..SRF..WC MD.CHARCOAL,TRIM1# |
9 | ||
| 63620 - REGISTER ASSY, AIR OUTLET, NO.2 | ||||
| 63620-90B00A0 |
BB42,RZB40..SRF..WC IVORY,TRIM4# |
9 | ||
| 63640-36010B0 |
BB42,TRB40,XZB40..SRF..WC MD.CHARCOAL,TRIM1# |
9 | ||
| 63620 - REGISTER ASSY, AIR OUTLET, NO.2 | ||||
| 63620-90B00A0 |
BB42,RZB40..SRF..WC IVORY,TRIM4# |
9 | ||
| 63640-36010B0 |
BB42,TRB40,XZB40..SRF..WC MD.CHARCOAL,TRIM1# |
9 | ||
| 87106K - SERVO SUB-ASSY, DAMPER(FOR AIRMIX) | ||||
| 87106-36060 |
HZB50..GCC..4FC;HZB50..LHD..WC..TD;HZB50..LHD..SRF..WC;HZB50..HRF..WC..5F..DSL;BB4#..WC..(ARL,GCC,GEN) |
1 | ||
| 87106-36051 |
BZB40,50,TRB40,50,XZB40,5#..WC |
1 | ||
| 87106-36061 |
BB42,HZB50..WC |
1 | ||
| 88430A - DUCT ASSY, AIR, NO.1 | ||||
| 88430-36130 |
BB42,HZB50,TRB40,50,XZB40..SRF..WC |
1 | ||
| 88430B - DUCT ASSY, AIR, NO.2 | ||||
| 88430-36260 |
BB42,HZB50,TRB40,50,XZB40..SRF..WC |
1 | ||
| 88430C - DUCT ASSY, AIR, NO.3 | ||||
| 88430-36011 |
BB42,HZB50..SRF..WC |
1 | ||
| 88430D - DUCT ASSY, AIR, NO.4 | ||||
| 88430-36021 |
BB42,HZB50..SRF..WC |
1 | ||
| 88568A - FILTER, AIR | ||||
| 88568-36010 |
HZB50..GCC..4FC;HZB50..LHD..WC..TD;HZB50..LHD..SRF..WC;HZB50..HRF..WC..5F..DSL;BB4#..WC..(ARL,GCC,GEN) |
2 | ||
| 88568-36011 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5#..WC |
2 | ||
| 88568A - FILTER, AIR | ||||
| 88568-36010 |
HZB50..GCC..4FC;HZB50..LHD..WC..TD;HZB50..LHD..SRF..WC;HZB50..HRF..WC..5F..DSL;BB4#..WC..(ARL,GCC,GEN) |
2 | ||
| 88568-36011 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5#..WC |
2 | ||
| 88580 - DAMPER ASSY, AIR | ||||
| 88580-36020 |
HZB50..GCC..4FC;HZB50..LHD..WC..TD;HZB50..LHD..SRF..WC;HZB50..HRF..WC..5F..DSL;BB4#..WC..(ARL,GCC,GEN) |
1 | ||
| 88580-36011 |
BZB40,50,TRB40,50,XZB40,5#..WC |
1 | ||
| 88580-36021 |
BB42,HZB50..WC |
1 | ||
| 88635C - RESISTOR, COOLER AIR DUCT, NO.1 | ||||
| 88635-36090 |
BB4#,5#..WC;HZB50..GCC..4FC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL |
3 | ||
| 88635-36090 |
BB42,HZB50..WC |
3 | ||
| 88635-36130 |
BZB40,50,TRB40,50,XZB40,5#..WC |
3 | ||
| 88635C - RESISTOR, COOLER AIR DUCT, NO.1 | ||||
| 88635-36090 |
BB4#,5#..WC;HZB50..GCC..4FC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL |
3 | ||
| 88635-36090 |
BB42,HZB50..WC |
3 | ||
| 88635-36130 |
BZB40,50,TRB40,50,XZB40,5#..WC |
3 | ||
| 88635C - RESISTOR, COOLER AIR DUCT, NO.1 | ||||
| 88635-36090 |
BB4#,5#..WC;HZB50..GCC..4FC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL |
3 | ||
| 88635-36090 |
BB42,HZB50..WC |
3 | ||
| 88635-36130 |
BZB40,50,TRB40,50,XZB40,5#..WC |
3 | ||
| Common parts | ||||
| 88569-36170 | ||||
| 91621-40614 | ||||
| 93383-15020 | ||||
| 93510-10410 | ||||
| 93540-14020 | ||||
| Linked diagrams | ||||
| 6153 | ||||
