BB42R-BRMSS (2011)
Toyota Coaster
ILLUST NO. 1 OF 2(9301- )RHD
FRONT HEATER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87104 - MOTOR SUB-ASSY, HEATER BLOWER | ||||
| 87104-36200 |
BB50..EX;BB50..LHD;BB4#,58,HZB50 24V |
1 | ||
| 87104-36200 |
BB42,HZB50 24V |
1 | ||
| 87104-36230 |
BB42,HZB50..WOC;BZB40,50,TRB40,50,XZB40,5# 12V |
1 | ||
| 87105 - FAN SUB-ASSY, HEATER BLOWER | ||||
| 87105-20110 |
BB4#,5#,HZB50,RZB40,50 |
1 | ||
| 87105-20110 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# |
1 | ||
| 87107 - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-36090 |
BB4#,HZB50,RZB40,50 |
1 | ||
| 87107-36091 |
XZB59;BB42,HZB50,TRB40,50,XZB40,50..20S,21S,26S,30S |
1 | ||
| 87110 - HEATER ASSY | ||||
| 87110-36340 |
BB4#,HZB50..RHD 24V |
1 | ||
| 87110-36342 |
BB42,HZB50..RHD 24V |
1 | ||
| 87174A - GUIDE, AIR HEATER | ||||
| 87174-36050 |
BB4#,5#,HZB50,RZB40,50 |
1 | ||
| 87174-36050 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# |
1 | ||
| 87211E - DUCT, AIR | ||||
| 87211-36080 |
BB4#,HZB50..RHD |
1 | ||
| 87211-36080 |
BB42,HZB50,XZB5#..RHD |
1 | ||
| 87211F - DUCT, AIR | ||||
| 87211-36100 |
BB4#,HZB50..RHD |
1 | ||
| 87211-36140 |
BB42,HZB50,XZB5#..RHD |
1 | ||
| 87248Q - PIPE, FRONT HEATER RADIATOR WATER | ||||
| 87248-36200 |
BB42,HZB50,XZB5#..RHD NO.1 |
1 | ||
| 87248-36210 |
BB42,HZB50,XZB5#..RHD NO.2 |
1 | ||
| 87248Q - PIPE, FRONT HEATER RADIATOR WATER | ||||
| 87248-36200 |
BB42,HZB50,XZB5#..RHD NO.1 |
1 | ||
| 87248-36210 |
BB42,HZB50,XZB5#..RHD NO.2 |
1 | ||
| 87452A - BRACKET, HEATER, FRONT | ||||
| 87452-36030 |
BB4#,50,HZB50..RHD |
1 | ||
| 87452-36030 |
BB42,BZB40,50,HZB50,XZB40,5#..RHD |
1 | ||
| 87452C - BRACKET, FRONT HEATER, NO.2 | ||||
| 87452-36040 |
BB4#,50,HZB50..RHD |
1 | ||
| 87452-36040 |
BB42,BZB40,50,HZB50,XZB40,5#..RHD |
1 | ||
| Common parts | ||||
| 90099-00149 | ||||
| 91651-40616 | ||||
| 93383-16012 | ||||
| 93385-16012 | ||||
| 96761-19016 | ||||
ILLUST NO. 2 OF 2(9301-1501)BB4#,5#,BZB40,50,HZB50,RZB40,50,TRB40,50,XZB5#
REAR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87104R - MOTOR SUB-ASSY, REAR HEATER BLOWER | ||||
| 87104-36240 |
HZB50..30S..4FC;HZB50..(ARL,EUR,GCC,GEN)..5F;BB40,42,5#..STD..(ARL,EUR,GCC,GEN) 24V |
2 | ||
| 87104-36240 |
BB42,HZB50 24V |
2 | ||
| 87107R - UNIT SUB-ASSY, REAR HEATER | ||||
| 87107-36160 |
HZB50..30S..4FC;BB4#,50,HZB50,RZB40,50..(ARL,EUR,GCC,GEN)..5F |
2 | ||
| 87107-36210 |
BB42,HZB50,TRB40,50,XZB40,50..21S,26S,30S |
2 | ||
| 87120 - HEATER ASSY, REAR | ||||
| 87110-36530 |
BB40,50..RHD;HZB50..WOC..ARL;BB42..RHD..26S..WC;HZB50..RHD..HRF..(DX,STD)..WC..5F REAR |
1 | ||
| 87110-36410 |
BB40,50..RHD;HZB50..WOC..ARL;BB42..RHD..26S..WC;HZB50..RHD..HRF..(DX,STD)..WC..5F FRONT |
1 | ||
| 87110-36590 |
BB42..RHD..SRF..WC FRONT |
1 | ||
| 87110-36B20 |
BB42,HZB50..RHD 24V,FRONT |
1 | ||
| 87110-36600 |
BB42,HZB50..RHD 24V,REAR |
1 | ||
| 87120 - HEATER ASSY, REAR | ||||
| 87110-36530 |
BB40,50..RHD;HZB50..WOC..ARL;BB42..RHD..26S..WC;HZB50..RHD..HRF..(DX,STD)..WC..5F REAR |
1 | ||
| 87110-36410 |
BB40,50..RHD;HZB50..WOC..ARL;BB42..RHD..26S..WC;HZB50..RHD..HRF..(DX,STD)..WC..5F FRONT |
1 | ||
| 87110-36590 |
BB42..RHD..SRF..WC FRONT |
1 | ||
| 87110-36B20 |
BB42,HZB50..RHD 24V,FRONT |
1 | ||
| 87110-36600 |
BB42,HZB50..RHD 24V,REAR |
1 | ||
| 87120 - HEATER ASSY, REAR | ||||
| 87110-36530 |
BB40,50..RHD;HZB50..WOC..ARL;BB42..RHD..26S..WC;HZB50..RHD..HRF..(DX,STD)..WC..5F REAR |
1 | ||
| 87110-36410 |
BB40,50..RHD;HZB50..WOC..ARL;BB42..RHD..26S..WC;HZB50..RHD..HRF..(DX,STD)..WC..5F FRONT |
1 | ||
| 87110-36590 |
BB42..RHD..SRF..WC FRONT |
1 | ||
| 87110-36B20 |
BB42,HZB50..RHD 24V,FRONT |
1 | ||
| 87110-36600 |
BB42,HZB50..RHD 24V,REAR |
1 | ||
| 87138 - RESISTOR, HEATER BLOWER | ||||
| 87138-36110 |
HZB50..30S..4FC;HZB50..(ARL,EUR,GCC,GEN)..5F;BB40,42,5#..STD..(ARL,EUR,GCC,GEN) 24V |
2 | ||
| 87138-36110 |
BB42,HZB50 24V |
2 | ||
| 87187A - WIRE, BLOWER MOTOR LEAD | ||||
| 87187-36010 |
HZB50..30S..4FC;HZB50..(ARL,EUR,GCC,GEN)..5F;BB40,42,5#..STD..(ARL,EUR,GCC,GEN) 24V |
2 | ||
| 87187-36010 |
BB42..RHD..SRF..WC |
2 | ||
| 87187-36350 |
BB42,HZB50..RHD FRONT |
1 | ||
| 87187-36010 |
BB42,HZB50,XZB50..RHD..(DX,STD) REAR |
1 | ||
| 87452B - BRACKET, HEATER, REAR | ||||
| 87452-36100 |
BB4#,5#,HZB50,RZB40,50 |
2 | ||
| 87452-36100 |
BB42,HZB50..RHD NO.1 |
1 | ||
| 87452-36400 |
BB42,HZB50..RHD NO.2 |
1 | ||
| 87452B - BRACKET, HEATER, REAR | ||||
| 87452-36100 |
BB4#,5#,HZB50,RZB40,50 |
2 | ||
| 87452-36100 |
BB42,HZB50..RHD NO.1 |
1 | ||
| 87452-36400 |
BB42,HZB50..RHD NO.2 |
1 | ||
| Common parts | ||||
| 90179-06206 | ||||
| 90339-04024 | ||||
| 90480-26012 | ||||

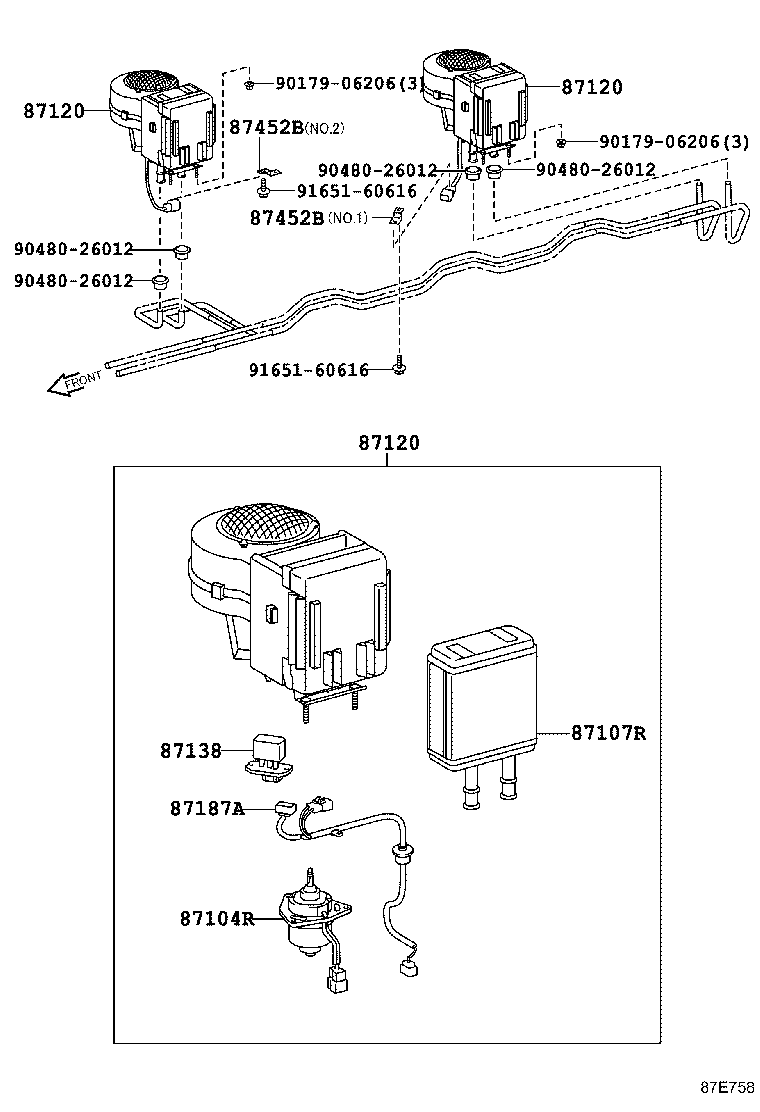

ILLUST NO. 2 OF 2(1501- )BB42,HZB50..RHD
REAR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87104R - MOTOR SUB-ASSY, REAR HEATER BLOWER | ||||
| 87104-36240 |
HZB50..30S..4FC;HZB50..(ARL,EUR,GCC,GEN)..5F;BB40,42,5#..STD..(ARL,EUR,GCC,GEN) 24V |
2 | ||
| 87104-36240 |
BB42,HZB50 24V |
2 | ||
| 87107R - UNIT SUB-ASSY, REAR HEATER | ||||
| 87107-36160 |
HZB50..30S..4FC;BB4#,50,HZB50,RZB40,50..(ARL,EUR,GCC,GEN)..5F |
2 | ||
| 87107-36210 |
BB42,HZB50,TRB40,50,XZB40,50..21S,26S,30S |
2 | ||
| 87120 - HEATER ASSY, REAR | ||||
| 87110-36530 |
BB40,50..RHD;HZB50..WOC..ARL;BB42..RHD..26S..WC;HZB50..RHD..HRF..(DX,STD)..WC..5F REAR |
1 | ||
| 87110-36410 |
BB40,50..RHD;HZB50..WOC..ARL;BB42..RHD..26S..WC;HZB50..RHD..HRF..(DX,STD)..WC..5F FRONT |
1 | ||
| 87110-36590 |
BB42..RHD..SRF..WC FRONT |
1 | ||
| 87110-36B20 |
BB42,HZB50..RHD 24V,FRONT |
1 | ||
| 87110-36600 |
BB42,HZB50..RHD 24V,REAR |
1 | ||
| 87120 - HEATER ASSY, REAR | ||||
| 87110-36530 |
BB40,50..RHD;HZB50..WOC..ARL;BB42..RHD..26S..WC;HZB50..RHD..HRF..(DX,STD)..WC..5F REAR |
1 | ||
| 87110-36410 |
BB40,50..RHD;HZB50..WOC..ARL;BB42..RHD..26S..WC;HZB50..RHD..HRF..(DX,STD)..WC..5F FRONT |
1 | ||
| 87110-36590 |
BB42..RHD..SRF..WC FRONT |
1 | ||
| 87110-36B20 |
BB42,HZB50..RHD 24V,FRONT |
1 | ||
| 87110-36600 |
BB42,HZB50..RHD 24V,REAR |
1 | ||
| 87120 - HEATER ASSY, REAR | ||||
| 87110-36530 |
BB40,50..RHD;HZB50..WOC..ARL;BB42..RHD..26S..WC;HZB50..RHD..HRF..(DX,STD)..WC..5F REAR |
1 | ||
| 87110-36410 |
BB40,50..RHD;HZB50..WOC..ARL;BB42..RHD..26S..WC;HZB50..RHD..HRF..(DX,STD)..WC..5F FRONT |
1 | ||
| 87110-36590 |
BB42..RHD..SRF..WC FRONT |
1 | ||
| 87110-36B20 |
BB42,HZB50..RHD 24V,FRONT |
1 | ||
| 87110-36600 |
BB42,HZB50..RHD 24V,REAR |
1 | ||
| 87138 - RESISTOR, HEATER BLOWER | ||||
| 87138-36110 |
HZB50..30S..4FC;HZB50..(ARL,EUR,GCC,GEN)..5F;BB40,42,5#..STD..(ARL,EUR,GCC,GEN) 24V |
2 | ||
| 87138-36110 |
BB42,HZB50 24V |
2 | ||
| 87187A - WIRE, BLOWER MOTOR LEAD | ||||
| 87187-36010 |
HZB50..30S..4FC;HZB50..(ARL,EUR,GCC,GEN)..5F;BB40,42,5#..STD..(ARL,EUR,GCC,GEN) 24V |
2 | ||
| 87187-36010 |
BB42..RHD..SRF..WC |
2 | ||
| 87187-36350 |
BB42,HZB50..RHD FRONT |
1 | ||
| 87187-36010 |
BB42,HZB50,XZB50..RHD..(DX,STD) REAR |
1 | ||
| 87452B - BRACKET, HEATER, REAR | ||||
| 87452-36100 |
BB4#,5#,HZB50,RZB40,50 |
2 | ||
| 87452-36100 |
BB42,HZB50..RHD NO.1 |
1 | ||
| 87452-36400 |
BB42,HZB50..RHD NO.2 |
1 | ||
| 87452B - BRACKET, HEATER, REAR | ||||
| 87452-36100 |
BB4#,5#,HZB50,RZB40,50 |
2 | ||
| 87452-36100 |
BB42,HZB50..RHD NO.1 |
1 | ||
| 87452-36400 |
BB42,HZB50..RHD NO.2 |
1 | ||
| Common parts | ||||
| 90179-06206 | ||||
| 90480-26012 | ||||
| 91651-60616 | ||||
