BB42R-BRMSS (2011)
Toyota Coaster

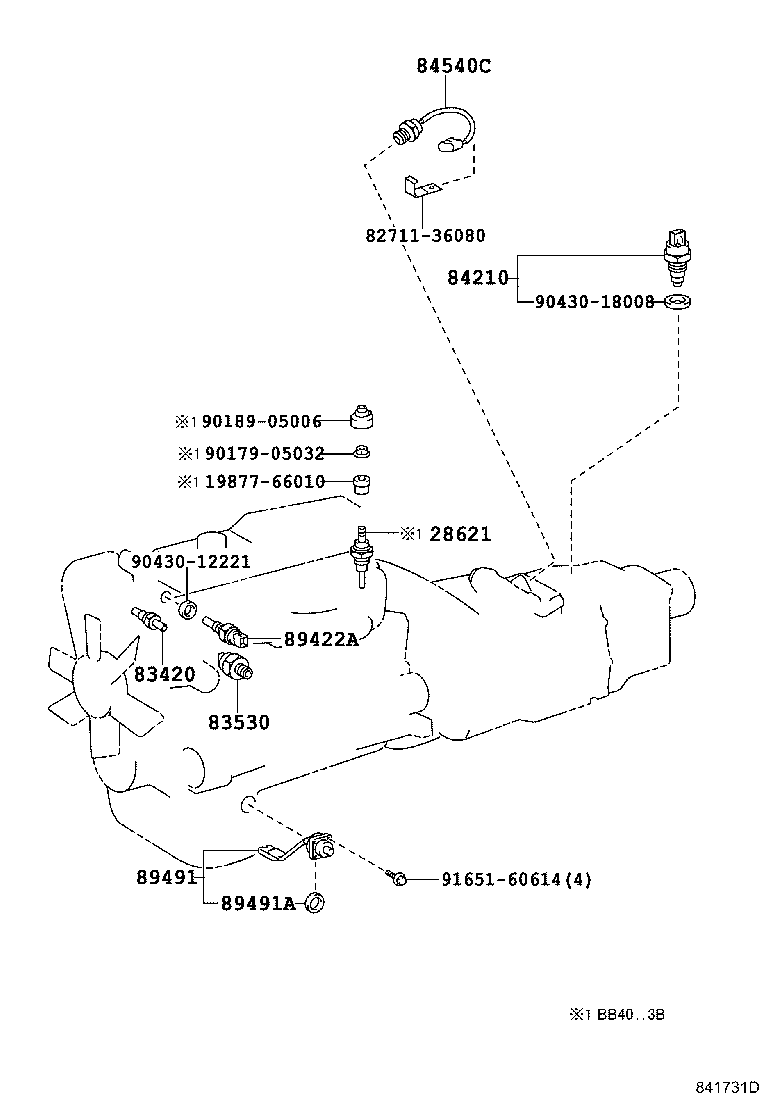

ILLUST NO. 1 OF 6(9301- )BB40,42
ENGINE & TRANSMISSION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-16040 |
BB4#,5#,HZB50 |
1 | ||
| 83420-16040 |
BB42,BZB40,50,HZB50 |
1 | ||
| S8342-01250 |
XZB40,5# |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-14070 |
BB4#,5# |
1 | ||
| 83530-28010 |
BB42,BZB40,50 DENSO |
1 | ||
| 83530-E0220 |
XZB40,5# |
1 | ||
| 83530-60010 |
BB42,BZB40,50 YAZAKI |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-12040 |
BB4#,5#,HZB50,RZB40,50..5F |
1 | ||
| 84210-52050 |
BB42,50,BZB40,50,HZB50,TRB40,50,XZB40,5#..5F |
1 | ||
| 84210-52050 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5#..5F |
1 | ||
| 84540C - SWITCH ASSY, NEUTRAL (FOR EXHAUST BRAKE) | ||||
| 84540-36090 |
BB4#,5#,HZB50..5F |
1 | ||
| 84540-36090 |
BB42,HZB50 |
1 | ||
| 84540-37020 |
XZB40,5#..5F |
1 | ||
| 89491 - SENSOR, ENGINE OIL LEVEL | ||||
| 89491-36070 |
BB4#,5# |
1 | ||
| 89491-36071 |
BB42,BZB40,50 |
1 | ||
| S8346-01580 |
XZB40,5# |
1 | ||
| 89491A - GASKET, ENGINE OIL LEVEL SENSOR | ||||
| 90430-27001 |
BB4#,HZB50,RZB40,50 |
1 | ||
| 90430-27001 |
BB42,BZB40,50 |
1 | ||
| Common parts | ||||
| 19877-66010 | ||||
| 82711-36080 | ||||
| 90179-05032 | ||||
| 90189-05006 | ||||
| 90430-12221 | ||||
| 90430-18008 | ||||
| 91651-60614 | ||||

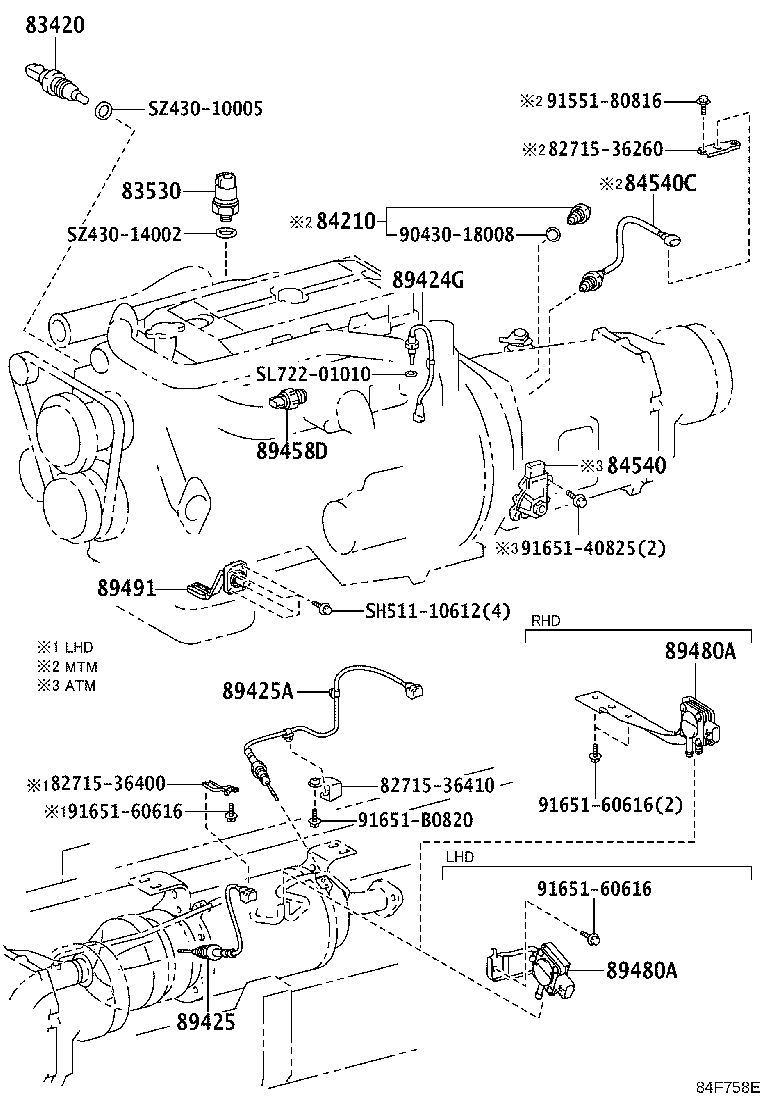

ILLUST NO. 1 OF 6(1501- )XZB40,5#
ENGINE & TRANSMISSION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-16040 |
BB4#,5#,HZB50 |
1 | ||
| 83420-16040 |
BB42,BZB40,50,HZB50 |
1 | ||
| S8342-01250 |
XZB40,5# |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-14070 |
BB4#,5# |
1 | ||
| 83530-28010 |
BB42,BZB40,50 DENSO |
1 | ||
| 83530-E0220 |
XZB40,5# |
1 | ||
| 83530-60010 |
BB42,BZB40,50 YAZAKI |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-12040 |
BB4#,5#,HZB50,RZB40,50..5F |
1 | ||
| 84210-52050 |
BB42,50,BZB40,50,HZB50,TRB40,50,XZB40,5#..5F |
1 | ||
| 84210-52050 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5#..5F |
1 | ||
| 84540C - SWITCH ASSY, NEUTRAL (FOR EXHAUST BRAKE) | ||||
| 84540-36090 |
BB4#,5#,HZB50..5F |
1 | ||
| 84540-36090 |
BB42,HZB50 |
1 | ||
| 84540-37020 |
XZB40,5#..5F |
1 | ||
| 89425 - SENSOR, EXHAUST GAS TEMPERATURE | ||||
| 89425-36031 |
XZB40,5# |
1 | ||
| 89480A - SENSOR ASSY, DIFFERENTIAL PRESSURE | ||||
| 89480-36030 |
XZB40,5#..RHD |
1 | ||
| 89480A - SENSOR ASSY, DIFFERENTIAL PRESSURE | ||||
| 89480-36030 |
XZB40,5#..RHD |
1 | ||
| 89491 - SENSOR, ENGINE OIL LEVEL | ||||
| 89491-36070 |
BB4#,5# |
1 | ||
| 89491-36071 |
BB42,BZB40,50 |
1 | ||
| S8346-01580 |
XZB40,5# |
1 | ||
| Common parts | ||||
| 82715-36260 | ||||
| 82715-36400 | ||||
| 82715-36410 | ||||
| 90430-18008 | ||||
| 91551-80816 | ||||
| 91651-40825 | ||||
| 91651-60616 | ||||
| 91651-B0820 | ||||
| SH511-10612 | ||||
| SL722-01010 | ||||
| SZ430-10005 | ||||
| SZ430-14002 | ||||
ILLUST NO. 6 OF 6(9301- )
DOOR,ROOF,FLOOR & BACK DOOR 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84235 - SWITCH ASSY, COURTESY LAMP(FOR BACK DOOR) | ||||
| 84231-36040 |
BB42,HZB50..RHD..STD..GEN SINGLE LEAF BACK DOOR,W(EMERGENCY DOOR SWI TCH & BUZZER) |
2 | ||
| 84231-36010 |
HZB50..(20S,30S)..(GCC,GEN);BB42,50,RZB40,50..(17S,22S,26S,30S)..(GCC,GEN) |
1 | ||
| 84231-36010 |
BB42,TRB40,XZB40..26S;HZB50,TRB50,XZB50..30S |
1 | ||
| 84231-36040 |
BZB40,XZB40,5#..RHD..GEN |
2 | ||
| 84235 - SWITCH ASSY, COURTESY LAMP(FOR BACK DOOR) | ||||
| 84231-36040 |
BB42,HZB50..RHD..STD..GEN SINGLE LEAF BACK DOOR,W(EMERGENCY DOOR SWI TCH & BUZZER) |
2 | ||
| 84231-36010 |
HZB50..(20S,30S)..(GCC,GEN);BB42,50,RZB40,50..(17S,22S,26S,30S)..(GCC,GEN) |
1 | ||
| 84231-36010 |
BB42,TRB40,XZB40..26S;HZB50,TRB50,XZB50..30S |
1 | ||
| 84231-36040 |
BZB40,XZB40,5#..RHD..GEN |
2 | ||
| 84235 - SWITCH ASSY, COURTESY LAMP(FOR BACK DOOR) | ||||
| 84231-36040 |
BB42,HZB50..RHD..STD..GEN SINGLE LEAF BACK DOOR,W(EMERGENCY DOOR SWI TCH & BUZZER) |
2 | ||
| 84231-36010 |
HZB50..(20S,30S)..(GCC,GEN);BB42,50,RZB40,50..(17S,22S,26S,30S)..(GCC,GEN) |
1 | ||
| 84231-36010 |
BB42,TRB40,XZB40..26S;HZB50,TRB50,XZB50..30S |
1 | ||
| 84231-36040 |
BZB40,XZB40,5#..RHD..GEN |
2 | ||
| 84235B - CUSHION, COURTESY SWITCH(FOR BACK DOOR) | ||||
| 84234-22010 |
HZB50..(20S,30S)..(GCC,GEN);BB42,50,RZB40,50..(17S,22S,26S,30S)..(GCC,GEN) |
1 | ||
| 84234-22010 |
BB42,TRB40,XZB40..26S;HZB50,TRB50,XZB50..30S |
1 | ||

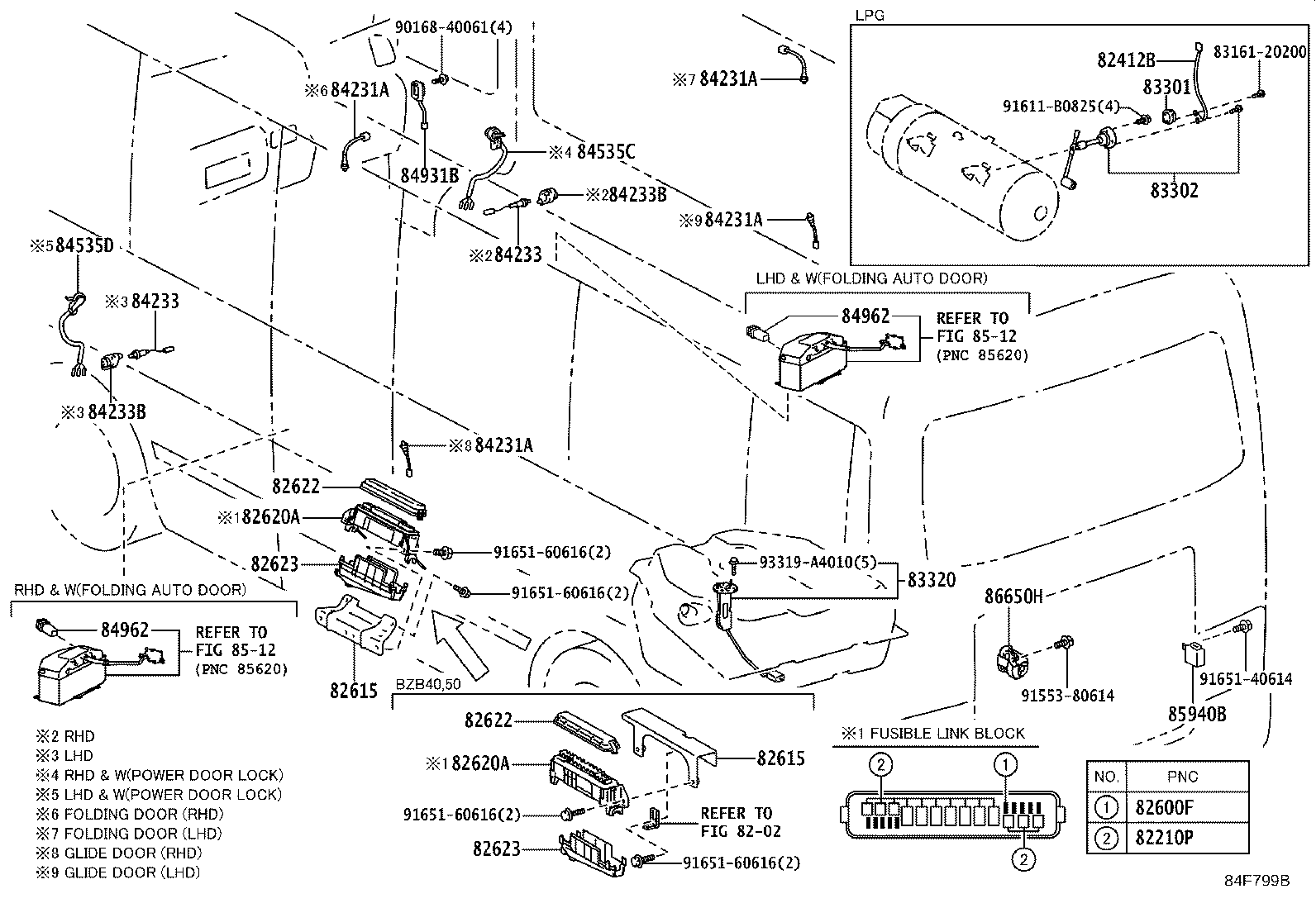

ILLUST NO. 6 OF 6(1501- )
DOOR,ROOF,FLOOR & BACK DOOR 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82210P - ENGINE ROOM FUSIBLE LINK | ||||
| 90982-08228 |
BZB40,50,HZB50,XZB40,5# 50A,TERM.:MALE,RED |
1 | ||
| 90982-08246 |
BB42,HZB50 100A,TERM.:MALE,BLUE |
1 | ||
| 90982-08202 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# 60A,TERM.:MALE,YEL |
1 | ||
| 90982-08281 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08280 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08286 |
XZB40,5# 140A,TERM.:MALE,RBR |
1 | ||
| 90982-08282 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# 50A,TERM.:FEMALE,RED |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09002 |
BB4#,5#,HZB50,RZB40,50 10A |
1 | ||
| 90982-09005 |
BB4#,5#,HZB50,RZB40,50 7.5A |
1 | ||
| 90982-09003 |
BB4#,5#,HZB50,RZB40,50 15A |
1 | ||
| 90982-09004 |
BB4#,5#,HZB50,RZB40,50 20A,YELLOW |
1 | ||
| 90982-09009 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# 10A,MINI FUSE,RED |
1 | ||
| 90982-09008 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# 7.5A,MINI FUSE,BRN |
1 | ||
| 90982-09010 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09013 |
HZB50..WOC;BZB40,50,TRB40,50,XZB40,5# 30A,MINI FUSE,GRN |
1 | ||
| 90982-09011 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# 20A,MINI FUSE,YELLOW |
1 | ||
| 82615 - BRACKET, FUSE | ||||
| 82615-36020 |
BB50..EX;BB50..GEN..IV;BB4#,58,HZB50,RZB40,50 |
1 | ||
| 82615-36020 |
BB42,HZB50,TRB40,50,XZB40,5# |
1 | ||
| 82615 - BRACKET, FUSE | ||||
| 82615-36020 |
BB50..EX;BB50..GEN..IV;BB4#,58,HZB50,RZB40,50 |
1 | ||
| 82615-36020 |
BB42,HZB50,TRB40,50,XZB40,5# |
1 | ||
| 82620A - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-36030 |
BB4#;HZB50..22S..4FC;HZB50..WOC..ARL;HZB50..SRF..WOC;HZB50..LHD..STD..WC..GEN..5F TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 82620-36020 |
BB4#,5#,HZB50,RZB40,50 TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 82620-36080 |
BB42,HZB50,XZB40,5#..RHD |
1 | ||
| 82620A - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-36030 |
BB4#;HZB50..22S..4FC;HZB50..WOC..ARL;HZB50..SRF..WOC;HZB50..LHD..STD..WC..GEN..5F TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 82620-36020 |
BB4#,5#,HZB50,RZB40,50 TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 82620-36080 |
BB42,HZB50,XZB40,5#..RHD |
1 | ||
| 82622 - COVER, FUSIBLE LINK, UPPER | ||||
| 82622-36104 |
XZB40,5#..ARL,GEN,TAIW |
1 | ||
| 82622-36104 |
XZB40,5# |
1 | ||
| 82622-36032 |
BB42,HZB50 |
1 | ||
| 82622 - COVER, FUSIBLE LINK, UPPER | ||||
| 82622-36104 |
XZB40,5#..ARL,GEN,TAIW |
1 | ||
| 82622-36104 |
XZB40,5# |
1 | ||
| 82622-36032 |
BB42,HZB50 |
1 | ||
| 82623 - COVER, FUSIBLE LINK, LOWER | ||||
| 82623-36010 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# |
1 | ||
| 82623 - COVER, FUSIBLE LINK, LOWER | ||||
| 82623-36010 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# |
1 | ||
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-80523 |
BB42,50,HZB50,TRB40,50,XZB40,5# LABEL=36190 |
1 | ||
| 83320-80261 |
BB4#,5#,HZB50,RZB40,50 |
1 | ||
| 83320-80523 |
BB42,HZB50,TRB40,50,XZB40,5# |
1 | ||
| 84231A - SWITCH, COURTESY LAMP | ||||
| 84231-36020 |
BB4#,HZB50..19S,20S,22S,26S,30S |
1 | ||
| 84231-36020 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# |
1 | ||
| 84231A - SWITCH, COURTESY LAMP | ||||
| 84231-36020 |
BB4#,HZB50..19S,20S,22S,26S,30S |
1 | ||
| 84231-36020 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# |
1 | ||
| 84231A - SWITCH, COURTESY LAMP | ||||
| 84231-36020 |
BB4#,HZB50..19S,20S,22S,26S,30S |
1 | ||
| 84231-36020 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# |
1 | ||
| 84231A - SWITCH, COURTESY LAMP | ||||
| 84231-36020 |
BB4#,HZB50..19S,20S,22S,26S,30S |
1 | ||
| 84231-36020 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# |
1 | ||
| 84962 - SWITCH, POWER SLIDE DOOR MAIN | ||||
| 84962-36010 |
BB42,50,BZB40,50,HZB50,TRB40,50,XZB40,50..(EX,STD)..CBU |
1 | ||
| 84962-36010 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,50..(EX,STD)..5F |
1 | ||
| 84962 - SWITCH, POWER SLIDE DOOR MAIN | ||||
| 84962-36010 |
BB42,50,BZB40,50,HZB50,TRB40,50,XZB40,50..(EX,STD)..CBU |
1 | ||
| 84962-36010 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,50..(EX,STD)..5F |
1 | ||
| 85940B - RELAY ASSY, REAR WIPER | ||||
| 85940-36070 |
HZB50..(20S,30S)..(GCC,GEN);BB42,50..STD..(GCC,GEN)..CBU 24V |
1 | ||
| 85940-36070 |
BB42..RHD..SRF..WC 24V |
1 | ||
| 85940-36070 |
BB42;HZB50..30S 24V |
1 | ||
| 86650H - BUZZER ASSY, BACK | ||||
| 86650-36100 |
BB4#,5#,HZB50..CBU 24V |
1 | ||
| 86650-36180 |
BB42,50,HZB50 24V |
1 | ||
| 86650-36170 |
BB42,HZB50..WOC;BZB40,50,TRB40,50,XZB40,5#..ARL,GCC,GEN,TAIW 12V |
1 | ||
| 86650-36160 |
BB42..RHD..SRF..WC 24V |
1 | ||
| 86650-36180 |
BB42,HZB50 24V |
1 | ||
| 86650-36170 |
BB42,HZB50..WOC;BZB40,50,TRB40,50,XZB40,5# 12V |
1 | ||
| Common parts | ||||
| 83161-20200 | ||||
| 90168-40061 | ||||
| 91553-80614 | ||||
| 91611-B0825 | ||||
| 91651-40614 | ||||
| 91651-60616 | ||||
| 93319-A4010 | ||||
| Linked diagrams | ||||
| 8202 | ||||
| 8512 | ||||

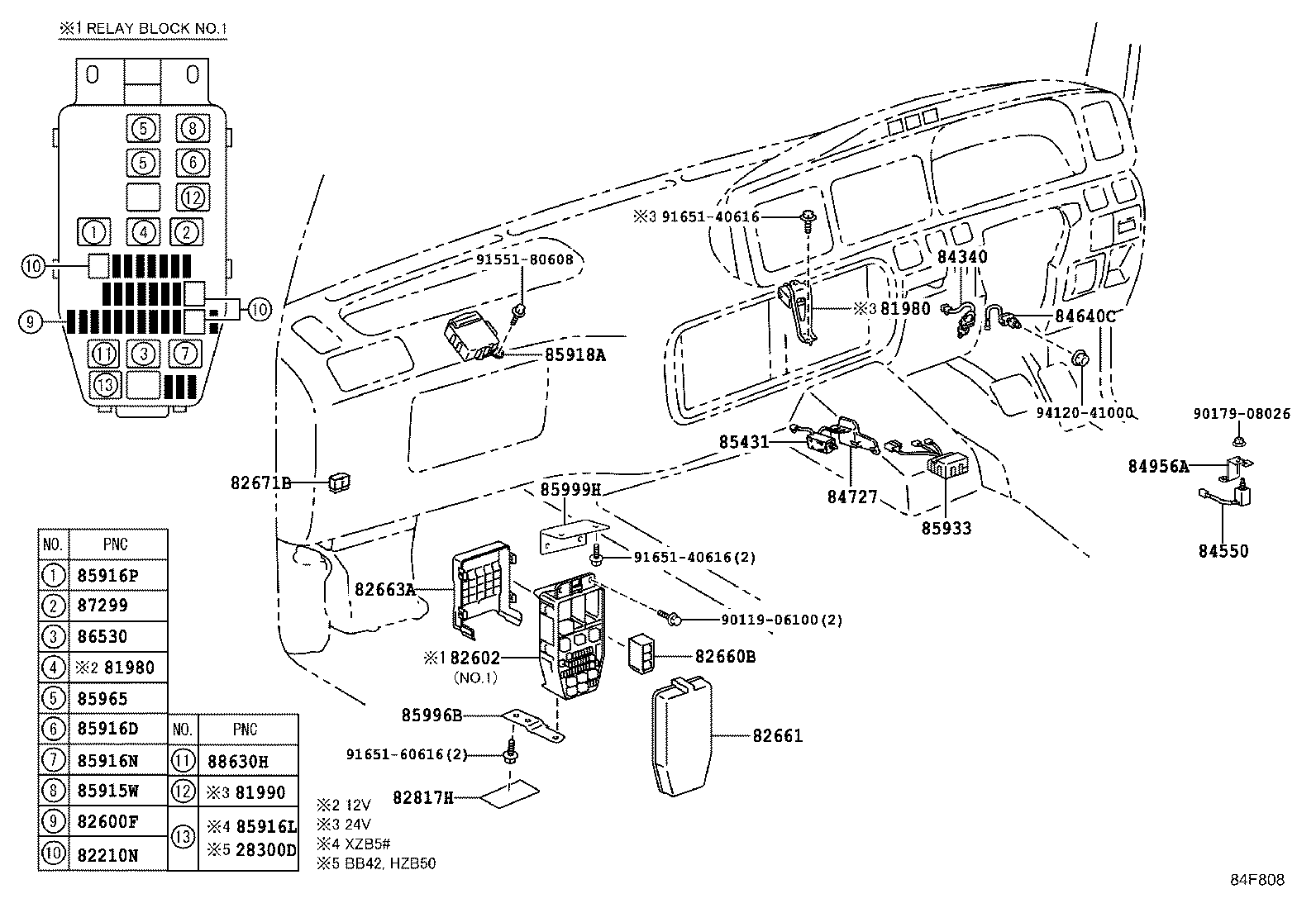

ILLUST NO. 3 OF 6(1501- )RHD
INSTRUMENT PANEL & COWL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300D - RELAY, STARTER CUT | ||||
| 90987-04008 |
14B,1HZ..BB42,HZB50..WC |
1 | ||
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-60010 |
HZB50;BB4#,5#..CBU 24V |
1 | ||
| 81980-36140 |
BB50;BB42,HZB50..WC..GEN |
1 | ||
| 81980-36141 |
BB42,50,HZB50..GEN 24V |
1 | ||
| 81980-36142 |
BB42,HZB50..GEN 24V |
1 | ||
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-60010 |
HZB50;BB4#,5#..CBU 24V |
1 | ||
| 81980-36140 |
BB50;BB42,HZB50..WC..GEN |
1 | ||
| 81980-36141 |
BB42,50,HZB50..GEN 24V |
1 | ||
| 81980-36142 |
BB42,HZB50..GEN 24V |
1 | ||
| 81990 - RELAY ASSY, TURN SIGNAL | ||||
| 90987-02017 |
BB42,50,HZB50 |
1 | ||
| 90987-02017 |
BB42,HZB50 |
1 | ||
| 82210N - INSTRUMENT PANEL FUSIBLE LINK | ||||
| 90982-08280 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# 30A,TERM.:FEMALE,PNK |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09002 |
BB4#,5#,HZB50,RZB40,50 10A |
1 | ||
| 90982-09005 |
BB4#,5#,HZB50,RZB40,50 7.5A |
1 | ||
| 90982-09003 |
BB4#,5#,HZB50,RZB40,50 15A |
1 | ||
| 90982-09004 |
BB4#,5#,HZB50,RZB40,50 20A,YELLOW |
1 | ||
| 90982-09009 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# 10A,MINI FUSE,RED |
1 | ||
| 90982-09008 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# 7.5A,MINI FUSE,BRN |
1 | ||
| 90982-09010 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09013 |
HZB50..WOC;BZB40,50,TRB40,50,XZB40,5# 30A,MINI FUSE,GRN |
1 | ||
| 90982-09011 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# 20A,MINI FUSE,YELLOW |
1 | ||
| 82602 - BLOCK SUB-ASSY, RELAY | ||||
| 82602-36010 |
BB4#,5#,HZB50,RZB40,50 NO.1 |
1 | ||
| 82602-36020 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# NO.1 |
1 | ||
| 82660B - BLOCK ASSY, RELAY | ||||
| 82660-26150 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-36030 |
RZB40;BB42..RHD;BB40,RZB50..WC;BB42,HZB50..SRF..GCC;BB42,HZB50..LHD..HRF..WC;HZB50..RHD..WC..(ARL,GEN);HZB50..HRF..WOC..(EUR,GEN) |
1 | ||
| 82661-36030 |
BB42..SRF..WC..GEN CHINA SPEC |
1 | ||
| 82661-36124 |
BB42,50,HZB50 |
1 | ||
| 82661-36124 |
BB42,HZB50 |
1 | ||
| 82661-36133 |
XZB40,5#..RHD..GEN |
1 | ||
| 82663A - COVER, RELAY BLOCK, LOWER, NO.2 | ||||
| 82663-36020 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# |
1 | ||
| 82671B - BLOCK, JUNCTION | ||||
| 82671-30350 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# |
2 | ||
| 82817H - PROTECTOR, WIRING HARNESS | ||||
| 82817-36060 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-36070 |
BB4#,5#,HZB50,RZB40,50 |
1 | ||
| 84340-25030 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-36040 |
BB4#,HZB50 |
1 | ||
| 84550-36030 |
BB42..WOC;BB42..HRF;BB42..LHD..WC;BB50,BZB40,50,HZB50,XZB40,5#..ARL,GCC,GEN,TAIW |
1 | ||
| 84550-36030 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# |
1 | ||
| 84640C - SWITCH ASSY, EXHAUST RETARDER | ||||
| 84640-36060 |
BB4#,5#,HZB50..5F |
2 | ||
| 84640-36060 |
XZB40,5#..5F |
1 | ||
| 84640-36060 |
BB42,HZB50 |
2 | ||
| 84956A - BRACKET, HAND BRAKE SIGNAL SWITCH | ||||
| 84956-36040 |
BB4#,HZB50 |
1 | ||
| 84956-36040 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# |
1 | ||
| 85915W - RELAY, AUTOMATIC DOOR | ||||
| 90987-02005 |
BB4#,5#,HZB50..CBU 24V |
1 | ||
| 90987-02017 |
BB42..RHD..SRF..WC 24V |
1 | ||
| 90987-02017 |
BB42,HZB50 24V |
1 | ||
| 90987-02027 |
BB42,HZB50..LHD..WOC;BZB40,50,TRB40,50,XZB40,5# 12V |
1 | ||
| 90987-02027 |
BB42,HZB50..LHD..WOC;BZB40,50,TRB40,50,XZB40,5#..ARL,GCC,GEN,TAIW 12V |
1 | ||
| 85916N - RELAY, TAIL LAMP | ||||
| 90987-02005 |
BB4#,5#,HZB50 24V |
1 | ||
| 90987-02012 |
BB42,HZB50..WOC;BZB40,50,TRB40,50,XZB40,5# 12V |
1 | ||
| 90987-02017 |
BB42..RHD..SRF..WC 24V |
1 | ||
| 90987-02017 |
BB42,HZB50 24V |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90987-02007 |
BB4#,5#,HZB50 24V |
1 | ||
| 90987-04007 |
BB42,HZB50 24V |
1 | ||
| 90987-04010 |
BB42,HZB50..WOC;BZB40,50,TRB40,50,XZB40,5# 12V |
1 | ||
| 90987-04007 |
BB42..RHD..SRF..WC 24V |
1 | ||
| 85965 - RELAY, ROOM LAMP CONTROL | ||||
| 90987-02017 |
BB42,HZB50..RHD 24V |
2 | ||
| 90987-02012 |
BB42..RHD..WOC;BZB40,50,XZB40,5#..RHD 12V |
2 | ||
| 85996B - BRACKET, RELAY, NO.2 | ||||
| 85996-36010 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# |
1 | ||
| 85999H - BRACKET, RELAY | ||||
| 85999-36100 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 90987-01004 |
BB4#,5#,HZB50 24V |
1 | ||
| 90987-02017 |
BB42..RHD..SRF..WC 24V |
1 | ||
| 90987-02017 |
BB42,HZB50 24V |
1 | ||
| 90987-02012 |
BB42,HZB50..WOC;BZB40,50,TRB40,50,XZB40,5# 12V |
1 | ||
| 87299 - RELAY, HEATER | ||||
| 90987-04010 |
BB42,HZB50..WOC;BZB40,50,TRB40,50,XZB40,5# 12V |
1 | ||
| 90987-04007 |
BB42,HZB50 24V |
1 | ||
| 88630H - RELAY ASSY, COOLER | ||||
| 90987-02005 |
BB4#..WC;HZB50..GCC..4FC;HZB50..LHD..WC..TD;HZB50..LHD..SRF..WC;HZB50..HRF..WC..5F..DSL 24V |
1 | ||
| 90987-02017 |
BB42,HZB50..WC |
3 | ||
| 90987-02012 |
TRB40,50,XZB40,5#..WC |
3 | ||
| 90987-02017 |
BB42,50,HZB50..WC |
3 | ||
| 90987-02012 |
TRB40,50,XZB40,5#..WC..(ARL,GCC,GEN,TAIW) |
3 | ||
| Common parts | ||||
| 90119-06100 | ||||
| 90179-08026 | ||||
| 91551-80608 | ||||
| 91651-40616 | ||||
| 91651-60616 | ||||
| 94120-41000 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
