BB42R-BRMSS (2011)
Toyota Coaster

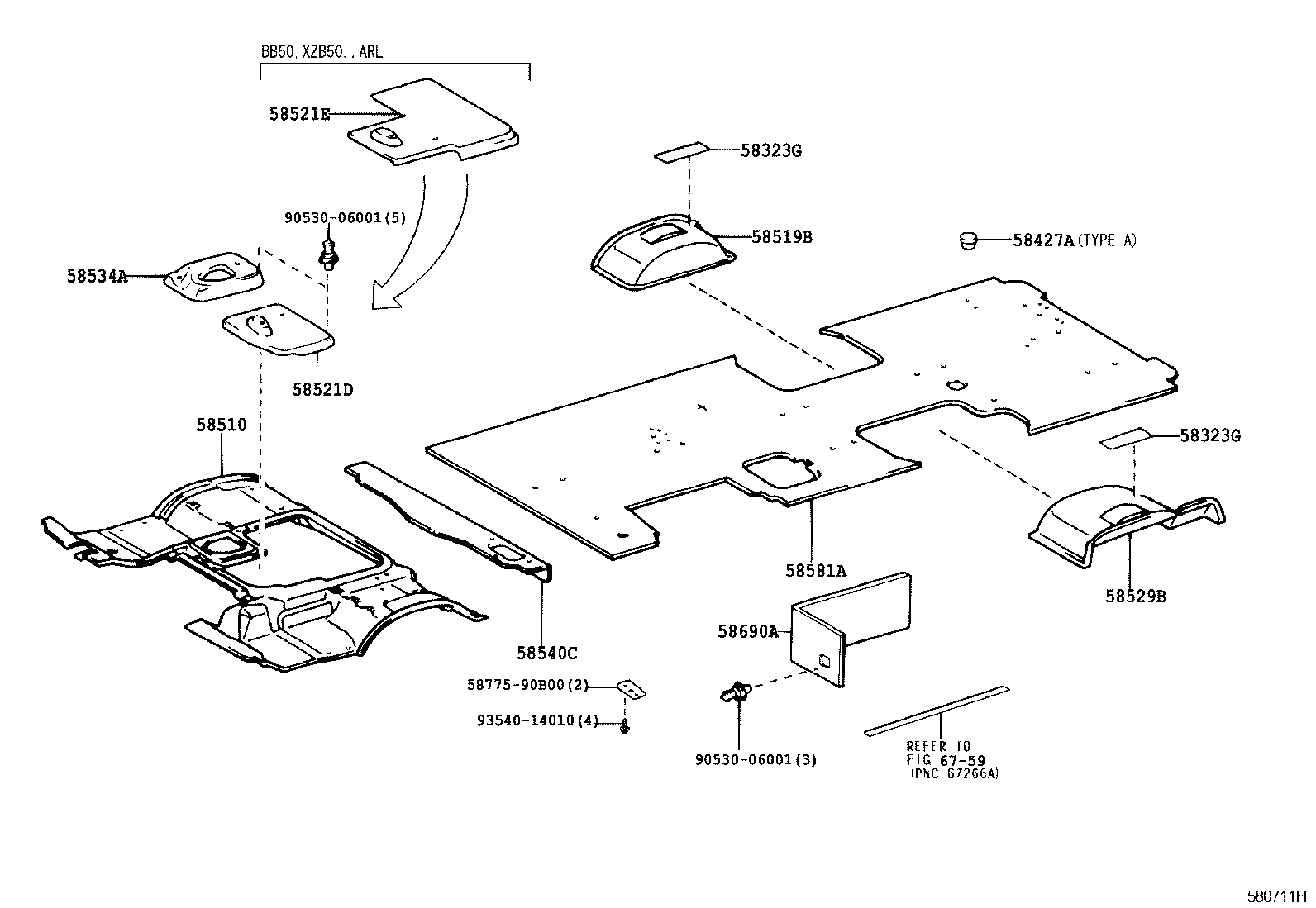

ILLUST NO. 1 OF 2(9301- )RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58510 - MAT ASSY, FRONT FLOOR, FRONT NO.1 | ||||
| 58510-36010E0 |
BB42,HZB50..RHD..STD..GEN GREIGE,TRIM4# |
1 | ||
| 58510-36C50B0 |
BB42,HZB50..RHD MD.CHARCOAL,TRIM1# |
1 | ||
| 58510-36C40B0 |
BB42..RHD W(SUB NO.1 SEAT),MD.CHARCOAL,TRIM1# |
1 | ||
| 58510-36700B0 |
BZB40,50,XZB40,5#..RHD..GEN..5F MD.CHARCOAL,TRIM1# |
1 | ||
| 58521D - MAT, ENGINE SERVICE HOLE COVER | ||||
| 58521-36080B0 |
BB42,HZB50..RHD MD.CHARCOAL,TRIM1# |
1 | ||
| 58521-36090B0 |
BZB40,50,XZB40,5#..RHD..GEN MD.CHARCOAL,TRIM1# |
1 | ||
| 58534A - MAT, TRANSMISSION COVER | ||||
| 58534-36020B0 |
BZB40,50,XZB40,5#..RHD..5F MD.CHARCOAL,TRIM1# |
1 | ||
| 58540C - MAT ASSY, FLOOR, REAR | ||||
| 58540-36740B0 |
BB42,HZB50..RHD..WC MD.CHARCOAL,TRIM1# |
1 | ||
| 58581A - MAT, REAR FLOOR | ||||
| 58581-36610E0 |
BB42..RHD..26S W(*SSBD) OR W(*SSBD & FRONT HEATER),GREIGE,TRIM4# |
1 | ||
| 58581-36570E0 |
BB42..RHD..26S W(FRONT HEATER),GREIGE,TRIM4# |
1 | ||
| 58581-36120E0 |
BB42..RHD..26S GREIGE,TRIM4# |
1 | ||
| 58581-36124B0 |
BB42..RHD MD.CHARCOAL,TRIM1# |
1 | ||
| 58581-36474B0 |
BB42..RHD W(FOLDING AUTO SIDE DOOR),MD.CHARCOAL,TRIM1# |
1 | ||
| 58581-3C403B0 |
BB42..RHD W(REAR HEATER),MD.CHARCOAL,TRIM1# |
1 | ||
| 58581-3C433B0 |
BB42..RHD W(FOLDING AUTO SIDE DOOR & REAR HEATER),MD.CHARCOAL,TRIM1# |
1 | ||
| 58581-3CT70B0 |
BB42..RHD W(FOLDING AUTO SIDE DOOR) & W/O(REAR HEATER),MD.CHARCOAL,TRIM1# |
1 | ||
| 58581-3CT10B0 |
BB42..RHD W(FOLDING SIDE DOOR) & W/O(REAR HEATER),MD.CHARCOAL,TRIM1# |
1 | ||
| 58581-3CT20B0 |
BB42..RHD W(FOLDING SIDE DOOR & REAR HEATER),MD.CHARCOAL,TRIM1# |
1 | ||
| 58581-3CT80B0 |
BB42..RHD W(FOLDING AUTO SIDE DOOR & REAR HEATER),MD.CHARCOAL,TRIM1# |
1 | ||
| Common parts | ||||
| 58775-90B00 | ||||
| 90530-06001 | ||||
| 93540-14010 | ||||
| Linked diagrams | ||||
| 6759 | ||||

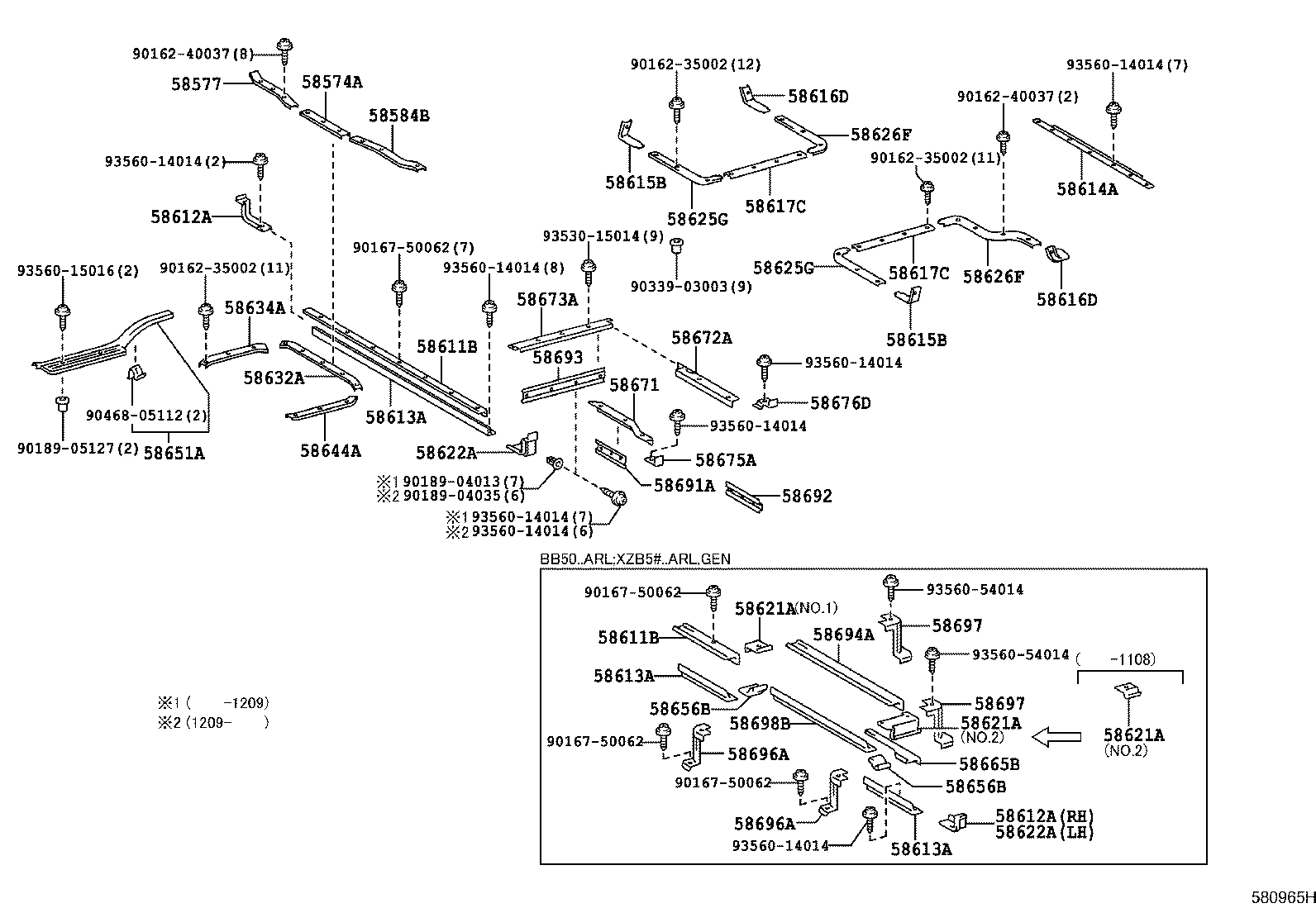

ILLUST NO. 2 OF 2(9301-1501)RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58574A - PLATE, REAR FLOOR MAT SUPPORT, REAR | ||||
| 58574-36010 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# |
1 | ||
| 58577 - SET PLATE, REAR FLOOR MAT SIDE, REAR RH | ||||
| 58577-36060 |
BB42,BZB40,50,HZB50,XZB40,5#..RHD..WC |
1 | ||
| 58584B - PLATE, REAR FLOOR MAT SUPPORT SIDE, NO.4 | ||||
| 58584-36010 |
BB4#,HZB50..RHD..DSL |
1 | ||
| 58584-36050 |
BB42,BZB40,50,HZB50,XZB40,5#..RHD |
1 | ||
| 58611B - PLATE, MAT SET, NO.1 | ||||
| 58611-36010E0 |
BB4#,50,HZB50..RHD..CBU GREIGE,TRIM4# |
1 | ||
| 58611-36010B0 |
BB42,BZB50,HZB50..RHD MD.CHARCOAL,TRIM1# |
1 | ||
| 58611B - PLATE, MAT SET, NO.1 | ||||
| 58611-36010E0 |
BB4#,50,HZB50..RHD..CBU GREIGE,TRIM4# |
1 | ||
| 58611-36010B0 |
BB42,BZB50,HZB50..RHD MD.CHARCOAL,TRIM1# |
1 | ||
| 58612A - PLATE, MAT SET, NO.2 RH | ||||
| 58612-36010B1 |
BB42,BZB50,HZB50,XZB5#..RHD MD.CHARCOAL,TRIM1# |
1 | ||
| 58612A - PLATE, MAT SET, NO.2 RH | ||||
| 58612-36010B1 |
BB42,BZB50,HZB50,XZB5#..RHD MD.CHARCOAL,TRIM1# |
1 | ||
| 58613A - PLATE, MAT SET, NO.3 | ||||
| 58613-36010B1 |
BB42,BZB50,HZB50,TRB40,50 MD.CHARCOAL,TRIM1# |
1 | ||
| 58613A - PLATE, MAT SET, NO.3 | ||||
| 58613-36010B1 |
BB42,BZB50,HZB50,TRB40,50 MD.CHARCOAL,TRIM1# |
1 | ||
| 58613A - PLATE, MAT SET, NO.3 | ||||
| 58613-36010B1 |
BB42,BZB50,HZB50,TRB40,50 MD.CHARCOAL,TRIM1# |
1 | ||
| 58614A - PLATE, MAT SET, NO.4 | ||||
| 58614-36010E0 |
BB42,HZB50..GCC,GEN GREIGE,TRIM4# |
1 | ||
| 58614-36011B0 |
XZB40..26S;BB42,BZB40,50,HZB50,TRB40,50,XZB50..STD..(GCC,GEN,TAIW) MD.CHARCOAL,TRIM1# |
1 | ||
| 58614-36020B1 |
BZB40,HZB50,XZB40,5#..RHD W(SINGLE SWING BACK DOOR),MD.CHARCOAL,TRIM1# |
1 | ||
| 58615B - PLATE, MAT SET, NO.5 A | ||||
| 58616-36030 |
BB4#,5#,HZB50,RZB40,50..CBU LH |
1 | ||
| 58615-36020 |
BB4#,5#,HZB50,RZB40,50..CBU RH |
1 | ||
| 58615-36020 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# RH |
1 | ||
| 58616-36030 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# LH |
1 | ||
| 58615B - PLATE, MAT SET, NO.5 A | ||||
| 58616-36030 |
BB4#,5#,HZB50,RZB40,50..CBU LH |
1 | ||
| 58615-36020 |
BB4#,5#,HZB50,RZB40,50..CBU RH |
1 | ||
| 58615-36020 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# RH |
1 | ||
| 58616-36030 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# LH |
1 | ||
| 58616D - PLATE, MAT SET, NO.6 A | ||||
| 58624-36050 |
BB4#,5#,HZB50,RZB40,50..CBU LH |
1 | ||
| 58616-36030 |
BB4#,5#,HZB50,RZB40,50..CBU RH |
1 | ||
| 58616-36030 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# RH |
1 | ||
| 58624-36050 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# LH |
1 | ||
| 58616D - PLATE, MAT SET, NO.6 A | ||||
| 58624-36050 |
BB4#,5#,HZB50,RZB40,50..CBU LH |
1 | ||
| 58616-36030 |
BB4#,5#,HZB50,RZB40,50..CBU RH |
1 | ||
| 58616-36030 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# RH |
1 | ||
| 58624-36050 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# LH |
1 | ||
| 58617C - PLATE, REAR WHEEL HOUSE MAT | ||||
| 58617-36040 |
BB4#,5#,HZB50,RZB40,50..CBU |
2 | ||
| 58617-36040 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# |
2 | ||
| 58617C - PLATE, REAR WHEEL HOUSE MAT | ||||
| 58617-36040 |
BB4#,5#,HZB50,RZB40,50..CBU |
2 | ||
| 58617-36040 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# |
2 | ||
| 58625G - PLATE, REAR WHEEL HOUSE MAT, NO.1 | ||||
| 58626-36050 |
BB4#,5#,HZB50,RZB40,50..CBU RH |
1 | ||
| 58625-36040 |
BB4#,5#,HZB50,RZB40,50..CBU LH |
1 | ||
| 58625-36040 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# LH |
1 | ||
| 58626-36050 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# RH |
1 | ||
| 58625G - PLATE, REAR WHEEL HOUSE MAT, NO.1 | ||||
| 58626-36050 |
BB4#,5#,HZB50,RZB40,50..CBU RH |
1 | ||
| 58625-36040 |
BB4#,5#,HZB50,RZB40,50..CBU LH |
1 | ||
| 58625-36040 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# LH |
1 | ||
| 58626-36050 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# RH |
1 | ||
| 58626F - PLATE, REAR WHEEL HOUSE MAT, NO.1 | ||||
| 58625-36040 |
BB4#,5#,HZB50,RZB40,50..CBU RH |
1 | ||
| 58627-36040 |
BB4#,5#,HZB50,RZB40,50..CBU LH |
1 | ||
| 58627-36040 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# LH |
1 | ||
| 58625-36040 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# RH |
1 | ||
| 58626F - PLATE, REAR WHEEL HOUSE MAT, NO.1 | ||||
| 58625-36040 |
BB4#,5#,HZB50,RZB40,50..CBU RH |
1 | ||
| 58627-36040 |
BB4#,5#,HZB50,RZB40,50..CBU LH |
1 | ||
| 58627-36040 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# LH |
1 | ||
| 58625-36040 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# RH |
1 | ||
| 58632A - PLATE, ENGINE SERVICE HOLE MAT, REAR | ||||
| 58632-36010 |
BB4#,HZB50,RZB40,50..CBU |
1 | ||
| 58632-36020 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# |
1 | ||
| 58634A - PLATE, ENGINE SERVICE HOLE MAT, RH | ||||
| 58634-36080 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# NO.2 |
1 | ||
| 58634-36020 |
BB4#,HZB50,RZB40,50..CBU |
1 | ||
| 58644A - PLATE, ENGINE SERVICE HOLE MAT, LH | ||||
| 58644-36020 |
BB4#,HZB50,RZB40,50..CBU |
1 | ||
| 58644-36050 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# |
1 | ||
| 58651A - PLATE, FRONT DOOR MAT, NO.1 | ||||
| 58651-36010B0 |
BB42,BZB40,50,HZB50,XZB40,5#..RHD MD.CHARCOAL,TRIM1# |
1 | ||
| 58651-36010E0 |
BB4#,50,HZB50..RHD..CBU GREIGE,TRIM4# |
1 | ||
| 58665B - PLATE, REAR FLOOR, CENTER LOWER NO.1 LH | ||||
| 58665-36060B0 |
XZB40,5#..RHD..GEN MD.CHARCOAL,TRIM1# |
1 | ||
| 58671 - PLATE, CENTER DOOR STEP MAT, FRONT | ||||
| 58671-36020 |
BB4#,HZB50..RHD..STD..CBU |
1 | ||
| 58671-36020 |
BB42,BZB40,50,HZB50,XZB40,50..RHD..STD |
1 | ||
| 58672A - PLATE, CENTER DOOR STEP MAT, REAR | ||||
| 58672-36020 |
BB4#,HZB50..RHD..STD..DSL |
1 | ||
| 58672-36060 |
BB42,BZB40,50,HZB50,XZB40,50..RHD..STD |
1 | ||
| 58673A - PLATE, CENTER DOOR STEP MAT SIDE | ||||
| 58673-36020 |
BB4#,5#,HZB50,RZB40,50..CBU |
1 | ||
| 58673-36020 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# |
1 | ||
| 58675A - PLATE, CENTER DOOR PILLAR MAT, FRONT | ||||
| 58675-36030E0 |
BB42,HZB50..RHD..STD..(GEN,SCO) GREIGE,TRIM4# |
1 | ||
| 58675-36030B0 |
BB42,BZB40,50,HZB50,XZB40,50..RHD..STD MD.CHARCOAL,TRIM1# |
1 | ||
| 58676D - PLATE, CENTER DOOR PILLAR MAT, REAR | ||||
| 58676-36030E0 |
BB42,HZB50..RHD..STD..(GEN,SCO) GREIGE,TRIM4# |
1 | ||
| 58676-36030B1 |
BB42,BZB40,50,HZB50,XZB40,50..RHD..STD MD.CHARCOAL,TRIM1# |
1 | ||
| Common parts | ||||
| 90162-35002 | ||||
| 90162-40037 | ||||
| 90167-50062 | ||||
| 90189-04013 | ||||
| 90189-04035 | ||||
| 90189-05127 | ||||
| 90339-03003 | ||||
| 90468-05112 | ||||
| 93530-15014 | ||||
| 93560-14014 | ||||
| 93560-15016 | ||||
| 93560-54014 | ||||

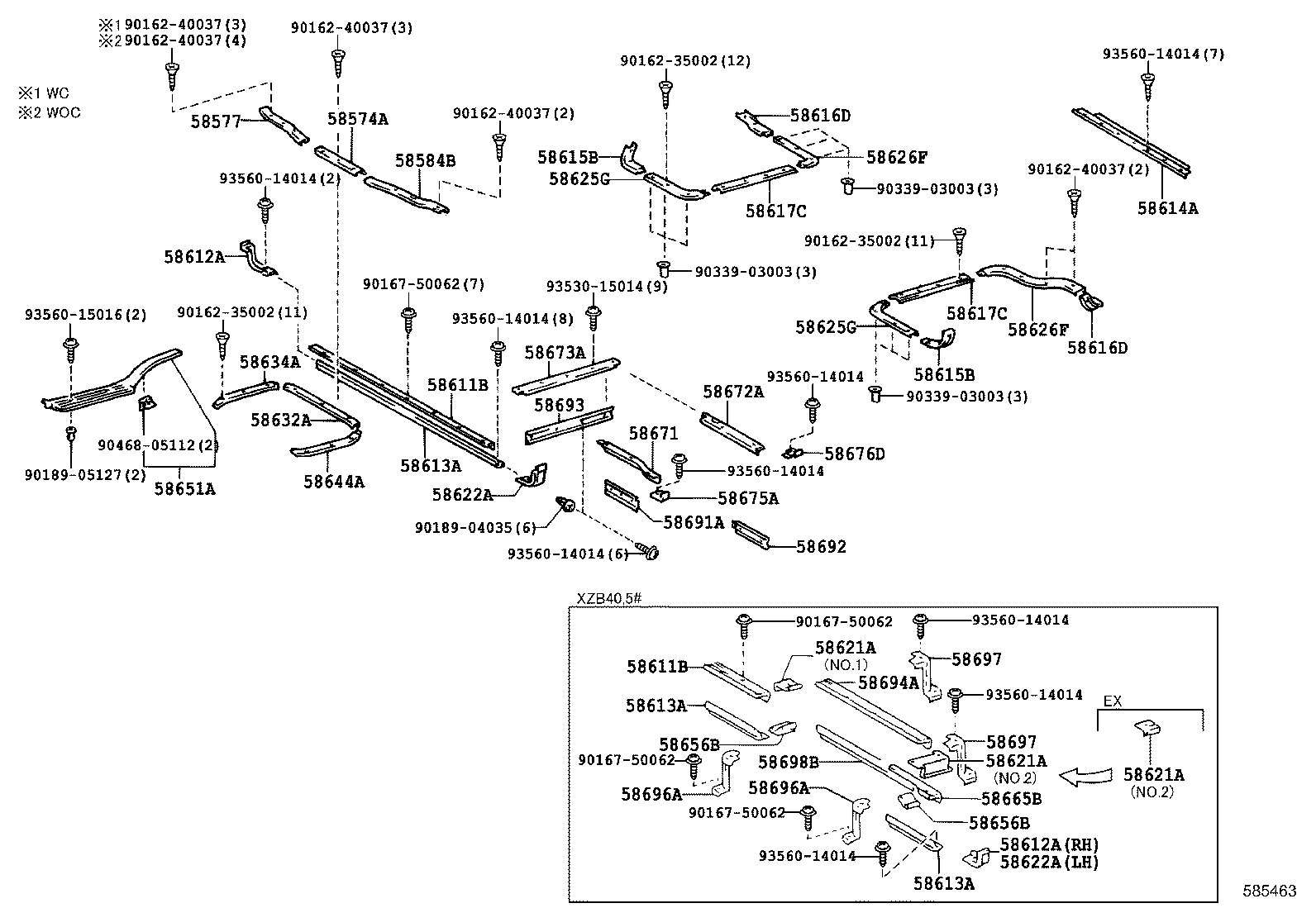

ILLUST NO. 2 OF 2(1501- )RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58574A - PLATE, REAR FLOOR MAT SUPPORT, REAR | ||||
| 58574-36010 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# |
1 | ||
| 58577 - SET PLATE, REAR FLOOR MAT SIDE, REAR RH | ||||
| 58577-36060 |
BB42,BZB40,50,HZB50,XZB40,5#..RHD..WC |
1 | ||
| 58584B - PLATE, REAR FLOOR MAT SUPPORT SIDE, NO.4 | ||||
| 58584-36010 |
BB4#,HZB50..RHD..DSL |
1 | ||
| 58584-36050 |
BB42,BZB40,50,HZB50,XZB40,5#..RHD |
1 | ||
| 58611B - PLATE, MAT SET, NO.1 | ||||
| 58611-36010E0 |
BB4#,50,HZB50..RHD..CBU GREIGE,TRIM4# |
1 | ||
| 58611-36010B0 |
BB42,BZB50,HZB50..RHD MD.CHARCOAL,TRIM1# |
1 | ||
| 58611B - PLATE, MAT SET, NO.1 | ||||
| 58611-36010E0 |
BB4#,50,HZB50..RHD..CBU GREIGE,TRIM4# |
1 | ||
| 58611-36010B0 |
BB42,BZB50,HZB50..RHD MD.CHARCOAL,TRIM1# |
1 | ||
| 58612A - PLATE, MAT SET, NO.2 RH | ||||
| 58612-36010B1 |
BB42,BZB50,HZB50,XZB5#..RHD MD.CHARCOAL,TRIM1# |
1 | ||
| 58612A - PLATE, MAT SET, NO.2 RH | ||||
| 58612-36010B1 |
BB42,BZB50,HZB50,XZB5#..RHD MD.CHARCOAL,TRIM1# |
1 | ||
| 58613A - PLATE, MAT SET, NO.3 | ||||
| 58613-36010B1 |
BB42,BZB50,HZB50,TRB40,50 MD.CHARCOAL,TRIM1# |
1 | ||
| 58613A - PLATE, MAT SET, NO.3 | ||||
| 58613-36010B1 |
BB42,BZB50,HZB50,TRB40,50 MD.CHARCOAL,TRIM1# |
1 | ||
| 58613A - PLATE, MAT SET, NO.3 | ||||
| 58613-36010B1 |
BB42,BZB50,HZB50,TRB40,50 MD.CHARCOAL,TRIM1# |
1 | ||
| 58614A - PLATE, MAT SET, NO.4 | ||||
| 58614-36010E0 |
BB42,HZB50..GCC,GEN GREIGE,TRIM4# |
1 | ||
| 58614-36011B0 |
XZB40..26S;BB42,BZB40,50,HZB50,TRB40,50,XZB50..STD..(GCC,GEN,TAIW) MD.CHARCOAL,TRIM1# |
1 | ||
| 58614-36020B1 |
BZB40,HZB50,XZB40,5#..RHD W(SINGLE SWING BACK DOOR),MD.CHARCOAL,TRIM1# |
1 | ||
| 58615B - PLATE, MAT SET, NO.5 A | ||||
| 58616-36030 |
BB4#,5#,HZB50,RZB40,50..CBU LH |
1 | ||
| 58615-36020 |
BB4#,5#,HZB50,RZB40,50..CBU RH |
1 | ||
| 58615-36020 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# RH |
1 | ||
| 58616-36030 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# LH |
1 | ||
| 58615B - PLATE, MAT SET, NO.5 A | ||||
| 58616-36030 |
BB4#,5#,HZB50,RZB40,50..CBU LH |
1 | ||
| 58615-36020 |
BB4#,5#,HZB50,RZB40,50..CBU RH |
1 | ||
| 58615-36020 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# RH |
1 | ||
| 58616-36030 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# LH |
1 | ||
| 58616D - PLATE, MAT SET, NO.6 A | ||||
| 58624-36050 |
BB4#,5#,HZB50,RZB40,50..CBU LH |
1 | ||
| 58616-36030 |
BB4#,5#,HZB50,RZB40,50..CBU RH |
1 | ||
| 58616-36030 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# RH |
1 | ||
| 58624-36050 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# LH |
1 | ||
| 58616D - PLATE, MAT SET, NO.6 A | ||||
| 58624-36050 |
BB4#,5#,HZB50,RZB40,50..CBU LH |
1 | ||
| 58616-36030 |
BB4#,5#,HZB50,RZB40,50..CBU RH |
1 | ||
| 58616-36030 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# RH |
1 | ||
| 58624-36050 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# LH |
1 | ||
| 58617C - PLATE, REAR WHEEL HOUSE MAT | ||||
| 58617-36040 |
BB4#,5#,HZB50,RZB40,50..CBU |
2 | ||
| 58617-36040 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# |
2 | ||
| 58617C - PLATE, REAR WHEEL HOUSE MAT | ||||
| 58617-36040 |
BB4#,5#,HZB50,RZB40,50..CBU |
2 | ||
| 58617-36040 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# |
2 | ||
| 58625G - PLATE, REAR WHEEL HOUSE MAT, NO.1 | ||||
| 58626-36050 |
BB4#,5#,HZB50,RZB40,50..CBU RH |
1 | ||
| 58625-36040 |
BB4#,5#,HZB50,RZB40,50..CBU LH |
1 | ||
| 58625-36040 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# LH |
1 | ||
| 58626-36050 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# RH |
1 | ||
| 58625G - PLATE, REAR WHEEL HOUSE MAT, NO.1 | ||||
| 58626-36050 |
BB4#,5#,HZB50,RZB40,50..CBU RH |
1 | ||
| 58625-36040 |
BB4#,5#,HZB50,RZB40,50..CBU LH |
1 | ||
| 58625-36040 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# LH |
1 | ||
| 58626-36050 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# RH |
1 | ||
| 58626F - PLATE, REAR WHEEL HOUSE MAT, NO.1 | ||||
| 58625-36040 |
BB4#,5#,HZB50,RZB40,50..CBU RH |
1 | ||
| 58627-36040 |
BB4#,5#,HZB50,RZB40,50..CBU LH |
1 | ||
| 58627-36040 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# LH |
1 | ||
| 58625-36040 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# RH |
1 | ||
| 58626F - PLATE, REAR WHEEL HOUSE MAT, NO.1 | ||||
| 58625-36040 |
BB4#,5#,HZB50,RZB40,50..CBU RH |
1 | ||
| 58627-36040 |
BB4#,5#,HZB50,RZB40,50..CBU LH |
1 | ||
| 58627-36040 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# LH |
1 | ||
| 58625-36040 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# RH |
1 | ||
| 58632A - PLATE, ENGINE SERVICE HOLE MAT, REAR | ||||
| 58632-36010 |
BB4#,HZB50,RZB40,50..CBU |
1 | ||
| 58632-36020 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# |
1 | ||
| 58634A - PLATE, ENGINE SERVICE HOLE MAT, RH | ||||
| 58634-36080 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# NO.2 |
1 | ||
| 58634-36020 |
BB4#,HZB50,RZB40,50..CBU |
1 | ||
| 58644A - PLATE, ENGINE SERVICE HOLE MAT, LH | ||||
| 58644-36020 |
BB4#,HZB50,RZB40,50..CBU |
1 | ||
| 58644-36050 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# |
1 | ||
| 58651A - PLATE, FRONT DOOR MAT, NO.1 | ||||
| 58651-36010B0 |
BB42,BZB40,50,HZB50,XZB40,5#..RHD MD.CHARCOAL,TRIM1# |
1 | ||
| 58651-36010E0 |
BB4#,50,HZB50..RHD..CBU GREIGE,TRIM4# |
1 | ||
| 58665B - PLATE, REAR FLOOR, CENTER LOWER NO.1 LH | ||||
| 58665-36060B0 |
XZB40,5#..RHD..GEN MD.CHARCOAL,TRIM1# |
1 | ||
| 58671 - PLATE, CENTER DOOR STEP MAT, FRONT | ||||
| 58671-36020 |
BB4#,HZB50..RHD..STD..CBU |
1 | ||
| 58671-36020 |
BB42,BZB40,50,HZB50,XZB40,50..RHD..STD |
1 | ||
| 58672A - PLATE, CENTER DOOR STEP MAT, REAR | ||||
| 58672-36020 |
BB4#,HZB50..RHD..STD..DSL |
1 | ||
| 58672-36060 |
BB42,BZB40,50,HZB50,XZB40,50..RHD..STD |
1 | ||
| 58673A - PLATE, CENTER DOOR STEP MAT SIDE | ||||
| 58673-36020 |
BB4#,5#,HZB50,RZB40,50..CBU |
1 | ||
| 58673-36020 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# |
1 | ||
| 58675A - PLATE, CENTER DOOR PILLAR MAT, FRONT | ||||
| 58675-36030E0 |
BB42,HZB50..RHD..STD..(GEN,SCO) GREIGE,TRIM4# |
1 | ||
| 58675-36030B0 |
BB42,BZB40,50,HZB50,XZB40,50..RHD..STD MD.CHARCOAL,TRIM1# |
1 | ||
| 58676D - PLATE, CENTER DOOR PILLAR MAT, REAR | ||||
| 58676-36030E0 |
BB42,HZB50..RHD..STD..(GEN,SCO) GREIGE,TRIM4# |
1 | ||
| 58676-36030B1 |
BB42,BZB40,50,HZB50,XZB40,50..RHD..STD MD.CHARCOAL,TRIM1# |
1 | ||
| Common parts | ||||
| 90162-35002 | ||||
| 90162-40037 | ||||
| 90167-50062 | ||||
| 90189-04035 | ||||
| 90189-05127 | ||||
| 90339-03003 | ||||
| 90468-05112 | ||||
| 93530-15014 | ||||
| 93560-14014 | ||||
| 93560-15016 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
