BB42R-BRMSS (2011)
Toyota Coaster
Production
Aug 2011
-
Dec 2016
Engine
14B
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9301- )14B,3B

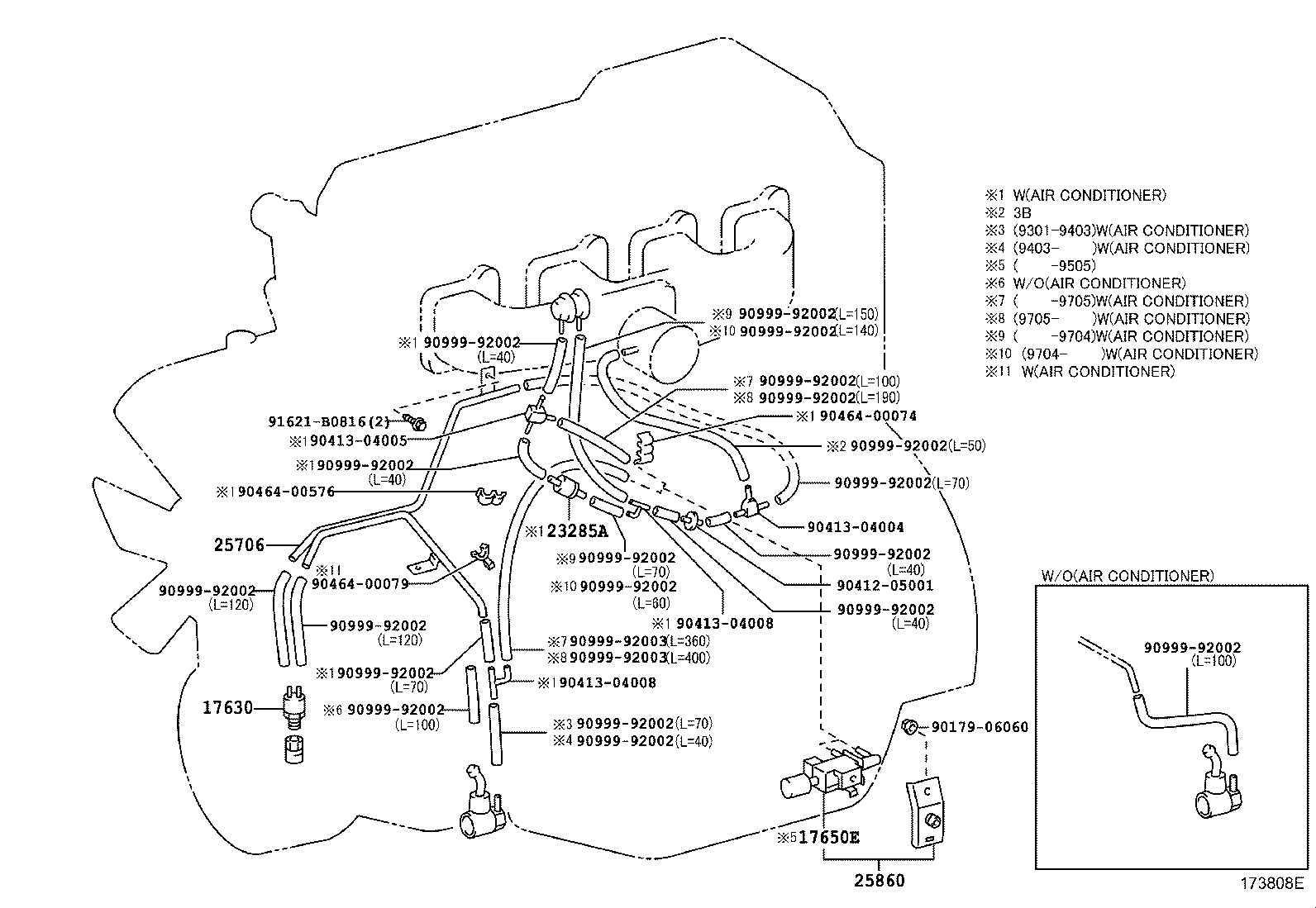

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17630 - VALVE ASSY, AIR CONTROL | ||||
| 17630-15010 |
14B,15BFT,3B..BB4#,5# |
1 | ||
| 17630-15010 |
14B..BB42 |
1 | ||
| 17650E - VALVE, VACUUM SWITCHING | ||||
| 90910-12136 |
14B,3B..BB4#..WC;14B..BB42..LHD..WOC..GEN |
1 | ||
| 23285A - VALVE, CHECK, NO.1 | ||||
| 90917-10049 |
14B,3B..BB40,42..WC;14B..BB42..LHD..WOC..GEN |
1 | ||
| 90917-10049 |
14B..BB42..WC |
1 | ||
| 25706 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.1 | ||||
| 25706-58050 |
14B,3B..BB40,42 |
1 | ||
| 25706-58050 |
14B..BB42 |
1 | ||
| 25860 - VALVE ASSY, VACUUM SWITCHING, NO.1 | ||||
| 25860-17030 |
14B,3B..BB4#..WC;14B..BB42..LHD..WOC..GEN |
1 | ||
| 25860-17060 |
14B..BB42..WC |
1 | ||
| Common parts | ||||
| 90179-06060 | ||||
| 90412-05001 | ||||
| 90413-04004 | ||||
| 90413-04005 | ||||
| 90413-04008 | ||||
| 90464-00074 | ||||
| 90464-00079 | ||||
| 90464-00576 | ||||
| 90999-92002 | ||||
| 90999-92003 | ||||
| 91621-B0816 | ||||
