BB42R-BRMSS (2011)
Toyota Coaster
(1501- )14B..GEN
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17410 - PIPE ASSY, EXHAUST, FRONT | ||||
| 17401-58270 |
14B,3B..BB4# |
1 | ||
| 17401-58271 |
14B..BB42 |
1 | ||
| 17410A - NUT, EXHAUST PIPE SET STUD BOLT | ||||
| 90179-10070 |
14B,15BFT,3B,1HZ#,3RZF..BB4#,5#,HZB50,RZB40,50 |
3 | ||
| 90179-10070 |
N04C,14B,1BZFPE,1HZ..BB42,BZB40,50,HZB50,XZB40,5# |
3 | ||
| 17410B - GASKET, EXHAUST PIPE | ||||
| 90917-06059 |
14B,15BFT,3B,1HZ..BB4#,5#,HZB50 |
1 | ||
| 90917-06059 |
14B,1HZ..BB42,HZB50 |
1 | ||
| 17420 - PIPE ASSY, EXHAUST, CENTER | ||||
| 17403-58400 |
14B,3B..BB4# |
1 | ||
| 17403-58402 |
14B..BB42..GEN |
1 | ||
| 17420X - GASKET, EXHAUST PIPE, CENTER | ||||
| 90917-06042 |
14B,3B..BB4# |
1 | ||
| 90917-06045 |
14B..BB42..GEN |
1 | ||
| 17430 - PIPE ASSY, EXHAUST, TAIL | ||||
| 17405-58560 |
14B..BB42..RHD |
1 | ||
| 17405-58562 |
14B..BB42..RHD |
1 | ||
| 17430 - PIPE ASSY, EXHAUST, TAIL | ||||
| 17405-58560 |
14B..BB42..RHD |
1 | ||
| 17405-58562 |
14B..BB42..RHD |
1 | ||
| 17430G - CUSHION, EXHAUST TAIL PIPE(FOR CENTER) | ||||
| 17567-17010 |
14B..BB42 |
1 | ||
| 17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR) | ||||
| 17561-58020 |
14B,3B,3RZF..BB40,42,RZB40,50 |
1 | ||
| 17561-75010 |
14B..BB42..GEN |
1 | ||
| 17430T - CUSHION, EXHAUST TAIL PIPE (FOR REAR) | ||||
| 17567-17010 |
14B,15BFT,3B,1HZ#,3RZF..BB4#,5#,HZB50,RZB40,50 |
1 | ||
| 17567-17020 |
N04C..XZB40..26S;14B,1BZFPE,1HZ,2TRFE..BB42,BZB40,50,HZB50,TRB40,50..GEN |
1 | ||
| 17444A - SPACER, EXHAUST FRONT PIPE | ||||
| 17444-58010 |
14B,3B..BB40,42..ARL,GCC,GEN |
1 | ||
| 17444-58010 |
14B..BB42 |
1 | ||
| 17451 - GASKET, EXHAUST PIPE | ||||
| 46759-36030 |
14B,3B..BB40,42..ARL,GCC,GEN |
2 | ||
| 46759-36030 |
14B..BB42 |
2 | ||
| 17451 - GASKET, EXHAUST PIPE | ||||
| 46759-36030 |
14B,3B..BB40,42..ARL,GCC,GEN |
2 | ||
| 46759-36030 |
14B..BB42 |
2 | ||
| 17452 - CLAMP, EXHAUST PIPE | ||||
| 17452-75030 |
14B..BB42..GEN |
1 | ||
| 17452 - CLAMP, EXHAUST PIPE | ||||
| 17452-75030 |
14B..BB42..GEN |
1 | ||
| 17551 - INSULATOR, EXHAUST PIPE HEAT, NO.1 | ||||
| 17551-17010 |
14B,3B,1HZ#..BB4#,HZB50 |
1 | ||
| 17551-17011 |
14B,1BZFPE,1HZ,2TRFE..BB42,BZB40,50,HZB50,TRB40,50 |
1 | ||
| 17567 - CUSHION, EXHAUST PIPE SUPPORT | ||||
| 17567-58010 |
14B,15BFT,3B,3RZF..BB4#,RZB40,50 |
1 | ||
| 17567-58010 |
2TRFE..TRB40,50..GEN;14B,1BZFPE..BB42,BZB40,50 |
1 | ||
| 17571 - BRACKET, EXHAUST PIPE SUPPORT, NO.1 | ||||
| 17571-58300 |
14B,15BFT,3B..BB4#,5# |
1 | ||
| 17571-58301 |
14B,1BZFPE..BB42,BZB40,50 |
1 | ||
| 17572B - BRACKET, EXHAUST PIPE SUPPORT, NO.2 | ||||
| 17572-17030 |
14B,15BFT,3B,3RZF..BB4#,RZB40,50 |
1 | ||
| 17572-17030 |
14B..BB42;2TRFE..TRB40,50..GEN |
1 | ||
| 17572D - BRACKET, EXHAUST PIPE SUPPORT, NO.1 | ||||
| 17579-73010 |
14B,15BFT,3B,1HZ..BB4#,5#,HZB50..5F |
1 | ||
| 17579-73010 |
14B,1BZFPE,1HZ..BB42,BZB40,50,HZB50 |
1 | ||
| 17573A - BRACKET, EXHAUST PIPE SUPPORT, NO.3 | ||||
| 17572-58090 |
14B,3B..BB4# |
1 | ||
| 17574 - BRACKET, EXHAUST PIPE SUPPORT, NO.4 | ||||
| 17574-58170 |
N04C,14B,1BZFPE,1HZ,2TRFE..BB42,BZB40,50,HZB50,TRB40,50,XZB40,5#..ARL,GEN,TAIW |
1 | ||
| 17574-17010 |
14B,15BFT,3B,1HZ#,3RZF..BB4#,5#,HZB50,RZB40,50 |
1 | ||
| Common parts | ||||
| 90119-08486 | ||||
| 90119-10246 | ||||
| 90179-06007 | ||||
| 90461-32031 | ||||
| 91515-61035 | ||||
| 91631-B0820 | ||||
| 91641-80825 | ||||
| 91651-41020 | ||||
| 91651-B0835 | ||||
| 94185-60800 | ||||
| 94185-61000 | ||||

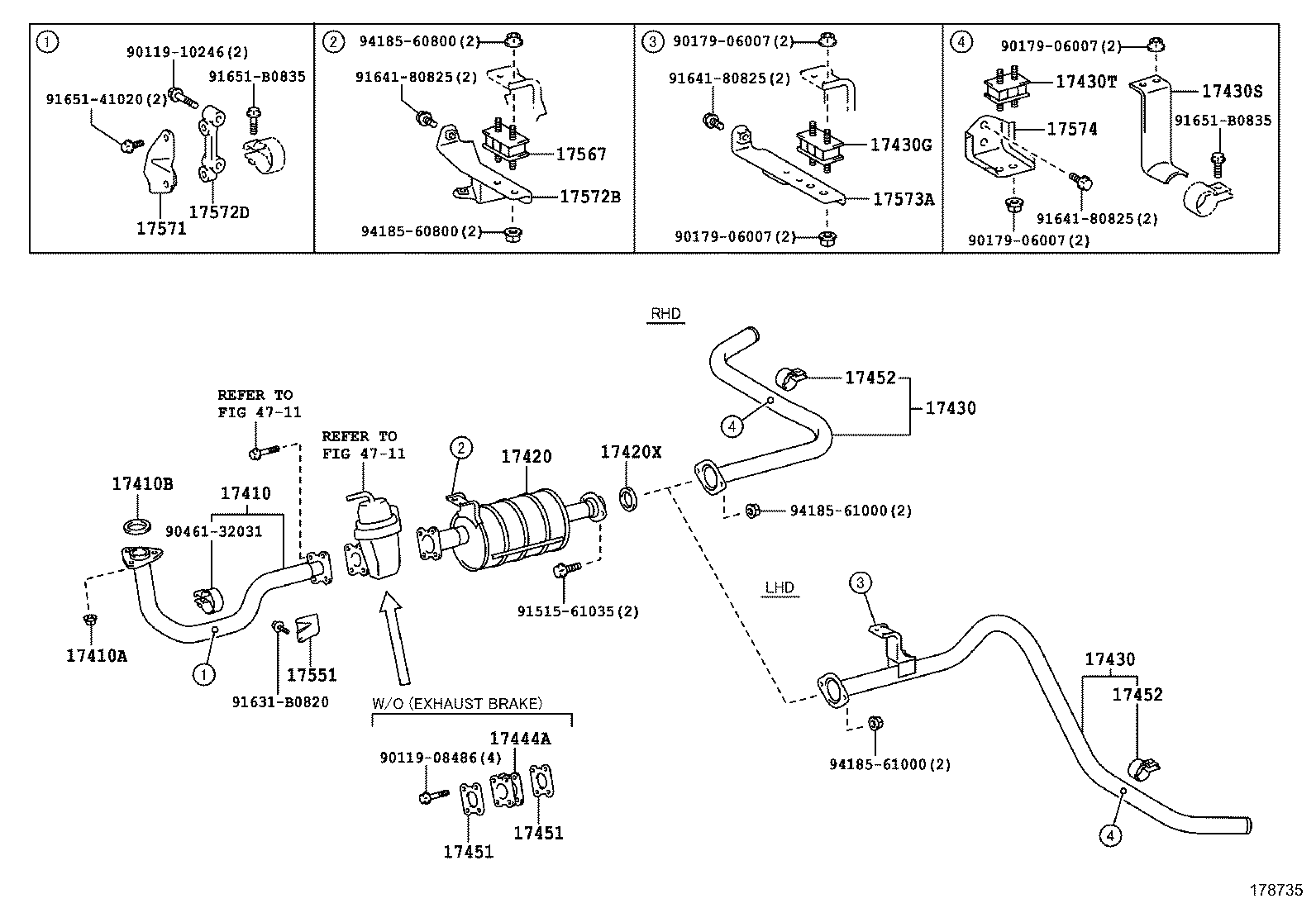

| Linked diagrams | ||||
| 4711 | ||||
