BB42L-ZEMSS (1993)
Toyota Coaster

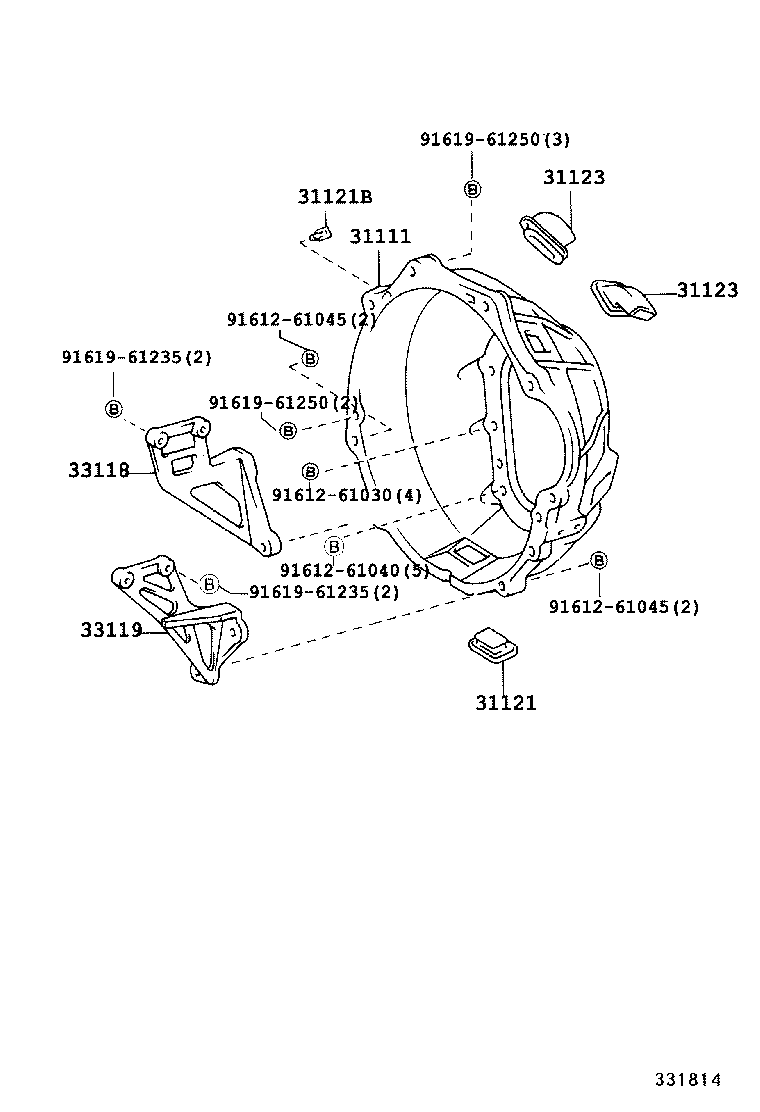

ILLUST NO. 1 OF 2(9705- )BB50..5F..TDEFI ; (9705- )BB50..CHI,GEN..TD ; (9705- )BB43,58,59,B
M152,M155,M156
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31111 - HOUSING, CLUTCH | ||||
| 31111-36310 |
BB42..22S;BB42..WOC..GCC;BB42..RHD..HRF..WOC |
1 | ||
| 31111-37020 |
BB43,5#..GEN |
1 | ||
| 31111-36310 |
BB40,42;BB50..EUR |
1 | ||
| 31112 - HOUSING, CLUTCH, FRONT | ||||
| 31112-37012 |
BB43,5#..GEN |
1 | ||
| 31121 - COVER, CLUTCH HOUSING, NO.1 | ||||
| 31121-36040 |
BB50..WOC..5F;HZB50..RHD..SRF;BB50,HZB50..RHD..EX;BB42,RZB40..WOC..GCC;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,19S,22S)..GEN |
1 | ||
| 31121-36040 |
BB4#,5#,HZB50,RZB40,50..5F |
1 | ||
| 33118 - PLATE, STIFFENER, RH(MTM) | ||||
| 33118-36021 |
BB40,42;BB50..EUR |
1 | ||
| 33118-37020 |
BB43,5#..GEN |
1 | ||
| 33118-36021 |
BB42..22S;BB42..WOC..GCC;BB42..RHD..HRF..WOC |
1 | ||
| 33119 - PLATE, STIFFENER, LH(MTM) | ||||
| 33119-36041 |
BB4# |
1 | ||
| 33119-36042 |
BB40,42;BB50..EUR |
1 | ||
| 33119-36042 |
BB42..22S;BB42..WOC..GCC;BB42..RHD..HRF..WOC |
1 | ||
| 33119-37020 |
BB43,5#..GEN |
1 | ||
| Common parts | ||||
| 90250-12002 | ||||
| 91612-61030 | ||||
| 91612-61040 | ||||
| 91612-61045 | ||||
| 91619-61235 | ||||
| 91619-61250 | ||||
ILLUST NO. 2 OF 2(9301- )BB4#,BZB40,50,HZB50..ARL,GCC,GEN,SCO..5F
M152,M155
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33101 - CASE SUB-ASSY, MANUAL TRANSMISSION | ||||
| 33101-36080 |
BB4#,HZB50,RZB40,50..CBU..5F |
1 | ||
| 33101-36081 |
BB4#,HZB50,RZB40,50..CBU..5F |
1 | ||
| 33101-36083 |
BB4#,HZB50,RZB40,50..5F |
1 | ||
| 33101-36083 |
HZB50..RHD..EX;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;BB4#,RZB40..(17S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN |
1 | ||
| 33101-36082 |
BB4#,HZB50,RZB40,50..CBU..5F |
1 | ||
| 33101A - PLUG(FOR MANUAL TRANSMISSION FILLER) | ||||
| 90341-18006 |
BB4#,5#,HZB50,RZB40,50..5F |
1 | ||
| 90341-18006 |
BB50..WOC..5F;HZB50..RHD..SRF;BB50,HZB50..RHD..EX;BB42,RZB40..WOC..GCC;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,19S,22S)..GEN |
1 | ||
| 33101C - GASKET(FOR MANUAL TRANSMISSION FILLER PLUG) | ||||
| 90430-18008 |
BB50..WOC..5F;HZB50..RHD..SRF;BB50,HZB50..RHD..EX;BB42,RZB40..WOC..GCC;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,19S,22S)..GEN |
1 | ||
| 90430-18008 |
BB4#,5#,HZB50,RZB40,50..5F |
1 | ||
| 33104 - PLUG SUB-ASSY, DRAIN(MTM) | ||||
| 90341-18006 |
BB4#,5#,HZB50,RZB40,50..5F |
1 | ||
| 90341-18006 |
BB50..WOC..5F;HZB50..RHD..SRF;BB50,HZB50..RHD..EX;BB42,RZB40..WOC..GCC;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,19S,22S)..GEN |
1 | ||
| 33104A - GASKET, DRAIN PLUG(MTM) | ||||
| 90430-18008 |
BB50..WOC..5F;HZB50..RHD..SRF;BB50,HZB50..RHD..EX;BB42,RZB40..WOC..GCC;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,19S,22S)..GEN |
1 | ||
| 90430-18008 |
BB4#,5#,HZB50,RZB40,50..5F |
1 | ||
| 33111C - PLUG(FOR TRANSMISSION CASE) | ||||
| 96411-11600 |
BB4#,5#,HZB50,RZB40,50..5F |
3 | ||
| 96411-11600 |
BB50..WOC..5F;HZB50..RHD..SRF;BB50,HZB50..RHD..EX;BB42,RZB40..WOC..GCC;BB4#,RZB40..(17S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN |
3 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90250-12002 |
BB4#,5#,HZB50,RZB40,50..5F L=16,OD=12 |
4 | ||
| 90250-12002 |
BB50..WOC..5F;HZB50..RHD..SRF;BB50,HZB50..RHD..EX;BB42,RZB40..WOC..GCC;BB4#,RZB40..(17S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN L=16,OD=12 |
4 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90250-12002 |
BB4#,5#,HZB50,RZB40,50..5F L=16,OD=12 |
4 | ||
| 90250-12002 |
BB50..WOC..5F;HZB50..RHD..SRF;BB50,HZB50..RHD..EX;BB42,RZB40..WOC..GCC;BB4#,RZB40..(17S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN L=16,OD=12 |
4 | ||
| 33111U - PIN, RING(FOR MANUAL TRANSMISSION CASE) | ||||
| 90253-11001 |
BB4#,5#,HZB50,RZB40,50..5F L=11,OD=11 |
1 | ||
| 90253-13017 |
BB4#,5#,HZB50,RZB40,50..5F L=12,OD=13 |
2 | ||
| 90253-13017 |
BB50..WOC..5F;HZB50..RHD..SRF;BB50,HZB50..RHD..EX;BB42,RZB40..WOC..GCC;BB4#,RZB40..(17S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN L=12,OD=13 |
2 | ||
| 90253-11001 |
BB50..WOC..5F;HZB50..RHD..SRF;BB50,HZB50..RHD..EX;BB42,RZB40..WOC..GCC;BB4#,RZB40..(17S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN L=11,OD=11 |
1 | ||
| 33124C - PIPE, OIL RECEIVER, NO.1(MTM) | ||||
| 33124-36030 |
BB4#,HZB50,RZB40,50..CBU..5F |
1 | ||
| 33124-36030 |
HZB50..RHD..EX;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;BB4#,RZB40..(17S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN |
1 | ||
| 33125B - RECEIVER, MANUAL TRANSMISSION CASE | ||||
| 33125-36020 |
BB4#,HZB50,RZB40,50..CBU..5F |
1 | ||
| 33125-36020 |
HZB50..RHD..EX;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;BB4#,RZB40..(17S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN |
1 | ||
| 33131 - RETAINER, BEARING, FRONT(MTM) | ||||
| 33018-36060 |
BB50..EUR;BB40,42,RZB40,50 |
1 | ||
| 33018-37010 |
BB43,5#..GEN |
1 | ||
| 33018-36050 |
BB4# |
1 | ||
| 33018-36060 |
BB42..RHD..HRF..WOC;BB42,RZB40..WOC..GCC;BB42,RZB40..22S..GEN |
1 | ||
| 33131A - SEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER) | ||||
| 90311-32012 |
BB50..EUR;BB40,42,RZB40,50 |
1 | ||
| 90311-35023 |
HZB50..5F;BB43,5#..GEN |
1 | ||
| 90311-32012 |
BB42..RHD..HRF..WOC;BB42,RZB40..WOC..GCC;BB42,RZB40..22S..GEN |
1 | ||
| 33151 - RETAINER, OUTPUT SHAFT REAR BEARING(MTM) | ||||
| 33017-36031 |
HZB50..RHD..EX;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;BB4#,RZB40..(17S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN |
1 | ||
| 33017-36031 |
BB4#,HZB50,RZB40,50..CBU..5F |
1 | ||
| 33017-36030 |
BB4#,HZB50,RZB40,50..CBU..5F |
1 | ||
| 33151K - SEAL, TYPE T OIL | ||||
| 90311-48011 |
BB4#,5#,HZB50,RZB40,50..5F |
1 | ||
| 90311-48011 |
BB50..WOC..5F;HZB50..RHD..SRF;BB50,HZB50..RHD..EX;BB42,RZB40..WOC..GCC;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,19S,22S)..GEN |
1 | ||
| 33161 - COVER, MANUAL TRANSMISSION POWER TAKE-OFF | ||||
| 33161-36010 |
BB4#,RZB40,50;HZB50..(GEN,SCO)..5F |
1 | ||
| 33161-36010 |
HZB50..RHD..EX;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;BB4#,RZB40..(17S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN |
1 | ||
| 33161 - COVER, MANUAL TRANSMISSION POWER TAKE-OFF | ||||
| 33161-36010 |
BB4#,RZB40,50;HZB50..(GEN,SCO)..5F |
1 | ||
| 33161-36010 |
HZB50..RHD..EX;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;BB4#,RZB40..(17S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN |
1 | ||
| 33162 - GASKET, MANUAL TRANSMISSION POWER TAKE-OFF COVER | ||||
| 33162-36020 |
HZB50..RHD..EX;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,19S,22S)..GEN |
1 | ||
| 33162-36020 |
BB4#,HZB50,RZB40,50..CBU..5F |
1 | ||
| 33162 - GASKET, MANUAL TRANSMISSION POWER TAKE-OFF COVER | ||||
| 33162-36020 |
HZB50..RHD..EX;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,19S,22S)..GEN |
1 | ||
| 33162-36020 |
BB4#,HZB50,RZB40,50..CBU..5F |
1 | ||
| 33449B - MAGNET, TRANSMISSION | ||||
| 33449-36010 |
BB50..EUR;BB50..WC..GEN;BB4#,58,HZB50,RZB40,50..5F |
1 | ||
| 33449-36010 |
BB50..WOC..5F;HZB50..RHD..SRF;BB50,HZB50..RHD..EX;BB42,RZB40..WOC..GCC;BB4#,RZB40..(17S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN |
1 | ||
| Common parts | ||||
| 90119-08332 | ||||
| 90119-08421 | ||||
| 90119-10186 | ||||
| 90119-10390 | ||||
| 90119-10398 | ||||
| 90119-10970 | ||||
| 91611-B0610 | ||||
| 91611-B0812 | ||||
| 91612-61030 | ||||
| 91612-61045 | ||||
| 91651-41020 | ||||
ILLUST NO. 2 OF 2(9301-9605)TD
M155
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33101 - CASE SUB-ASSY, MANUAL TRANSMISSION | ||||
| 33101-36080 |
BB4#,HZB50,RZB40,50..CBU..5F |
1 | ||
| 33101-36081 |
BB4#,HZB50,RZB40,50..CBU..5F |
1 | ||
| 33101-36083 |
BB4#,HZB50,RZB40,50..5F |
1 | ||
| 33101-36083 |
HZB50..RHD..EX;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;BB4#,RZB40..(17S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN |
1 | ||
| 33101-36082 |
BB4#,HZB50,RZB40,50..CBU..5F |
1 | ||
| 33101A - PLUG(FOR MANUAL TRANSMISSION FILLER) | ||||
| 90341-18006 |
BB4#,5#,HZB50,RZB40,50..5F |
1 | ||
| 90341-18006 |
BB50..WOC..5F;HZB50..RHD..SRF;BB50,HZB50..RHD..EX;BB42,RZB40..WOC..GCC;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,19S,22S)..GEN |
1 | ||
| 33101C - GASKET(FOR MANUAL TRANSMISSION FILLER PLUG) | ||||
| 90430-18008 |
BB50..WOC..5F;HZB50..RHD..SRF;BB50,HZB50..RHD..EX;BB42,RZB40..WOC..GCC;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,19S,22S)..GEN |
1 | ||
| 90430-18008 |
BB4#,5#,HZB50,RZB40,50..5F |
1 | ||
| 33104 - PLUG SUB-ASSY, DRAIN(MTM) | ||||
| 90341-18006 |
BB4#,5#,HZB50,RZB40,50..5F |
1 | ||
| 90341-18006 |
BB50..WOC..5F;HZB50..RHD..SRF;BB50,HZB50..RHD..EX;BB42,RZB40..WOC..GCC;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,19S,22S)..GEN |
1 | ||
| 33104A - GASKET, DRAIN PLUG(MTM) | ||||
| 90430-18008 |
BB50..WOC..5F;HZB50..RHD..SRF;BB50,HZB50..RHD..EX;BB42,RZB40..WOC..GCC;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,19S,22S)..GEN |
1 | ||
| 90430-18008 |
BB4#,5#,HZB50,RZB40,50..5F |
1 | ||
| 33111C - PLUG(FOR TRANSMISSION CASE) | ||||
| 96411-11600 |
BB4#,5#,HZB50,RZB40,50..5F |
3 | ||
| 96411-11600 |
BB50..WOC..5F;HZB50..RHD..SRF;BB50,HZB50..RHD..EX;BB42,RZB40..WOC..GCC;BB4#,RZB40..(17S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN |
3 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90250-12002 |
BB4#,5#,HZB50,RZB40,50..5F L=16,OD=12 |
4 | ||
| 90250-12002 |
BB50..WOC..5F;HZB50..RHD..SRF;BB50,HZB50..RHD..EX;BB42,RZB40..WOC..GCC;BB4#,RZB40..(17S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN L=16,OD=12 |
4 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90250-12002 |
BB4#,5#,HZB50,RZB40,50..5F L=16,OD=12 |
4 | ||
| 90250-12002 |
BB50..WOC..5F;HZB50..RHD..SRF;BB50,HZB50..RHD..EX;BB42,RZB40..WOC..GCC;BB4#,RZB40..(17S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN L=16,OD=12 |
4 | ||
| 33111U - PIN, RING(FOR MANUAL TRANSMISSION CASE) | ||||
| 90253-11001 |
BB4#,5#,HZB50,RZB40,50..5F L=11,OD=11 |
1 | ||
| 90253-13017 |
BB4#,5#,HZB50,RZB40,50..5F L=12,OD=13 |
2 | ||
| 90253-13017 |
BB50..WOC..5F;HZB50..RHD..SRF;BB50,HZB50..RHD..EX;BB42,RZB40..WOC..GCC;BB4#,RZB40..(17S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN L=12,OD=13 |
2 | ||
| 90253-11001 |
BB50..WOC..5F;HZB50..RHD..SRF;BB50,HZB50..RHD..EX;BB42,RZB40..WOC..GCC;BB4#,RZB40..(17S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN L=11,OD=11 |
1 | ||
| 33131 - RETAINER, BEARING, FRONT(MTM) | ||||
| 33018-36060 |
BB50..EUR;BB40,42,RZB40,50 |
1 | ||
| 33018-37010 |
BB43,5#..GEN |
1 | ||
| 33018-36050 |
BB4# |
1 | ||
| 33018-36060 |
BB42..RHD..HRF..WOC;BB42,RZB40..WOC..GCC;BB42,RZB40..22S..GEN |
1 | ||
| 33131A - SEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER) | ||||
| 90311-32012 |
BB50..EUR;BB40,42,RZB40,50 |
1 | ||
| 90311-35023 |
HZB50..5F;BB43,5#..GEN |
1 | ||
| 90311-32012 |
BB42..RHD..HRF..WOC;BB42,RZB40..WOC..GCC;BB42,RZB40..22S..GEN |
1 | ||
| 33151 - RETAINER, OUTPUT SHAFT REAR BEARING(MTM) | ||||
| 33017-36031 |
HZB50..RHD..EX;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;BB4#,RZB40..(17S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN |
1 | ||
| 33017-36031 |
BB4#,HZB50,RZB40,50..CBU..5F |
1 | ||
| 33017-36030 |
BB4#,HZB50,RZB40,50..CBU..5F |
1 | ||
| 33151K - SEAL, TYPE T OIL | ||||
| 90311-48011 |
BB4#,5#,HZB50,RZB40,50..5F |
1 | ||
| 90311-48011 |
BB50..WOC..5F;HZB50..RHD..SRF;BB50,HZB50..RHD..EX;BB42,RZB40..WOC..GCC;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,19S,22S)..GEN |
1 | ||
| 33449B - MAGNET, TRANSMISSION | ||||
| 33449-36010 |
BB50..EUR;BB50..WC..GEN;BB4#,58,HZB50,RZB40,50..5F |
1 | ||
| 33449-36010 |
BB50..WOC..5F;HZB50..RHD..SRF;BB50,HZB50..RHD..EX;BB42,RZB40..WOC..GCC;BB4#,RZB40..(17S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN |
1 | ||
| Common parts | ||||
| 90119-08332 | ||||
| 90119-10186 | ||||
| 90119-10390 | ||||
| 91611-B0812 | ||||
| 91612-61030 | ||||
| 91612-61045 | ||||
| Linked diagrams | ||||
| 3308 | ||||
ILLUST NO. 1 OF 2(9301- )BB40,42 ; (9605-0105)EUR
M152,M155
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31111 - HOUSING, CLUTCH | ||||
| 31111-36310 |
BB42..22S;BB42..WOC..GCC;BB42..RHD..HRF..WOC |
1 | ||
| 31111-37020 |
BB43,5#..GEN |
1 | ||
| 31111-36310 |
BB40,42;BB50..EUR |
1 | ||
| 31121 - COVER, CLUTCH HOUSING, NO.1 | ||||
| 31121-36040 |
BB50..WOC..5F;HZB50..RHD..SRF;BB50,HZB50..RHD..EX;BB42,RZB40..WOC..GCC;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,19S,22S)..GEN |
1 | ||
| 31121-36040 |
BB4#,5#,HZB50,RZB40,50..5F |
1 | ||
| 31121B - COVER, CLUTCH HOUSING, NO.3 | ||||
| 31121-28030 |
BB42..22S;BB42..WOC..GCC;BB42..RHD..HRF..WOC |
1 | ||
| 31121-28030 |
BB40,42;BB50..EUR |
1 | ||
| 31123 - COVER, CLUTCH HOUSING, NO.2 | ||||
| 31121-28041 |
BB42..RHD..HRF..WOC;BB42,RZB40..WOC..GCC;BB42,RZB40..22S..GEN |
2 | ||
| 31121-28041 |
BB50..EUR;BB40,42,RZB40,50 |
2 | ||
| 31121-28040 |
BB4#,RZB40,50 |
2 | ||
| 31123 - COVER, CLUTCH HOUSING, NO.2 | ||||
| 31121-28041 |
BB42..RHD..HRF..WOC;BB42,RZB40..WOC..GCC;BB42,RZB40..22S..GEN |
2 | ||
| 31121-28041 |
BB50..EUR;BB40,42,RZB40,50 |
2 | ||
| 31121-28040 |
BB4#,RZB40,50 |
2 | ||
| 33118 - PLATE, STIFFENER, RH(MTM) | ||||
| 33118-36021 |
BB40,42;BB50..EUR |
1 | ||
| 33118-37020 |
BB43,5#..GEN |
1 | ||
| 33118-36021 |
BB42..22S;BB42..WOC..GCC;BB42..RHD..HRF..WOC |
1 | ||
| 33119 - PLATE, STIFFENER, LH(MTM) | ||||
| 33119-36041 |
BB4# |
1 | ||
| 33119-36042 |
BB40,42;BB50..EUR |
1 | ||
| 33119-36042 |
BB42..22S;BB42..WOC..GCC;BB42..RHD..HRF..WOC |
1 | ||
| 33119-37020 |
BB43,5#..GEN |
1 | ||
| Common parts | ||||
| 91612-61030 | ||||
| 91612-61040 | ||||
| 91612-61045 | ||||
| 91619-61235 | ||||
| 91619-61250 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
