BB42L-ZEMSS (1993)
Toyota Coaster

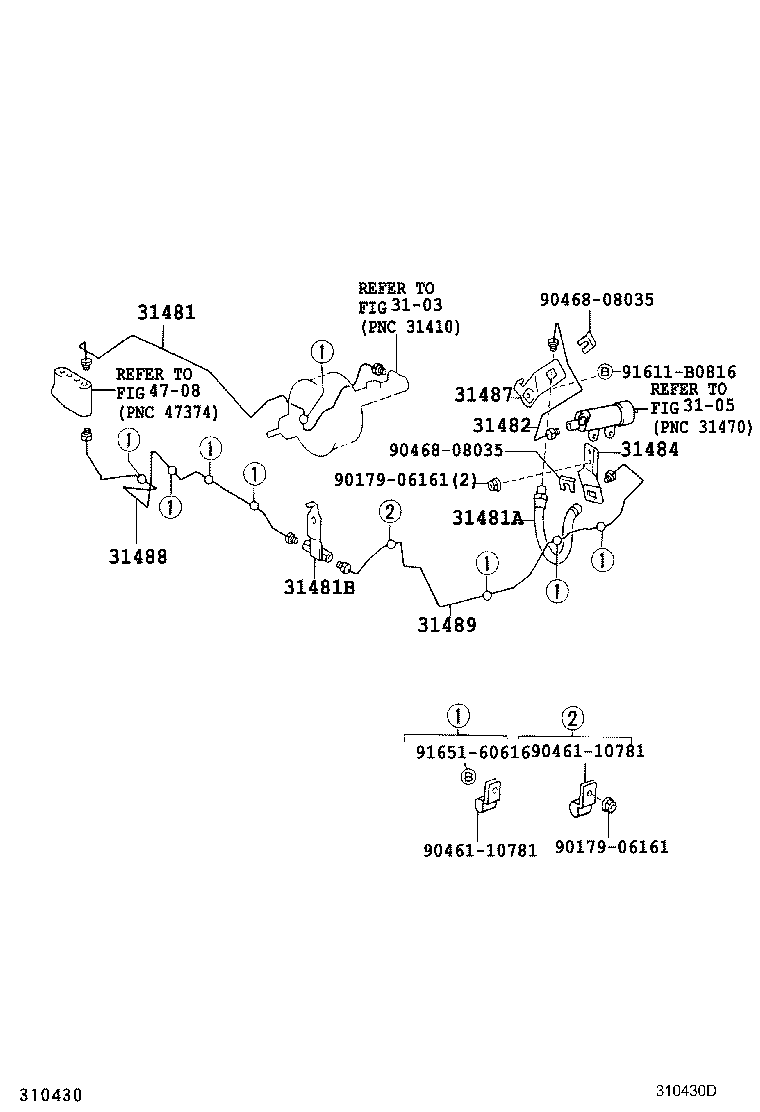

ILLUST NO. 2 OF 2(9301- )BB42..LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE | ||||
| 31481-36430 |
BB42,RZB40..WOC..GCC;BB42,RZB40..22S..GEN |
1 | ||
| 31481-36410 |
BB42,HZB50,RZB40,50..LHD..CBU..5F |
1 | ||
| 31481A - HOSE, CLUTCH, NO.1 | ||||
| 90947-02978 |
BB40,42;BB50..EUR |
1 | ||
| 96932-33005 |
BB4#,50,HZB50,RZB40,50..5F |
1 | ||
| 90947-02977 |
BB43,5#,HZB50..(ARL,GCC,GEN)..5F |
1 | ||
| 90947-02K78 |
BB42..22S;BB42..WOC..GCC;BB42..RHD..HRF..WOC |
1 | ||
| 31481B - WAY(FOR CLUTCH TUBE) | ||||
| 90412-12048 |
BB40,42 |
1 | ||
| 90412-12048 |
BB42..22S;BB42..WOC..GCC;BB42..RHD..HRF..WOC |
1 | ||
| 31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE | ||||
| 31482-36220 |
BB40,42;BB50..EUR |
1 | ||
| 31482-36210 |
BB43,5#..GEN L=467.5 |
1 | ||
| 31482-36290 |
BB43,5# L=474.2 |
1 | ||
| 31482-36220 |
BB42..22S;BB42..WOC..GCC;BB42..RHD..HRF..WOC |
1 | ||
| 31484 - BRACKET, FLEXIBLE HOSE(FOR CLUTCH) | ||||
| 31484-36210 |
BB4#,HZB50,RZB40,50..5F |
1 | ||
| 31484-36230 |
BB50..WOC..5F;HZB50..RHD..SRF;BB50,HZB50..RHD..EX;BB42,RZB40..WOC..GCC;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,19S,22S)..GEN |
1 | ||
| 31484-36200 |
BB4#,5#,HZB50,RZB40,50..(ARL,GCC,GEN,SCO)..5F |
1 | ||
| 31487 - PLATE, RELEASE TUBE SET | ||||
| 31487-36190 |
BB40,42;BB50..EUR |
1 | ||
| 31487-36230 |
BB42..22S;BB42..WOC..GCC;BB42..RHD..HRF..WOC |
1 | ||
| 31487-36180 |
BB43,5#..GEN |
1 | ||
| 31488 - TUBE, CONNECTOR TO TUBE CONNECTOR | ||||
| 31488-36500 |
BB4# |
1 | ||
| 31488-36590 |
BB40,42 |
1 | ||
| 31488-36590 |
BB42..22S;BB42..WOC..GCC;BB42..RHD..HRF..WOC |
1 | ||
| 31489 - TUBE, TUBE CONNECTOR TO FLEXIBLE HOSE | ||||
| 31489-36210 |
BB42..LHD |
1 | ||
| 31489-36250 |
BB43,5#,HZB50,RZB40,50..(ARL,GCC,GEN)..5F |
1 | ||
| 31489-36230 |
BB42..22S;BB42..WOC..GCC |
1 | ||
| 31489-36230 |
BB42..LHD |
1 | ||
| Common parts | ||||
| 90179-06161 | ||||
| 90461-10781 | ||||
| 90468-08035 | ||||
| 91611-B0816 | ||||
| 91651-60616 | ||||
| Linked diagrams | ||||
| 3103 | ||||
| 3105 | ||||
| 4708 | ||||
ILLUST NO. 1 OF 2(9301-9907) ; (9907- )BB4#,5#,BZB40,50,RZB40,50,TRB40,50,XZB40,5#..MTM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31301 - PEDAL SUB-ASSY, CLUTCH | ||||
| 31301-36200 |
BB43,5#,HZB50..TD |
1 | ||
| 31301-36210 |
BB40,42,HZB50,RZB40,50..CBU..5F |
1 | ||
| 31301-36210 |
BB42..RHD..HRF..WOC;BB42,RZB40..WOC..GCC;BB42,RZB40..22S..GEN |
1 | ||
| 31301A - SPRING(FOR CLUTCH PEDAL) | ||||
| 90508-35013 |
BB50..WOC..5F;BB50..EX..GEN;BB42..RHD..HRF..WOC;BB42,RZB40..WOC..GCC;BB4#,50,RZB40..(17S,19S,22S)..GEN |
1 | ||
| 90508-35013 |
BB4#,5#,HZB50,RZB40,50..5F |
1 | ||
| 31301B - CUSHION, NO.1(FOR CLUTCH PEDAL) | ||||
| 90541-06036 |
BB50..WOC..5F;HZB50..RHD..SRF;BB50,HZB50..RHD..EX;BB42,RZB40..WOC..GCC;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,19S,22S)..GEN |
1 | ||
| 90541-06036 |
BB4#,5#,HZB50,RZB40,50..5F |
1 | ||
| 31301C - BUSH(FOR CLUTCH PEDAL) | ||||
| 90386-13007 |
BB4#,5#,HZB50,RZB40,50..5F |
2 | ||
| 90386-13015 |
BB4#,HZB50..5F |
2 | ||
| 90386-13007 |
BB50..WOC..5F;HZB50..RHD..SRF;BB50,HZB50..RHD..EX;BB42,RZB40..WOC..GCC;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,19S,22S)..GEN |
2 | ||
| 31301C - BUSH(FOR CLUTCH PEDAL) | ||||
| 90386-13007 |
BB4#,5#,HZB50,RZB40,50..5F |
2 | ||
| 90386-13015 |
BB4#,HZB50..5F |
2 | ||
| 90386-13007 |
BB50..WOC..5F;HZB50..RHD..SRF;BB50,HZB50..RHD..EX;BB42,RZB40..WOC..GCC;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,19S,22S)..GEN |
2 | ||
| 31301F - BOLT(FOR CLUTCH PEDAL STOPPER) | ||||
| 90101-10085 |
HZB50..5F..DSL;BB40,42,RZB40,50..ARL,GCC,GEN |
1 | ||
| 90101-10085 |
HZB50..RHD..EX;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;BB42,RZB40..22S..GEN;BB42,HZB50..RHD..HRF..WOC..GEN |
1 | ||
| 31301J - NUT(FOR CLUTCH PEDAL STOPPER) | ||||
| 94130-61000 |
HZB50..RHD..EX;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;BB42,RZB40..22S..GEN;BB42,HZB50..RHD..HRF..WOC..GEN |
1 | ||
| 94120-41000 |
HZB50..5F..DSL;BB40,42,RZB40,50..ARL,GCC,GEN |
1 | ||
| 31321 - PAD, CLUTCH PEDAL | ||||
| 31321-14020 |
BB4#,5#,HZB50,RZB40,50..5F |
1 | ||
| 31321-14020 |
BB50..WOC..5F;HZB50..RHD..SRF;BB50,HZB50..RHD..EX;BB42,RZB40..WOC..GCC;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,19S,22S)..GEN |
1 | ||
| 31324 - SHAFT, CLUTCH PEDAL | ||||
| 90101-10189 |
BB43,5#,HZB50..TD |
1 | ||
| 91121-61070 |
HZB50..RHD..EX;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;BB42,RZB40..22S..GEN;BB42,HZB50..RHD..HRF..WOC..GEN |
1 | ||
| 91121-61070 |
BB40,42,HZB50,RZB40,50..CBU..5F |
1 | ||
| 31324A - COLLAR, CLUTCH PEDAL SHAFT | ||||
| 90387-10004 |
HZB50..RHD..EX;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;BB42,RZB40..22S..GEN;BB42,HZB50..RHD..HRF..WOC..GEN |
1 | ||
| 90387-10004 |
BB40,42,HZB50,RZB40,50..CBU..5F |
1 | ||
| 90387-10134 |
BB43,5#,HZB50..TD |
1 | ||
| 31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) | ||||
| 90240-08006 |
BB4#,5#,HZB50,RZB40,50..5F L=23.5 |
1 | ||
| 90240-08006 |
BB50..WOC..5F;HZB50..RHD..SRF;BB50,HZB50..RHD..EX;BB42,RZB40..WOC..GCC;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,19S,22S)..GEN L=23.5 |
1 | ||
| 31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) | ||||
| 90386-08002 |
BB50..WOC..5F;HZB50..RHD..SRF;BB50,HZB50..RHD..EX;BB42,RZB40..WOC..GCC;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,19S,22S)..GEN |
1 | ||
| 90386-08002 |
BB4#,5#,HZB50,RZB40,50..5F |
1 | ||
| 55107A - SUPPORT SUB-ASSY, CLUTCH PEDAL | ||||
| 55136-36010 |
BB42..RHD..HRF..WOC;BB42,RZB40..WOC..GCC;BB42,RZB40..22S..GEN |
1 | ||
| 55136-36010 |
BB40,42,HZB50,RZB40,50..CBU..5F |
1 | ||
| Common parts | ||||
| 90468-16142 | ||||
| 94130-61000 | ||||
| 94512-01000 | ||||
| Linked diagrams | ||||
| 4701 | ||||
