Toyota Coaster BB42 POWER STEERING TUBE

Manufacturers Home
Toyota
EU
COASTER
BB42L-BRMRS (1993)
4503 - POWER STEERING TUBE

BB42L-BRMRS (1993)

Toyota Coaster

Production Jan 1993 - Dec 2016

Engine 14B

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

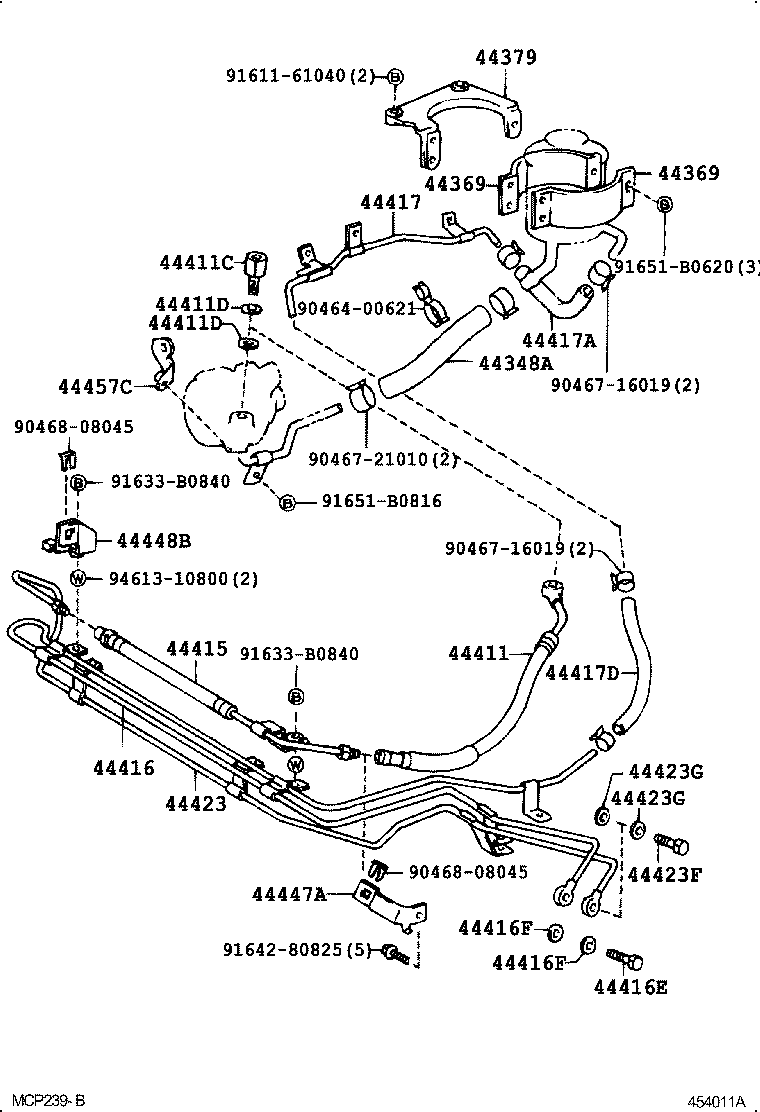

(9907- )LHD..TD

Click highlighted areas on diagram

Part #	Description	Period	Qty
44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1
44348-36150	BB42	01/1993 - 07/1999	1
44348-37010	BB43,5#	05/1996 - 07/1999	1
44348-36150	BB42..WC..GCC;BB42..SRF..GEN;BB42..HRF..26S..WC;BB42..LHD..HRF..WOC	07/1999 - 08/2004	1
44348-36150	BB42..RHD;BB42..LHD..SRF	08/2004 - 01/2015	1
44348-36150	BB42	01/2015 - 12/2999	1
44348-36360	XZB40,5#	01/2015 - 12/2999	1
44411 - HOSE, PRESSURE FEED
44411-36371	BB42,5#..LHD	01/1993 - 07/1999	1
44411-36371	BB42..WC..GCC;BB42,50..LHD..(26S,30S)..GEN	07/1999 - 08/2004	1
44411-36371	BB50..TD;BB42..LHD..SRF	08/2004 - 01/2015	1
44411-36371	BB42..LHD	01/2015 - 12/2999	1
44411C - BOLT, UNION(FOR PRESSURE FEED HOSE)
90404-16024	BB4#,5#,HZB50	01/1993 - 07/1999	1
90404-16024	BB42..WC..GCC;BB42..SRF..GEN;HZB50..LHD..EX;HZB50..LHD..WOC;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F..TD;BB42,BZB40,50,HZB50..HRF..(17S,21S,26S,30S)..WC	07/1999 - 08/2004	1
90404-16024	BB42..RHD;BB42..LHD..SRF;BB50,BZB40,50,HZB50..STD..(DSL,LPG,TD)	08/2004 - 01/2015	1
96341-41603	XZB40,5#	01/2015 - 12/2999	1
90404-16024	BB42,BZB40,50,HZB50	01/2015 - 12/2999	1
44411D - GASKET(FOR PRESSURE FEED HOSE)
90430-16168	BB4#,5#,HZB50,RZB40,50	01/1993 - 07/1999	2
90430-16168	BB42..WC..GCC;BB42..SRF..GEN;HZB50..LHD..WOC;RZB40..22S..CHI;BB42..HRF..26S..WC;BB50..LHD..CBU..5F;HZB50..LHD..SRF..WC;BB42..LHD..HRF..WOC;HZB50..HRF..(DX,STD)..WC..5F;BB5#,BZB40,RZB50..EFI,LPG,TDEFI;HZB50,RZB40..LHD..(17S,20S,26S)..WC;HZB50,RZB40..(22S,26S)..WOC..(ARL,GEN)	07/1999 - 03/2002	2
44327-30030	BB42..LHD..SRF;BB42,XZB59..RHD;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,XZB40..STD..(DCR,DSL,LPG,TD)	08/2004 - 01/2015	1
44327-30030	BB42,BZB40,50,HZB50,XZB40,5#	01/2015 - 12/2999	1
44327-30030	HZB50..GCC,GEN;BB42,5#,BZB40,50,RZB40,50..ARL,EUR,GCC,GEN	03/2002 - 08/2004	1
44411D - GASKET(FOR PRESSURE FEED HOSE)
90430-16168	BB4#,5#,HZB50,RZB40,50	01/1993 - 07/1999	2
90430-16168	BB42..WC..GCC;BB42..SRF..GEN;HZB50..LHD..WOC;RZB40..22S..CHI;BB42..HRF..26S..WC;BB50..LHD..CBU..5F;HZB50..LHD..SRF..WC;BB42..LHD..HRF..WOC;HZB50..HRF..(DX,STD)..WC..5F;BB5#,BZB40,RZB50..EFI,LPG,TDEFI;HZB50,RZB40..LHD..(17S,20S,26S)..WC;HZB50,RZB40..(22S,26S)..WOC..(ARL,GEN)	07/1999 - 03/2002	2
44327-30030	BB42..LHD..SRF;BB42,XZB59..RHD;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,XZB40..STD..(DCR,DSL,LPG,TD)	08/2004 - 01/2015	1
44327-30030	BB42,BZB40,50,HZB50,XZB40,5#	01/2015 - 12/2999	1
44327-30030	HZB50..GCC,GEN;BB42,5#,BZB40,50,RZB40,50..ARL,EUR,GCC,GEN	03/2002 - 08/2004	1
44411D - GASKET(FOR PRESSURE FEED HOSE)
90430-16168	BB4#,5#,HZB50,RZB40,50	01/1993 - 07/1999	2
90430-16168	BB42..WC..GCC;BB42..SRF..GEN;HZB50..LHD..WOC;RZB40..22S..CHI;BB42..HRF..26S..WC;BB50..LHD..CBU..5F;HZB50..LHD..SRF..WC;BB42..LHD..HRF..WOC;HZB50..HRF..(DX,STD)..WC..5F;BB5#,BZB40,RZB50..EFI,LPG,TDEFI;HZB50,RZB40..LHD..(17S,20S,26S)..WC;HZB50,RZB40..(22S,26S)..WOC..(ARL,GEN)	07/1999 - 03/2002	2
44327-30030	BB42..LHD..SRF;BB42,XZB59..RHD;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,XZB40..STD..(DCR,DSL,LPG,TD)	08/2004 - 01/2015	1
44327-30030	BB42,BZB40,50,HZB50,XZB40,5#	01/2015 - 12/2999	1
44327-30030	HZB50..GCC,GEN;BB42,5#,BZB40,50,RZB40,50..ARL,EUR,GCC,GEN	03/2002 - 08/2004	1
44412 - HOSE, RETURN
90445-18137	BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)	07/1999 - 08/2004	1
90445-18137	BB42..LHD..SRF;BB42,XZB59..RHD;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..(DCR,DSL,EFI,LPG,TD)	08/2004 - 01/2015	1
90445-18137	BB42,BZB40,50,HZB50,TRB40,50,XZB40,5#	01/2015 - 12/2999	1
44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET)
44416-36360	BB42,5#,HZB50..LHD	01/1993 - 07/1999	1
44416-36361	BB42..WC..GCC;BB50..LHD..TDEFI;BB42..LHD..26S..GEN;BB50,58,HZB50..LHD..(20S,23S,30S)..(GCC,GEN)	07/1999 - 08/2004	1
44416-36361	BB42..LHD..SRF;BB50,HZB50,XZB50..LHD..CBU..5F	08/2004 - 01/2015	1
44416-36361	BB42,HZB50,XZB40,50..LHD	01/2015 - 12/2999	1
44416E - BOLT, UNION(FOR RETURN TUBE)
90401-14003	BB4#,5#,HZB50,RZB40,50	01/1993 - 07/1999	1
90401-14003	BB42,BZB40,50,HZB50,TRB40,50,XZB40,5#	01/2015 - 12/2999	1
90401-14003	BB42,5#,BZB40,50,HZB50,RZB40,50,TRB40,50,XZB40,5#	08/2004 - 01/2015	1
90401-14003	BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)	07/1999 - 08/2004	1
44416F - GASKET(FOR RETURN TUBE)
90430-14235	BB4#,5#,HZB50,RZB40,50	01/1993 - 07/1999	2
90430-14235	BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)	07/1999 - 08/2004	2
90430-14235	XZB5#;BB42,50,BZB40,50,HZB50..STD..(DSL,LPG,TD)	08/2004 - 06/2007	2
90430-14014	BB42,50,BZB40,50,HZB50,TRB40,50,XZB40,5#	07/2007 - 01/2015	2
90430-14014	BB42,BZB40,50,HZB50,TRB40,50,XZB40,5#	01/2015 - 12/2999	2
44416F - GASKET(FOR RETURN TUBE)
90430-14235	BB4#,5#,HZB50,RZB40,50	01/1993 - 07/1999	2
90430-14235	BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)	07/1999 - 08/2004	2
90430-14235	XZB5#;BB42,50,BZB40,50,HZB50..STD..(DSL,LPG,TD)	08/2004 - 06/2007	2
90430-14014	BB42,50,BZB40,50,HZB50,TRB40,50,XZB40,5#	07/2007 - 01/2015	2
90430-14014	BB42,BZB40,50,HZB50,TRB40,50,XZB40,5#	01/2015 - 12/2999	2
44417A - HOSE, RETURN TUBE (FOR RETURN TUBE TO RETURN TUBE NO.2)
90445-18146	BB40,42	01/1993 - 07/1999	1
90445-18146	BB42..WC..GCC;BB42..SRF..GEN;BB42..HRF..26S..WC;BB42..LHD..HRF..WOC	07/1999 - 08/2004	1
90445-18146	BB42	01/2015 - 12/2999	1
90445-18146	BB42..RHD;BB42..LHD..SRF	08/2004 - 01/2015	1
44423 - TUBE, OIL PUMP TO GEAR BOX
44423-36240	BB42,5#..LHD;HZB50..LHD..DSL	12/1994 - 07/1999	1
44423-36280	BB42,HZB50..LHD	01/1993 - 12/1994	1
44423-36241	BB42..WC..GCC;BB50..LHD..TDEFI;BB42..LHD..26S..GEN;BB50,58,HZB50..LHD..(20S,23S,30S)..(GCC,GEN)	07/1999 - 08/2004	1
44423-36241	BB42,HZB50,XZB40,50..LHD	01/2015 - 12/2999	1
44423-36241	BB42..LHD..SRF;BB50,HZB50,XZB50..LHD..CBU..5F	08/2004 - 01/2015	1
44423F - BOLT, UNION
90401-14003	BB4#,5#,HZB50,RZB40,50	01/1993 - 07/1999	1
90401-14003	BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)	07/1999 - 08/2004	1
90401-14003	BB42,BZB40,50,HZB50,TRB40,50,XZB40,5#	01/2015 - 12/2999	1
90401-14003	BB42,5#,BZB40,50,HZB50,RZB40,50,TRB40,50,XZB40,5#	08/2004 - 01/2015	1
44423G - GASKET, UNION BOLT
90430-14235	BB4#,5#,HZB50,RZB40,50	01/1993 - 07/1999	2
90430-14235	BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)	07/1999 - 08/2004	2
90430-14014	BB42,50,BZB40,50,HZB50,TRB40,50,XZB40,5#	07/2007 - 01/2015	2
90430-14014	BB42,BZB40,50,HZB50,TRB40,50,XZB40,5#	01/2015 - 12/2999	2
90430-14235	XZB5#;BB42,50,BZB40,50,HZB50..STD..(DSL,LPG,TD)	08/2004 - 06/2007	2
44423G - GASKET, UNION BOLT
90430-14235	BB4#,5#,HZB50,RZB40,50	01/1993 - 07/1999	2
90430-14235	BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)	07/1999 - 08/2004	2
90430-14014	BB42,50,BZB40,50,HZB50,TRB40,50,XZB40,5#	07/2007 - 01/2015	2
90430-14014	BB42,BZB40,50,HZB50,TRB40,50,XZB40,5#	01/2015 - 12/2999	2
90430-14235	XZB5#;BB42,50,BZB40,50,HZB50..STD..(DSL,LPG,TD)	08/2004 - 06/2007	2
44447A - BRACKET, HOSE SUPPORT, NO.1
44447-36210	BB42,5#,HZB50..LHD	01/1993 - 07/1999	1
44447-36210	BB42..WC..GCC;BB50..LHD..TDEFI;BB42..LHD..26S..GEN;BB50,58,HZB50..LHD..(20S,23S,30S)..(GCC,GEN)	07/1999 - 08/2004	1
44447-36210	BB42..LHD..SRF;BB50,HZB50,XZB50..LHD..CBU..5F	08/2004 - 01/2015	1
44447-36210	BB42,HZB50,XZB40,50..LHD	01/2015 - 12/2999	1
44457C - BRACKET, POWER STEERING TUBE SUPPORT, NO.1
44457-36040	BB4#,5#	01/1993 - 07/1999	1
44457-36040	BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;BB50..STD..GEN..CBU..5F..TD;BB42,BZB40,50..HRF..(17S,21S,26S)..WC	07/1999 - 08/2004	1
44457-36040	BB42,BZB40,50	01/2015 - 12/2999	1
44457-36040	BB42..RHD;BB42..LHD..SRF;BB50,BZB40,50..STD..(LPG,TD)	08/2004 - 01/2015	1
Common parts
90464-00550
90464-00783
90467-16019
90467-16031
90467-21010
90468-08045
91641-80825
91642-80825
91651-60816

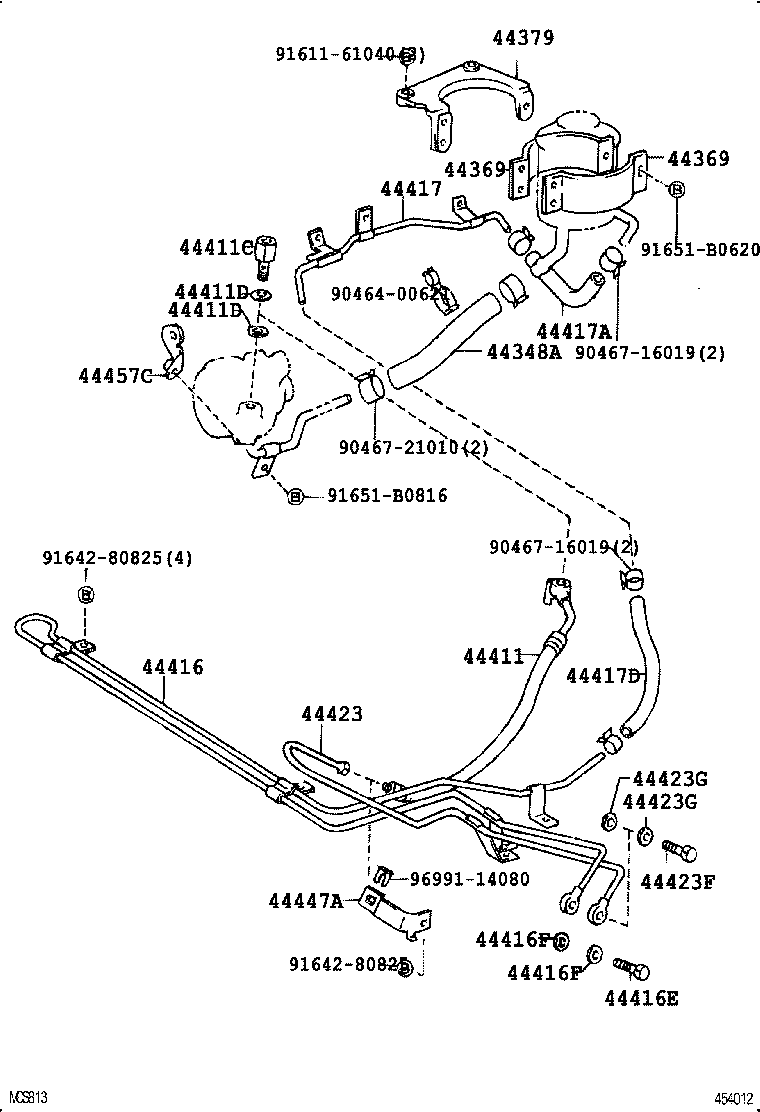

(9907- )BB42..LHD

Click highlighted areas on diagram

Part #	Description	Period	Qty
44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1
44348-36150	BB42	01/1993 - 07/1999	1
44348-37010	BB43,5#	05/1996 - 07/1999	1
44348-36150	BB42..WC..GCC;BB42..SRF..GEN;BB42..HRF..26S..WC;BB42..LHD..HRF..WOC	07/1999 - 08/2004	1
44348-36150	BB42..RHD;BB42..LHD..SRF	08/2004 - 01/2015	1
44348-36150	BB42	01/2015 - 12/2999	1
44348-36360	XZB40,5#	01/2015 - 12/2999	1
44369 - BRACKET, OIL RESERVOIR, NO.1
44369-36020	BB42..RHD;HZB50..LHD;BB42..LHD..SRF	08/2004 - 01/2015	2
44369-36020	HZB50..LHD;BB42..WC..GCC;BB42..SRF..GEN;BB42..HRF..26S..WC;BB42..LHD..HRF..WOC	07/1999 - 08/2004	2
44369-36020	BB4#;HZB50..LHD	01/1993 - 03/1997	2
44369-36020	BB40,42;HZB50..LHD..5F	03/1997 - 07/1999	2
44369-36020	BB42;HZB50..LHD	01/2015 - 12/2999	2
44369 - BRACKET, OIL RESERVOIR, NO.1
44369-36020	BB42..RHD;HZB50..LHD;BB42..LHD..SRF	08/2004 - 01/2015	2
44369-36020	HZB50..LHD;BB42..WC..GCC;BB42..SRF..GEN;BB42..HRF..26S..WC;BB42..LHD..HRF..WOC	07/1999 - 08/2004	2
44369-36020	BB4#;HZB50..LHD	01/1993 - 03/1997	2
44369-36020	BB40,42;HZB50..LHD..5F	03/1997 - 07/1999	2
44369-36020	BB42;HZB50..LHD	01/2015 - 12/2999	2
44379 - BRACKET, OIL RESERVOIR, NO.2
44379-36080	BB42	01/1993 - 07/1999	1
44379-36080	BB42..RHD;BB42..LHD..SRF	08/2004 - 01/2015	1
44379-36080	BB42..WC..GCC;BB42..SRF..GEN;BB42..HRF..26S..WC;BB42..LHD..HRF..WOC	07/1999 - 08/2004	1
44379-36080	BB42	01/2015 - 12/2999	1
44411 - HOSE, PRESSURE FEED
44411-36371	BB42,5#..LHD	01/1993 - 07/1999	1
44411-36371	BB42..WC..GCC;BB42,50..LHD..(26S,30S)..GEN	07/1999 - 08/2004	1
44411-36371	BB50..TD;BB42..LHD..SRF	08/2004 - 01/2015	1
44411-36371	BB42..LHD	01/2015 - 12/2999	1
44411C - BOLT, UNION(FOR PRESSURE FEED HOSE)
90404-16024	BB4#,5#,HZB50	01/1993 - 07/1999	1
90404-16024	BB42..WC..GCC;BB42..SRF..GEN;HZB50..LHD..EX;HZB50..LHD..WOC;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F..TD;BB42,BZB40,50,HZB50..HRF..(17S,21S,26S,30S)..WC	07/1999 - 08/2004	1
90404-16024	BB42..RHD;BB42..LHD..SRF;BB50,BZB40,50,HZB50..STD..(DSL,LPG,TD)	08/2004 - 01/2015	1
96341-41603	XZB40,5#	01/2015 - 12/2999	1
90404-16024	BB42,BZB40,50,HZB50	01/2015 - 12/2999	1
44411D - GASKET(FOR PRESSURE FEED HOSE)
90430-16168	BB4#,5#,HZB50,RZB40,50	01/1993 - 07/1999	2
90430-16168	BB42..WC..GCC;BB42..SRF..GEN;HZB50..LHD..WOC;RZB40..22S..CHI;BB42..HRF..26S..WC;BB50..LHD..CBU..5F;HZB50..LHD..SRF..WC;BB42..LHD..HRF..WOC;HZB50..HRF..(DX,STD)..WC..5F;BB5#,BZB40,RZB50..EFI,LPG,TDEFI;HZB50,RZB40..LHD..(17S,20S,26S)..WC;HZB50,RZB40..(22S,26S)..WOC..(ARL,GEN)	07/1999 - 03/2002	2
44327-30030	BB42..LHD..SRF;BB42,XZB59..RHD;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,XZB40..STD..(DCR,DSL,LPG,TD)	08/2004 - 01/2015	1
44327-30030	BB42,BZB40,50,HZB50,XZB40,5#	01/2015 - 12/2999	1
44327-30030	HZB50..GCC,GEN;BB42,5#,BZB40,50,RZB40,50..ARL,EUR,GCC,GEN	03/2002 - 08/2004	1
44411D - GASKET(FOR PRESSURE FEED HOSE)
90430-16168	BB4#,5#,HZB50,RZB40,50	01/1993 - 07/1999	2
90430-16168	BB42..WC..GCC;BB42..SRF..GEN;HZB50..LHD..WOC;RZB40..22S..CHI;BB42..HRF..26S..WC;BB50..LHD..CBU..5F;HZB50..LHD..SRF..WC;BB42..LHD..HRF..WOC;HZB50..HRF..(DX,STD)..WC..5F;BB5#,BZB40,RZB50..EFI,LPG,TDEFI;HZB50,RZB40..LHD..(17S,20S,26S)..WC;HZB50,RZB40..(22S,26S)..WOC..(ARL,GEN)	07/1999 - 03/2002	2
44327-30030	BB42..LHD..SRF;BB42,XZB59..RHD;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,XZB40..STD..(DCR,DSL,LPG,TD)	08/2004 - 01/2015	1
44327-30030	BB42,BZB40,50,HZB50,XZB40,5#	01/2015 - 12/2999	1
44327-30030	HZB50..GCC,GEN;BB42,5#,BZB40,50,RZB40,50..ARL,EUR,GCC,GEN	03/2002 - 08/2004	1
44411D - GASKET(FOR PRESSURE FEED HOSE)
90430-16168	BB4#,5#,HZB50,RZB40,50	01/1993 - 07/1999	2
90430-16168	BB42..WC..GCC;BB42..SRF..GEN;HZB50..LHD..WOC;RZB40..22S..CHI;BB42..HRF..26S..WC;BB50..LHD..CBU..5F;HZB50..LHD..SRF..WC;BB42..LHD..HRF..WOC;HZB50..HRF..(DX,STD)..WC..5F;BB5#,BZB40,RZB50..EFI,LPG,TDEFI;HZB50,RZB40..LHD..(17S,20S,26S)..WC;HZB50,RZB40..(22S,26S)..WOC..(ARL,GEN)	07/1999 - 03/2002	2
44327-30030	BB42..LHD..SRF;BB42,XZB59..RHD;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,XZB40..STD..(DCR,DSL,LPG,TD)	08/2004 - 01/2015	1
44327-30030	BB42,BZB40,50,HZB50,XZB40,5#	01/2015 - 12/2999	1
44327-30030	HZB50..GCC,GEN;BB42,5#,BZB40,50,RZB40,50..ARL,EUR,GCC,GEN	03/2002 - 08/2004	1
44412 - HOSE, RETURN
90445-18137	BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)	07/1999 - 08/2004	1
90445-18137	BB42..LHD..SRF;BB42,XZB59..RHD;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..(DCR,DSL,EFI,LPG,TD)	08/2004 - 01/2015	1
90445-18137	BB42,BZB40,50,HZB50,TRB40,50,XZB40,5#	01/2015 - 12/2999	1
44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET)
44416-36360	BB42,5#,HZB50..LHD	01/1993 - 07/1999	1
44416-36361	BB42..WC..GCC;BB50..LHD..TDEFI;BB42..LHD..26S..GEN;BB50,58,HZB50..LHD..(20S,23S,30S)..(GCC,GEN)	07/1999 - 08/2004	1
44416-36361	BB42..LHD..SRF;BB50,HZB50,XZB50..LHD..CBU..5F	08/2004 - 01/2015	1
44416-36361	BB42,HZB50,XZB40,50..LHD	01/2015 - 12/2999	1
44416E - BOLT, UNION(FOR RETURN TUBE)
90401-14003	BB4#,5#,HZB50,RZB40,50	01/1993 - 07/1999	1
90401-14003	BB42,BZB40,50,HZB50,TRB40,50,XZB40,5#	01/2015 - 12/2999	1
90401-14003	BB42,5#,BZB40,50,HZB50,RZB40,50,TRB40,50,XZB40,5#	08/2004 - 01/2015	1
90401-14003	BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)	07/1999 - 08/2004	1
44416F - GASKET(FOR RETURN TUBE)
90430-14235	BB4#,5#,HZB50,RZB40,50	01/1993 - 07/1999	2
90430-14235	BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)	07/1999 - 08/2004	2
90430-14235	XZB5#;BB42,50,BZB40,50,HZB50..STD..(DSL,LPG,TD)	08/2004 - 06/2007	2
90430-14014	BB42,50,BZB40,50,HZB50,TRB40,50,XZB40,5#	07/2007 - 01/2015	2
90430-14014	BB42,BZB40,50,HZB50,TRB40,50,XZB40,5#	01/2015 - 12/2999	2
44416F - GASKET(FOR RETURN TUBE)
90430-14235	BB4#,5#,HZB50,RZB40,50	01/1993 - 07/1999	2
90430-14235	BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)	07/1999 - 08/2004	2
90430-14235	XZB5#;BB42,50,BZB40,50,HZB50..STD..(DSL,LPG,TD)	08/2004 - 06/2007	2
90430-14014	BB42,50,BZB40,50,HZB50,TRB40,50,XZB40,5#	07/2007 - 01/2015	2
90430-14014	BB42,BZB40,50,HZB50,TRB40,50,XZB40,5#	01/2015 - 12/2999	2
44417 - TUBE, RETURN, NO.2
44417-36210	BB40,42	01/1993 - 07/1999	1
44417-36210	BB42..WC..GCC;BB42..SRF..GEN;BB42..HRF..26S..WC;BB42..LHD..HRF..WOC	07/1999 - 08/2004	1
44417-36210	BB42..RHD;BB42..LHD..SRF	08/2004 - 01/2015	1
44417-36210	BB42	01/2015 - 12/2999	1
44417A - HOSE, RETURN TUBE (FOR RETURN TUBE TO RETURN TUBE NO.2)
90445-18146	BB40,42	01/1993 - 07/1999	1
90445-18146	BB42..WC..GCC;BB42..SRF..GEN;BB42..HRF..26S..WC;BB42..LHD..HRF..WOC	07/1999 - 08/2004	1
90445-18146	BB42	01/2015 - 12/2999	1
90445-18146	BB42..RHD;BB42..LHD..SRF	08/2004 - 01/2015	1
44417D - HOSE(FOR RETURN TUBE TO RESERVOIR)
90445-18082	BB40,42	01/1993 - 07/1999	1
90445-18082	BB42..WC..GCC;BB42..SRF..GEN;BB42..HRF..26S..WC;BB42..LHD..HRF..WOC	07/1999 - 08/2004	1
90445-18082	BB42	01/2015 - 12/2999	1
90445-18082	BB42..RHD;BB42..LHD..SRF	08/2004 - 01/2015	1
44423 - TUBE, OIL PUMP TO GEAR BOX
44423-36240	BB42,5#..LHD;HZB50..LHD..DSL	12/1994 - 07/1999	1
44423-36280	BB42,HZB50..LHD	01/1993 - 12/1994	1
44423-36241	BB42..WC..GCC;BB50..LHD..TDEFI;BB42..LHD..26S..GEN;BB50,58,HZB50..LHD..(20S,23S,30S)..(GCC,GEN)	07/1999 - 08/2004	1
44423-36241	BB42,HZB50,XZB40,50..LHD	01/2015 - 12/2999	1
44423-36241	BB42..LHD..SRF;BB50,HZB50,XZB50..LHD..CBU..5F	08/2004 - 01/2015	1
44423F - BOLT, UNION
90401-14003	BB4#,5#,HZB50,RZB40,50	01/1993 - 07/1999	1
90401-14003	BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)	07/1999 - 08/2004	1
90401-14003	BB42,BZB40,50,HZB50,TRB40,50,XZB40,5#	01/2015 - 12/2999	1
90401-14003	BB42,5#,BZB40,50,HZB50,RZB40,50,TRB40,50,XZB40,5#	08/2004 - 01/2015	1
44423G - GASKET, UNION BOLT
90430-14235	BB4#,5#,HZB50,RZB40,50	01/1993 - 07/1999	2
90430-14235	BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)	07/1999 - 08/2004	2
90430-14014	BB42,50,BZB40,50,HZB50,TRB40,50,XZB40,5#	07/2007 - 01/2015	2
90430-14014	BB42,BZB40,50,HZB50,TRB40,50,XZB40,5#	01/2015 - 12/2999	2
90430-14235	XZB5#;BB42,50,BZB40,50,HZB50..STD..(DSL,LPG,TD)	08/2004 - 06/2007	2
44423G - GASKET, UNION BOLT
90430-14235	BB4#,5#,HZB50,RZB40,50	01/1993 - 07/1999	2
90430-14235	BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)	07/1999 - 08/2004	2
90430-14014	BB42,50,BZB40,50,HZB50,TRB40,50,XZB40,5#	07/2007 - 01/2015	2
90430-14014	BB42,BZB40,50,HZB50,TRB40,50,XZB40,5#	01/2015 - 12/2999	2
90430-14235	XZB5#;BB42,50,BZB40,50,HZB50..STD..(DSL,LPG,TD)	08/2004 - 06/2007	2
44447A - BRACKET, HOSE SUPPORT, NO.1
44447-36210	BB42,5#,HZB50..LHD	01/1993 - 07/1999	1
44447-36210	BB42..WC..GCC;BB50..LHD..TDEFI;BB42..LHD..26S..GEN;BB50,58,HZB50..LHD..(20S,23S,30S)..(GCC,GEN)	07/1999 - 08/2004	1
44447-36210	BB42..LHD..SRF;BB50,HZB50,XZB50..LHD..CBU..5F	08/2004 - 01/2015	1
44447-36210	BB42,HZB50,XZB40,50..LHD	01/2015 - 12/2999	1
44457C - BRACKET, POWER STEERING TUBE SUPPORT, NO.1
44457-36040	BB4#,5#	01/1993 - 07/1999	1
44457-36040	BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;BB50..STD..GEN..CBU..5F..TD;BB42,BZB40,50..HRF..(17S,21S,26S)..WC	07/1999 - 08/2004	1
44457-36040	BB42,BZB40,50	01/2015 - 12/2999	1
44457-36040	BB42..RHD;BB42..LHD..SRF;BB50,BZB40,50..STD..(LPG,TD)	08/2004 - 01/2015	1
Common parts
90464-00621
90467-16019
90467-16031
90467-21010
90468-08045
91611-61040
91641-80825
91651-60620
91651-60816
Linked diagrams
4502
4505

(9301-9505)BB42..LHD

Click highlighted areas on diagram

Part #	Description	Period	Qty
44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1
44348-36150	BB42	01/1993 - 07/1999	1
44348-37010	BB43,5#	05/1996 - 07/1999	1
44348-36150	BB42..WC..GCC;BB42..SRF..GEN;BB42..HRF..26S..WC;BB42..LHD..HRF..WOC	07/1999 - 08/2004	1
44348-36150	BB42..RHD;BB42..LHD..SRF	08/2004 - 01/2015	1
44348-36150	BB42	01/2015 - 12/2999	1
44348-36360	XZB40,5#	01/2015 - 12/2999	1
44369 - BRACKET, OIL RESERVOIR, NO.1
44369-36020	BB42..RHD;HZB50..LHD;BB42..LHD..SRF	08/2004 - 01/2015	2
44369-36020	HZB50..LHD;BB42..WC..GCC;BB42..SRF..GEN;BB42..HRF..26S..WC;BB42..LHD..HRF..WOC	07/1999 - 08/2004	2
44369-36020	BB4#;HZB50..LHD	01/1993 - 03/1997	2
44369-36020	BB40,42;HZB50..LHD..5F	03/1997 - 07/1999	2
44369-36020	BB42;HZB50..LHD	01/2015 - 12/2999	2
44369 - BRACKET, OIL RESERVOIR, NO.1
44369-36020	BB42..RHD;HZB50..LHD;BB42..LHD..SRF	08/2004 - 01/2015	2
44369-36020	HZB50..LHD;BB42..WC..GCC;BB42..SRF..GEN;BB42..HRF..26S..WC;BB42..LHD..HRF..WOC	07/1999 - 08/2004	2
44369-36020	BB4#;HZB50..LHD	01/1993 - 03/1997	2
44369-36020	BB40,42;HZB50..LHD..5F	03/1997 - 07/1999	2
44369-36020	BB42;HZB50..LHD	01/2015 - 12/2999	2
44379 - BRACKET, OIL RESERVOIR, NO.2
44379-36080	BB42	01/1993 - 07/1999	1
44379-36080	BB42..RHD;BB42..LHD..SRF	08/2004 - 01/2015	1
44379-36080	BB42..WC..GCC;BB42..SRF..GEN;BB42..HRF..26S..WC;BB42..LHD..HRF..WOC	07/1999 - 08/2004	1
44379-36080	BB42	01/2015 - 12/2999	1
44411 - HOSE, PRESSURE FEED
44411-36371	BB42,5#..LHD	01/1993 - 07/1999	1
44411-36371	BB42..WC..GCC;BB42,50..LHD..(26S,30S)..GEN	07/1999 - 08/2004	1
44411-36371	BB50..TD;BB42..LHD..SRF	08/2004 - 01/2015	1
44411-36371	BB42..LHD	01/2015 - 12/2999	1
44411C - BOLT, UNION(FOR PRESSURE FEED HOSE)
90404-16024	BB4#,5#,HZB50	01/1993 - 07/1999	1
90404-16024	BB42..WC..GCC;BB42..SRF..GEN;HZB50..LHD..EX;HZB50..LHD..WOC;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F..TD;BB42,BZB40,50,HZB50..HRF..(17S,21S,26S,30S)..WC	07/1999 - 08/2004	1
90404-16024	BB42..RHD;BB42..LHD..SRF;BB50,BZB40,50,HZB50..STD..(DSL,LPG,TD)	08/2004 - 01/2015	1
96341-41603	XZB40,5#	01/2015 - 12/2999	1
90404-16024	BB42,BZB40,50,HZB50	01/2015 - 12/2999	1
44411D - GASKET(FOR PRESSURE FEED HOSE)
90430-16168	BB4#,5#,HZB50,RZB40,50	01/1993 - 07/1999	2
90430-16168	BB42..WC..GCC;BB42..SRF..GEN;HZB50..LHD..WOC;RZB40..22S..CHI;BB42..HRF..26S..WC;BB50..LHD..CBU..5F;HZB50..LHD..SRF..WC;BB42..LHD..HRF..WOC;HZB50..HRF..(DX,STD)..WC..5F;BB5#,BZB40,RZB50..EFI,LPG,TDEFI;HZB50,RZB40..LHD..(17S,20S,26S)..WC;HZB50,RZB40..(22S,26S)..WOC..(ARL,GEN)	07/1999 - 03/2002	2
44327-30030	BB42..LHD..SRF;BB42,XZB59..RHD;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,XZB40..STD..(DCR,DSL,LPG,TD)	08/2004 - 01/2015	1
44327-30030	BB42,BZB40,50,HZB50,XZB40,5#	01/2015 - 12/2999	1
44327-30030	HZB50..GCC,GEN;BB42,5#,BZB40,50,RZB40,50..ARL,EUR,GCC,GEN	03/2002 - 08/2004	1
44411D - GASKET(FOR PRESSURE FEED HOSE)
90430-16168	BB4#,5#,HZB50,RZB40,50	01/1993 - 07/1999	2
90430-16168	BB42..WC..GCC;BB42..SRF..GEN;HZB50..LHD..WOC;RZB40..22S..CHI;BB42..HRF..26S..WC;BB50..LHD..CBU..5F;HZB50..LHD..SRF..WC;BB42..LHD..HRF..WOC;HZB50..HRF..(DX,STD)..WC..5F;BB5#,BZB40,RZB50..EFI,LPG,TDEFI;HZB50,RZB40..LHD..(17S,20S,26S)..WC;HZB50,RZB40..(22S,26S)..WOC..(ARL,GEN)	07/1999 - 03/2002	2
44327-30030	BB42..LHD..SRF;BB42,XZB59..RHD;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,XZB40..STD..(DCR,DSL,LPG,TD)	08/2004 - 01/2015	1
44327-30030	BB42,BZB40,50,HZB50,XZB40,5#	01/2015 - 12/2999	1
44327-30030	HZB50..GCC,GEN;BB42,5#,BZB40,50,RZB40,50..ARL,EUR,GCC,GEN	03/2002 - 08/2004	1
44415 - HOSE, PRESSURE FEED, NO.2
44415-36030	BB42,HZB50..LHD	01/1993 - 11/1994	1
44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET)
44416-36360	BB42,5#,HZB50..LHD	01/1993 - 07/1999	1
44416-36361	BB42..WC..GCC;BB50..LHD..TDEFI;BB42..LHD..26S..GEN;BB50,58,HZB50..LHD..(20S,23S,30S)..(GCC,GEN)	07/1999 - 08/2004	1
44416-36361	BB42..LHD..SRF;BB50,HZB50,XZB50..LHD..CBU..5F	08/2004 - 01/2015	1
44416-36361	BB42,HZB50,XZB40,50..LHD	01/2015 - 12/2999	1
44416E - BOLT, UNION(FOR RETURN TUBE)
90401-14003	BB4#,5#,HZB50,RZB40,50	01/1993 - 07/1999	1
90401-14003	BB42,BZB40,50,HZB50,TRB40,50,XZB40,5#	01/2015 - 12/2999	1
90401-14003	BB42,5#,BZB40,50,HZB50,RZB40,50,TRB40,50,XZB40,5#	08/2004 - 01/2015	1
90401-14003	BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)	07/1999 - 08/2004	1
44416F - GASKET(FOR RETURN TUBE)
90430-14235	BB4#,5#,HZB50,RZB40,50	01/1993 - 07/1999	2
90430-14235	BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)	07/1999 - 08/2004	2
90430-14235	XZB5#;BB42,50,BZB40,50,HZB50..STD..(DSL,LPG,TD)	08/2004 - 06/2007	2
90430-14014	BB42,50,BZB40,50,HZB50,TRB40,50,XZB40,5#	07/2007 - 01/2015	2
90430-14014	BB42,BZB40,50,HZB50,TRB40,50,XZB40,5#	01/2015 - 12/2999	2
44416F - GASKET(FOR RETURN TUBE)
90430-14235	BB4#,5#,HZB50,RZB40,50	01/1993 - 07/1999	2
90430-14235	BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)	07/1999 - 08/2004	2
90430-14235	XZB5#;BB42,50,BZB40,50,HZB50..STD..(DSL,LPG,TD)	08/2004 - 06/2007	2
90430-14014	BB42,50,BZB40,50,HZB50,TRB40,50,XZB40,5#	07/2007 - 01/2015	2
90430-14014	BB42,BZB40,50,HZB50,TRB40,50,XZB40,5#	01/2015 - 12/2999	2
44417 - TUBE, RETURN, NO.2
44417-36210	BB40,42	01/1993 - 07/1999	1
44417-36210	BB42..WC..GCC;BB42..SRF..GEN;BB42..HRF..26S..WC;BB42..LHD..HRF..WOC	07/1999 - 08/2004	1
44417-36210	BB42..RHD;BB42..LHD..SRF	08/2004 - 01/2015	1
44417-36210	BB42	01/2015 - 12/2999	1
44417A - HOSE, RETURN TUBE (FOR RETURN TUBE TO RETURN TUBE NO.2)
90445-18146	BB40,42	01/1993 - 07/1999	1
90445-18146	BB42..WC..GCC;BB42..SRF..GEN;BB42..HRF..26S..WC;BB42..LHD..HRF..WOC	07/1999 - 08/2004	1
90445-18146	BB42	01/2015 - 12/2999	1
90445-18146	BB42..RHD;BB42..LHD..SRF	08/2004 - 01/2015	1
44417D - HOSE(FOR RETURN TUBE TO RESERVOIR)
90445-18082	BB40,42	01/1993 - 07/1999	1
90445-18082	BB42..WC..GCC;BB42..SRF..GEN;BB42..HRF..26S..WC;BB42..LHD..HRF..WOC	07/1999 - 08/2004	1
90445-18082	BB42	01/2015 - 12/2999	1
90445-18082	BB42..RHD;BB42..LHD..SRF	08/2004 - 01/2015	1
44423 - TUBE, OIL PUMP TO GEAR BOX
44423-36240	BB42,5#..LHD;HZB50..LHD..DSL	12/1994 - 07/1999	1
44423-36280	BB42,HZB50..LHD	01/1993 - 12/1994	1
44423-36241	BB42..WC..GCC;BB50..LHD..TDEFI;BB42..LHD..26S..GEN;BB50,58,HZB50..LHD..(20S,23S,30S)..(GCC,GEN)	07/1999 - 08/2004	1
44423-36241	BB42,HZB50,XZB40,50..LHD	01/2015 - 12/2999	1
44423-36241	BB42..LHD..SRF;BB50,HZB50,XZB50..LHD..CBU..5F	08/2004 - 01/2015	1
44423F - BOLT, UNION
90401-14003	BB4#,5#,HZB50,RZB40,50	01/1993 - 07/1999	1
90401-14003	BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)	07/1999 - 08/2004	1
90401-14003	BB42,BZB40,50,HZB50,TRB40,50,XZB40,5#	01/2015 - 12/2999	1
90401-14003	BB42,5#,BZB40,50,HZB50,RZB40,50,TRB40,50,XZB40,5#	08/2004 - 01/2015	1
44423G - GASKET, UNION BOLT
90430-14235	BB4#,5#,HZB50,RZB40,50	01/1993 - 07/1999	2
90430-14235	BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)	07/1999 - 08/2004	2
90430-14014	BB42,50,BZB40,50,HZB50,TRB40,50,XZB40,5#	07/2007 - 01/2015	2
90430-14014	BB42,BZB40,50,HZB50,TRB40,50,XZB40,5#	01/2015 - 12/2999	2
90430-14235	XZB5#;BB42,50,BZB40,50,HZB50..STD..(DSL,LPG,TD)	08/2004 - 06/2007	2
44423G - GASKET, UNION BOLT
90430-14235	BB4#,5#,HZB50,RZB40,50	01/1993 - 07/1999	2
90430-14235	BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)	07/1999 - 08/2004	2
90430-14014	BB42,50,BZB40,50,HZB50,TRB40,50,XZB40,5#	07/2007 - 01/2015	2
90430-14014	BB42,BZB40,50,HZB50,TRB40,50,XZB40,5#	01/2015 - 12/2999	2
90430-14235	XZB5#;BB42,50,BZB40,50,HZB50..STD..(DSL,LPG,TD)	08/2004 - 06/2007	2
44447A - BRACKET, HOSE SUPPORT, NO.1
44447-36210	BB42,5#,HZB50..LHD	01/1993 - 07/1999	1
44447-36210	BB42..WC..GCC;BB50..LHD..TDEFI;BB42..LHD..26S..GEN;BB50,58,HZB50..LHD..(20S,23S,30S)..(GCC,GEN)	07/1999 - 08/2004	1
44447-36210	BB42..LHD..SRF;BB50,HZB50,XZB50..LHD..CBU..5F	08/2004 - 01/2015	1
44447-36210	BB42,HZB50,XZB40,50..LHD	01/2015 - 12/2999	1
44448B - BRACKET, HOSE SUPPORT, NO.2
44448-36050	BB42,HZB50	01/1993 - 12/1994	1
44457C - BRACKET, POWER STEERING TUBE SUPPORT, NO.1
44457-36040	BB4#,5#	01/1993 - 07/1999	1
44457-36040	BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;BB50..STD..GEN..CBU..5F..TD;BB42,BZB40,50..HRF..(17S,21S,26S)..WC	07/1999 - 08/2004	1
44457-36040	BB42,BZB40,50	01/2015 - 12/2999	1
44457-36040	BB42..RHD;BB42..LHD..SRF;BB50,BZB40,50..STD..(LPG,TD)	08/2004 - 01/2015	1
Common parts
90464-00621
90467-16019
90467-21010
90468-08045
91611-61040
91633-B0840
91642-80825
91651-B0620
91651-B0816
94613-10800

(9505-9907)BB42..LHD

Click highlighted areas on diagram

Part #	Description	Period	Qty
44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1
44348-36150	BB42	01/1993 - 07/1999	1
44348-37010	BB43,5#	05/1996 - 07/1999	1
44348-36150	BB42..WC..GCC;BB42..SRF..GEN;BB42..HRF..26S..WC;BB42..LHD..HRF..WOC	07/1999 - 08/2004	1
44348-36150	BB42..RHD;BB42..LHD..SRF	08/2004 - 01/2015	1
44348-36150	BB42	01/2015 - 12/2999	1
44348-36360	XZB40,5#	01/2015 - 12/2999	1
44369 - BRACKET, OIL RESERVOIR, NO.1
44369-36020	BB42..RHD;HZB50..LHD;BB42..LHD..SRF	08/2004 - 01/2015	2
44369-36020	HZB50..LHD;BB42..WC..GCC;BB42..SRF..GEN;BB42..HRF..26S..WC;BB42..LHD..HRF..WOC	07/1999 - 08/2004	2
44369-36020	BB4#;HZB50..LHD	01/1993 - 03/1997	2
44369-36020	BB40,42;HZB50..LHD..5F	03/1997 - 07/1999	2
44369-36020	BB42;HZB50..LHD	01/2015 - 12/2999	2
44369 - BRACKET, OIL RESERVOIR, NO.1
44369-36020	BB42..RHD;HZB50..LHD;BB42..LHD..SRF	08/2004 - 01/2015	2
44369-36020	HZB50..LHD;BB42..WC..GCC;BB42..SRF..GEN;BB42..HRF..26S..WC;BB42..LHD..HRF..WOC	07/1999 - 08/2004	2
44369-36020	BB4#;HZB50..LHD	01/1993 - 03/1997	2
44369-36020	BB40,42;HZB50..LHD..5F	03/1997 - 07/1999	2
44369-36020	BB42;HZB50..LHD	01/2015 - 12/2999	2
44379 - BRACKET, OIL RESERVOIR, NO.2
44379-36080	BB42	01/1993 - 07/1999	1
44379-36080	BB42..RHD;BB42..LHD..SRF	08/2004 - 01/2015	1
44379-36080	BB42..WC..GCC;BB42..SRF..GEN;BB42..HRF..26S..WC;BB42..LHD..HRF..WOC	07/1999 - 08/2004	1
44379-36080	BB42	01/2015 - 12/2999	1
44411 - HOSE, PRESSURE FEED
44411-36371	BB42,5#..LHD	01/1993 - 07/1999	1
44411-36371	BB42..WC..GCC;BB42,50..LHD..(26S,30S)..GEN	07/1999 - 08/2004	1
44411-36371	BB50..TD;BB42..LHD..SRF	08/2004 - 01/2015	1
44411-36371	BB42..LHD	01/2015 - 12/2999	1
44411C - BOLT, UNION(FOR PRESSURE FEED HOSE)
90404-16024	BB4#,5#,HZB50	01/1993 - 07/1999	1
90404-16024	BB42..WC..GCC;BB42..SRF..GEN;HZB50..LHD..EX;HZB50..LHD..WOC;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F..TD;BB42,BZB40,50,HZB50..HRF..(17S,21S,26S,30S)..WC	07/1999 - 08/2004	1
90404-16024	BB42..RHD;BB42..LHD..SRF;BB50,BZB40,50,HZB50..STD..(DSL,LPG,TD)	08/2004 - 01/2015	1
96341-41603	XZB40,5#	01/2015 - 12/2999	1
90404-16024	BB42,BZB40,50,HZB50	01/2015 - 12/2999	1
44411D - GASKET(FOR PRESSURE FEED HOSE)
90430-16168	BB4#,5#,HZB50,RZB40,50	01/1993 - 07/1999	2
90430-16168	BB42..WC..GCC;BB42..SRF..GEN;HZB50..LHD..WOC;RZB40..22S..CHI;BB42..HRF..26S..WC;BB50..LHD..CBU..5F;HZB50..LHD..SRF..WC;BB42..LHD..HRF..WOC;HZB50..HRF..(DX,STD)..WC..5F;BB5#,BZB40,RZB50..EFI,LPG,TDEFI;HZB50,RZB40..LHD..(17S,20S,26S)..WC;HZB50,RZB40..(22S,26S)..WOC..(ARL,GEN)	07/1999 - 03/2002	2
44327-30030	BB42..LHD..SRF;BB42,XZB59..RHD;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,XZB40..STD..(DCR,DSL,LPG,TD)	08/2004 - 01/2015	1
44327-30030	BB42,BZB40,50,HZB50,XZB40,5#	01/2015 - 12/2999	1
44327-30030	HZB50..GCC,GEN;BB42,5#,BZB40,50,RZB40,50..ARL,EUR,GCC,GEN	03/2002 - 08/2004	1
44411D - GASKET(FOR PRESSURE FEED HOSE)
90430-16168	BB4#,5#,HZB50,RZB40,50	01/1993 - 07/1999	2
90430-16168	BB42..WC..GCC;BB42..SRF..GEN;HZB50..LHD..WOC;RZB40..22S..CHI;BB42..HRF..26S..WC;BB50..LHD..CBU..5F;HZB50..LHD..SRF..WC;BB42..LHD..HRF..WOC;HZB50..HRF..(DX,STD)..WC..5F;BB5#,BZB40,RZB50..EFI,LPG,TDEFI;HZB50,RZB40..LHD..(17S,20S,26S)..WC;HZB50,RZB40..(22S,26S)..WOC..(ARL,GEN)	07/1999 - 03/2002	2
44327-30030	BB42..LHD..SRF;BB42,XZB59..RHD;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,XZB40..STD..(DCR,DSL,LPG,TD)	08/2004 - 01/2015	1
44327-30030	BB42,BZB40,50,HZB50,XZB40,5#	01/2015 - 12/2999	1
44327-30030	HZB50..GCC,GEN;BB42,5#,BZB40,50,RZB40,50..ARL,EUR,GCC,GEN	03/2002 - 08/2004	1
44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET)
44416-36360	BB42,5#,HZB50..LHD	01/1993 - 07/1999	1
44416-36361	BB42..WC..GCC;BB50..LHD..TDEFI;BB42..LHD..26S..GEN;BB50,58,HZB50..LHD..(20S,23S,30S)..(GCC,GEN)	07/1999 - 08/2004	1
44416-36361	BB42..LHD..SRF;BB50,HZB50,XZB50..LHD..CBU..5F	08/2004 - 01/2015	1
44416-36361	BB42,HZB50,XZB40,50..LHD	01/2015 - 12/2999	1
44416E - BOLT, UNION(FOR RETURN TUBE)
90401-14003	BB4#,5#,HZB50,RZB40,50	01/1993 - 07/1999	1
90401-14003	BB42,BZB40,50,HZB50,TRB40,50,XZB40,5#	01/2015 - 12/2999	1
90401-14003	BB42,5#,BZB40,50,HZB50,RZB40,50,TRB40,50,XZB40,5#	08/2004 - 01/2015	1
90401-14003	BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)	07/1999 - 08/2004	1
44416F - GASKET(FOR RETURN TUBE)
90430-14235	BB4#,5#,HZB50,RZB40,50	01/1993 - 07/1999	2
90430-14235	BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)	07/1999 - 08/2004	2
90430-14235	XZB5#;BB42,50,BZB40,50,HZB50..STD..(DSL,LPG,TD)	08/2004 - 06/2007	2
90430-14014	BB42,50,BZB40,50,HZB50,TRB40,50,XZB40,5#	07/2007 - 01/2015	2
90430-14014	BB42,BZB40,50,HZB50,TRB40,50,XZB40,5#	01/2015 - 12/2999	2
44416F - GASKET(FOR RETURN TUBE)
90430-14235	BB4#,5#,HZB50,RZB40,50	01/1993 - 07/1999	2
90430-14235	BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)	07/1999 - 08/2004	2
90430-14235	XZB5#;BB42,50,BZB40,50,HZB50..STD..(DSL,LPG,TD)	08/2004 - 06/2007	2
90430-14014	BB42,50,BZB40,50,HZB50,TRB40,50,XZB40,5#	07/2007 - 01/2015	2
90430-14014	BB42,BZB40,50,HZB50,TRB40,50,XZB40,5#	01/2015 - 12/2999	2
44417 - TUBE, RETURN, NO.2
44417-36210	BB40,42	01/1993 - 07/1999	1
44417-36210	BB42..WC..GCC;BB42..SRF..GEN;BB42..HRF..26S..WC;BB42..LHD..HRF..WOC	07/1999 - 08/2004	1
44417-36210	BB42..RHD;BB42..LHD..SRF	08/2004 - 01/2015	1
44417-36210	BB42	01/2015 - 12/2999	1
44417A - HOSE, RETURN TUBE (FOR RETURN TUBE TO RETURN TUBE NO.2)
90445-18146	BB40,42	01/1993 - 07/1999	1
90445-18146	BB42..WC..GCC;BB42..SRF..GEN;BB42..HRF..26S..WC;BB42..LHD..HRF..WOC	07/1999 - 08/2004	1
90445-18146	BB42	01/2015 - 12/2999	1
90445-18146	BB42..RHD;BB42..LHD..SRF	08/2004 - 01/2015	1
44417D - HOSE(FOR RETURN TUBE TO RESERVOIR)
90445-18082	BB40,42	01/1993 - 07/1999	1
90445-18082	BB42..WC..GCC;BB42..SRF..GEN;BB42..HRF..26S..WC;BB42..LHD..HRF..WOC	07/1999 - 08/2004	1
90445-18082	BB42	01/2015 - 12/2999	1
90445-18082	BB42..RHD;BB42..LHD..SRF	08/2004 - 01/2015	1
44423 - TUBE, OIL PUMP TO GEAR BOX
44423-36240	BB42,5#..LHD;HZB50..LHD..DSL	12/1994 - 07/1999	1
44423-36280	BB42,HZB50..LHD	01/1993 - 12/1994	1
44423-36241	BB42..WC..GCC;BB50..LHD..TDEFI;BB42..LHD..26S..GEN;BB50,58,HZB50..LHD..(20S,23S,30S)..(GCC,GEN)	07/1999 - 08/2004	1
44423-36241	BB42,HZB50,XZB40,50..LHD	01/2015 - 12/2999	1
44423-36241	BB42..LHD..SRF;BB50,HZB50,XZB50..LHD..CBU..5F	08/2004 - 01/2015	1
44423F - BOLT, UNION
90401-14003	BB4#,5#,HZB50,RZB40,50	01/1993 - 07/1999	1
90401-14003	BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)	07/1999 - 08/2004	1
90401-14003	BB42,BZB40,50,HZB50,TRB40,50,XZB40,5#	01/2015 - 12/2999	1
90401-14003	BB42,5#,BZB40,50,HZB50,RZB40,50,TRB40,50,XZB40,5#	08/2004 - 01/2015	1
44423G - GASKET, UNION BOLT
90430-14235	BB4#,5#,HZB50,RZB40,50	01/1993 - 07/1999	2
90430-14235	BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)	07/1999 - 08/2004	2
90430-14014	BB42,50,BZB40,50,HZB50,TRB40,50,XZB40,5#	07/2007 - 01/2015	2
90430-14014	BB42,BZB40,50,HZB50,TRB40,50,XZB40,5#	01/2015 - 12/2999	2
90430-14235	XZB5#;BB42,50,BZB40,50,HZB50..STD..(DSL,LPG,TD)	08/2004 - 06/2007	2
44423G - GASKET, UNION BOLT
90430-14235	BB4#,5#,HZB50,RZB40,50	01/1993 - 07/1999	2
90430-14235	BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)	07/1999 - 08/2004	2
90430-14014	BB42,50,BZB40,50,HZB50,TRB40,50,XZB40,5#	07/2007 - 01/2015	2
90430-14014	BB42,BZB40,50,HZB50,TRB40,50,XZB40,5#	01/2015 - 12/2999	2
90430-14235	XZB5#;BB42,50,BZB40,50,HZB50..STD..(DSL,LPG,TD)	08/2004 - 06/2007	2
44447A - BRACKET, HOSE SUPPORT, NO.1
44447-36210	BB42,5#,HZB50..LHD	01/1993 - 07/1999	1
44447-36210	BB42..WC..GCC;BB50..LHD..TDEFI;BB42..LHD..26S..GEN;BB50,58,HZB50..LHD..(20S,23S,30S)..(GCC,GEN)	07/1999 - 08/2004	1
44447-36210	BB42..LHD..SRF;BB50,HZB50,XZB50..LHD..CBU..5F	08/2004 - 01/2015	1
44447-36210	BB42,HZB50,XZB40,50..LHD	01/2015 - 12/2999	1
44457C - BRACKET, POWER STEERING TUBE SUPPORT, NO.1
44457-36040	BB4#,5#	01/1993 - 07/1999	1
44457-36040	BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;BB50..STD..GEN..CBU..5F..TD;BB42,BZB40,50..HRF..(17S,21S,26S)..WC	07/1999 - 08/2004	1
44457-36040	BB42,BZB40,50	01/2015 - 12/2999	1
44457-36040	BB42..RHD;BB42..LHD..SRF;BB50,BZB40,50..STD..(LPG,TD)	08/2004 - 01/2015	1
Common parts
90464-00621
90467-16019
90467-21010
91611-61040
91642-80825
91651-B0620
91651-B0816
96991-14080

(9301-9505)HZB50..LHD ; (9505-9605)LHD..TD

Click highlighted areas on diagram

Part #	Description	Period	Qty
44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1
44348-36150	BB42	01/1993 - 07/1999	1
44348-37010	BB43,5#	05/1996 - 07/1999	1
44348-36150	BB42..WC..GCC;BB42..SRF..GEN;BB42..HRF..26S..WC;BB42..LHD..HRF..WOC	07/1999 - 08/2004	1
44348-36150	BB42..RHD;BB42..LHD..SRF	08/2004 - 01/2015	1
44348-36150	BB42	01/2015 - 12/2999	1
44348-36360	XZB40,5#	01/2015 - 12/2999	1
44369 - BRACKET, OIL RESERVOIR, NO.1
44369-36020	BB42..RHD;HZB50..LHD;BB42..LHD..SRF	08/2004 - 01/2015	2
44369-36020	HZB50..LHD;BB42..WC..GCC;BB42..SRF..GEN;BB42..HRF..26S..WC;BB42..LHD..HRF..WOC	07/1999 - 08/2004	2
44369-36020	BB4#;HZB50..LHD	01/1993 - 03/1997	2
44369-36020	BB40,42;HZB50..LHD..5F	03/1997 - 07/1999	2
44369-36020	BB42;HZB50..LHD	01/2015 - 12/2999	2
44369 - BRACKET, OIL RESERVOIR, NO.1
44369-36020	BB42..RHD;HZB50..LHD;BB42..LHD..SRF	08/2004 - 01/2015	2
44369-36020	HZB50..LHD;BB42..WC..GCC;BB42..SRF..GEN;BB42..HRF..26S..WC;BB42..LHD..HRF..WOC	07/1999 - 08/2004	2
44369-36020	BB4#;HZB50..LHD	01/1993 - 03/1997	2
44369-36020	BB40,42;HZB50..LHD..5F	03/1997 - 07/1999	2
44369-36020	BB42;HZB50..LHD	01/2015 - 12/2999	2
44379 - BRACKET, OIL RESERVOIR, NO.2
44379-36080	BB42	01/1993 - 07/1999	1
44379-36080	BB42..RHD;BB42..LHD..SRF	08/2004 - 01/2015	1
44379-36080	BB42..WC..GCC;BB42..SRF..GEN;BB42..HRF..26S..WC;BB42..LHD..HRF..WOC	07/1999 - 08/2004	1
44379-36080	BB42	01/2015 - 12/2999	1
44411 - HOSE, PRESSURE FEED
44411-36371	BB42,5#..LHD	01/1993 - 07/1999	1
44411-36371	BB42..WC..GCC;BB42,50..LHD..(26S,30S)..GEN	07/1999 - 08/2004	1
44411-36371	BB50..TD;BB42..LHD..SRF	08/2004 - 01/2015	1
44411-36371	BB42..LHD	01/2015 - 12/2999	1
44411C - BOLT, UNION(FOR PRESSURE FEED HOSE)
90404-16024	BB4#,5#,HZB50	01/1993 - 07/1999	1
90404-16024	BB42..WC..GCC;BB42..SRF..GEN;HZB50..LHD..EX;HZB50..LHD..WOC;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F..TD;BB42,BZB40,50,HZB50..HRF..(17S,21S,26S,30S)..WC	07/1999 - 08/2004	1
90404-16024	BB42..RHD;BB42..LHD..SRF;BB50,BZB40,50,HZB50..STD..(DSL,LPG,TD)	08/2004 - 01/2015	1
96341-41603	XZB40,5#	01/2015 - 12/2999	1
90404-16024	BB42,BZB40,50,HZB50	01/2015 - 12/2999	1
44411D - GASKET(FOR PRESSURE FEED HOSE)
90430-16168	BB4#,5#,HZB50,RZB40,50	01/1993 - 07/1999	2
90430-16168	BB42..WC..GCC;BB42..SRF..GEN;HZB50..LHD..WOC;RZB40..22S..CHI;BB42..HRF..26S..WC;BB50..LHD..CBU..5F;HZB50..LHD..SRF..WC;BB42..LHD..HRF..WOC;HZB50..HRF..(DX,STD)..WC..5F;BB5#,BZB40,RZB50..EFI,LPG,TDEFI;HZB50,RZB40..LHD..(17S,20S,26S)..WC;HZB50,RZB40..(22S,26S)..WOC..(ARL,GEN)	07/1999 - 03/2002	2
44327-30030	BB42..LHD..SRF;BB42,XZB59..RHD;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,XZB40..STD..(DCR,DSL,LPG,TD)	08/2004 - 01/2015	1
44327-30030	BB42,BZB40,50,HZB50,XZB40,5#	01/2015 - 12/2999	1
44327-30030	HZB50..GCC,GEN;BB42,5#,BZB40,50,RZB40,50..ARL,EUR,GCC,GEN	03/2002 - 08/2004	1
44411D - GASKET(FOR PRESSURE FEED HOSE)
90430-16168	BB4#,5#,HZB50,RZB40,50	01/1993 - 07/1999	2
90430-16168	BB42..WC..GCC;BB42..SRF..GEN;HZB50..LHD..WOC;RZB40..22S..CHI;BB42..HRF..26S..WC;BB50..LHD..CBU..5F;HZB50..LHD..SRF..WC;BB42..LHD..HRF..WOC;HZB50..HRF..(DX,STD)..WC..5F;BB5#,BZB40,RZB50..EFI,LPG,TDEFI;HZB50,RZB40..LHD..(17S,20S,26S)..WC;HZB50,RZB40..(22S,26S)..WOC..(ARL,GEN)	07/1999 - 03/2002	2
44327-30030	BB42..LHD..SRF;BB42,XZB59..RHD;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,XZB40..STD..(DCR,DSL,LPG,TD)	08/2004 - 01/2015	1
44327-30030	BB42,BZB40,50,HZB50,XZB40,5#	01/2015 - 12/2999	1
44327-30030	HZB50..GCC,GEN;BB42,5#,BZB40,50,RZB40,50..ARL,EUR,GCC,GEN	03/2002 - 08/2004	1
44415 - HOSE, PRESSURE FEED, NO.2
44415-36030	BB42,HZB50..LHD	01/1993 - 11/1994	1
44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET)
44416-36360	BB42,5#,HZB50..LHD	01/1993 - 07/1999	1
44416-36361	BB42..WC..GCC;BB50..LHD..TDEFI;BB42..LHD..26S..GEN;BB50,58,HZB50..LHD..(20S,23S,30S)..(GCC,GEN)	07/1999 - 08/2004	1
44416-36361	BB42..LHD..SRF;BB50,HZB50,XZB50..LHD..CBU..5F	08/2004 - 01/2015	1
44416-36361	BB42,HZB50,XZB40,50..LHD	01/2015 - 12/2999	1
44416E - BOLT, UNION(FOR RETURN TUBE)
90401-14003	BB4#,5#,HZB50,RZB40,50	01/1993 - 07/1999	1
90401-14003	BB42,BZB40,50,HZB50,TRB40,50,XZB40,5#	01/2015 - 12/2999	1
90401-14003	BB42,5#,BZB40,50,HZB50,RZB40,50,TRB40,50,XZB40,5#	08/2004 - 01/2015	1
90401-14003	BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)	07/1999 - 08/2004	1
44416F - GASKET(FOR RETURN TUBE)
90430-14235	BB4#,5#,HZB50,RZB40,50	01/1993 - 07/1999	2
90430-14235	BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)	07/1999 - 08/2004	2
90430-14235	XZB5#;BB42,50,BZB40,50,HZB50..STD..(DSL,LPG,TD)	08/2004 - 06/2007	2
90430-14014	BB42,50,BZB40,50,HZB50,TRB40,50,XZB40,5#	07/2007 - 01/2015	2
90430-14014	BB42,BZB40,50,HZB50,TRB40,50,XZB40,5#	01/2015 - 12/2999	2
44416F - GASKET(FOR RETURN TUBE)
90430-14235	BB4#,5#,HZB50,RZB40,50	01/1993 - 07/1999	2
90430-14235	BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)	07/1999 - 08/2004	2
90430-14235	XZB5#;BB42,50,BZB40,50,HZB50..STD..(DSL,LPG,TD)	08/2004 - 06/2007	2
90430-14014	BB42,50,BZB40,50,HZB50,TRB40,50,XZB40,5#	07/2007 - 01/2015	2
90430-14014	BB42,BZB40,50,HZB50,TRB40,50,XZB40,5#	01/2015 - 12/2999	2
44423 - TUBE, OIL PUMP TO GEAR BOX
44423-36240	BB42,5#..LHD;HZB50..LHD..DSL	12/1994 - 07/1999	1
44423-36280	BB42,HZB50..LHD	01/1993 - 12/1994	1
44423-36241	BB42..WC..GCC;BB50..LHD..TDEFI;BB42..LHD..26S..GEN;BB50,58,HZB50..LHD..(20S,23S,30S)..(GCC,GEN)	07/1999 - 08/2004	1
44423-36241	BB42,HZB50,XZB40,50..LHD	01/2015 - 12/2999	1
44423-36241	BB42..LHD..SRF;BB50,HZB50,XZB50..LHD..CBU..5F	08/2004 - 01/2015	1
44423F - BOLT, UNION
90401-14003	BB4#,5#,HZB50,RZB40,50	01/1993 - 07/1999	1
90401-14003	BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)	07/1999 - 08/2004	1
90401-14003	BB42,BZB40,50,HZB50,TRB40,50,XZB40,5#	01/2015 - 12/2999	1
90401-14003	BB42,5#,BZB40,50,HZB50,RZB40,50,TRB40,50,XZB40,5#	08/2004 - 01/2015	1
44423G - GASKET, UNION BOLT
90430-14235	BB4#,5#,HZB50,RZB40,50	01/1993 - 07/1999	2
90430-14235	BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)	07/1999 - 08/2004	2
90430-14014	BB42,50,BZB40,50,HZB50,TRB40,50,XZB40,5#	07/2007 - 01/2015	2
90430-14014	BB42,BZB40,50,HZB50,TRB40,50,XZB40,5#	01/2015 - 12/2999	2
90430-14235	XZB5#;BB42,50,BZB40,50,HZB50..STD..(DSL,LPG,TD)	08/2004 - 06/2007	2
44423G - GASKET, UNION BOLT
90430-14235	BB4#,5#,HZB50,RZB40,50	01/1993 - 07/1999	2
90430-14235	BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)	07/1999 - 08/2004	2
90430-14014	BB42,50,BZB40,50,HZB50,TRB40,50,XZB40,5#	07/2007 - 01/2015	2
90430-14014	BB42,BZB40,50,HZB50,TRB40,50,XZB40,5#	01/2015 - 12/2999	2
90430-14235	XZB5#;BB42,50,BZB40,50,HZB50..STD..(DSL,LPG,TD)	08/2004 - 06/2007	2
44447A - BRACKET, HOSE SUPPORT, NO.1
44447-36210	BB42,5#,HZB50..LHD	01/1993 - 07/1999	1
44447-36210	BB42..WC..GCC;BB50..LHD..TDEFI;BB42..LHD..26S..GEN;BB50,58,HZB50..LHD..(20S,23S,30S)..(GCC,GEN)	07/1999 - 08/2004	1
44447-36210	BB42..LHD..SRF;BB50,HZB50,XZB50..LHD..CBU..5F	08/2004 - 01/2015	1
44447-36210	BB42,HZB50,XZB40,50..LHD	01/2015 - 12/2999	1
44448B - BRACKET, HOSE SUPPORT, NO.2
44448-36050	BB42,HZB50	01/1993 - 12/1994	1
44457C - BRACKET, POWER STEERING TUBE SUPPORT, NO.1
44457-36040	BB4#,5#	01/1993 - 07/1999	1
44457-36040	BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;BB50..STD..GEN..CBU..5F..TD;BB42,BZB40,50..HRF..(17S,21S,26S)..WC	07/1999 - 08/2004	1
44457-36040	BB42,BZB40,50	01/2015 - 12/2999	1
44457-36040	BB42..RHD;BB42..LHD..SRF;BB50,BZB40,50..STD..(LPG,TD)	08/2004 - 01/2015	1
Common parts
90201-09019
90464-00621
90467-16019
90467-21010
90468-08045
91633-B0840
91642-80825
91651-60830
91651-B0620
91651-B0816
94613-10800

BB42L-BRMRS (1993)

(9907- )LHD..TD

(9907- )BB42..LHD

(9301-9505)BB42..LHD

(9505-9907)BB42..LHD

(9301-9505)HZB50..LHD ; (9505-9605)LHD..TD

Part Price Details
