BB40R-ZEMRSQ (1993)
Toyota Coaster
ILLUST NO. 1 OF 2(9301- )14B,15BFT,3B
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-56012 |
14B,15BFT,3B..BB4#,5# |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-28004 |
14B,15BFT,3B..BB4#,5# |
2 | ||
| 90467-28005 |
14B,15BFT,3B..BB4#;15BFT..BB50..WOC..GEN |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-28004 |
14B,15BFT,3B..BB4#,5# |
2 | ||
| 90467-28005 |
14B,15BFT,3B..BB4#;15BFT..BB50..WOC..GEN |
2 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-56020 |
14B,15BFT,3B..BB4#,5# |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03102 |
14B,3B..BB40,42 |
1 | ||
| 90916-03077 |
14B,3B..BB4# *WAX 82-95 |
1 | ||
| 16333 - HOUSING, WATER OUTLET | ||||
| 16333-56072 |
14B,3B..BB4# |
1 | ||
| 16333-58050 |
14B,3B..BB40,42 |
1 | ||
| 16333A - BOLT, STUD(FOR WATER OUTLET HOUSING) | ||||
| 92112-60832 |
14B,15BFT,3B..BB4#,5# |
2 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-56030 |
14B,15BFT,3B..BB4#,5# |
1 | ||
| 16343 - GASKET, WATER OUTLET HOUSING | ||||
| 16343-56022 |
14B,3B..BB4# |
1 | ||
| 16343-56023 |
14B,15BFT,3B..BB4#,5# |
1 | ||
| 16361 - FAN | ||||
| 16361-41070 |
3B..BB40 |
1 | ||
| 16361-41070 |
15BFT..BB5#;14B,15BFT,3B..BB4#..17S,19S |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-58040 |
3B..BB40;14B..BB42..WC |
1 | ||
| 16381-58130 |
14B..BB42..WC..GCC;14B,15BFT,3B..BB4#,5#..ARL,GEN,SCO ALTERNATOR(24V-60A) |
1 | ||
| 16381-58130 |
14B..BB42..WC..GCC;14B,15BFT,3B..BB40,42,5#..(ARL,GEN,SCO)..CBU ALTERNATOR(24V-60A) |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-58040 |
3B..BB40;14B..BB42..WC |
1 | ||
| 16381-58130 |
14B..BB42..WC..GCC;14B,15BFT,3B..BB4#,5#..ARL,GEN,SCO ALTERNATOR(24V-60A) |
1 | ||
| 16381-58130 |
14B..BB42..WC..GCC;14B,15BFT,3B..BB40,42,5#..(ARL,GEN,SCO)..CBU ALTERNATOR(24V-60A) |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-58570 |
14B,3B..BB40,42 |
1 | ||
| 16400-58380 |
14B,3B..BB4# |
1 | ||
| 16400-58571 |
14B,3B..BB40,42 |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-15210 |
14B,15BFT,3B..BB4#,5#..ARL,GCC,GEN,SCO |
1 | ||
| 16417-24200 |
14B,15BFT,3B..BB4#,50 |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16418-24200 |
14B,15BFT,3B..BB4#,50 |
1 | ||
| 16418-50121 |
14B,15BFT,3B..BB4#,50 |
1 | ||
| 16418-15520 |
14B,15BFT,3B..BB4#,5#..ARL,GCC,GEN,SCO |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-17060 |
14B,15BFT,3B..BB4#,5# |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-12026 |
14B,15BFT,3B..BB4#,5# |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-17030 |
14B,15BFT,3B..BB4#,5# |
1 | ||
| 16472 - HOSE, BREATHER | ||||
| 16472-17060 |
14B,3B..BB4# |
1 | ||
| 16520 - FILLER ASSY, WATER | ||||
| 16520-17010 |
14B,15BFT,3B..BB4#,5# |
1 | ||
| 16520A - CAP SUB-ASSY, WATER FILLER | ||||
| 16401-72090 |
14B,15BFT,3B..BB4#,5# |
1 | ||
| 16537 - SUPPORT, RADIATOR PIPE, NO.1 | ||||
| 16537-58010 |
14B,3B..BB4# |
1 | ||
| 16549 - COLLAR, RADIATOR SUPPORT, NO.2 | ||||
| 16549-61010 |
14B,15BFT,3B..BB4#,5# |
2 | ||
| 16549 - COLLAR, RADIATOR SUPPORT, NO.2 | ||||
| 16549-61010 |
14B,15BFT,3B..BB4#,5# |
2 | ||
| 16567 - HOSE(FOR RADIATOR RESERVE TANK) | ||||
| 16567-17010 |
14B,15BFT,3B..BB4#,5# |
1 | ||
| 16567A - CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
14B,15BFT,3B..BB4#,5# |
2 | ||
| 16567A - CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
14B,15BFT,3B..BB4#,5# |
2 | ||
| 16567B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE NO.2) | ||||
| 90464-00460 |
14B,15BFT,3B..BB4#,50..RHD |
3 | ||
| 16567C - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE NO.3) | ||||
| 90464-00618 |
14B,15BFT,3B..BB4#,5# |
3 | ||
| 16567C - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE NO.3) | ||||
| 90464-00618 |
14B,15BFT,3B..BB4#,5# |
3 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-58050 |
14B,3B..BB4#..RHD |
1 | ||
| 16571-58051 |
14B,3B..BB40,42..RHD |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-42001 |
14B,15BFT,3B..BB4#,50 |
2 | ||
| 90467-43002 |
14B,15BFT,3B..BB4#,5#..ARL,GCC,GEN,SCO RADIATOR SIDE |
1 | ||
| 90467-41006 |
14B,15BFT,3B..BB4#,5#..ARL,GCC,GEN,SCO ENGINE SIDE |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-42001 |
14B,15BFT,3B..BB4#,50 |
2 | ||
| 90467-43002 |
14B,15BFT,3B..BB4#,5#..ARL,GCC,GEN,SCO RADIATOR SIDE |
1 | ||
| 90467-41006 |
14B,15BFT,3B..BB4#,5#..ARL,GCC,GEN,SCO ENGINE SIDE |
1 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-56091 |
14B,15BFT,3B..BB4#,5# |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-42001 |
14B,15BFT,3B..BB4#,50 |
2 | ||
| 90467-43002 |
14B,15BFT,3B..BB4#,5#..ARL,GCC,GEN,SCO RADIATOR SIDE |
1 | ||
| 90467-41006 |
14B,15BFT,3B..BB4#,5#..ARL,GCC,GEN,SCO ENGINE SIDE |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-42001 |
14B,15BFT,3B..BB4#,50 |
2 | ||
| 90467-43002 |
14B,15BFT,3B..BB4#,5#..ARL,GCC,GEN,SCO RADIATOR SIDE |
1 | ||
| 90467-41006 |
14B,15BFT,3B..BB4#,5#..ARL,GCC,GEN,SCO ENGINE SIDE |
1 | ||
| 16572C - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.2) | ||||
| 90467-41007 |
14B,3B..BB4#;15BFT..BB50..WOC..GEN RADIATOR PIPE SIDE |
1 | ||
| 96111-10490 |
14B,3B..BB4# PIPE SIDE |
1 | ||
| 96111-10570 |
14B,15BFT,3B..BB4#,5# WATER PUMP SIDE |
1 | ||
| 90467-48003 |
14B,15BFT,3B..BB4#;15BFT..BB50..WOC..GEN WATER PUMP SIDE |
1 | ||
| 90467-41004 |
14B,15BFT,3B..BB4#,5# RADIATOR PIPE SIDE |
1 | ||
| 16572C - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.2) | ||||
| 90467-41007 |
14B,3B..BB4#;15BFT..BB50..WOC..GEN RADIATOR PIPE SIDE |
1 | ||
| 96111-10490 |
14B,3B..BB4# PIPE SIDE |
1 | ||
| 96111-10570 |
14B,15BFT,3B..BB4#,5# WATER PUMP SIDE |
1 | ||
| 90467-48003 |
14B,15BFT,3B..BB4#;15BFT..BB50..WOC..GEN WATER PUMP SIDE |
1 | ||
| 90467-41004 |
14B,15BFT,3B..BB4#,5# RADIATOR PIPE SIDE |
1 | ||
| 16572D - HOSE, RADIATOR, NO.2 | ||||
| 16572-58070 |
14B,15BFT,3B..BB4#,50..RHD |
1 | ||
| 16572-58090 |
14B,15BFT,3B..BB4#,50..RHD..CBU |
1 | ||
| 16573B - HOSE, RADIATOR, NO.3 | ||||
| 16573-17010 |
14B,3B..BB40,42..RHD |
1 | ||
| 16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3 | ||||
| 90467-31003 |
14B,15BFT,3B..BB4#,5# |
2 | ||
| 16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3 | ||||
| 90467-31003 |
14B,15BFT,3B..BB4#,5# |
2 | ||
| 16577 - PIPE, RADIATOR, NO.7 | ||||
| 16577-58040 |
14B,15BFT,3B..BB4#,5# |
1 | ||
| 16577-56050 |
14B,3B..BB4# |
1 | ||
| 16582 - BRACKET, RADIATOR, NO.1 | ||||
| 16582-17010 |
14B,15BFT,3B..BB4#,5# |
2 | ||
| 16582 - BRACKET, RADIATOR, NO.1 | ||||
| 16582-17010 |
14B,15BFT,3B..BB4#,5# |
2 | ||
| 16583 - BRACKET, RADIATOR, NO.2 | ||||
| 16583-17010 |
14B,15BFT,3B..BB4#,5# |
1 | ||
| 16584 - INSULATOR, RADIATOR MOUNTING | ||||
| 16584-61020 |
14B,15BFT,3B..BB4#,5# |
2 | ||
| 16584 - INSULATOR, RADIATOR MOUNTING | ||||
| 16584-61020 |
14B,15BFT,3B..BB4#,5# |
2 | ||
| 16611 - BRACKET, RADIATOR RESERVE TANK | ||||
| 16611-16010 |
14B,15BFT,3B..BB4#,5# |
1 | ||
| 16612 - BRACKET, RADIATOR RESERVE TANK, NO.2 | ||||
| 16612-17010 |
14B,15BFT,3B..BB4#,5# |
1 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16711-58090 |
14B,3B..BB4#..RHD |
1 | ||
| 16711-58091 |
14B,3B..BB40,42..RHD |
1 | ||
| Common parts | ||||
| 90105-12091 | ||||
| 90119-08539 | ||||
| 90119-08888 | ||||
| 90119-08B05 | ||||
| 90119-08C37 | ||||
| 90119-10409 | ||||
| 90119-12323 | ||||
| 90179-06080 | ||||
| 90179-06110 | ||||
| 90179-06293 | ||||
| 90179-08040 | ||||
| 90179-08143 | ||||
| 90430-12221 | ||||
| 91512-61250 | ||||
| 91611-60816 | ||||
| 91611-60825 | ||||
| 91621-60614 | ||||
| 91621-60865 | ||||
| 91621-A0850 | ||||
| 91621-B0816 | ||||
| 91641-H0820 | ||||
| 91651-60616 | ||||
| 91651-60820 | ||||
| 91651-B0820 | ||||
| 91651-B0822 | ||||
| 91651-B0825 | ||||
| 92122-60814 | ||||
| Linked diagrams | ||||
| 1605 | ||||

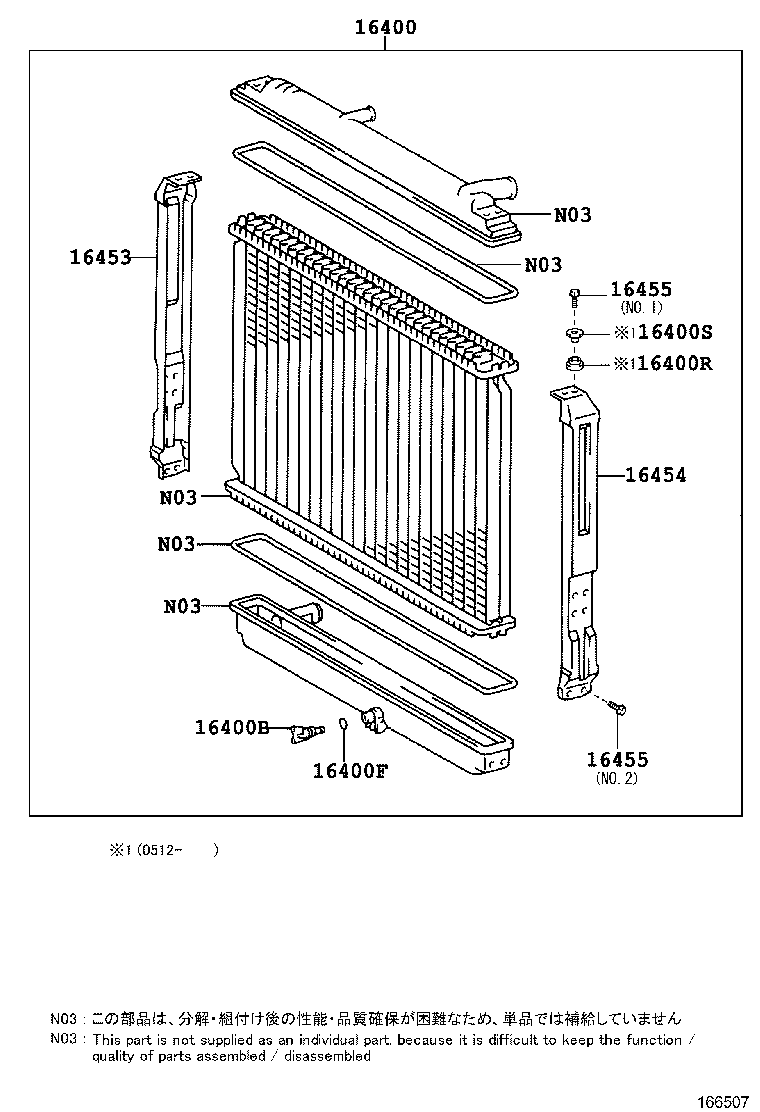

ILLUST NO. 2 OF 2(9705-9907)14B,15BFT,3B..ARL,GCC,GEN,SCO ; (9907- )15B#,1BZFPE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16400 - RADIATOR ASSY | ||||
| 16400-58570 |
14B,3B..BB40,42 |
1 | ||
| 16400-58380 |
14B,3B..BB4# |
1 | ||
| 16400-58571 |
14B,3B..BB40,42 |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-15210 |
14B,15BFT,3B..BB4#,5#..ARL,GCC,GEN,SCO |
1 | ||
| 16417-24200 |
14B,15BFT,3B..BB4#,50 |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16418-24200 |
14B,15BFT,3B..BB4#,50 |
1 | ||
| 16418-50121 |
14B,15BFT,3B..BB4#,50 |
1 | ||
| 16418-15520 |
14B,15BFT,3B..BB4#,5#..ARL,GCC,GEN,SCO |
1 | ||
| 16453 - PLATE, RADIATOR SIDE | ||||
| 16453-17260 |
14B,3B..BB40,42 |
1 | ||
| 16453-17231 |
14B,3B..BB40,42 |
1 | ||
| 16454 - PLATE, RADIATOR SIDE | ||||
| 16454-17231 |
14B,3B..BB40,42 |
1 | ||
| 16454-17260 |
14B,3B..BB40,42 |
1 | ||
| 16455 - BOLT, RADIATOR SIDE SUPPORT PLATE | ||||
| 16455-67020 |
14B,15BFT,3B..BB4#,5#..ARL,GCC,GEN,SCO NO.1 & NO.2 |
8 | ||
| 16455 - BOLT, RADIATOR SIDE SUPPORT PLATE | ||||
| 16455-67020 |
14B,15BFT,3B..BB4#,5#..ARL,GCC,GEN,SCO NO.1 & NO.2 |
8 | ||
