BB23R-MRZER (1988)
Toyota Coaster
Production
Aug 1988
-
Jan 1993
Engine
14B
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(8808- )14B,3B

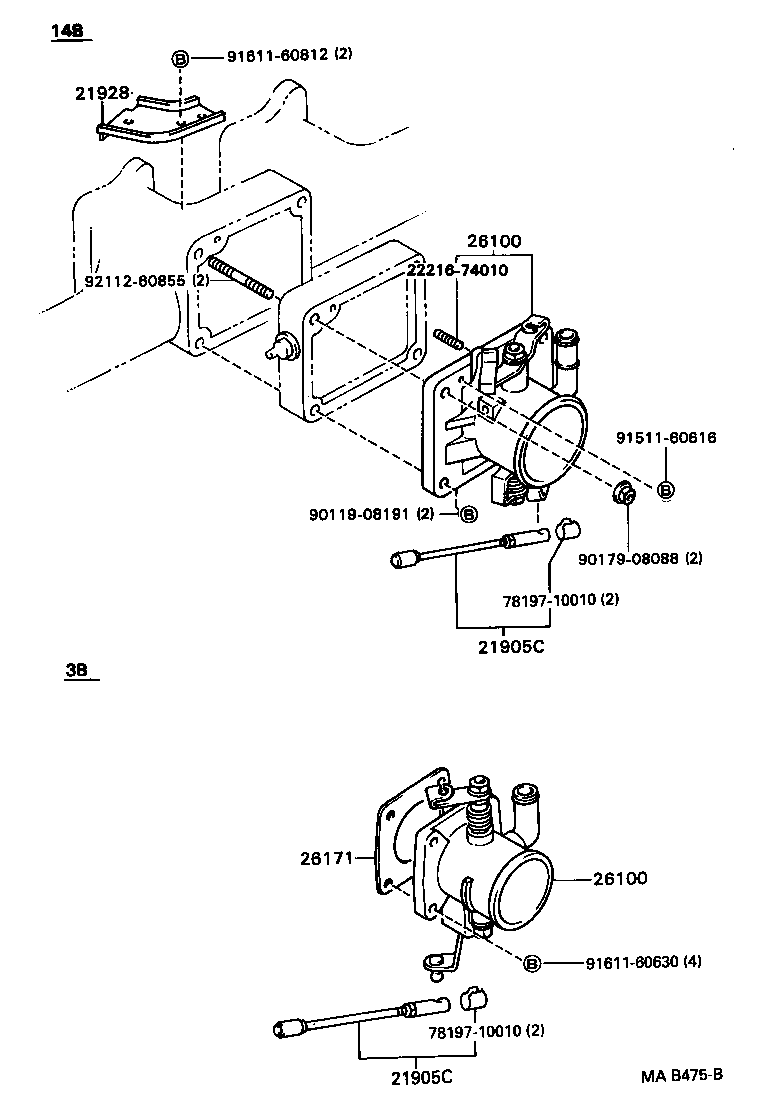

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 21905C - ROD, ACCELERATOR CONNECTING(FOR VENTURI) | ||||
| 21905-58010 |
14B..BB23,32 |
1 | ||
| 21905C - ROD, ACCELERATOR CONNECTING(FOR VENTURI) | ||||
| 21905-58010 |
14B..BB23,32 |
1 | ||
| 21928 - SUPPORT, THROTTLE WIRE | ||||
| 21928-58040 |
14B..BB23,32 |
1 | ||
| 21928-58041 |
14B..BB23,32 |
1 | ||
| 21928-58070 |
14B..BB23,32 |
1 | ||
| 26100 - VENTURI ASSY | ||||
| 26100-58110 |
14B..BB23,32 |
1 | ||
| 26100 - VENTURI ASSY | ||||
| 26100-58110 |
14B..BB23,32 |
1 | ||
| Common parts | ||||
| 22216-74010 | ||||
| 78197-10010 | ||||
| 90119-08191 | ||||
| 90179-08088 | ||||
| 91511-60616 | ||||
| 91611-60630 | ||||
| 91611-60812 | ||||
| 92112-60855 | ||||
