BB22R-MRZER (1985)
Toyota Coaster
Production
Oct 1985
-
Aug 1988
Engine
13B
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(8205-8808)3B

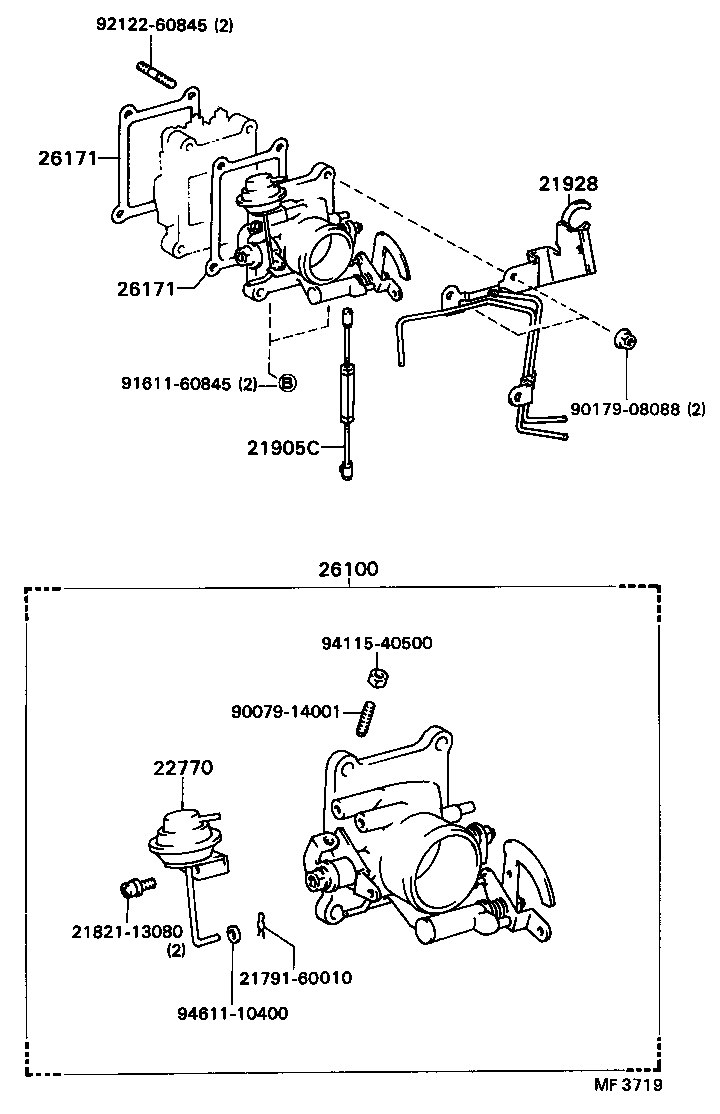

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 26100 - VENTURI ASSY | ||||
| 26100-56130 |
13B..BB22 |
1 | ||
| 26171 - GASKET, VENTURI | ||||
| 26171-56040 |
13B..BB22 |
2 | ||
| Common parts | ||||
| 90179-08088 | ||||
| 91611-60625 | ||||
| 93219-13008 | ||||
| 94110-40600 | ||||
| 94120-40800 | ||||
| 94511-00800 | ||||
| Linked diagrams | ||||
| 8717 | ||||
(8510-8808)13B
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 21905C - ROD, ACCELERATOR CONNECTING(FOR VENTURI) | ||||
| 21905-56050 |
13B..BB22 |
1 | ||
| 21928 - SUPPORT, THROTTLE WIRE | ||||
| 21928-58030 |
13B..BB22 |
1 | ||
| 26100 - VENTURI ASSY | ||||
| 26100-56130 |
13B..BB22 |
1 | ||
| 26171 - GASKET, VENTURI | ||||
| 26171-56040 |
13B..BB22 |
2 | ||
| 26171 - GASKET, VENTURI | ||||
| 26171-56040 |
13B..BB22 |
2 | ||
| Common parts | ||||
| 21791-60010 | ||||
| 21821-13080 | ||||
| 90079-14001 | ||||
| 90179-08088 | ||||
| 91611-60845 | ||||
| 92122-60845 | ||||
| 94115-40500 | ||||
| 94611-10400 | ||||
