BB22R-MRZER (1985)

Toyota Coaster

Production Oct 1985 - Aug 1988
Engine 13B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8510- )13B

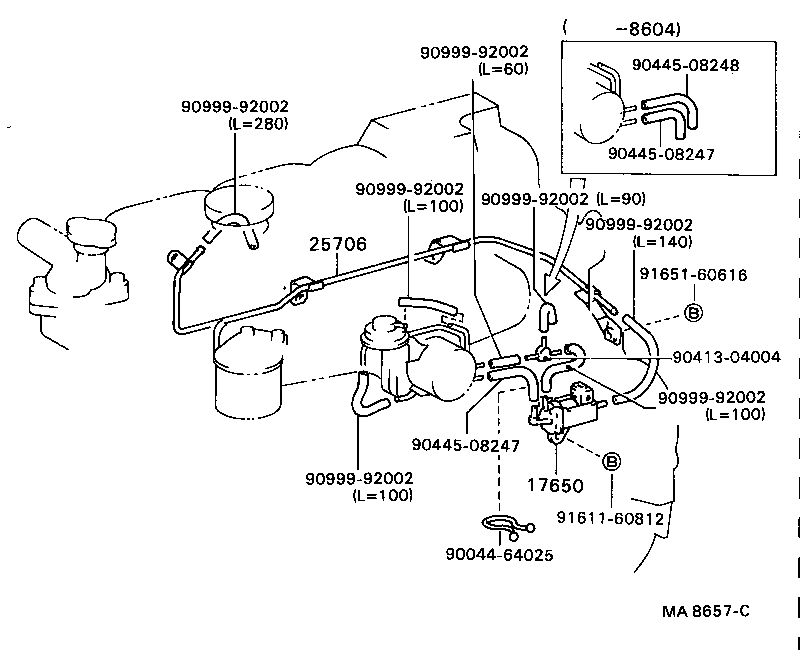

Click highlighted areas on diagram

diagram 17650 25706 9004464025 9041304004 9044508247 9044508247 9044508248 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9161160812 9165160616
Part # Description Qty Price
17650 - VALVE ASSY, VACUUM SWITCHING
90910-12020

13B..BB22

 1
25706 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.1
25706-56012

13B..BB22

 1
Common parts
90044-64025
90413-04004
90445-08247
90445-08248
90999-92002
91611-60812
91651-60616
