BB22R-MRZER (1985)

Toyota Coaster

Production Oct 1985 - Aug 1988
Engine 13B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8510-8808)13B,3B

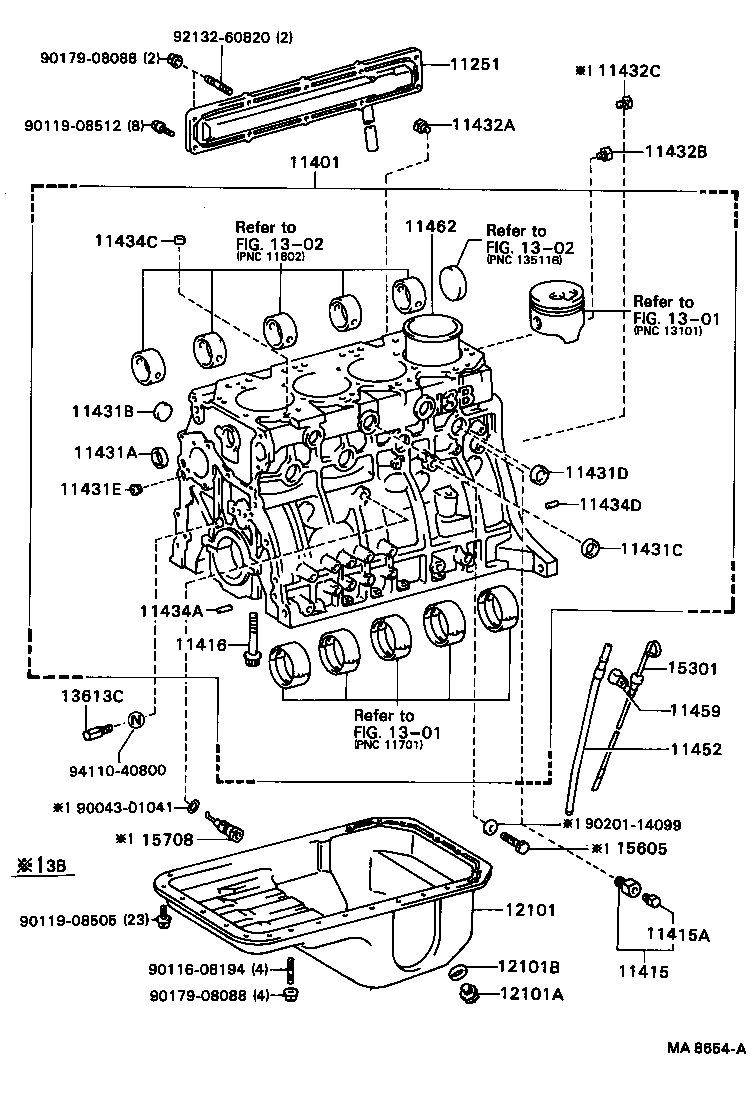

Click highlighted areas on diagram

diagram 11251 11401 11415 11415A 11416 11431A 11431B 11431C 11431D 11431E 11432A 11432B 11432C 11434A 11434C 11434D 11452 11459 11462 12101 12101A 12101B 1301 1301 1302 1302 13613C 15301 15605 15708 9004301041 9011608194 9011908505 9011908512 9017908088 9017908088 9020114099 9213260820 9411040800
Part # Description Qty Price
11251 - COVER, VALVE PUSH ROD
11203-56050

13B..BB22

 1
11401 - BLOCK SUB-ASSY, CYLINDER
11401-59285

13B..BB22

 1
11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)
90331-51032

13B,3B..BB2#,30

OD=51

 2
11432A - PLUG, W/HEAD TAPER SCREW, NO.1
90043-45027

13B,3B..BB2#,30

 4
11432B - PLUG, W/HEAD TAPER SCREW, NO.2
90345-53001

13B,3B..BB2#,30

 1
11432C - PLUG, W/HEAD TAPER SCREW, NO.3
90345-52001

14B,3B..BB20,21,23,3#

 1
11434A - PIN, STRAIGHT(FOR TIMING GEAR COVER SET)
90250-08120

13B,14B,3B..BB2#,3#

L=18,OD=8,L=18,OD=8

 4
11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET)
90253-15005

13B,14B,3B..BB2#,3#

L=7,OD=14.5,L=7,OD=14.5

 2
11434D - PIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)
90250-08120

13B,14B,3B..BB2#,3#

L=18,OD=8,L=18,OD=8

 2
11459 - SUPPORT, OIL LEVEL GAGE GUIDE
11459-56040

13B,14B,3B..BB2#,3#

 1
12101B - GASKET(FOR OIL PAN DRAIN PLUG)
90430-18244

13B,3B..BB2#,30

 1
13613C - NOZZLE, OIL
90915-01015

13B,14B,3B..BB2#,3#

 1
Common parts
90043-01041
90116-08194
90119-08505
90119-08512
90179-08088
90201-14099
92132-60820
94110-40800
Linked diagrams
1301
1302
