BB21R-MRZRQ (1986)
Toyota Coaster

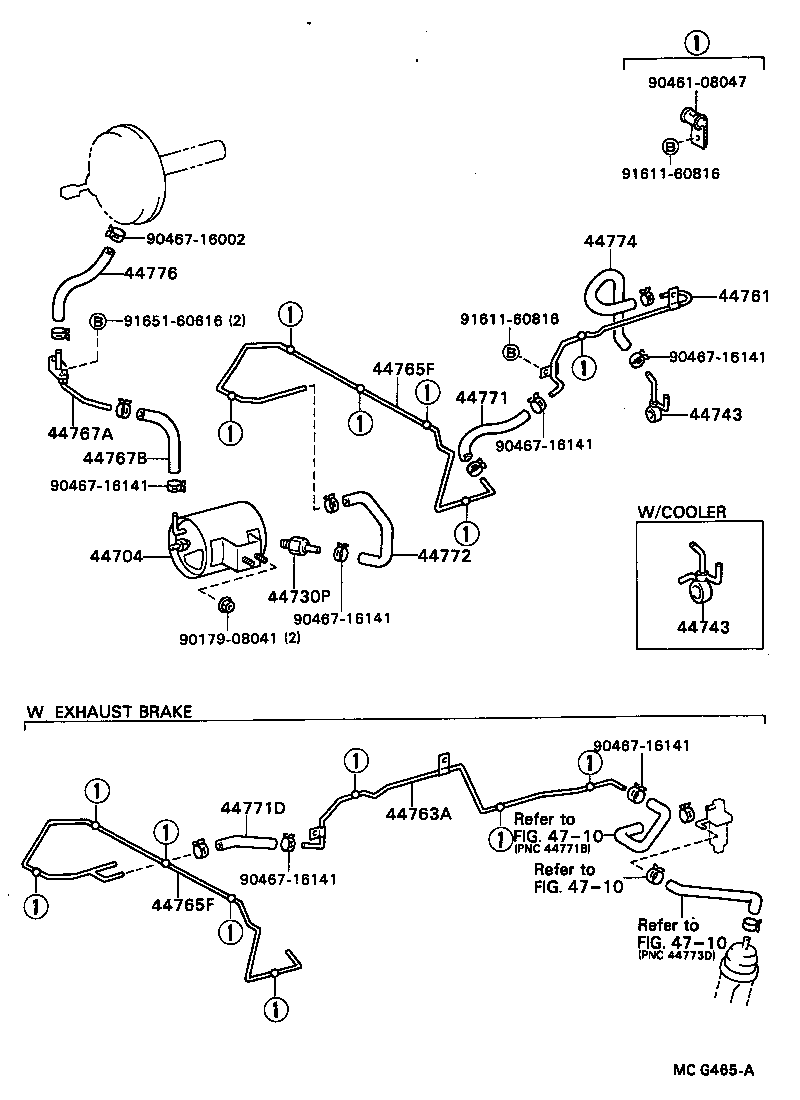

ILLUST NO. 2 OF 2(8205-8808)BB2#,30
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44704 - RESERVOIR SUB-ASSY, VACUUM | ||||
| 44704-36120 |
BB2#,30;RB20..ARL |
1 | ||
| 44704-36121 |
BB2#,32 |
1 | ||
| 44704D - PLUG, W/HEAD TAPER SCREW, NO.1 | ||||
| 90345-51025 |
BB2#,30;RB20..ARL |
1 | ||
| 44730P - VALVE ASSY, VACUUM CHECK, NO.1 | ||||
| 44730-60040 |
BB2#,3#,HB3#,HDB30,HZB30 |
2 | ||
| 44730P - VALVE ASSY, VACUUM CHECK, NO.1 | ||||
| 44730-60040 |
BB2#,3#,HB3#,HDB30,HZB30 |
2 | ||
| 44743 - UNION(FOR VACUUM PUMP) | ||||
| 90405-09049 |
BB2#..WC;BB20..15S |
1 | ||
| 90405-09131 |
BB2#..WC |
1 | ||
| 44743 - UNION(FOR VACUUM PUMP) | ||||
| 90405-09049 |
BB2#..WC;BB20..15S |
1 | ||
| 90405-09131 |
BB2#..WC |
1 | ||
| 44743 - UNION(FOR VACUUM PUMP) | ||||
| 90405-09049 |
BB2#..WC;BB20..15S |
1 | ||
| 90405-09131 |
BB2#..WC |
1 | ||
| 44762G - TUBE, VACUUM CHECK VALVE TO CONNECTOR | ||||
| 44762-36050 |
BB20,21,22 |
1 | ||
| 44762G - TUBE, VACUUM CHECK VALVE TO CONNECTOR | ||||
| 44762-36050 |
BB20,21,22 |
1 | ||
| 44767A - TUBE, VACUUM RESERVOIR TO BRAKE BOOSTER | ||||
| 44767-36020 |
BB2#,HB31..RHD |
1 | ||
| 44767A - TUBE, VACUUM RESERVOIR TO BRAKE BOOSTER | ||||
| 44767-36020 |
BB2#,HB31..RHD |
1 | ||
| 44767B - HOSE(FOR VACUUM RESERVOIR TO BRAKE BOOSTER TUBE) | ||||
| 95445-09200 |
BB2#..RHD |
1 | ||
| 44767B - HOSE(FOR VACUUM RESERVOIR TO BRAKE BOOSTER TUBE) | ||||
| 95445-09200 |
BB2#..RHD |
1 | ||
| 44772 - HOSE, CHECK VALVE TO CONNECTOR TUBE | ||||
| 44772-36080 |
BB2#,32 |
1 | ||
| 44772-36020 |
BB2#,30,FB30,HB30 |
1 | ||
| 44772 - HOSE, CHECK VALVE TO CONNECTOR TUBE | ||||
| 44772-36080 |
BB2#,32 |
1 | ||
| 44772-36020 |
BB2#,30,FB30,HB30 |
1 | ||
| 44774 - HOSE, UNION TO CONNECTOR TUBE | ||||
| 44774-36200 |
BB2#,32 |
1 | ||
| 44774-36040 |
BB2#,30 |
1 | ||
| 44774 - HOSE, UNION TO CONNECTOR TUBE | ||||
| 44774-36040 |
BB2#,30 |
1 | ||
| 44774-36200 |
BB2#,32 |
1 | ||
| Common parts | ||||
| 90179-08041 | ||||
| 90461-08047 | ||||
| 90467-16141 | ||||
| 91611-40816 | ||||
| 91651-60616 | ||||
ILLUST NO. 2 OF 2(8808- )BB2#..RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44704 - RESERVOIR SUB-ASSY, VACUUM | ||||
| 44704-36120 |
BB2#,30;RB20..ARL |
1 | ||
| 44704-36121 |
BB2#,32 |
1 | ||
| 44730P - VALVE ASSY, VACUUM CHECK, NO.1 | ||||
| 44730-60040 |
BB2#,3#,HB3#,HDB30,HZB30 |
2 | ||
| 44743 - UNION(FOR VACUUM PUMP) | ||||
| 90405-09049 |
BB2#..WC;BB20..15S |
1 | ||
| 90405-09131 |
BB2#..WC |
1 | ||
| 44743 - UNION(FOR VACUUM PUMP) | ||||
| 90405-09049 |
BB2#..WC;BB20..15S |
1 | ||
| 90405-09131 |
BB2#..WC |
1 | ||
| 44761 - TUBE, INTAKE MANIFOLD OR VACUUM PUMP TO CONNECTOR | ||||
| 44761-36120 |
BB2#,32,HZB30 |
1 | ||
| 44763A - TUBE, HOSE TO HOSE, NO.1 | ||||
| 44763-36030 |
BB2#,32 W/EXHAUST BRAKE |
1 | ||
| 44765F - TUBE, CONNECTOR TO CHECK VALVE | ||||
| 44765-36160 |
BB2# |
1 | ||
| 44765-36170 |
BB2#,32 W/EXHAUST BRAKE |
1 | ||
| 44765F - TUBE, CONNECTOR TO CHECK VALVE | ||||
| 44765-36160 |
BB2# |
1 | ||
| 44765-36170 |
BB2#,32 W/EXHAUST BRAKE |
1 | ||
| 44767A - TUBE, VACUUM RESERVOIR TO BRAKE BOOSTER | ||||
| 44767-36020 |
BB2#,HB31..RHD |
1 | ||
| 44767B - HOSE(FOR VACUUM RESERVOIR TO BRAKE BOOSTER TUBE) | ||||
| 95445-09200 |
BB2#..RHD |
1 | ||
| 44771 - HOSE, VACUUM TUBE CONNECTOR | ||||
| 44771-36100 |
BB2#,32 |
1 | ||
| 44771D - HOSE, VACUUM TUBE CONNECTOR | ||||
| 44771-36190 |
BB2#,32 W/EXHAUST BRAKE |
1 | ||
| 44772 - HOSE, CHECK VALVE TO CONNECTOR TUBE | ||||
| 44772-36080 |
BB2#,32 |
1 | ||
| 44772-36020 |
BB2#,30,FB30,HB30 |
1 | ||
| 44774 - HOSE, UNION TO CONNECTOR TUBE | ||||
| 44774-36040 |
BB2#,30 |
1 | ||
| 44774-36200 |
BB2#,32 |
1 | ||
| Common parts | ||||
| 90179-08041 | ||||
| 90461-08047 | ||||
| 90467-16002 | ||||
| 90467-16141 | ||||
| 91611-60816 | ||||
| 91651-60616 | ||||
| Linked diagrams | ||||
| 4710 | ||||
