Toyota Coaster BB21 MANIFOLD - JDM Part Detective

BB21L-MDR (1986)

Toyota Coaster

Production Oct 1986 - Jan 1993

Engine 3B

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

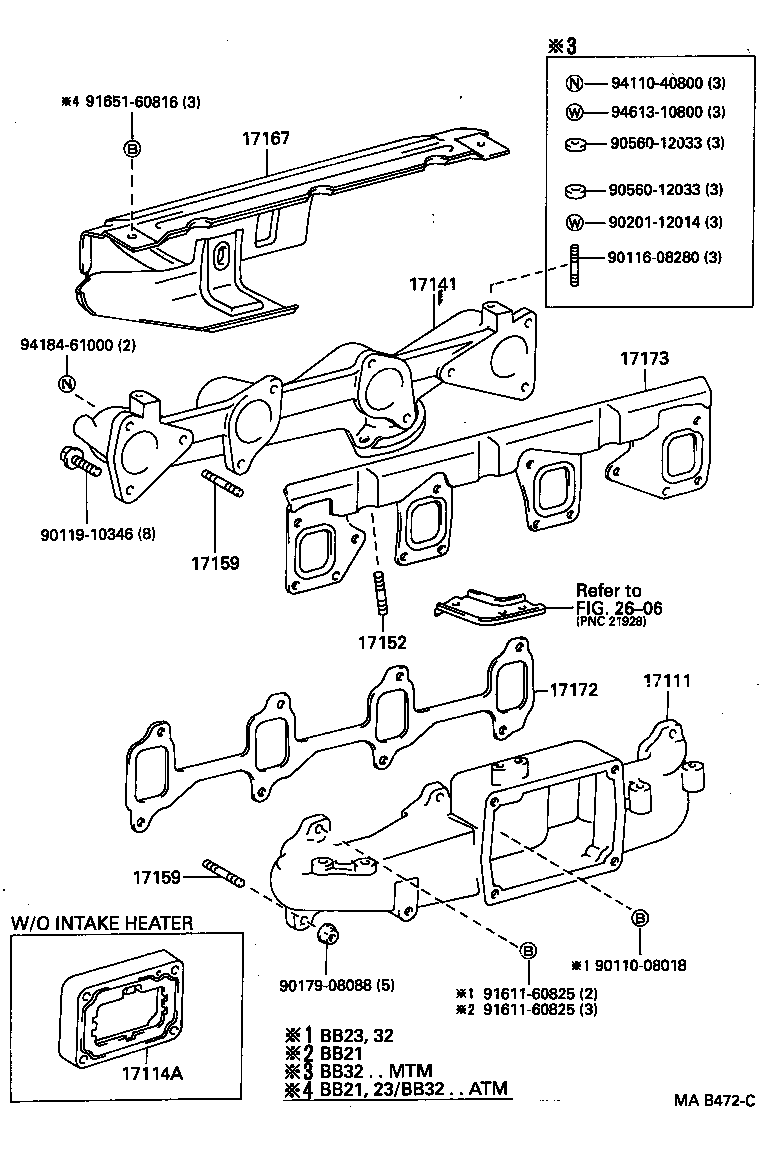

Click highlighted areas on diagram

Part #	Description	Period	Qty
17111 - MANIFOLD, INTAKE
17111-56180	3B..BB21..GEN,ME	08/1988 - 01/1993	1
17141 - MANIFOLD, EXHAUST
17141-56060	14B,3B..BB2#,32	08/1988 - 01/1993	1
17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
90116-10087	13B,14B,3B..BB21,22,3#	05/1987 - 01/1993	3
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-10147	14B,3B..BB2#,32 EXHAUST MANIFOLD	08/1988 - 04/1989	2
90116-08352	14B,3B..BB2#,32 INTAKE MANIFOLD	02/1990 - 01/1993	5
90116-10098	14B,3B..BB2#,32 EXHAUST MANIFOLD	04/1989 - 01/1993	2
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-10147	14B,3B..BB2#,32 EXHAUST MANIFOLD	08/1988 - 04/1989	2
90116-08352	14B,3B..BB2#,32 INTAKE MANIFOLD	02/1990 - 01/1993	5
90116-10098	14B,3B..BB2#,32 EXHAUST MANIFOLD	04/1989 - 01/1993	2
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-56023	13B,3B..BB2#,30	08/1987 - 08/1988	1
17167-56050	14B,3B..BB2#	08/1988 - 12/1992	1
17167-56060	14B,3B..BB2#	12/1992 - 01/1993	1
17172 - GASKET, MANIFOLD TO CYLINDER HEAD
17171-56010	14B,3B..BB2#,32	08/1988 - 01/1993	1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-56040	14B,3B..BB2#,32	08/1988 - 01/1993	1
Common parts
90119-10211
90119-10346
90179-08088
90179-08123
91611-60825
91651-60816
94184-61000

Click highlighted areas on diagram

Part #	Description	Period	Qty
17111 - MANIFOLD, INTAKE
17111-56180	3B..BB21..GEN,ME	08/1988 - 01/1993	1
17141 - MANIFOLD, EXHAUST
17141-56060	14B,3B..BB2#,32	08/1988 - 01/1993	1
17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
90116-10087	13B,14B,3B..BB21,22,3#	05/1987 - 01/1993	3
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-10147	14B,3B..BB2#,32 EXHAUST MANIFOLD	08/1988 - 04/1989	2
90116-08352	14B,3B..BB2#,32 INTAKE MANIFOLD	02/1990 - 01/1993	5
90116-10098	14B,3B..BB2#,32 EXHAUST MANIFOLD	04/1989 - 01/1993	2
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-10147	14B,3B..BB2#,32 EXHAUST MANIFOLD	08/1988 - 04/1989	2
90116-08352	14B,3B..BB2#,32 INTAKE MANIFOLD	02/1990 - 01/1993	5
90116-10098	14B,3B..BB2#,32 EXHAUST MANIFOLD	04/1989 - 01/1993	2
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-56023	13B,3B..BB2#,30	08/1987 - 08/1988	1
17167-56050	14B,3B..BB2#	08/1988 - 12/1992	1
17167-56060	14B,3B..BB2#	12/1992 - 01/1993	1
17172 - GASKET, MANIFOLD TO CYLINDER HEAD
17171-56010	14B,3B..BB2#,32	08/1988 - 01/1993	1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-56040	14B,3B..BB2#,32	08/1988 - 01/1993	1
Common parts
90110-08018
90116-08280
90119-10346
90179-08088
90201-12014
90560-12033
91611-60825
91651-60816
94110-40800
94184-61000
94613-10800
Linked diagrams
2606
