BB20R-MGZERQ (1983)

Toyota Coaster

Production Mar 1983 - Oct 1986
Engine 3B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

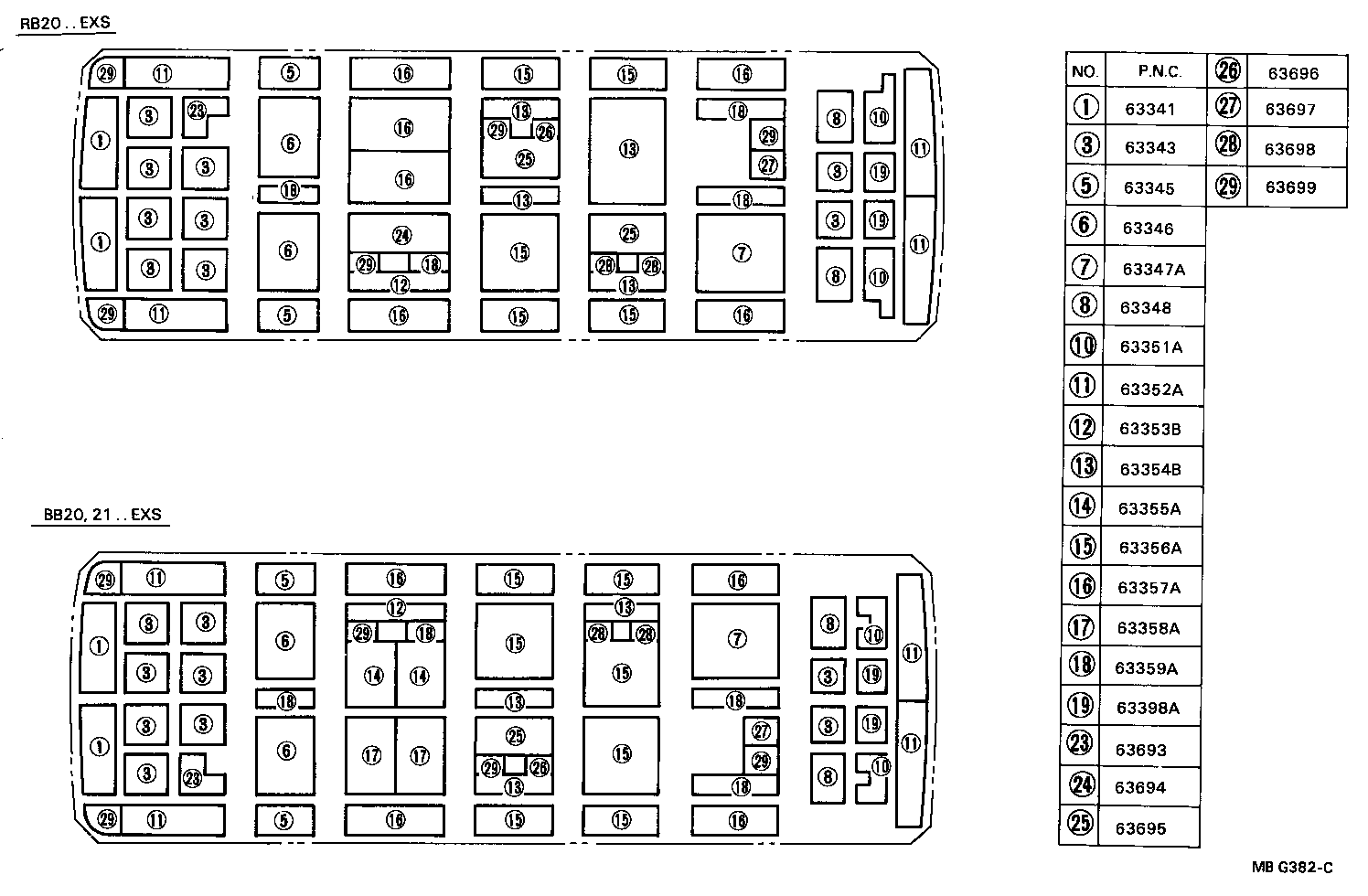

ILLUST NO. 3 OF 4(8306- )EXS

Click highlighted areas on diagram

diagram 63341 63343 63345 63346 63347A 63348 63351A 63352A 63353B 63354B 63355A 63356A 63357A 63358A 63359A 63398A 63693 63694 63695 63696 63697 63698 63699
Part # Description Qty Price
63341 - PAD, ROOF SILENCER, NO.1
63341-90B01

BB2#,FB30,HB30,RB20..HRF

 2
63343 - PAD, ROOF SILENCER, NO.3
63343-90B01

BB20,21,HB30,HZB30,RB20..EX,EXS

 10
63345 - PAD, ROOF SILENCER, NO.5
63345-90B03

BB20,RB20..(DLX,EXS)..HRF

W/4 SPEAKER

 2
63346 - PAD, ROOF SILENCER, NO.6
63346-90B01

BB20,RB20

 2
63347A - PAD, ROOF SILENCER, NO.7
63347-90B01

BB20,RB20

 4
63348 - PAD, ROOF SILENCER, NO.8
63348-90B01

BB20,RB20..HRF

 2
63351A - PAD, ROOF SILENCER, NO.10
63351-90B03

BB2#,FB30,HB30,HZB30,RB20..HRF..WC

 2
63352A - PAD, ROOF SILENCER, NO.11
63352-90B01

BB20,RB20..HRF

 2
63353B - PAD, ROOF SILENCER, NO.12
63353-90B03

BB20,RB20..HRF

800X700

 1
63354B - PAD, ROOF SILENCER, NO.13
63354-90B02

BB20,RB20..HRF

680X700

 1
63357A - PAD, ROOF SILENCER, NO.16
63357-90B00

BB20,RB20

 2
63358A - PAD, ROOF SILENCER, NO.17
63358-90B01

BB20

 2
63359A - PAD, ROOF SILENCER, NO.18
63359-90B01

BB20,RB20..EXS

 4
63398A - PAD, ROOF SILENCER, NO.19
63398-90B01

BB20,RB20..HRF

 2
63696 - PAD, ROOF SILENCER, NO.26
63696-90B00

BB20,RB20..EXS

 1
63697 - PAD, ROOF SILENCER, NO.27
63697-90B01

BB20,21,HB30,HZB30,RB20..EX,EXS

 1
63698 - PAD, ROOF SILENCER, NO.28
63698-90B00

BB20,21,RB20..EXS

 2
63699 - PAD, ROOF SILENCER, NO.29
63699-90B00

BB20,21,HB30,RB20..EX,EXS

 3
