BB20R-MDZER (1982)

Toyota Coaster

Production May 1982 - Oct 1986
Engine 3B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

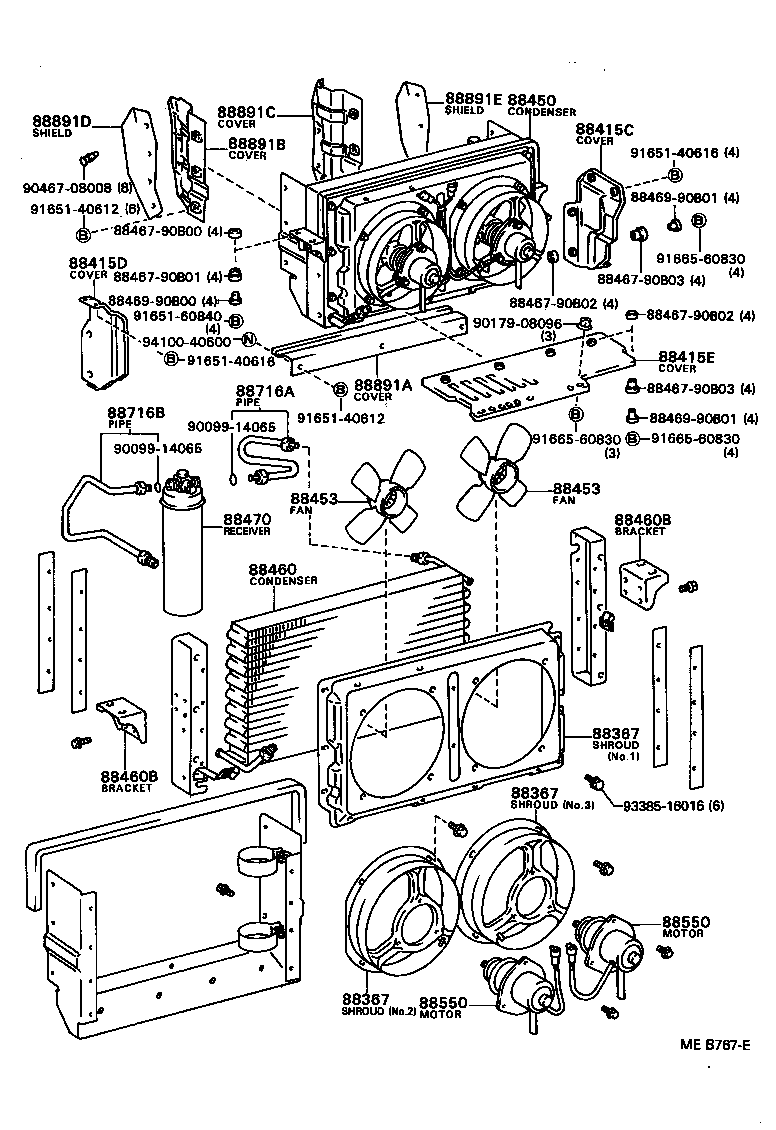

ILLUST NO. 1 OF 2(8205- )

Click highlighted areas on diagram

diagram 88367 88367 88367 88415C 88415D 88415E 88450 88453 88453 88460 88460B 88460B 8846790B00 8846790B01 8846790B02 8846790B02 8846790B03 8846790B03 8846990B00 8846990B01 8846990B01 88470 88550 88550 88716A 88716B 88891A 88891B 88891C 88891D 88891E 9009914065 9009914065 9017908096 9046708008 9165140612 9165140612 9165140616 9165140616 9165160840 9166560830 9166560830 9166560830 9338516016 9410040600
Part # Description Qty Price
88367 - SHROUD, COOLER BLOWER FAN
88454-90B03

BB2#,FB30,HB30,HZB30,RB20..WC

NO.3

 1
88454-90B00

BB2#,FB30,HB30,HZB30,RB20..WC

NO.1

 1
88454-90B01

BB2#,FB30,HB30,HZB30,RB20..WC

NO.2

 1
88367 - SHROUD, COOLER BLOWER FAN
88454-90B03

BB2#,FB30,HB30,HZB30,RB20..WC

NO.3

 1
88454-90B00

BB2#,FB30,HB30,HZB30,RB20..WC

NO.1

 1
88454-90B01

BB2#,FB30,HB30,HZB30,RB20..WC

NO.2

 1
88367 - SHROUD, COOLER BLOWER FAN
88454-90B03

BB2#,FB30,HB30,HZB30,RB20..WC

NO.3

 1
88454-90B00

BB2#,FB30,HB30,HZB30,RB20..WC

NO.1

 1
88454-90B01

BB2#,FB30,HB30,HZB30,RB20..WC

NO.2

 1
88415C - COVER, DUST, NO.1
88415-90B00

BB2#,FB30,HB30,HZB30,RB20..WC

 1
88415D - COVER, DUST, NO.2
88415-90B01

BB2#,FB30,HB30,HZB30,RB20..WC

 1
88415E - COVER, DUST, NO.3
88415-90B02

BB20..15S;BB2#,FB30,HB30,RB20..WC

 1
88450 - CONDENSER ASSY, W/RECEIVER
88450-90B03

BB20,21,HB30..(DLX,EX,EXS)..WC..(ARL,GEN,ME)

OVER HEAT & WATER PROOF SPEC

 1
88450-90B02

BB20..15S;BB2#,HB30..(DLX,STD)..WC..(GEN,ME)

STD SPEC

 1
88450-90B05

BB20,21,HB30..(DLX,EX)..WC..(GEN,IRQ,ME)

OVER HEAT PROOF SPEC

 1
88453 - FAN, COOLING (FOR CONDENSER)
16361-13030

BB2#,FB30,HB30,HZB30,RB20..WC

 2
88453 - FAN, COOLING (FOR CONDENSER)
16361-13030

BB2#,FB30,HB30,HZB30,RB20..WC

 2
88460 - CONDENSER ASSY, COOLER
88340-90B00

BB2#,FB30,HB30,RB20..WC

 1
88460B - BRACKET, COOLER CONDENSER, NO.1
88463-90B00

BB2#,FB30,HB30,HZB30,RB20..WC

 2
88460B - BRACKET, COOLER CONDENSER, NO.1
88463-90B00

BB2#,FB30,HB30,HZB30,RB20..WC

 2
88470 - RECEIVER & DRYER ASSY, COOLER
88471-90B00

BB2#,FB30,HB30,HZB30,RB20..WC

 1
88550 - MOTOR ASSY, BLOWER (FOR CONDENSER)
88550-90B06

BB2#,HB30..(DLX,STD)..WC..(GEN,ME)

STD SPEC

 2
88550-90B11

BB20,21,HB30,HZB30..(DLX,EX)..WC..(GEN,IRQ,ME)

OVER HEAT PROOF SPEC

 1
88550-90B07

BB20,21,HB30,HZB30..(DLX,EX,EXS)..WC..(ARL,GEN,ME)

OVER HEAT & WATER PROOF SPEC

 2
88550 - MOTOR ASSY, BLOWER (FOR CONDENSER)
88550-90B06

BB2#,HB30..(DLX,STD)..WC..(GEN,ME)

STD SPEC

 2
88550-90B11

BB20,21,HB30,HZB30..(DLX,EX)..WC..(GEN,IRQ,ME)

OVER HEAT PROOF SPEC

 1
88550-90B07

BB20,21,HB30,HZB30..(DLX,EX,EXS)..WC..(ARL,GEN,ME)

OVER HEAT & WATER PROOF SPEC

 2
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-90B01

BB2#,FB30,HB30,HZB30,RB20..WC

 1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-90B02

BB2#,FB30,HB30,HZB30,RB20..WC

 1
88891A - PACKING A (FOR COOLER)
59401-90B00

BB2#,FB30,HB30,HZB30,RB20..WC

 1
88891B - PACKING B (FOR COOLER)
59413-90B01

BB20,21,23,HB30,HZB30,RB20..RHD..WC

 1
88891C - PACKING C (FOR COOLER)
59414-90B01

BB2#,FB30,HB30,HZB30,RB20..WC

 1
88891D - PACKING D (FOR COOLER)
59417-90B01

BB2#,HB30,HZB30,RB20..RHD..WC

 1
88891E - PACKING E (FOR COOLER)
59417-90B01

BB2#,FB30,HB30,HZB30,RB20..WC

 1
Common parts
88467-90B00
88467-90B01
88467-90B02
88467-90B03
88469-90B00
88469-90B01
90099-14065
90179-08096
90467-08008
91651-40612
91651-40616
91651-60840
91665-60830
93385-16016
94100-40600

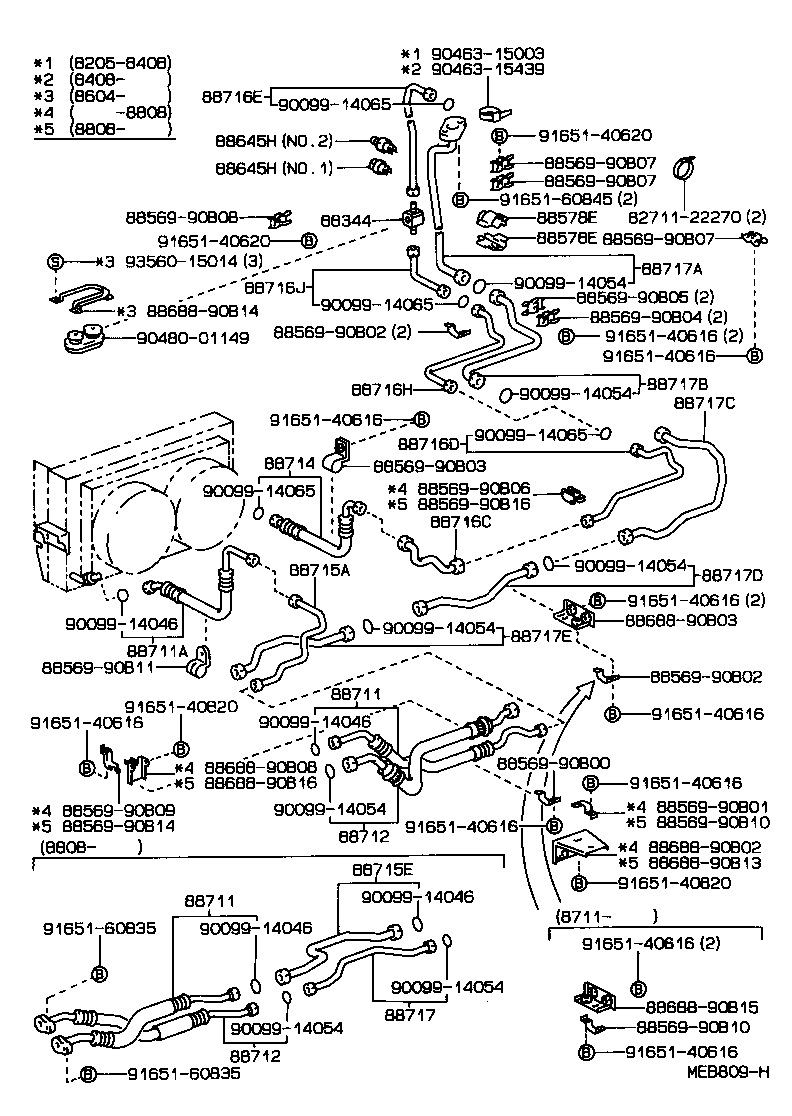

ILLUST NO. 2 OF 2(8205- )BB2#

Click highlighted areas on diagram

diagram 8271122270 88344 8856990B00 8856990B01 8856990B02 8856990B02 8856990B03 8856990B04 8856990B05 8856990B06 8856990B07 8856990B07 8856990B07 8856990B08 8856990B09 8856990B10 8856990B10 8856990B11 8856990B14 8856990B16 88578E 88578E 88645H 88645H 8868890B02 8868890B03 8868890B08 8868890B13 8868890B14 8868890B15 8868890B16 88711 88711 88711A 88712 88712 88714 88715A 88715E 88716C 88716D 88716E 88716H 88716J 88717 88717A 88717B 88717C 88717D 88717E 9009914046 9009914046 9009914046 9009914046 9009914054 9009914054 9009914054 9009914054 9009914054 9009914054 9009914054 9009914065 9009914065 9009914065 9009914065 9046315003 9046315439 9048001149 9165140616 9165140616 9165140616 9165140616 9165140616 9165140616 9165140616 9165140616 9165140616 9165140616 9165140620 9165140620 9165140820 9165140820 9165160835 9165160835 9165160845 9356015014
Part # Description Qty Price
88344 - GLASS SUB-ASSY, SIGHT
88344-90B00

BB2#,FB30,HB30,HZB30,RB20..WC

 1
88578E - PACKING, COOLER PIPE, NO.2
88578-90B01

BB2#,FB30,HB30,HZB30,RB20..WC

 2
88578E - PACKING, COOLER PIPE, NO.2
88578-90B01

BB2#,FB30,HB30,HZB30,RB20..WC

 2
88645H - SWITCH, PRESSURE NO.1
88645-95A00

BB20,RB20..WC

NO.1

 1
88645-30250

BB2#,FB30,HB30,HZB30,RB20..WC

NO.2

 1
88645H - SWITCH, PRESSURE NO.1
88645-95A00

BB20,RB20..WC

NO.1

 1
88645-30250

BB2#,FB30,HB30,HZB30,RB20..WC

NO.2

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-90B01

BB20..WC

 1
88711-90B06

BB2#..WC;BB20..15S

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-90B01

BB20..WC

 1
88711-90B06

BB2#..WC;BB20..15S

 1
88711A - HOSE, COOLER REFRIGERANT DISCHARGE, NO.2
88711-90B03

BB2#,FB30,HB30,HZB30,RB20..WC

 1
88711-90B03

HDB30..EUR;BB2#,FB30,HB30,HZB30,RB20

HONG KONG SPEC

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-90B01

BB20..WC

 1
88712-90B03

BB20..WC

 1
88712-90B06

BB2#..WC;BB20..15S

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-90B01

BB20..WC

 1
88712-90B03

BB20..WC

 1
88712-90B06

BB2#..WC;BB20..15S

 1
88714 - HOSE, COOLER REFRIGERANT LIQUID, NO.1
88721-90B00

BB2#,FB30,HB30,HZB30,RB20..WC

 1
88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A
88715-90B00

BB20..15S;BB2#,RB20..WC

 1
88716C - PIPE, COOLER REFRIGERANT LIQUID, C
88716-90B03

BB2#,FB30,HB30,HZB30,RB20..WC

 1
88716D - PIPE, COOLER REFRIGERANT LIQUID, D
88716-90B04

BB2#,FB30,HB30,RB20..WC

 1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-90B09

BB2#,FB30,HB30,HZB30,RB20..HRF..WC

 1
88716H - PIPE, COOLER REFRIGERANT LIQUID, H
88716-90B05

BB20..15S;BB2#,FB30,HB30,RB20..WC

 1
88716J - PIPE, COOLER REFRIGERANT LIQUID, J
88716-90B08

BB2#,FB30,HB30,HZB30,RB20..WC

 1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-90B09

BB2#,FB30,HB30,HZB30,RB20..HRF..WC

 1
88717B - PIPE, COOLER REFRIGERANT SUCTION, B
88717-90B04

BB2#,FB30,HB30,RB20..WC

 1
88717C - PIPE, COOLER REFRIGERANT SUCTION, C
88717-90B03

BB2#,FB30,HB30,RB20..WC

 1
88717D - PIPE, COOLER REFRIGERANT SUCTION, D
88717-90B01

BB20,RB20..WC

 1
88717-90B11

BB20..15S;BB2#,RB20..WC

 1
88717E - PIPE, COOLER REFRIGERANT SUCTION, E
88717-90B02

BB20,RB20..WC

 1
Common parts
82711-22270
88569-90B00
88569-90B01
88569-90B02
88569-90B03
88569-90B04
88569-90B05
88569-90B06
88569-90B07
88569-90B08
88569-90B09
88569-90B10
88569-90B11
88569-90B14
88569-90B16
88688-90B02
88688-90B03
88688-90B08
88688-90B13
88688-90B14
88688-90B15
88688-90B16
90099-14046
90099-14054
90099-14065
90463-15003
90463-15439
90480-01149
91651-40616
91651-40620
91651-40820
91651-60835
91651-60845
93560-15014
