BB20R-MDZER (1982)
Toyota Coaster

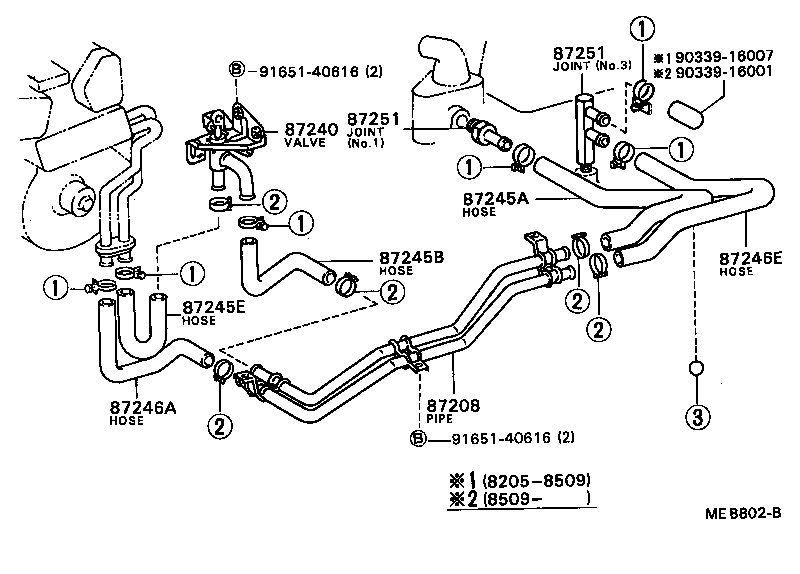

ILLUST NO. 1 OF 3(8205- )BB2# ; (8306- )BB30..LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87208 - PIPE SUB-ASSY, HEATER WATER | ||||
| 87208-90B05 |
BB2#,3# |
1 | ||
| 87240 - VALVE ASSY, HEATER WATER | ||||
| 87240-90B00 |
BB2#,30,HB3#,HDB30,HZB30,RB20..RHD |
1 | ||
| 87245A - HOSE, HEATER WATER, INLET A | ||||
| 87245-90B11 |
BB2#,32 |
1 | ||
| 87245B - HOSE, HEATER WATER, INLET B | ||||
| 87245-90B03 |
BB2#,32 |
1 | ||
| 87245E - HOSE, HEATER WATER, INLET E | ||||
| 87245-90B00 |
BB2#,3#,FB30,HB3#,HDB30,HZB30,RB20 |
1 | ||
| 87246A - HOSE, HEATER WATER, OUTLET A | ||||
| 87245-90B04 |
BB20,21,23,3#,RB20 |
1 | ||
| 87246E - HOSE, HEATER WATER, OUTLET E | ||||
| 87245-90B25 |
BB2#,3# |
1 | ||
| 87251 - JOINT OR UNION, WATER HOSE THROUGH | ||||
| 87251-90B00 |
BB2# NO.3 |
1 | ||
| 87251-30200 |
BB2# NO.1 |
1 | ||
| 87251-60010 |
BB2# NO.2 |
1 | ||
| 87251 - JOINT OR UNION, WATER HOSE THROUGH | ||||
| 87251-90B00 |
BB2# NO.3 |
1 | ||
| 87251-30200 |
BB2# NO.1 |
1 | ||
| 87251-60010 |
BB2# NO.2 |
1 | ||
| Common parts | ||||
| 90339-16001 | ||||
| 90339-16007 | ||||
| 91651-40616 | ||||

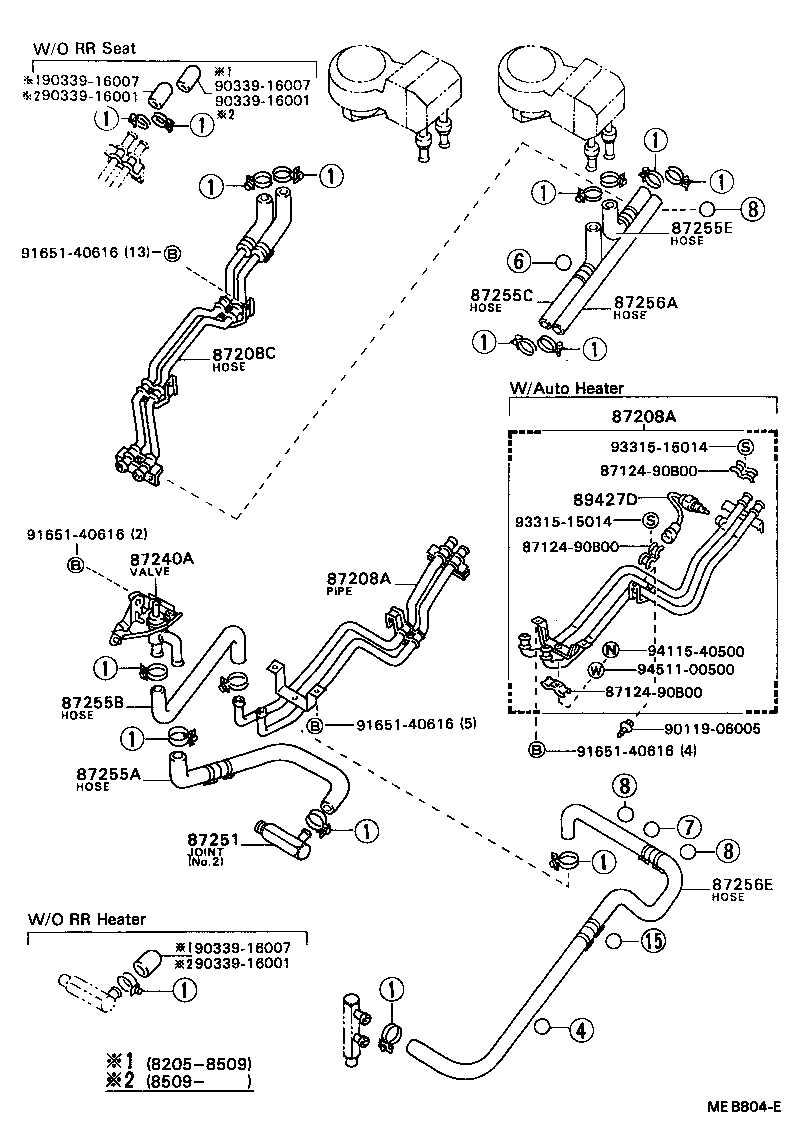

ILLUST NO. 2 OF 3(8205- )BB20,21..RHD..16S,20S,22S,26S
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87208A - PIPE SUB-ASSY, HEATER WATER, A | ||||
| 87208-90B03 |
BB20..RHD..(16S,20S,22S,26S);BB21,30,HB3#,HDB30,HZB30,RB20..RHD HB31,HDB30,HZB30:NO.1 |
1 | ||
| 87208A - PIPE SUB-ASSY, HEATER WATER, A | ||||
| 87208-90B03 |
BB20..RHD..(16S,20S,22S,26S);BB21,30,HB3#,HDB30,HZB30,RB20..RHD HB31,HDB30,HZB30:NO.1 |
1 | ||
| 87208C - PIPE SUB-ASSY, HEATER WATER, C | ||||
| 87209-90B14 |
BB20,21,RB20..RHD..(16S,22S) |
1 | ||
| 87240A - VALVE ASSY, REAR HEATER WATER | ||||
| 87240-90B01 |
BB21,30,HB30,RB20..RHD;BB20..RHD..(16S,20S,22S,26S) |
1 | ||
| 87251 - JOINT OR UNION, WATER HOSE THROUGH | ||||
| 87251-90B00 |
BB2# NO.3 |
1 | ||
| 87251-30200 |
BB2# NO.1 |
1 | ||
| 87251-60010 |
BB2# NO.2 |
1 | ||
| 87255A - HOSE, REAR HEATER WATER INLET, A(FROM ENGINE) | ||||
| 87209-90B05 |
BB21..RHD;BB20..RHD..(16S,20S,22S,26S) |
1 | ||
| 87255B - HOSE, REAR HEATER WATER INLET, B | ||||
| 87245-90B09 |
BB21,30,RB20..RHD;BB20..RHD..(16S,20S,22S,26S) |
1 | ||
| 87255C - HOSE, REAR HEATER WATER INLET, C | ||||
| 87209-90B17 |
BB20,21,RB20..16S,17S,22S |
1 | ||
| 87255E - HOSE, REAR HEATER WATER INLET, E(TO HEATER UNIT) | ||||
| 87245-90B16 |
BB20,21,RB20..RHD..(16S,22S) |
1 | ||
| 87256A - HOSE, REAR HEATER WATER OUTLET, A (FROM HEATER UNIT) | ||||
| 99552-31000 |
BB20,RB20 *H,L=730 |
1 | ||
| 87256E - HOSE, REAR HEATER WATER OUTLET, E (TO ENGINE) | ||||
| 87209-90B21 |
BB21;BB20..16S,20S,22S,26S |
1 | ||
| Common parts | ||||
| 87124-90B00 | ||||
| 90119-06005 | ||||
| 90339-16001 | ||||
| 90339-16007 | ||||
| 91651-40616 | ||||
| 93315-15014 | ||||
| 94115-40500 | ||||
| 94511-00500 | ||||
ILLUST NO. 3 OF 3(8205- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-22270 | ||||
| 87124-90B00 | ||||
| 87124-90B01 | ||||
| 87124-90B02 | ||||
| 87124-90B03 | ||||
| 87124-90B05 | ||||
| 87124-90B09 | ||||
| 90460-24039 | ||||
| 90461-08157 | ||||
| 90461-08347 | ||||
| 90461-08630 | ||||
| 90461-10117 | ||||
| 90461-10262 | ||||
| 90461-10263 | ||||
| 90464-00413 | ||||
| 91651-40616 | ||||
| 96112-10250 | ||||
| 96112-10360 | ||||
ILLUST NO. 3 OF 3(8205- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 87124-90B00 | ||||
| 87124-90B06 | ||||
| 87124-90B07 | ||||
| 88718-95412 | ||||
| 90460-27001 | ||||
| 90464-00427 | ||||
| 91651-40812 | ||||
| 93315-90B00 | ||||
| 94115-40500 | ||||
| 94511-00500 | ||||
