BB20R-MDZER (1982)

Toyota Coaster

Production May 1982 - Oct 1986
Engine 3B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(8205- )

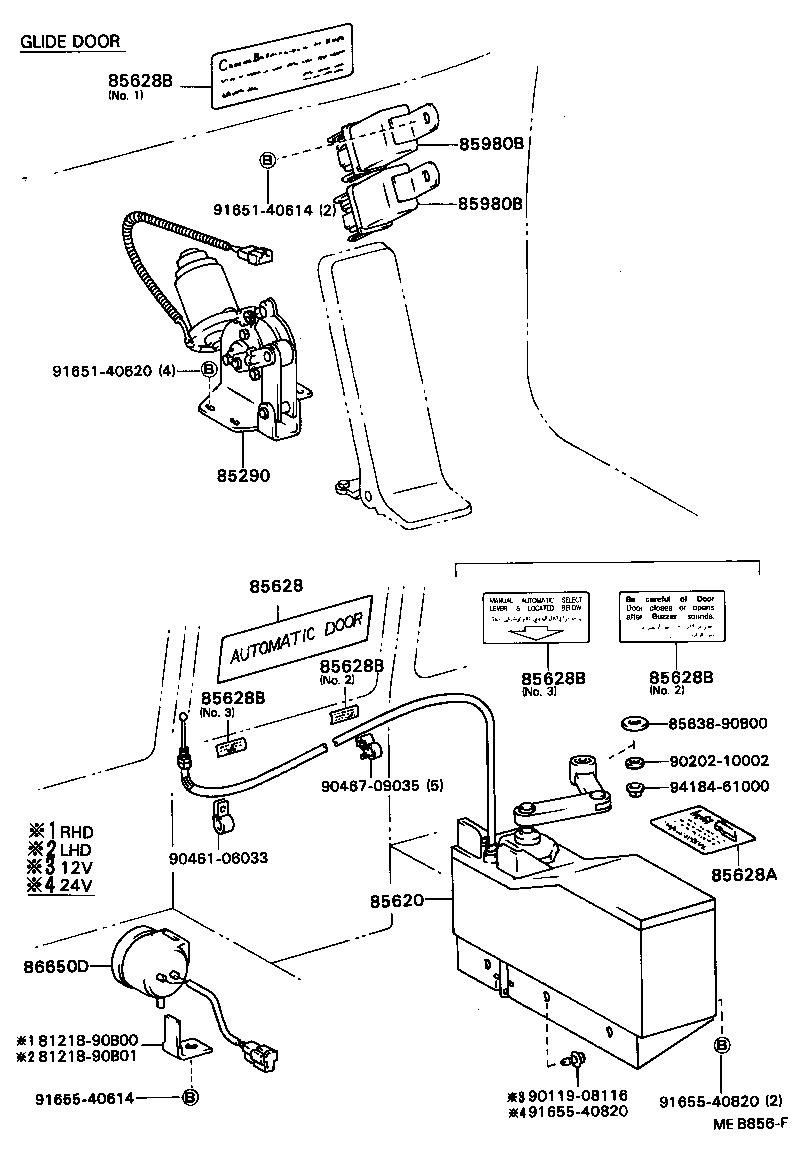

Click highlighted areas on diagram

diagram 8121890B00 8121890B01 85290 85620 85628 85628A 85628B 85628B 85628B 85628B 85628B 8563890B00 85980B 85980B 86650D 9011908116 9020210002 9046106033 9046709035 9165140614 9165140620 9165540614 9165540820 9165540820 9418461000
Part # Description Qty Price
85290 - ACTUATOR ASSY, ACCEL INTOR LOCK
85290-90B00

BB20,21,HB30..(DLX,EX,EXS)..(ARL,GEN)

24V

 1
85620 - MOTOR ASSY, AUTOMATIC DOOR REGULATOR
85620-90B02

BB20..RHD..DLX..GEN

24V

 1
85620-90B08

BB20..20S..WC;BB20..RHD..(16S,22S,26S)

24V,GLIDE DOOR

 1
85628 - LABEL, AUTOMATIC DOOR, NO.1
85628-90B03

BB20,RB20..(DLX,EXS)..GEN

 1
85628-90B02

BB20,RB20..ARL,GEN

GLIDE DOOR

 1
85628A - LABEL, AUTOMATIC DOOR, NO.2
85628-90B07

BB20,RB20..(DLX,EXS)..GEN

 1
85628-90B07

BB20,RB20..GEN

 1
85628-90B15

BB20,RB20..ARL,GEN

GLIDE DOOR

 1
85628B - LABEL, AUTOMATIC DOOR, NO.3
85628-90B13

BB20,RB20..ARL,GEN

NO.3

 1
85628-90B09

BB20,RB20..ARL,GEN

NO.2

 1
85628-90B11

BB20,RB20..ARL,GEN

NO.1

 1
85628B - LABEL, AUTOMATIC DOOR, NO.3
85628-90B13

BB20,RB20..ARL,GEN

NO.3

 1
85628-90B09

BB20,RB20..ARL,GEN

NO.2

 1
85628-90B11

BB20,RB20..ARL,GEN

NO.1

 1
85628B - LABEL, AUTOMATIC DOOR, NO.3
85628-90B13

BB20,RB20..ARL,GEN

NO.3

 1
85628-90B09

BB20,RB20..ARL,GEN

NO.2

 1
85628-90B11

BB20,RB20..ARL,GEN

NO.1

 1
85628B - LABEL, AUTOMATIC DOOR, NO.3
85628-90B13

BB20,RB20..ARL,GEN

NO.3

 1
85628-90B09

BB20,RB20..ARL,GEN

NO.2

 1
85628-90B11

BB20,RB20..ARL,GEN

NO.1

 1
85628B - LABEL, AUTOMATIC DOOR, NO.3
85628-90B13

BB20,RB20..ARL,GEN

NO.3

 1
85628-90B09

BB20,RB20..ARL,GEN

NO.2

 1
85628-90B11

BB20,RB20..ARL,GEN

NO.1

 1
85980B - RELAY ASSY, DOOR CONTROL (FOR AUTOMATIC DOOR)
85940-26010

BB20,21,HB30..(DLX,EX,EXS)..(ARL,GEN)

24V

 2
85980B - RELAY ASSY, DOOR CONTROL (FOR AUTOMATIC DOOR)
85940-26010

BB20,21,HB30..(DLX,EX,EXS)..(ARL,GEN)

24V

 2
86650D - BUZZER ASSY
86650-90B01

BB20..20S..WC;BB20..16S,22S,26S

24V

 1
Common parts
81218-90B00
81218-90B01
85638-90B00
90119-08116
90202-10002
90461-06033
90467-09035
91651-40614
91651-40620
91655-40614
91655-40820
94184-61000

ILLUST NO. 1 OF 2(8205- )

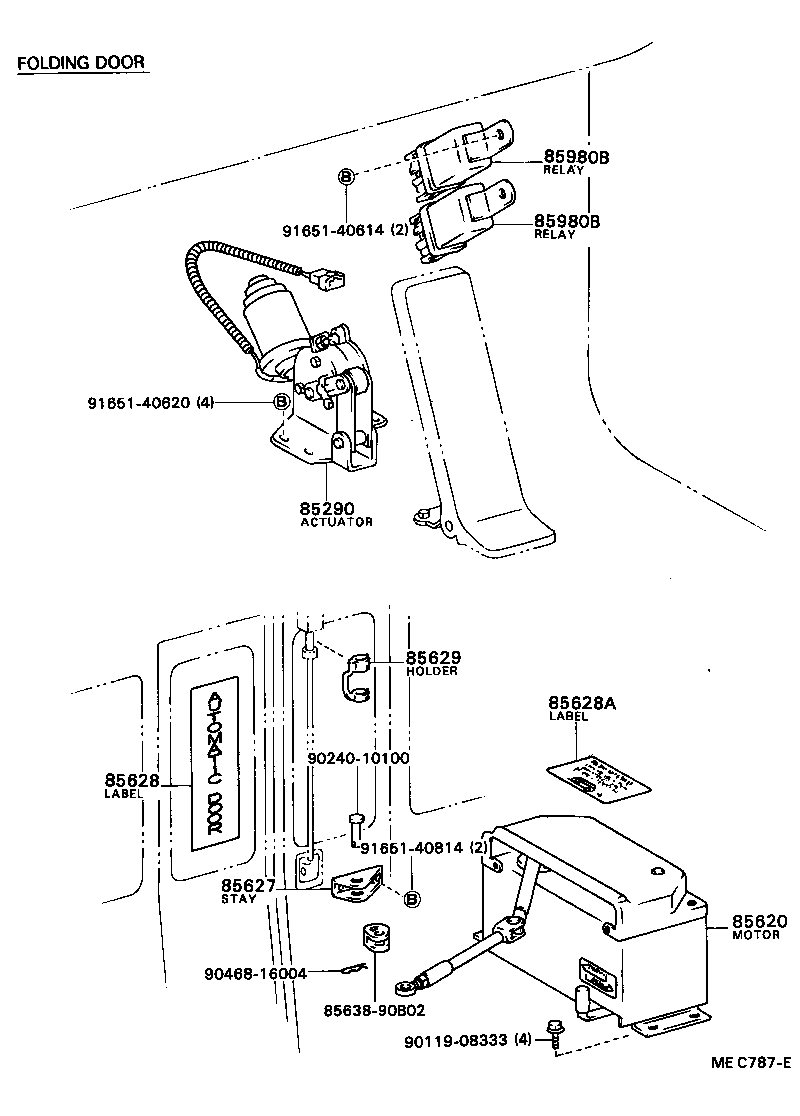

Click highlighted areas on diagram

diagram 85290 85620 85627 85628 85628A 85629 8563890B02 85980B 85980B 9011908333 9024010100 9046816004 9165140614 9165140620 9165140814
Part # Description Qty Price
85290 - ACTUATOR ASSY, ACCEL INTOR LOCK
85290-90B00

BB20,21,HB30..(DLX,EX,EXS)..(ARL,GEN)

24V

 1
85620 - MOTOR ASSY, AUTOMATIC DOOR REGULATOR
85620-90B02

BB20..RHD..DLX..GEN

24V

 1
85620-90B08

BB20..20S..WC;BB20..RHD..(16S,22S,26S)

24V,GLIDE DOOR

 1
85627 - STAY, AUTOMATIC DOOR REGULATOR
85627-90B00

BB20,RB20..(DLX,EXS)..GEN

 1
85628 - LABEL, AUTOMATIC DOOR, NO.1
85628-90B03

BB20,RB20..(DLX,EXS)..GEN

 1
85628-90B02

BB20,RB20..ARL,GEN

GLIDE DOOR

 1
85628A - LABEL, AUTOMATIC DOOR, NO.2
85628-90B07

BB20,RB20..(DLX,EXS)..GEN

 1
85628-90B07

BB20,RB20..GEN

 1
85628-90B15

BB20,RB20..ARL,GEN

GLIDE DOOR

 1
85629 - HOLDER, AUTOMATIC DOOR
85629-90B01

BB20,RB20..(DLX,EXS)..GEN

 1
85980B - RELAY ASSY, DOOR CONTROL (FOR AUTOMATIC DOOR)
85940-26010

BB20,21,HB30..(DLX,EX,EXS)..(ARL,GEN)

24V

 2
85980B - RELAY ASSY, DOOR CONTROL (FOR AUTOMATIC DOOR)
85940-26010

BB20,21,HB30..(DLX,EX,EXS)..(ARL,GEN)

24V

 2
Common parts
85638-90B02
90119-08333
90240-10100
90468-16004
91651-40614
91651-40620
91651-40814

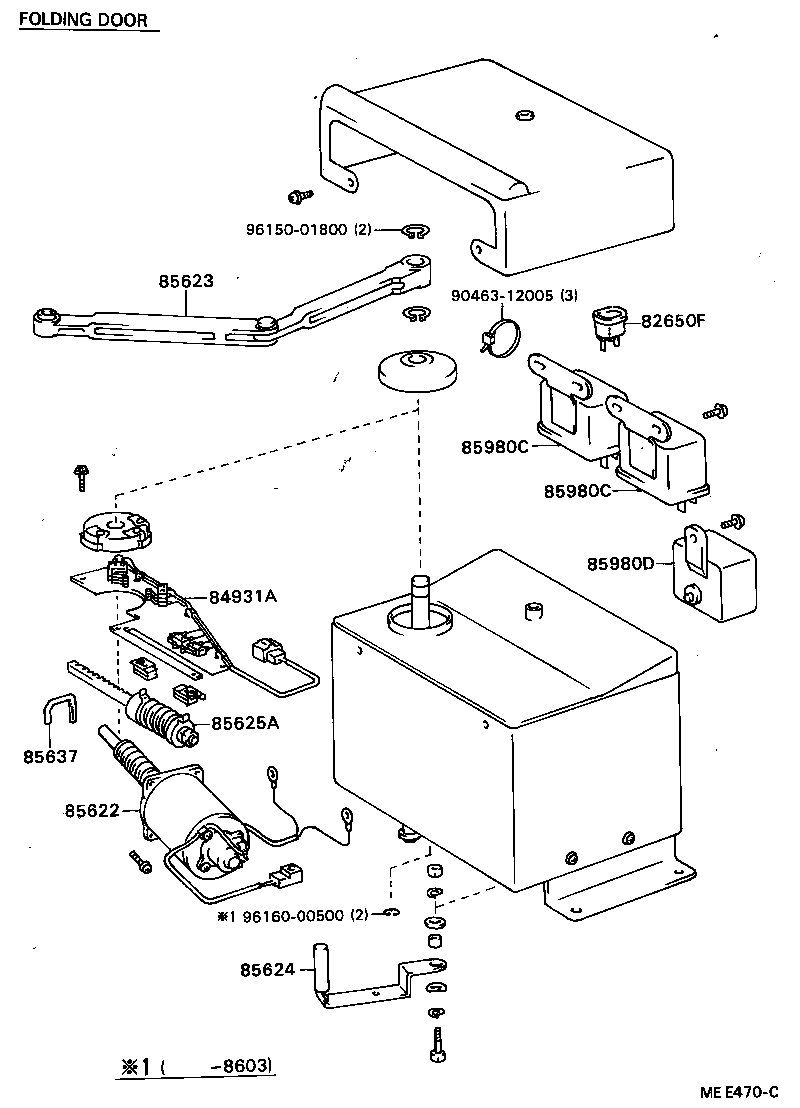

ILLUST NO. 2 OF 2(8311- )

Click highlighted areas on diagram

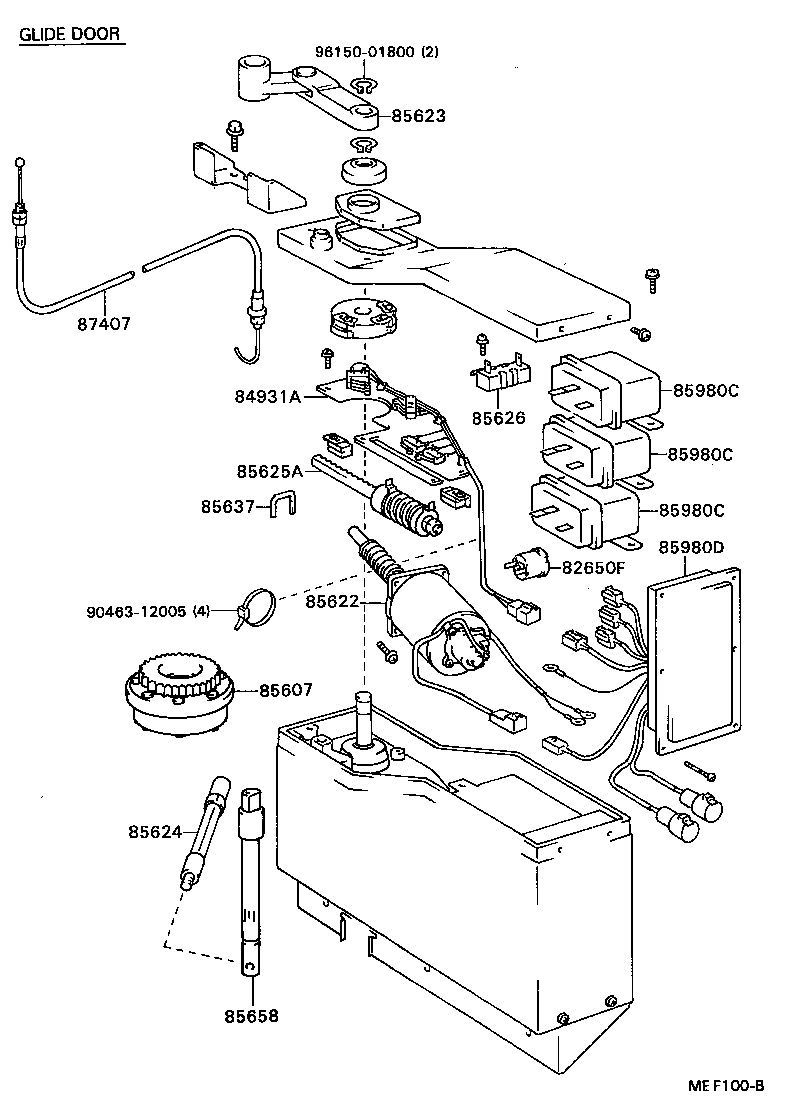

diagram 82650F 84931A 85622 85623 85624 85625A 85637 85980C 85980C 85980D 9046312005 9615001800 9616000500
Part # Description Qty Price
82650F - BREAKER ASSY, WIRING CIRCUIT
82650-35010

BB20..GEN

20A,24V,FOLDING DOOR

 1
82650-90500

BB20..20S..WC;BB20..(16S,22S,26S)..(ARL,GEN)

10A,24V,GLIDE DOOR

 1
84931A - SWITCH, AUTOMATIC DOOR CONTROL
85621-90B00

BB20,RB20..ARL,GEN

GLIDE DOOR

 1
85622 - MOTOR & GEAR, AUTOMATIC DOOR REGULATOR
85622-90B00

BB20..20S..WC;BB20..(16S,22S,26S)..(ARL,GEN)

24V,GLIDE DOOR

 1
85622-90B02

BB20..GEN

24V,FOLDING DOOR

 1
85623 - LINK, AUTOMATIC DOOR REGULATOR
85623-90B00

BB20,RB20..ARL,GEN

GLIDE DOOR

 1
85624 - LEVER, AUTOMATIC DOOR REGULATOR, NO.1
85624-90B00

BB20,RB20..ARL,GEN

GLIDE DOOR

 1
85625A - RACK, AUTOMATIC DOOR
85625-90B00

BB20,RB20..ARL,GEN

 1
85637 - REMOVER, AUTOMATIC DOOR
85637-90B00

BB20,RB20..ARL,GEN

 1
85980C - RELAY ASSY, DOOR CONTROL, NO.2 (FOR AUTOMATIC DOOR)
88630-90B01

BB20..GEN

24V,FOLDING DOOR

 2
85915-90B02

BB20..20S..WC;BB20..16S,22S,26S

24V,GLIDE DOOR

 3
88630-90B01

BB20..DLX..GEN

24V

 2
85980C - RELAY ASSY, DOOR CONTROL, NO.2 (FOR AUTOMATIC DOOR)
88630-90B01

BB20..GEN

24V,FOLDING DOOR

 2
85915-90B02

BB20..20S..WC;BB20..16S,22S,26S

24V,GLIDE DOOR

 3
88630-90B01

BB20..DLX..GEN

24V

 2
85980D - RELAY ASSY, DOOR CONTROL, NO.3 (FOR AUTOMATIC DOOR)
85980-90B00

BB20..20S..WC;BB20..16S,22S,26S

24V,GLIDE DOOR

 1
85980-90B02

BB20..20S..WC;BB20..16S,22S,26S

24V,GLIDE DOOR

 1
85980-90B04

BB20..GEN

24V,FOLDING DOOR

 1
Common parts
90463-12005
96150-01800
96160-00500

ILLUST NO. 2 OF 2(8311-8510)

Click highlighted areas on diagram

diagram 82650F 84931A 85607 85622 85623 85624 85625A 85626 85637 85658 85980C 85980C 85980C 85980D 87407 9046312005 9615001800
Part # Description Qty Price
82650F - BREAKER ASSY, WIRING CIRCUIT
82650-35010

BB20..GEN

20A,24V,FOLDING DOOR

 1
82650-90500

BB20..20S..WC;BB20..(16S,22S,26S)..(ARL,GEN)

10A,24V,GLIDE DOOR

 1
84931A - SWITCH, AUTOMATIC DOOR CONTROL
85621-90B00

BB20,RB20..ARL,GEN

GLIDE DOOR

 1
85607 - GEAR SUB-ASSY, IDLE
85607-90B00

BB20,RB20..ARL,GEN

 1
85622 - MOTOR & GEAR, AUTOMATIC DOOR REGULATOR
85622-90B00

BB20..20S..WC;BB20..(16S,22S,26S)..(ARL,GEN)

24V,GLIDE DOOR

 1
85622-90B02

BB20..GEN

24V,FOLDING DOOR

 1
85623 - LINK, AUTOMATIC DOOR REGULATOR
85623-90B00

BB20,RB20..ARL,GEN

GLIDE DOOR

 1
85624 - LEVER, AUTOMATIC DOOR REGULATOR, NO.1
85624-90B00

BB20,RB20..ARL,GEN

GLIDE DOOR

 1
85625A - RACK, AUTOMATIC DOOR
85625-90B00

BB20,RB20..ARL,GEN

 1
85626 - RESISTER, AUTOMATIC DOOR
85626-90B00

BB20..20S..WC;BB20..(16S,22S,26S)..(ARL,GEN)

24V

 1
85626-90B02

BB20..20S..WC;BB20..16S,22S,26S

10 OHM

 1
85637 - REMOVER, AUTOMATIC DOOR
85637-90B00

BB20,RB20..ARL,GEN

 1
85658 - SHAFT, GUIDE ROLLER
85658-90B00

BB20,RB20..ARL,GEN

 1
85980C - RELAY ASSY, DOOR CONTROL, NO.2 (FOR AUTOMATIC DOOR)
88630-90B01

BB20..GEN

24V,FOLDING DOOR

 2
85915-90B02

BB20..20S..WC;BB20..16S,22S,26S

24V,GLIDE DOOR

 3
88630-90B01

BB20..DLX..GEN

24V

 2
85980C - RELAY ASSY, DOOR CONTROL, NO.2 (FOR AUTOMATIC DOOR)
88630-90B01

BB20..GEN

24V,FOLDING DOOR

 2
85915-90B02

BB20..20S..WC;BB20..16S,22S,26S

24V,GLIDE DOOR

 3
88630-90B01

BB20..DLX..GEN

24V

 2
85980C - RELAY ASSY, DOOR CONTROL, NO.2 (FOR AUTOMATIC DOOR)
88630-90B01

BB20..GEN

24V,FOLDING DOOR

 2
85915-90B02

BB20..20S..WC;BB20..16S,22S,26S

24V,GLIDE DOOR

 3
88630-90B01

BB20..DLX..GEN

24V

 2
85980D - RELAY ASSY, DOOR CONTROL, NO.3 (FOR AUTOMATIC DOOR)
85980-90B00

BB20..20S..WC;BB20..16S,22S,26S

24V,GLIDE DOOR

 1
85980-90B02

BB20..20S..WC;BB20..16S,22S,26S

24V,GLIDE DOOR

 1
85980-90B04

BB20..GEN

24V,FOLDING DOOR

 1
Common parts
90463-12005
96150-01800

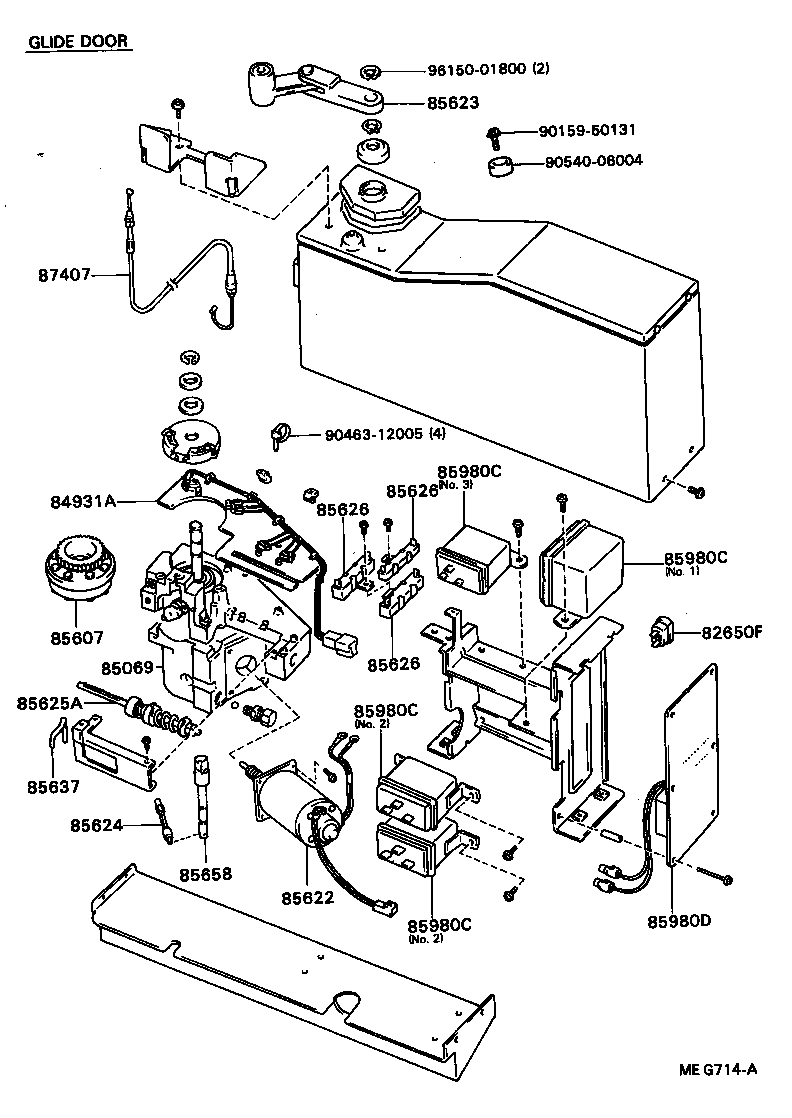

ILLUST NO. 2 OF 2(8510- )

Click highlighted areas on diagram

diagram 82650F 84931A 85069 85607 85622 85623 85624 85625A 85626 85626 85626 85637 85658 85980C 85980C 85980C 85980C 85980D 87407 9015950131 9046312005 9054006004 9615001800
Part # Description Qty Price
82650F - BREAKER ASSY, WIRING CIRCUIT
82650-35010

BB20..GEN

20A,24V,FOLDING DOOR

 1
82650-90500

BB20..20S..WC;BB20..(16S,22S,26S)..(ARL,GEN)

10A,24V,GLIDE DOOR

 1
84931A - SWITCH, AUTOMATIC DOOR CONTROL
85621-90B00

BB20,RB20..ARL,GEN

GLIDE DOOR

 1
85607 - GEAR SUB-ASSY, IDLE
85607-90B00

BB20,RB20..ARL,GEN

 1
85622 - MOTOR & GEAR, AUTOMATIC DOOR REGULATOR
85622-90B00

BB20..20S..WC;BB20..(16S,22S,26S)..(ARL,GEN)

24V,GLIDE DOOR

 1
85622-90B02

BB20..GEN

24V,FOLDING DOOR

 1
85623 - LINK, AUTOMATIC DOOR REGULATOR
85623-90B00

BB20,RB20..ARL,GEN

GLIDE DOOR

 1
85624 - LEVER, AUTOMATIC DOOR REGULATOR, NO.1
85624-90B00

BB20,RB20..ARL,GEN

GLIDE DOOR

 1
85625A - RACK, AUTOMATIC DOOR
85625-90B00

BB20,RB20..ARL,GEN

 1
85626 - RESISTER, AUTOMATIC DOOR
85626-90B00

BB20..20S..WC;BB20..(16S,22S,26S)..(ARL,GEN)

24V

 1
85626-90B02

BB20..20S..WC;BB20..16S,22S,26S

10 OHM

 1
85626 - RESISTER, AUTOMATIC DOOR
85626-90B00

BB20..20S..WC;BB20..(16S,22S,26S)..(ARL,GEN)

24V

 1
85626-90B02

BB20..20S..WC;BB20..16S,22S,26S

10 OHM

 1
85626 - RESISTER, AUTOMATIC DOOR
85626-90B00

BB20..20S..WC;BB20..(16S,22S,26S)..(ARL,GEN)

24V

 1
85626-90B02

BB20..20S..WC;BB20..16S,22S,26S

10 OHM

 1
85637 - REMOVER, AUTOMATIC DOOR
85637-90B00

BB20,RB20..ARL,GEN

 1
85658 - SHAFT, GUIDE ROLLER
85658-90B00

BB20,RB20..ARL,GEN

 1
85980C - RELAY ASSY, DOOR CONTROL, NO.2 (FOR AUTOMATIC DOOR)
88630-90B01

BB20..GEN

24V,FOLDING DOOR

 2
85915-90B02

BB20..20S..WC;BB20..16S,22S,26S

24V,GLIDE DOOR

 3
88630-90B01

BB20..DLX..GEN

24V

 2
85980C - RELAY ASSY, DOOR CONTROL, NO.2 (FOR AUTOMATIC DOOR)
88630-90B01

BB20..GEN

24V,FOLDING DOOR

 2
85915-90B02

BB20..20S..WC;BB20..16S,22S,26S

24V,GLIDE DOOR

 3
88630-90B01

BB20..DLX..GEN

24V

 2
85980C - RELAY ASSY, DOOR CONTROL, NO.2 (FOR AUTOMATIC DOOR)
88630-90B01

BB20..GEN

24V,FOLDING DOOR

 2
85915-90B02

BB20..20S..WC;BB20..16S,22S,26S

24V,GLIDE DOOR

 3
88630-90B01

BB20..DLX..GEN

24V

 2
85980C - RELAY ASSY, DOOR CONTROL, NO.2 (FOR AUTOMATIC DOOR)
88630-90B01

BB20..GEN

24V,FOLDING DOOR

 2
85915-90B02

BB20..20S..WC;BB20..16S,22S,26S

24V,GLIDE DOOR

 3
88630-90B01

BB20..DLX..GEN

24V

 2
85980D - RELAY ASSY, DOOR CONTROL, NO.3 (FOR AUTOMATIC DOOR)
85980-90B00

BB20..20S..WC;BB20..16S,22S,26S

24V,GLIDE DOOR

 1
85980-90B02

BB20..20S..WC;BB20..16S,22S,26S

24V,GLIDE DOOR

 1
85980-90B04

BB20..GEN

24V,FOLDING DOOR

 1
Common parts
90159-50131
90463-12005
90540-06004
96150-01800
