BB20R-MDZER (1982)

Toyota Coaster

Production May 1982 - Oct 1986
Engine 3B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8205- )BB20,21,22,30,RB20

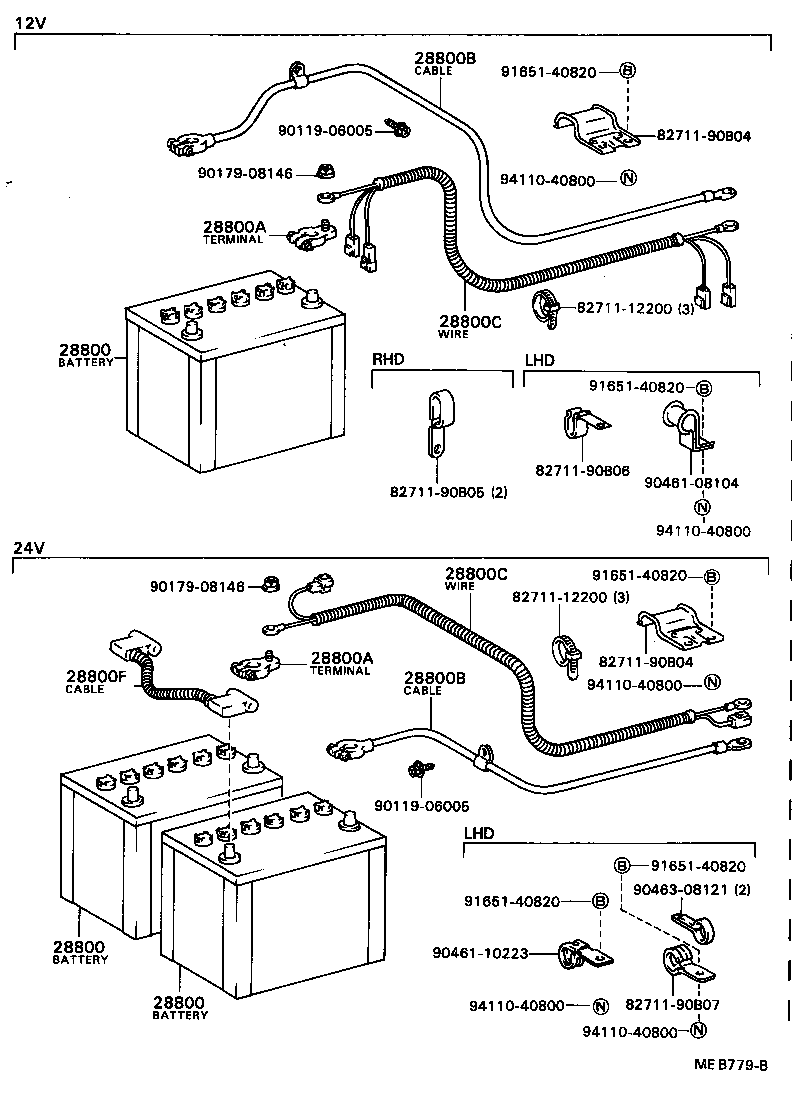

Click highlighted areas on diagram

diagram 28800 28800 28800 28800A 28800A 28800B 28800B 28800C 28800C 28800F 8271112200 8271112200 8271190B04 8271190B04 8271190B05 8271190B06 8271190B07 9011906005 9011906005 9017908146 9017908146 9046108104 9046110223 9046308121 9165140820 9165140820 9165140820 9165140820 9165140820 9411040800 9411040800 9411040800 9411040800 9411040800
Part # Description Qty Price
28800 - BATTERY
28800-30082

3B..BB21;3B..BB20..20S..WC;3B..BB20..15S,16S,22S,26S

48D26R

 2
28800 - BATTERY
28800-30082

3B..BB21;3B..BB20..20S..WC;3B..BB20..15S,16S,22S,26S

48D26R

 2
28800 - BATTERY
28800-30082

3B..BB21;3B..BB20..20S..WC;3B..BB20..15S,16S,22S,26S

48D26R

 2
28800A - TERMINAL, BATTERY POSITIVE
90982-05005

22R,13B,3B..BB2#,30,RB20

 1
28800A - TERMINAL, BATTERY POSITIVE
90982-05005

22R,13B,3B..BB2#,30,RB20

 1
28800B - CABLE, BATTERY TO GROUND
90982-02236

13B,14B,3B..BB2#,30..RHD

 1
28800B - CABLE, BATTERY TO GROUND
90982-02236

13B,14B,3B..BB2#,30..RHD

 1
28800C - CABLE, BATTERY TO STARTER(FOR BATTERY TO MAIN SWITCH)
82113-90B02

13B,14B,3B..BB2#,30..RHD

 1
28800C - CABLE, BATTERY TO STARTER(FOR BATTERY TO MAIN SWITCH)
82113-90B02

13B,14B,3B..BB2#,30..RHD

 1
28800F - CABLE, BATTERY TO BATTERY
90982-03023

3B..BB20,30

 1
Common parts
82711-12200
82711-90B04
82711-90B05
82711-90B06
82711-90B07
90119-06005
90179-08146
90461-08104
90461-10223
90463-08121
91651-40820
94110-40800
