BB20R-MDZER (1982)

Toyota Coaster

Production May 1982 - Oct 1986
Engine 3B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8205-8510) ; (8510- )BB2#,30,FB30,HB3#,RB20..GEN,ME ; (9001- )HZB30

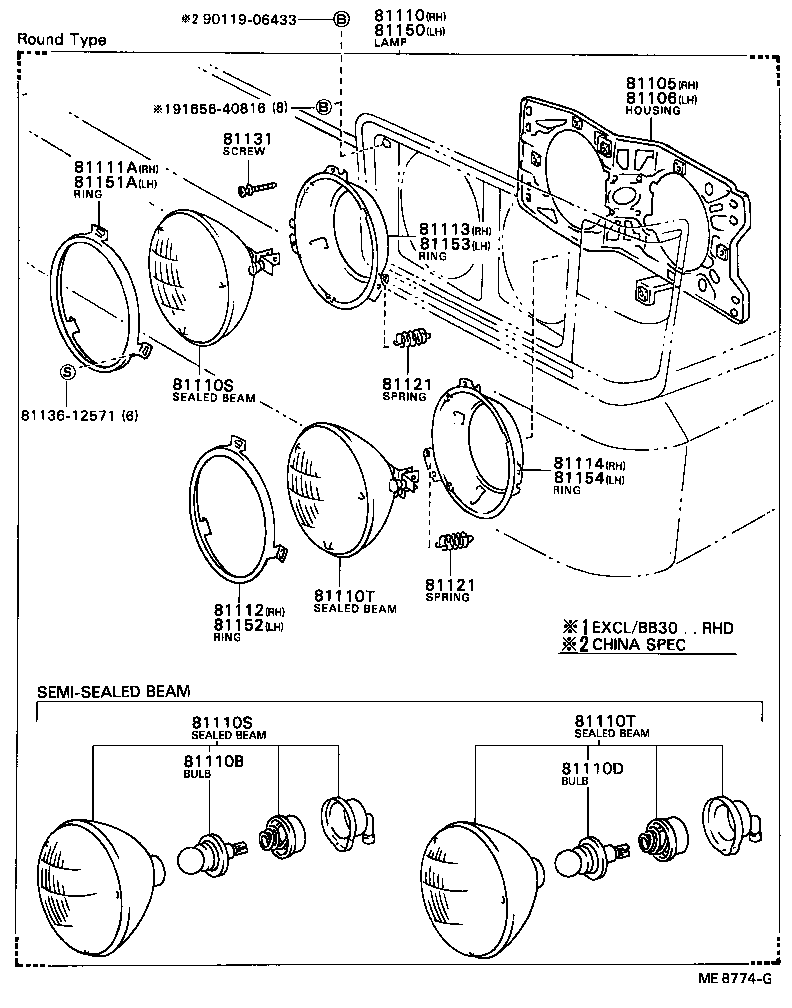

Click highlighted areas on diagram

diagram 81105 81106 81110 81110B 81110D 81110S 81110S 81110T 81110T 81111A 81112 81113 81114 81121 81121 81131 8113612571 81150 81151A 81152 81153 81154 9011906433 9165640816
Part # Description Qty Price
81105 - HOUSING SUB-ASSY, HEADLAMP, RH
81105-90B00

BB20,30,RB20

 1
81106 - HOUSING SUB-ASSY, HEADLAMP, LH
81106-90B00

BB20,30,RB20

 1
81110 - HEADLAMP ASSY, RH
81110-80226

BB20..RHD

24V,*ROU,WHITE

 1
81110S - SEALED BEAM UNIT, NO.1
90981-08007

BB20;BB30..LHD

24V 40W,*WB,24V 40W,*ROU,WHITE

 2
81110S - SEALED BEAM UNIT, NO.1
90981-08007

BB20;BB30..LHD

24V 40W,*WB,24V 40W,*ROU,WHITE

 2
81110T - SEALED BEAM UNIT, NO.2
90981-08008

BB20..RHD

24V 40/60W,*WB,24V 40/60W,*ROU,WHITE

 2
81110T - SEALED BEAM UNIT, NO.2
90981-08008

BB20..RHD

24V 40/60W,*WB,24V 40/60W,*ROU,WHITE

 2
81111A - RING, SEALED BEAM RETAINING, NO.1 RH
81111-20280

BB20,30,RB20

 1
81112 - RING, SEALED BEAM RETAINING, NO.2 RH
81111-20280

BB20,30,RB20

 1
81113 - RING, SEALED BEAM MOUNTING, NO.1 RH
81113-20170

BB20,RB20

 1
81153-95010

BB20,30,RB20

 1
81114 - RING, SEALED BEAM MOUNTING, NO.2 RH
81154-20130

BB20,RB20

 1
81114-95010

BB20,30,RB20

 1
81121 - SPRING, HEADLAMP TENSION
81121-20100

BB20,30,RB20

 4
81121 - SPRING, HEADLAMP TENSION
81121-20100

BB20,30,RB20

 4
81131 - SCREW, HEADLAMP ADJUSTING
81131-20043

BB20,30,RB20

 8
81150 - HEADLAMP ASSY, LH
81150-80223

BB20..RHD

24V,*ROU,WHITE

 1
81151A - RING, SEALED BEAM RETAINING, NO.1 LH
81111-20280

BB20,30,RB20

 1
81152 - RING, SEALED BEAM RETAINING, NO.2 LH
81111-20280

BB20,30,RB20

 1
81153 - RING, SEALED BEAM MOUNTING, NO.1 LH
81153-20130

BB20,RB20

 1
81113-95010

BB20,30,RB20

 1
81154 - RING, SEALED BEAM MOUNTING, NO.2 LH
81154-95010

BB20,30,RB20

 1
81114-20170

BB20,RB20

 1
Common parts
81136-12571
90119-06433
91656-40816

(8510- )BB2#,FB30,HB30,RB20 ; (9001- )HZB30..5F

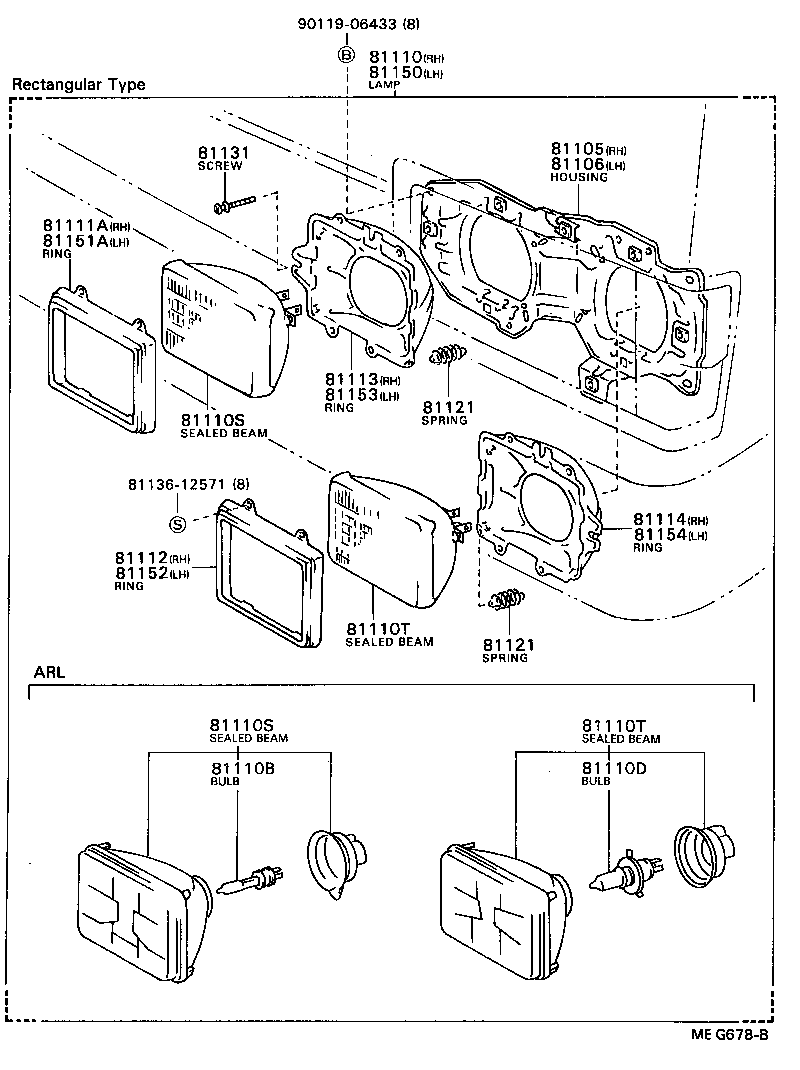

Click highlighted areas on diagram

diagram 81105 81106 81110 81110B 81110D 81110S 81110S 81110T 81110T 81111A 81112 81113 81114 81121 81121 81131 8113612571 81150 81151A 81152 81153 81154 9011906433
Part # Description Qty Price
81105 - HOUSING SUB-ASSY, HEADLAMP, RH
81105-90B00

BB20,30,RB20

 1
81106 - HOUSING SUB-ASSY, HEADLAMP, LH
81106-90B00

BB20,30,RB20

 1
81110 - HEADLAMP ASSY, RH
81110-80226

BB20..RHD

24V,*ROU,WHITE

 1
81110S - SEALED BEAM UNIT, NO.1
90981-08007

BB20;BB30..LHD

24V 40W,*WB,24V 40W,*ROU,WHITE

 2
81110S - SEALED BEAM UNIT, NO.1
90981-08007

BB20;BB30..LHD

24V 40W,*WB,24V 40W,*ROU,WHITE

 2
81110T - SEALED BEAM UNIT, NO.2
90981-08008

BB20..RHD

24V 40/60W,*WB,24V 40/60W,*ROU,WHITE

 2
81110T - SEALED BEAM UNIT, NO.2
90981-08008

BB20..RHD

24V 40/60W,*WB,24V 40/60W,*ROU,WHITE

 2
81111A - RING, SEALED BEAM RETAINING, NO.1 RH
81111-20280

BB20,30,RB20

 1
81112 - RING, SEALED BEAM RETAINING, NO.2 RH
81111-20280

BB20,30,RB20

 1
81113 - RING, SEALED BEAM MOUNTING, NO.1 RH
81113-20170

BB20,RB20

 1
81153-95010

BB20,30,RB20

 1
81114 - RING, SEALED BEAM MOUNTING, NO.2 RH
81154-20130

BB20,RB20

 1
81114-95010

BB20,30,RB20

 1
81121 - SPRING, HEADLAMP TENSION
81121-20100

BB20,30,RB20

 4
81121 - SPRING, HEADLAMP TENSION
81121-20100

BB20,30,RB20

 4
81131 - SCREW, HEADLAMP ADJUSTING
81131-20043

BB20,30,RB20

 8
81150 - HEADLAMP ASSY, LH
81150-80223

BB20..RHD

24V,*ROU,WHITE

 1
81151A - RING, SEALED BEAM RETAINING, NO.1 LH
81111-20280

BB20,30,RB20

 1
81152 - RING, SEALED BEAM RETAINING, NO.2 LH
81111-20280

BB20,30,RB20

 1
81153 - RING, SEALED BEAM MOUNTING, NO.1 LH
81153-20130

BB20,RB20

 1
81113-95010

BB20,30,RB20

 1
81154 - RING, SEALED BEAM MOUNTING, NO.2 LH
81154-95010

BB20,30,RB20

 1
81114-20170

BB20,RB20

 1
Common parts
81136-12571
90119-06433
