BB20R-MDZER (1982)

Toyota Coaster

Production May 1982 - Oct 1986
Engine 3B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(8205- )RHD

Click highlighted areas on diagram

diagram 4561914010 78111 78117 78117 78120 78120B 78120B 78120E 78127 78189 78410 9165140614 9165140620 9411040800 9616000600
Part # Description Qty Price
78111 - PEDAL, ACCELERATOR
78010-90B00

BB2#,3#,FB30,HB3#,HDB30,HZB30,RB20

 1
78117 - CUSHION (FOR ACCELERATOR ROD)
90541-06008

BB20..RHD..GEN

W/*EB

 1
90541-11001

BB20,30,RB20

 1
78117 - CUSHION (FOR ACCELERATOR ROD)
90541-06008

BB20..RHD..GEN

W/*EB

 1
90541-11001

BB20,30,RB20

 1
78120 - ROD, ACCELERATOR LINK
78120-90B03

BB20,RB20..RHD..DLX;BB20,RB20..WOC..ARL

W/ACCELERATOR INTER LOCK

 1
78120-90B04

BB20..RHD..DLX..GEN

W/ACCELERATOR INTER LOCK,*EB

 1
78120-90B01

BB20..RHD..(22S,26S);BB21,23,HB30,HZB30..RHD..(DLX,STD)..GEN

W/*EB

 1
78120-90B00

BB2#,HB30,HZB30,RB20..RHD..(DLX,STD)..GEN

 1
78120B - BUSH (FOR ACCELERATOR LINK ROD)
90386-08155

BB2#,30,FB30,HB30,HDB30,HZB30,RB20

 2
78120B - BUSH (FOR ACCELERATOR LINK ROD)
90386-08155

BB2#,30,FB30,HB30,HDB30,HZB30,RB20

 2
78120E - SPRING, TENSION (FOR ACCELERATOR LINK ROD)
90508-26042

BB2#,30,HB30,HDB30,HZB30,RB20..RHD

 1
78127 - BUSH, ACCELERATOR PEDAL, NO.2
78127-20010

BB2#,3#,FB30,HB3#,HDB30,HZB30,RB20

 1
78189 - BOLT, ACCELERATOR PEDAL STOPPER
91131-40865

BB2#,FB30,HB30,HZB30,RB20..(DLX,STD)..(GEN,IRQ,ME)

 1
78410 - CABLE ASSY, THROTTLE CONTROL
78410-90B00

BB2#,30,HB3#,HDB30,HZB30,RB20..RHD

 1
Common parts
45619-14010
91651-40614
91651-40620
94110-40800
96160-00600

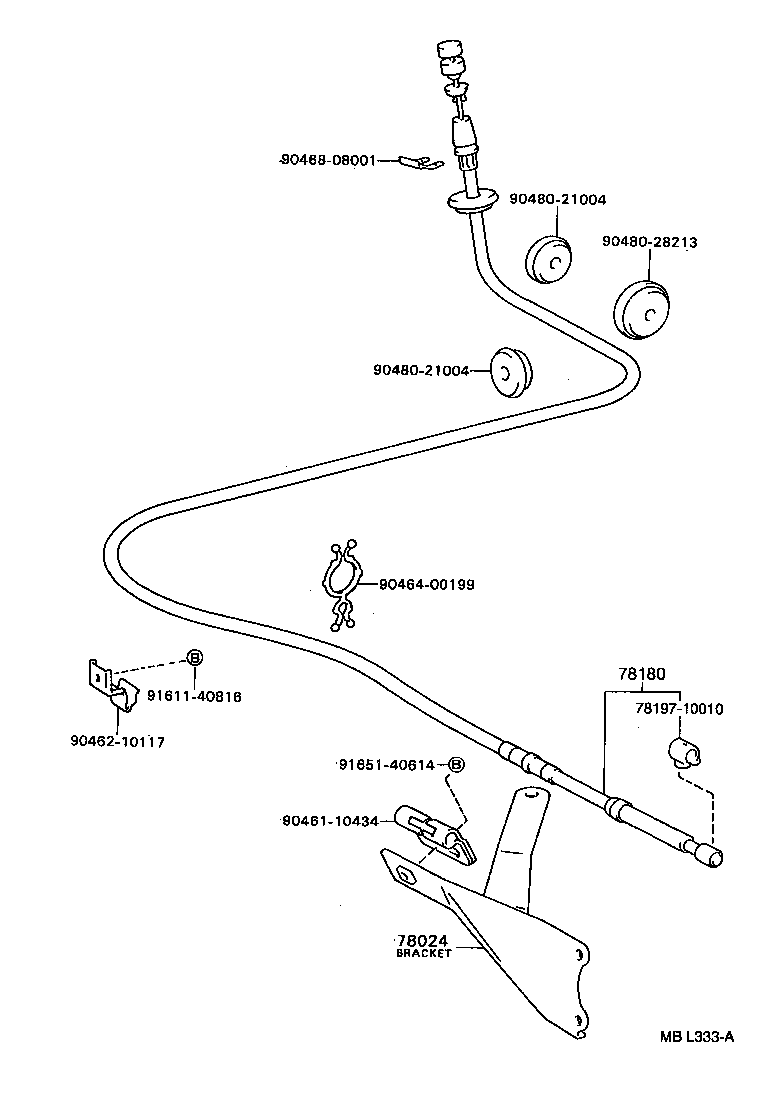

ILLUST NO. 2 OF 2(8205- )BB20,21,30..RHD

Click highlighted areas on diagram

diagram 78024 78180 7819710010 9046110434 9046210117 9046400199 9046808001 9048021004 9048021004 9048028213 9161140816 9165140614
Part # Description Qty Price
78024 - BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE
78024-90B00

BB20,21,30

 1
78180 - WIRE ASSY, ACCELERATOR
78180-90B00

BB20,21,30..RHD

 1
Common parts
78197-10010
90461-10434
90462-10117
90464-00199
90468-08001
90480-21004
90480-28213
91611-40816
91651-40614
