BB20R-MDZER (1982)
Toyota Coaster

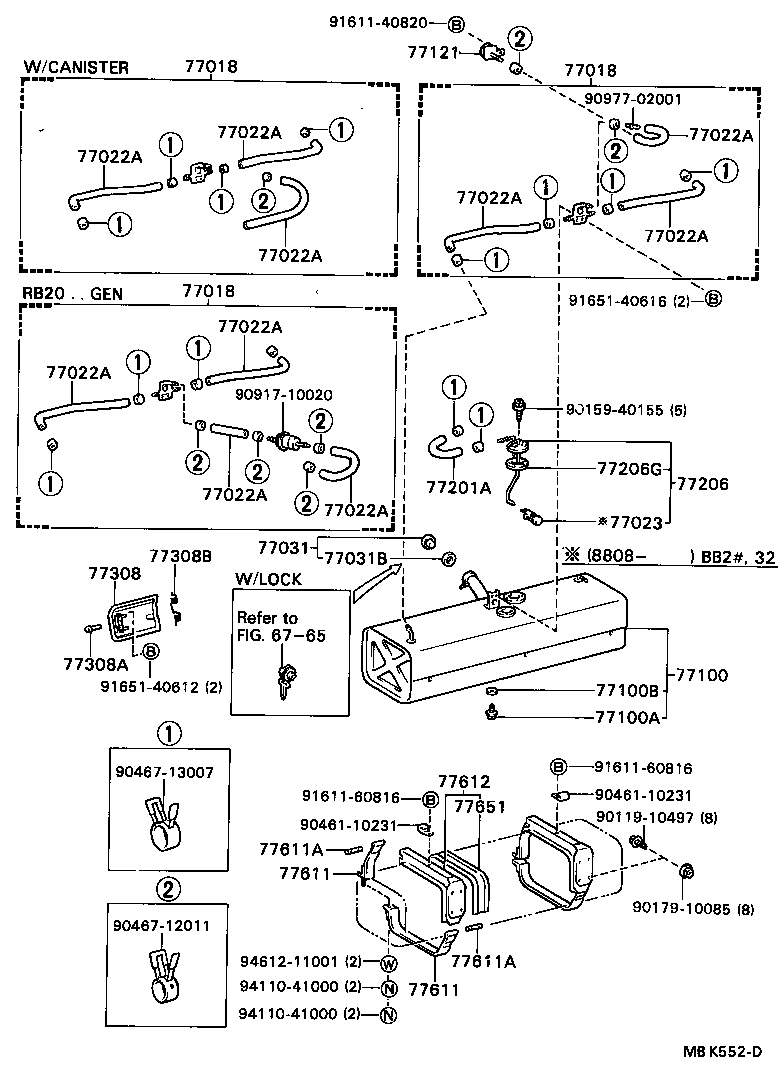

ILLUST NO. 1 OF 2(8205-8302)RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77018 - VALVE SUB-ASSY, FUEL VAPOUR SEPARATE | ||||
| 77018-36110 |
BB2#,30,HB3# |
1 | ||
| 77018 - VALVE SUB-ASSY, FUEL VAPOUR SEPARATE | ||||
| 77018-36110 |
BB2#,30,HB3# |
1 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95332-06040 |
BB20,RB20 *H,L=340 |
1 | ||
| 95332-08060 |
BB2#,30,FB30,HB3#,RB20 *H,L=460,ID=7.6 |
2 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95332-06040 |
BB20,RB20 *H,L=340 |
1 | ||
| 95332-08060 |
BB2#,30,FB30,HB3#,RB20 *H,L=460,ID=7.6 |
2 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95332-06040 |
BB20,RB20 *H,L=340 |
1 | ||
| 95332-08060 |
BB2#,30,FB30,HB3#,RB20 *H,L=460,ID=7.6 |
2 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95332-06040 |
BB20,RB20 *H,L=340 |
1 | ||
| 95332-08060 |
BB2#,30,FB30,HB3#,RB20 *H,L=460,ID=7.6 |
2 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95332-06040 |
BB20,RB20 *H,L=340 |
1 | ||
| 95332-08060 |
BB2#,30,FB30,HB3#,RB20 *H,L=460,ID=7.6 |
2 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95332-06040 |
BB20,RB20 *H,L=340 |
1 | ||
| 95332-08060 |
BB2#,30,FB30,HB3#,RB20 *H,L=460,ID=7.6 |
2 | ||
| 77031 - CAP ASSY, FUEL TANK | ||||
| 77310-55080 |
BB2#,30,HB30,HZB30..DLX,EX,STD |
1 | ||
| 77031B - GASKET (FOR FUEL TANK CAP) | ||||
| 77316-27010 |
BB2#,30,HB30,HZB30..DLX,EX,STD |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-36918 |
BB20,30,RB20..RHD |
1 | ||
| 77001-36390 |
BB20..RHD |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90341-20003 |
BB20,30,RB20 |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-20006 |
BB20,30,RB20 |
1 | ||
| 77121 - PROTECTOR, FUEL TUBE | ||||
| 77243-36010 |
BB20,21,22,30,FB30,HB3#,HDB30 |
1 | ||
| 77201A - HOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE) | ||||
| 95332-08040 |
BB2#,30,HB3#,RB20..RHD *H,L=320,ID=7.6 |
1 | ||
| 77206 - TUBE SUB-ASSY, FUEL TANK SUCTION | ||||
| 77203-36090 |
BB20..RHD |
1 | ||
| 77203-36900 |
BB20,30..RHD |
1 | ||
| 77206G - GASKET (FOR FUEL TANK SUCTION TUBE) | ||||
| 77169-14020 |
BB2#,3#,FB30,HB3#,HDB30,HZB30,RB20 |
1 | ||
| 77308 - COVER SUB-ASSY, FUEL INLET BOX | ||||
| 77305-90B00 |
BB2#,HB30,HZB30,RB20..RHD |
1 | ||
| 77308A - CUSHION(FOR FUEL INLET BOX COVER) | ||||
| 90541-05080 |
BB2#,FB30,HB30,HZB30,RB20 |
3 | ||
| 77308B - SPRING, TORSION(FOR FUEL INLET BOX COVER) | ||||
| 90508-23058 |
BB20,22,23,RB20 |
1 | ||
| 77611 - BAND, FUEL TANK | ||||
| 77603-36070 |
BB2#,3#,FB30,HB3#,HDB30,HZB30,RB20 UPR |
2 | ||
| 77611 - BAND, FUEL TANK | ||||
| 77603-36070 |
BB2#,3#,FB30,HB3#,HDB30,HZB30,RB20 UPR |
2 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 77629-25010 |
BB2#,3#,FB30,HB3#,HDB30,HZB30,RB20 |
4 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 77629-25010 |
BB2#,3#,FB30,HB3#,HDB30,HZB30,RB20 |
4 | ||
| 77612 - BRACKET SUB-ASSY, FUEL TANK | ||||
| 77501-36040 |
BB2#,3#,FB30,HB3#,HDB30,HZB30,RB20 |
2 | ||
| 77651 - PACKING, FUEL TANK BRACKET | ||||
| 77651-36090 |
BB2#,3#,FB30,HB3#,HDB30,HZB30,RB20 |
2 | ||
| Common parts | ||||
| 90461-10231 | ||||
| 90977-02001 | ||||
| 91611-40816 | ||||
| 91611-40820 | ||||
| 91651-40612 | ||||
| 91651-40616 | ||||
| 91651-61025 | ||||
| 93319-14010 | ||||
| 94110-41000 | ||||
| 94110-51000 | ||||
| 94120-41000 | ||||
| 94612-11001 | ||||
| 96132-30600 | ||||
| 96132-30800 | ||||
| Linked diagrams | ||||
| 6765 | ||||

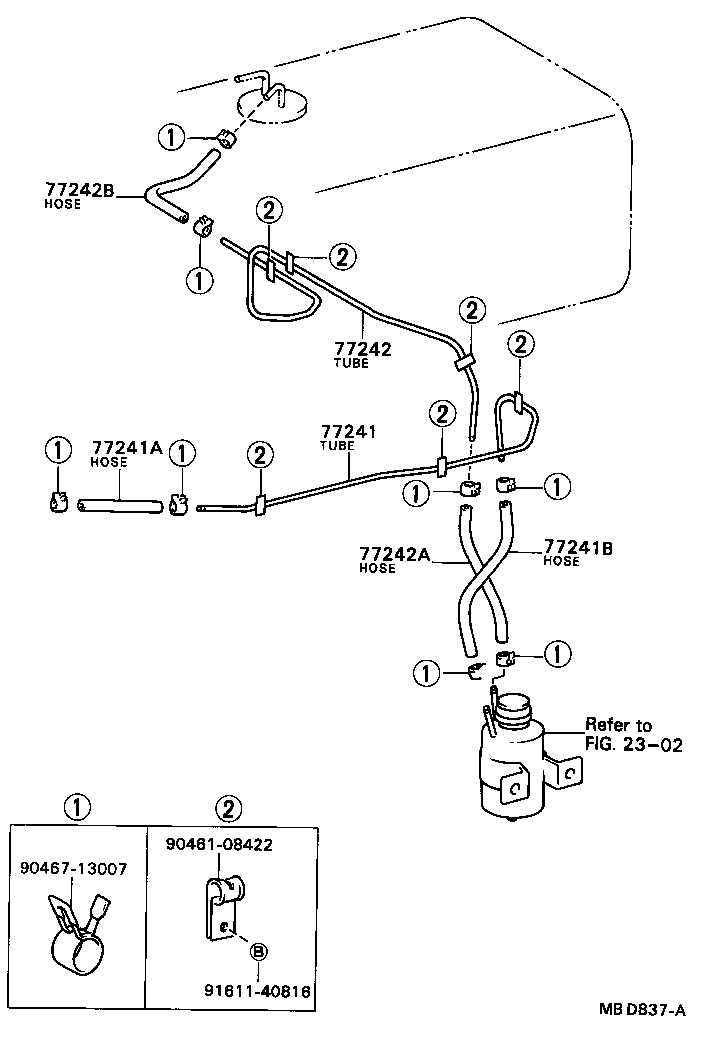

ILLUST NO. 2 OF 2(8205-8808)BB20,21,30..RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77241 - TUBE, FUEL MAIN, NO.1 | ||||
| 77251-36661 |
BB20 |
1 | ||
| 77251-36662 |
BB2#,30 |
1 | ||
| 77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1) | ||||
| 95332-08030 |
BB20,21,30 *H,L=300,ID=7.6 |
1 | ||
| 77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1) | ||||
| 95332-08020 |
BB2#,30 *H,L=190,ID=7.6 |
1 | ||
| 77242 - TUBE, FUEL MAIN, NO.2 | ||||
| 77252-36190 |
BB2#,30..RHD |
1 | ||
| 77242A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.2) | ||||
| 95332-08020 |
BB2#,30 *H,L=190,ID=7.6 |
1 | ||
| 77242B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.2) | ||||
| 95332-08040 |
BB2#,30 *H,L=360,ID=7.6 |
1 | ||
| Common parts | ||||
| 90461-08422 | ||||
| 90467-13007 | ||||
| 91611-40816 | ||||
| Linked diagrams | ||||
| 2302 | ||||

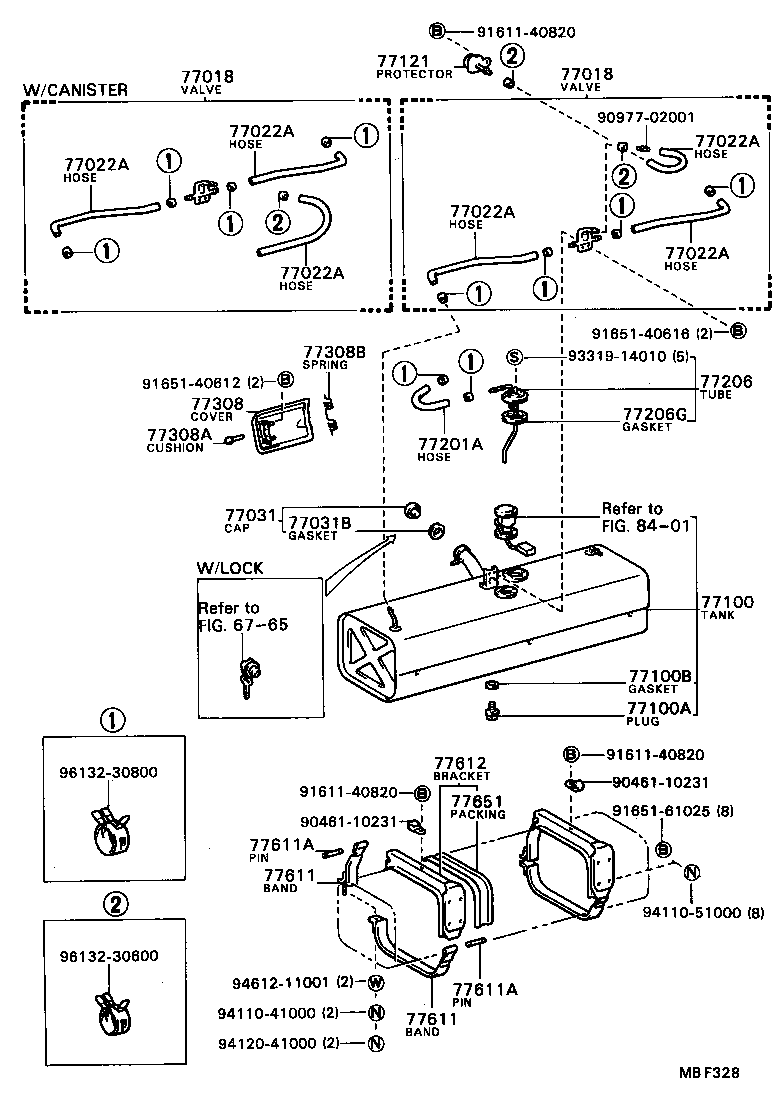

ILLUST NO. 1 OF 2(8302-8510)RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77018 - VALVE SUB-ASSY, FUEL VAPOUR SEPARATE | ||||
| 77018-36110 |
BB2#,30,HB3# |
1 | ||
| 77018 - VALVE SUB-ASSY, FUEL VAPOUR SEPARATE | ||||
| 77018-36110 |
BB2#,30,HB3# |
1 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95332-06040 |
BB20,RB20 *H,L=340 |
1 | ||
| 95332-08060 |
BB2#,30,FB30,HB3#,RB20 *H,L=460,ID=7.6 |
2 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95332-06040 |
BB20,RB20 *H,L=340 |
1 | ||
| 95332-08060 |
BB2#,30,FB30,HB3#,RB20 *H,L=460,ID=7.6 |
2 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95332-06040 |
BB20,RB20 *H,L=340 |
1 | ||
| 95332-08060 |
BB2#,30,FB30,HB3#,RB20 *H,L=460,ID=7.6 |
2 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95332-06040 |
BB20,RB20 *H,L=340 |
1 | ||
| 95332-08060 |
BB2#,30,FB30,HB3#,RB20 *H,L=460,ID=7.6 |
2 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95332-06040 |
BB20,RB20 *H,L=340 |
1 | ||
| 95332-08060 |
BB2#,30,FB30,HB3#,RB20 *H,L=460,ID=7.6 |
2 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95332-06040 |
BB20,RB20 *H,L=340 |
1 | ||
| 95332-08060 |
BB2#,30,FB30,HB3#,RB20 *H,L=460,ID=7.6 |
2 | ||
| 77031 - CAP ASSY, FUEL TANK | ||||
| 77310-55080 |
BB2#,30,HB30,HZB30..DLX,EX,STD |
1 | ||
| 77031B - GASKET (FOR FUEL TANK CAP) | ||||
| 77316-27010 |
BB2#,30,HB30,HZB30..DLX,EX,STD |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-36918 |
BB20,30,RB20..RHD |
1 | ||
| 77001-36390 |
BB20..RHD |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90341-20003 |
BB20,30,RB20 |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-20006 |
BB20,30,RB20 |
1 | ||
| 77121 - PROTECTOR, FUEL TUBE | ||||
| 77243-36010 |
BB20,21,22,30,FB30,HB3#,HDB30 |
1 | ||
| 77201A - HOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE) | ||||
| 95332-08040 |
BB2#,30,HB3#,RB20..RHD *H,L=320,ID=7.6 |
1 | ||
| 77206 - TUBE SUB-ASSY, FUEL TANK SUCTION | ||||
| 77203-36090 |
BB20..RHD |
1 | ||
| 77203-36900 |
BB20,30..RHD |
1 | ||
| 77206G - GASKET (FOR FUEL TANK SUCTION TUBE) | ||||
| 77169-14020 |
BB2#,3#,FB30,HB3#,HDB30,HZB30,RB20 |
1 | ||
| 77308 - COVER SUB-ASSY, FUEL INLET BOX | ||||
| 77305-90B00 |
BB2#,HB30,HZB30,RB20..RHD |
1 | ||
| 77308A - CUSHION(FOR FUEL INLET BOX COVER) | ||||
| 90541-05080 |
BB2#,FB30,HB30,HZB30,RB20 |
3 | ||
| 77308B - SPRING, TORSION(FOR FUEL INLET BOX COVER) | ||||
| 90508-23058 |
BB20,22,23,RB20 |
1 | ||
| 77611 - BAND, FUEL TANK | ||||
| 77603-36070 |
BB2#,3#,FB30,HB3#,HDB30,HZB30,RB20 UPR |
2 | ||
| 77611 - BAND, FUEL TANK | ||||
| 77603-36070 |
BB2#,3#,FB30,HB3#,HDB30,HZB30,RB20 UPR |
2 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 77629-25010 |
BB2#,3#,FB30,HB3#,HDB30,HZB30,RB20 |
4 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 77629-25010 |
BB2#,3#,FB30,HB3#,HDB30,HZB30,RB20 |
4 | ||
| 77612 - BRACKET SUB-ASSY, FUEL TANK | ||||
| 77501-36040 |
BB2#,3#,FB30,HB3#,HDB30,HZB30,RB20 |
2 | ||
| 77651 - PACKING, FUEL TANK BRACKET | ||||
| 77651-36090 |
BB2#,3#,FB30,HB3#,HDB30,HZB30,RB20 |
2 | ||
| Common parts | ||||
| 90461-10231 | ||||
| 90977-02001 | ||||
| 91611-40820 | ||||
| 91651-40612 | ||||
| 91651-40616 | ||||
| 91651-61025 | ||||
| 93319-14010 | ||||
| 94110-41000 | ||||
| 94110-51000 | ||||
| 94120-41000 | ||||
| 94612-11001 | ||||
| 96132-30600 | ||||
| 96132-30800 | ||||
| Linked diagrams | ||||
| 6765 | ||||
| 8401 | ||||

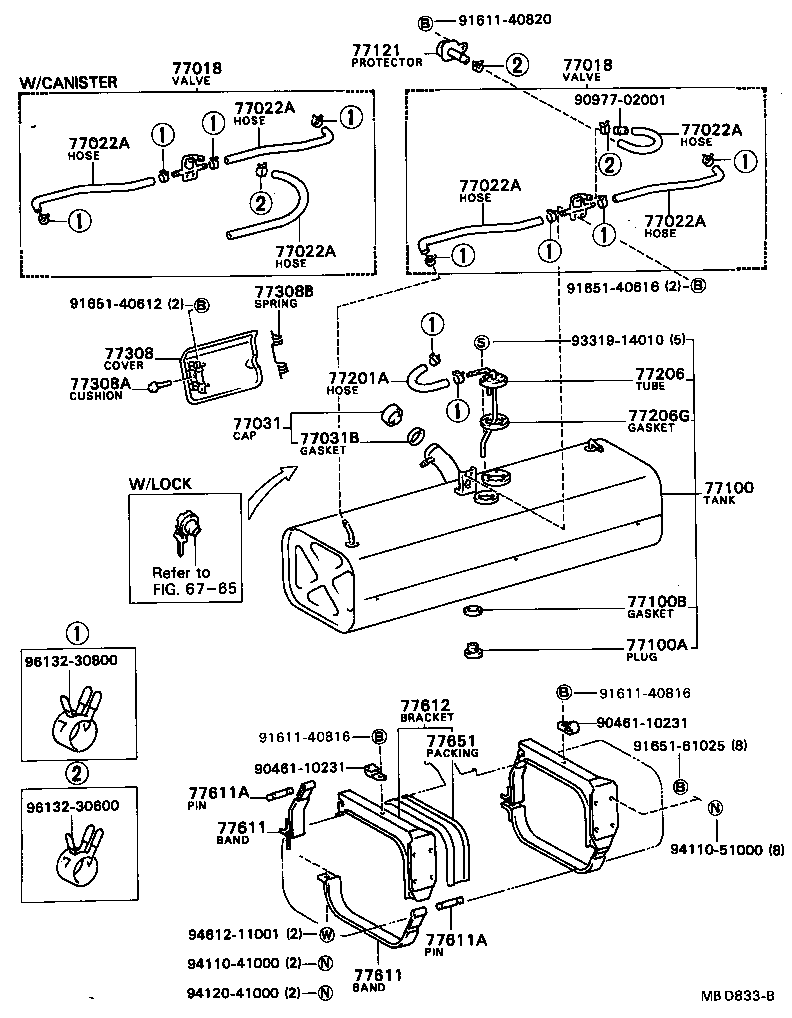

ILLUST NO. 1 OF 2(8510- )RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77018 - VALVE SUB-ASSY, FUEL VAPOUR SEPARATE | ||||
| 77018-36110 |
BB2#,30,HB3# |
1 | ||
| 77018 - VALVE SUB-ASSY, FUEL VAPOUR SEPARATE | ||||
| 77018-36110 |
BB2#,30,HB3# |
1 | ||
| 77018 - VALVE SUB-ASSY, FUEL VAPOUR SEPARATE | ||||
| 77018-36110 |
BB2#,30,HB3# |
1 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95332-06040 |
BB20,RB20 *H,L=340 |
1 | ||
| 95332-08060 |
BB2#,30,FB30,HB3#,RB20 *H,L=460,ID=7.6 |
2 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95332-06040 |
BB20,RB20 *H,L=340 |
1 | ||
| 95332-08060 |
BB2#,30,FB30,HB3#,RB20 *H,L=460,ID=7.6 |
2 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95332-06040 |
BB20,RB20 *H,L=340 |
1 | ||
| 95332-08060 |
BB2#,30,FB30,HB3#,RB20 *H,L=460,ID=7.6 |
2 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95332-06040 |
BB20,RB20 *H,L=340 |
1 | ||
| 95332-08060 |
BB2#,30,FB30,HB3#,RB20 *H,L=460,ID=7.6 |
2 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95332-06040 |
BB20,RB20 *H,L=340 |
1 | ||
| 95332-08060 |
BB2#,30,FB30,HB3#,RB20 *H,L=460,ID=7.6 |
2 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95332-06040 |
BB20,RB20 *H,L=340 |
1 | ||
| 95332-08060 |
BB2#,30,FB30,HB3#,RB20 *H,L=460,ID=7.6 |
2 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95332-06040 |
BB20,RB20 *H,L=340 |
1 | ||
| 95332-08060 |
BB2#,30,FB30,HB3#,RB20 *H,L=460,ID=7.6 |
2 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95332-06040 |
BB20,RB20 *H,L=340 |
1 | ||
| 95332-08060 |
BB2#,30,FB30,HB3#,RB20 *H,L=460,ID=7.6 |
2 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95332-06040 |
BB20,RB20 *H,L=340 |
1 | ||
| 95332-08060 |
BB2#,30,FB30,HB3#,RB20 *H,L=460,ID=7.6 |
2 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95332-06040 |
BB20,RB20 *H,L=340 |
1 | ||
| 95332-08060 |
BB2#,30,FB30,HB3#,RB20 *H,L=460,ID=7.6 |
2 | ||
| 77031 - CAP ASSY, FUEL TANK | ||||
| 77310-55080 |
BB2#,30,HB30,HZB30..DLX,EX,STD |
1 | ||
| 77031B - GASKET (FOR FUEL TANK CAP) | ||||
| 77316-27010 |
BB2#,30,HB30,HZB30..DLX,EX,STD |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-36918 |
BB20,30,RB20..RHD |
1 | ||
| 77001-36390 |
BB20..RHD |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90341-20003 |
BB20,30,RB20 |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-20006 |
BB20,30,RB20 |
1 | ||
| 77121 - PROTECTOR, FUEL TUBE | ||||
| 77243-36010 |
BB20,21,22,30,FB30,HB3#,HDB30 |
1 | ||
| 77201A - HOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE) | ||||
| 95332-08040 |
BB2#,30,HB3#,RB20..RHD *H,L=320,ID=7.6 |
1 | ||
| 77206 - TUBE SUB-ASSY, FUEL TANK SUCTION | ||||
| 77203-36090 |
BB20..RHD |
1 | ||
| 77203-36900 |
BB20,30..RHD |
1 | ||
| 77206G - GASKET (FOR FUEL TANK SUCTION TUBE) | ||||
| 77169-14020 |
BB2#,3#,FB30,HB3#,HDB30,HZB30,RB20 |
1 | ||
| 77308 - COVER SUB-ASSY, FUEL INLET BOX | ||||
| 77305-90B00 |
BB2#,HB30,HZB30,RB20..RHD |
1 | ||
| 77308A - CUSHION(FOR FUEL INLET BOX COVER) | ||||
| 90541-05080 |
BB2#,FB30,HB30,HZB30,RB20 |
3 | ||
| 77308B - SPRING, TORSION(FOR FUEL INLET BOX COVER) | ||||
| 90508-23058 |
BB20,22,23,RB20 |
1 | ||
| 77611 - BAND, FUEL TANK | ||||
| 77603-36070 |
BB2#,3#,FB30,HB3#,HDB30,HZB30,RB20 UPR |
2 | ||
| 77611 - BAND, FUEL TANK | ||||
| 77603-36070 |
BB2#,3#,FB30,HB3#,HDB30,HZB30,RB20 UPR |
2 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 77629-25010 |
BB2#,3#,FB30,HB3#,HDB30,HZB30,RB20 |
4 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 77629-25010 |
BB2#,3#,FB30,HB3#,HDB30,HZB30,RB20 |
4 | ||
| 77612 - BRACKET SUB-ASSY, FUEL TANK | ||||
| 77501-36040 |
BB2#,3#,FB30,HB3#,HDB30,HZB30,RB20 |
2 | ||
| 77651 - PACKING, FUEL TANK BRACKET | ||||
| 77651-36090 |
BB2#,3#,FB30,HB3#,HDB30,HZB30,RB20 |
2 | ||
| Common parts | ||||
| 90119-10497 | ||||
| 90159-40155 | ||||
| 90179-10085 | ||||
| 90461-10231 | ||||
| 90467-12011 | ||||
| 90467-13007 | ||||
| 90917-10020 | ||||
| 90977-02001 | ||||
| 91611-40820 | ||||
| 91611-60816 | ||||
| 91651-40612 | ||||
| 91651-40616 | ||||
| 94110-41000 | ||||
| 94612-11001 | ||||
| Linked diagrams | ||||
| 6765 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
