BB20R-MDZER (1982)

Toyota Coaster

Production May 1982 - Oct 1986
Engine 3B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8205- )

Click highlighted areas on diagram

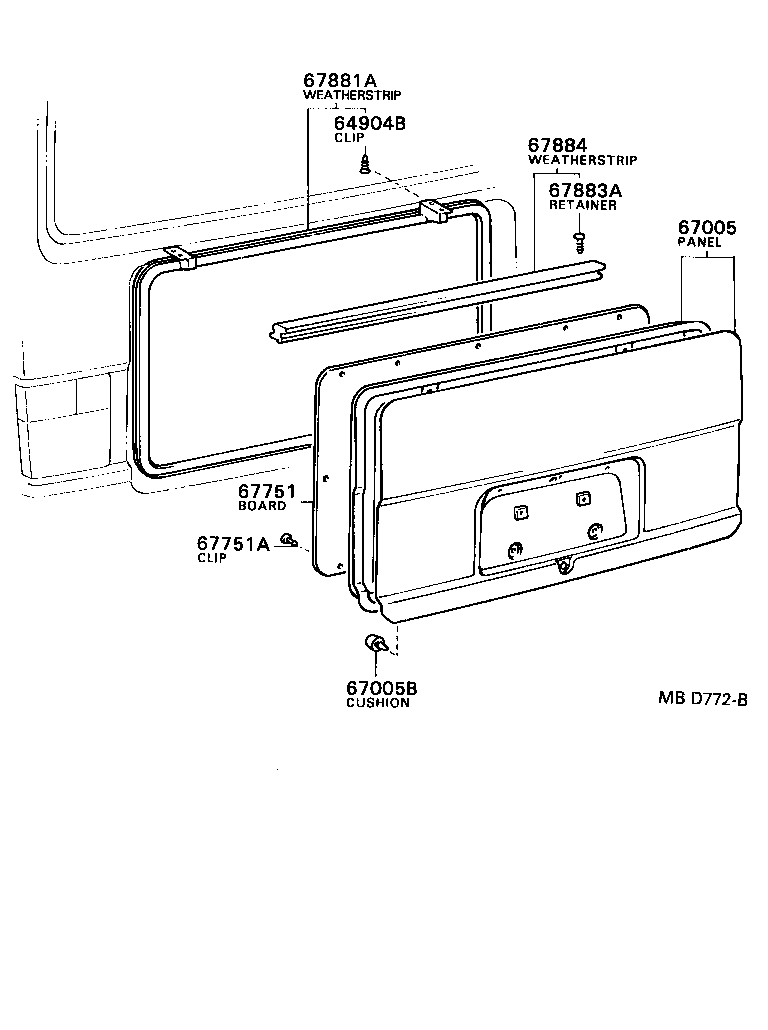

diagram 64904B 67005 67005B 67751 67751A 67881A 67883A 67884
Part # Description Qty Price
64904B - CLIP(FOR BACK DOOR WEATHERSTRIP)
67868-30030

BB21,FB30,HB30,RB20;BB20..16S,20S,22S,26S

 4
67005 - PANEL SUB-ASSY, BACK DOOR
67005-90B02

BB20,RB20..(22S,26S)..GEN

RH,*DSBD

 1
67006-90B00

BB20,RB20..(22S,26S)..GEN

LH,*DSBD

 1
67006-90B00

BB20,RB20..(17S,22S,26S)..(GEN,ME)

LH,*DSBD

 1
67008-90B03

BB20,21,FB30,HB30,RB20..16S,17S,20S,22S,23S,25S,26S,29S,30S

 1
67005B - CUSHION(FOR BACK DOOR PANEL)
90541-09114

BB20..16S,20S,22S,26S;BB21,32,FB30,HB30,HZB30,RB20

 2
67751 - BOARD, BACK DOOR TRIM
67751-90B02

BB20,RB20..DLX..22S..GEN

 1
67751A - CLIP(FOR BACK DOOR TRIM BOARD)
90467-07039

BB20,RB20..(22S,26S)..GEN

*DSBD,DARK WINE

 22
90467-10025

BB20,RB20..DLX..22S..GEN

 15
67881A - WEATHERSTRIP, BACK DOOR
67881-90B03

BB20,RB20..(22S,26S)..GEN

*DSBD

 1
67881-90B00

BB20,21,FB30,HB30,RB20..16S,17S,20S,22S,23S,25S,26S,29S,30S

 1
67883A - RETAINER, BACK DOOR WEATHERSTRIP
67868-30040

BB2#,FB30,HB30,RB20

 11
67868-30040

BB20,RB20..(22S,26S)..GEN

*DSBD

 36
67884 - WEATHERSTRIP, BACK DOOR, CENTER UPPER
67882-90B00

BB21,FB30,HB30,RB20;BB20..16S,20S,22S,26S

 1

(8405-8510)BB20 ; (8405-8510)BB20 ; (8510- ); (8510- )

Click highlighted areas on diagram

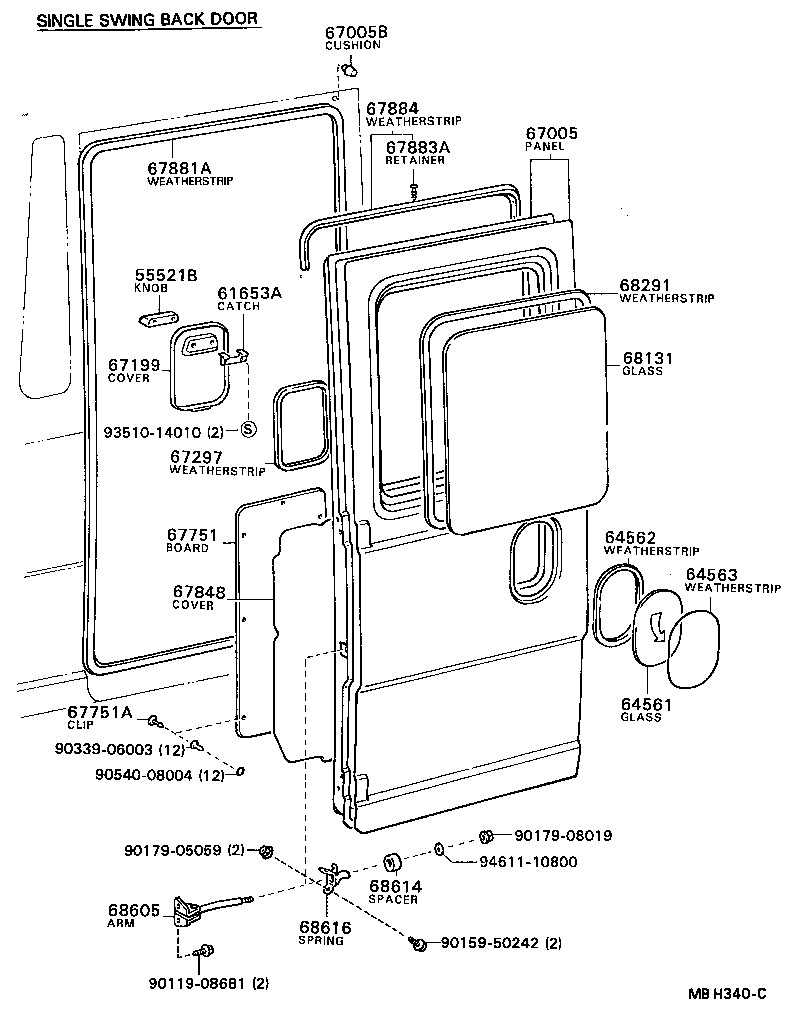

diagram 55521B 61653A 64561 64562 64563 67005 67005B 67199 67297 67751 67751A 67848 67881A 67883A 67884 68131 68291 68605 68614 68616 9011908681 9015950242 9017905059 9017908019 9033906003 9054008004 9351014010 9461110800
Part # Description Qty Price
67005 - PANEL SUB-ASSY, BACK DOOR
67005-90B02

BB20,RB20..(22S,26S)..GEN

RH,*DSBD

 1
67006-90B00

BB20,RB20..(22S,26S)..GEN

LH,*DSBD

 1
67006-90B00

BB20,RB20..(17S,22S,26S)..(GEN,ME)

LH,*DSBD

 1
67008-90B03

BB20,21,FB30,HB30,RB20..16S,17S,20S,22S,23S,25S,26S,29S,30S

 1
67005B - CUSHION(FOR BACK DOOR PANEL)
90541-09114

BB20..16S,20S,22S,26S;BB21,32,FB30,HB30,HZB30,RB20

 2
67751 - BOARD, BACK DOOR TRIM
67751-90B02

BB20,RB20..DLX..22S..GEN

 1
67751A - CLIP(FOR BACK DOOR TRIM BOARD)
90467-07039

BB20,RB20..(22S,26S)..GEN

*DSBD,DARK WINE

 22
90467-10025

BB20,RB20..DLX..22S..GEN

 15
67848 - COVER, BACK DOOR SERVICE HOLE, LH
67848-90B00

BB20,RB20..(22S,26S)..GEN

*DSBD

 1
67881A - WEATHERSTRIP, BACK DOOR
67881-90B03

BB20,RB20..(22S,26S)..GEN

*DSBD

 1
67881-90B00

BB20,21,FB30,HB30,RB20..16S,17S,20S,22S,23S,25S,26S,29S,30S

 1
67883A - RETAINER, BACK DOOR WEATHERSTRIP
67868-30040

BB2#,FB30,HB30,RB20

 11
67868-30040

BB20,RB20..(22S,26S)..GEN

*DSBD

 36
67884 - WEATHERSTRIP, BACK DOOR, CENTER UPPER
67882-90B00

BB21,FB30,HB30,RB20;BB20..16S,20S,22S,26S

 1
68131 - GLASS, BACK DOOR
68132-90B01

BB20,RB20..DLX..GEN

*TT,T=3.5,LH,*DSBD,*TT,T=3.5

 1
68131-90B03

BB20,RB20..DLX..GEN

*TT,T=3.5,RH,*DSBD,*TT,T=3.5

 1
68291 - WEATHERSTRIP, BACK DOOR GLASS
68291-90B00

BB20,RB20..(22S,26S)..GEN

*DSBD

 2
Common parts
90119-08681
90159-50242
90179-05059
90179-08019
90339-06003
90540-08004
93510-14010
94611-10800

(8302- )

Click highlighted areas on diagram

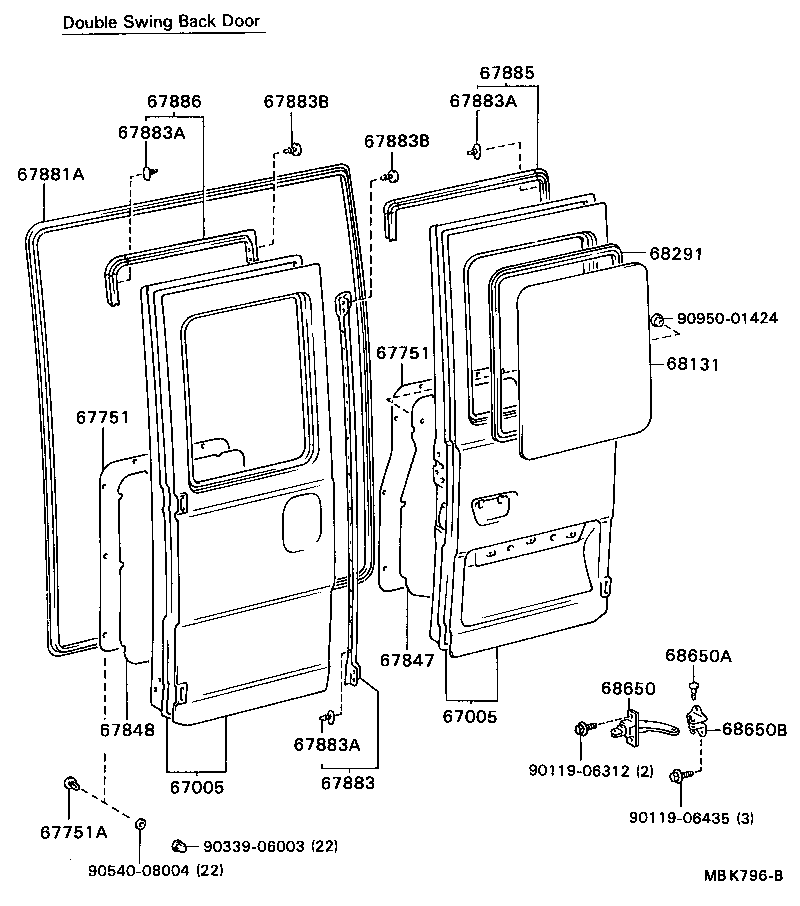

diagram 67005 67005 67751 67751 67751A 67847 67848 67881A 67883 67883A 67883A 67883A 67883B 67883B 67885 67886 68131 68291 68650 68650A 68650B 9011906312 9011906435 9033906003 9054008004 9095001424
Part # Description Qty Price
67005 - PANEL SUB-ASSY, BACK DOOR
67005-90B02

BB20,RB20..(22S,26S)..GEN

RH,*DSBD

 1
67006-90B00

BB20,RB20..(22S,26S)..GEN

LH,*DSBD

 1
67006-90B00

BB20,RB20..(17S,22S,26S)..(GEN,ME)

LH,*DSBD

 1
67008-90B03

BB20,21,FB30,HB30,RB20..16S,17S,20S,22S,23S,25S,26S,29S,30S

 1
67005 - PANEL SUB-ASSY, BACK DOOR
67005-90B02

BB20,RB20..(22S,26S)..GEN

RH,*DSBD

 1
67006-90B00

BB20,RB20..(22S,26S)..GEN

LH,*DSBD

 1
67006-90B00

BB20,RB20..(17S,22S,26S)..(GEN,ME)

LH,*DSBD

 1
67008-90B03

BB20,21,FB30,HB30,RB20..16S,17S,20S,22S,23S,25S,26S,29S,30S

 1
67751 - BOARD, BACK DOOR TRIM
67751-90B02

BB20,RB20..DLX..22S..GEN

 1
67751 - BOARD, BACK DOOR TRIM
67751-90B02

BB20,RB20..DLX..22S..GEN

 1
67751A - CLIP(FOR BACK DOOR TRIM BOARD)
90467-07039

BB20,RB20..(22S,26S)..GEN

*DSBD,DARK WINE

 22
90467-10025

BB20,RB20..DLX..22S..GEN

 15
67847 - COVER, BACK DOOR SERVICE HOLE, RH
67847-90B01

BB20,RB20..(22S,26S)..GEN

*DSBD

 1
67848 - COVER, BACK DOOR SERVICE HOLE, LH
67848-90B00

BB20,RB20..(22S,26S)..GEN

*DSBD

 1
67881A - WEATHERSTRIP, BACK DOOR
67881-90B03

BB20,RB20..(22S,26S)..GEN

*DSBD

 1
67881-90B00

BB20,21,FB30,HB30,RB20..16S,17S,20S,22S,23S,25S,26S,29S,30S

 1
67883 - WEATHERSTRIP, BACK DOOR, CENTER
67884-90B00

BB20,RB20..(22S,26S)..GEN

*DSBD

 1
67883A - RETAINER, BACK DOOR WEATHERSTRIP
67868-30040

BB2#,FB30,HB30,RB20

 11
67868-30040

BB20,RB20..(22S,26S)..GEN

*DSBD

 36
67883A - RETAINER, BACK DOOR WEATHERSTRIP
67868-30040

BB2#,FB30,HB30,RB20

 11
67868-30040

BB20,RB20..(22S,26S)..GEN

*DSBD

 36
67883A - RETAINER, BACK DOOR WEATHERSTRIP
67868-30040

BB2#,FB30,HB30,RB20

 11
67868-30040

BB20,RB20..(22S,26S)..GEN

*DSBD

 36
67883B - CLIP, BACK DOOR WEATHERSTRIP
67868-30030

BB20,RB20..(22S,26S)..GEN

*DSBD

 6
67883B - CLIP, BACK DOOR WEATHERSTRIP
67868-30030

BB20,RB20..(22S,26S)..GEN

*DSBD

 6
67885 - WEATHERSTRIP, BACK DOOR, RH
67882-90B03

BB20,RB20..(22S,26S)..GEN

*DSBD

 1
67886 - WEATHERSTRIP, BACK DOOR, LH
67883-90B00

BB20,RB20..(22S,26S)..GEN

*DSBD

 1
68131 - GLASS, BACK DOOR
68132-90B01

BB20,RB20..DLX..GEN

*TT,T=3.5,LH,*DSBD,*TT,T=3.5

 1
68131-90B03

BB20,RB20..DLX..GEN

*TT,T=3.5,RH,*DSBD,*TT,T=3.5

 1
68291 - WEATHERSTRIP, BACK DOOR GLASS
68291-90B00

BB20,RB20..(22S,26S)..GEN

*DSBD

 2
68650 - CHECK ASSY, BACK DOOR
68650-90B00

BB20,RB20..(17S,22S,26S)..(GEN,ME)

*DSBD

 2
68650-90B00

BB20,RB20..(22S,26S)..GEN

*DSBD

 2
68650A - PIN(FOR BACK DOOR CHECK)
68617-22010

BB20,RB20..(22S,26S)..GEN

*DSBD

 2
68617-22010

BB20,RB20..GEN

*DSBD

 2
68617-12010

BB20,RB20..GEN

*DSBD

 2
68617-90A00

BB20,RB20..(17S,22S,26S)..(GEN,ME)

*DSBD

 2
68617-90A01

BB20,RB20..17S,22S,26S

*DSBD

 2
68650B - BASE, BASE DOOR CHECK
68612-90B00

BB20,RB20..(22S,26S)..GEN

LH,*DSBD

 1
68611-90B01

BB20,RB20..(22S,26S)..GEN

RH,*DSBD

 1
Common parts
90119-06312
90119-06435
90339-06003
90540-08004
90950-01424
