BB20R-MDZER (1982)
Toyota Coaster
ILLUST NO. 1 OF 3(8205-8409) ; (8409- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04483 - SHACKLE KIT, REAR SPRING | ||||
| 04483-36040 |
BB2#,30,RB20 |
1 | ||
| 48046 - SEAT SUB-ASSY, SPRING U BOLT, RH | ||||
| 48046-36150 |
BB2#,3#,FB30,HB3#,HDB30,HZB30,RB20 |
1 | ||
| 48046A - BOLT, U(FOR REAR SPRING) | ||||
| 90118-16156 |
BB2#,30,RB20..DLX,STD L=220 |
4 | ||
| 90118-16156 |
BB20,RB20..DLX,STD L=220 |
4 | ||
| 48047 - SEAT SUB-ASSY, SPRING U BOLT, LH | ||||
| 48047-36150 |
BB2#,3#,FB30,HB3#,HDB30,HZB30,RB20 |
1 | ||
| 48210G - BUSH(FOR REAR SPRING SHACKLE LOWER) | ||||
| 90385-23037 |
BB20,30,RB20 |
4 | ||
| 48210G - BUSH(FOR REAR SPRING SHACKLE LOWER) | ||||
| 90385-23037 |
BB20,30,RB20 |
4 | ||
| 48306 - BUMPER SUB-ASSY, REAR SPRING | ||||
| 48306-36031 |
BB2#,3#,FB30,HB3#,HDB30,HZB30,RB20 |
2 | ||
| 48344 - STOPPER, BUMPER, REAR | ||||
| 48344-36120 |
BB20,22,30,RB20 |
2 | ||
| 48401 - BRACKET SUB-ASSY, REAR SPRING, FRONT RH | ||||
| 48414-36140 |
BB2#,30,RB20 |
1 | ||
| 48402 - BRACKET SUB-ASSY, REAR SPRING, FRONT LH | ||||
| 48415-36050 |
BB2#,30,RB20 |
1 | ||
| 48404 - BRACKET SUB-ASSY, REAR SPRING, REAR RH | ||||
| 48416-36150 |
BB20,30,RB20 |
1 | ||
| 48405 - BRACKET SUB-ASSY, REAR SPRING, REAR LH | ||||
| 48417-36050 |
BB20,30,RB20 |
1 | ||
| 48422A - SUPPORT, REAR SPRING PIN | ||||
| 48422-36030 |
BB2#,3#,FB30,HB3#,HDB30,HZB30,RB20 |
4 | ||
| 48516 - BRACKET, REAR SHOCK ABSORBER, UPPER RH | ||||
| 48505-36040 |
BB20,22,30,RB20 |
1 | ||
| 48517 - BRACKET, REAR SHOCK ABSORBER, UPPER LH | ||||
| 48505-36040 |
BB20,22,30,RB20 |
1 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48531-39525 |
BB20,21,22,30,FB30,HB3# |
1 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-16007 |
BB2#,3#,FB30,HB3#,HDB30,HZB30,RB20 |
8 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-16007 |
BB2#,3#,FB30,HB3#,HDB30,HZB30,RB20 |
8 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-16007 |
BB2#,3#,FB30,HB3#,HDB30,HZB30,RB20 |
8 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-16007 |
BB2#,3#,FB30,HB3#,HDB30,HZB30,RB20 |
8 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-03003 |
BB2#,3#,FB30,HB3#,HDB30,HZB30,RB20 |
2 | ||
| 48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2 | ||||
| 90948-03004 |
BB2#,3#,FB30,HB3#,HDB30,HZB30,RB20 |
2 | ||
| 48530D - WASHER, REAR SHOCK ABSORBER CUSHION, NO.3 | ||||
| 90948-03003 |
BB2#,3#,FB30,HB3#,HDB30,HZB30,RB20 |
2 | ||
| 48530E - WASHER, REAR SHOCK ABSORBER CUSHION, NO.4 | ||||
| 90948-03004 |
BB2#,3#,FB30,HB3#,HDB30,HZB30,RB20 |
2 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48531-39525 |
BB20,21,22,30,FB30,HB3# |
1 | ||
| Common parts | ||||
| 90101-16002 | ||||
| 90105-16008 | ||||
| 90170-16139 | ||||
| 91651-60820 | ||||
| 94115-41200 | ||||
| 94115-41600 | ||||
| 94184-01600 | ||||
| 94512-01600 | ||||
| 94531-01200 | ||||
| 94612-11600 | ||||
| 94622-11600 | ||||

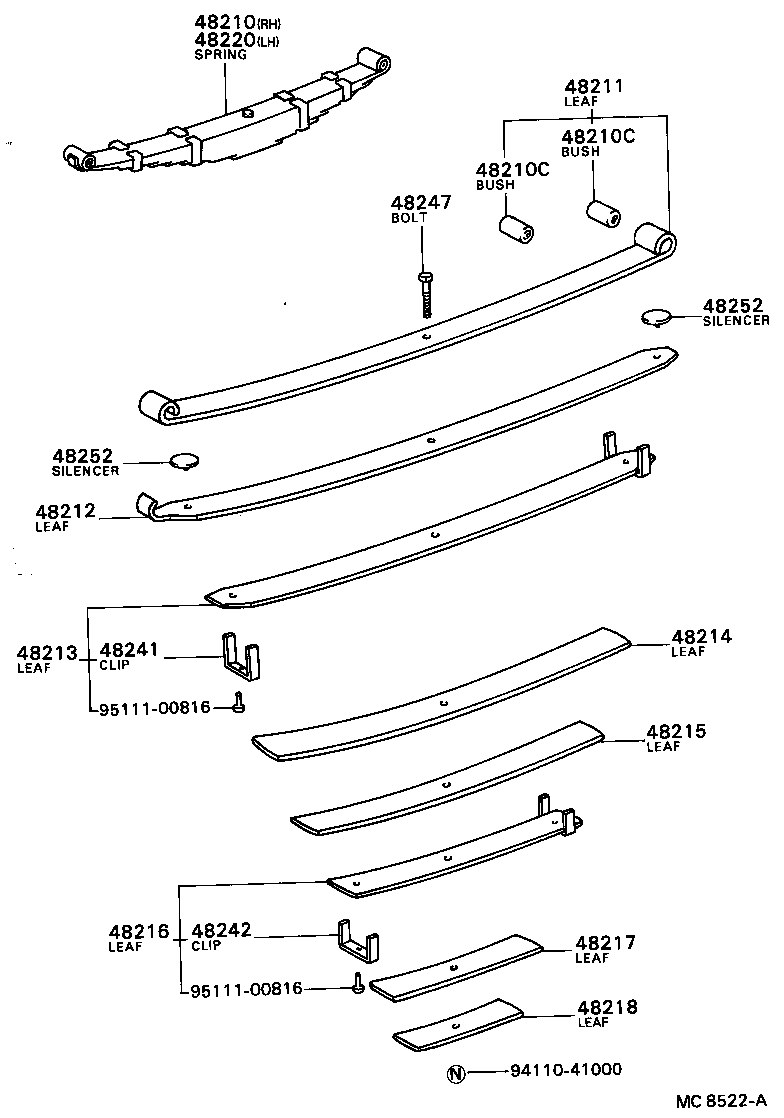

ILLUST NO. 2 OF 3(8205- )BB2# ; (8205- )RB20..WOC ; (8610-)HB30,HZB30..ARL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-36490 |
BB20..RHD |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16005 |
HZB30..ARL;BB20,21,22,30,FB30,HB3#,HDB30,RB20 FR |
2 | ||
| 90389-16006 |
BB20,30,RB20 RR |
2 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16005 |
HZB30..ARL;BB20,21,22,30,FB30,HB3#,HDB30,RB20 FR |
2 | ||
| 90389-16006 |
BB20,30,RB20 RR |
2 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-36500 |
BB20,RB20..RHD..(DLX,STD) LH |
1 | ||
| 48201-36490 |
BB20,RB20..RHD..(DLX,STD) RH |
1 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-36490 |
BB20,RB20..RHD..(DLX,STD) RH |
1 | ||
| 48212-36500 |
BB20,RB20..RHD..(DLX,STD) LH |
1 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48202-36500 |
BB20,RB20..RHD..(DLX,STD) LH |
1 | ||
| 48202-36490 |
BB20,RB20..RHD..(DLX,STD) RH |
1 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-36490 |
BB20,RB20..RHD..(DLX,STD) RH |
1 | ||
| 48214-36500 |
BB20,RB20..RHD..(DLX,STD) LH |
1 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48215-36490 |
BB20..RHD RH |
1 | ||
| 48215-36500 |
BB20..RHD LH |
1 | ||
| 48216 - LEAF, REAR SPRING, NO.6 | ||||
| 48203-36490 |
BB20,RB20..RHD..(DLX,STD) RH |
1 | ||
| 48203-36500 |
BB20,RB20..RHD..(DLX,STD) LH |
1 | ||
| 48217 - LEAF, REAR SPRING, NO.7 | ||||
| 48217-36500 |
BB20,RB20..RHD..(DLX,STD) LH |
1 | ||
| 48217-36490 |
BB20,RB20..RHD..(DLX,STD) RH |
1 | ||
| 48218 - LEAF, REAR SPRING, NO.8 | ||||
| 48218-36500 |
BB20,RB20..RHD..(DLX,STD) LH |
1 | ||
| 48218-36490 |
BB20,RB20..RHD..(DLX,STD) RH |
1 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-36500 |
BB20..RHD |
1 | ||
| 48241 - CLIP, REAR SPRING, NO.1 | ||||
| 48241-36500 |
BB20,30,RB20..DLX,STD |
4 | ||
| 48242 - CLIP, REAR SPRING, NO.2 | ||||
| 48242-36500 |
BB20;RB20..WOC |
4 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-36500 |
BB20;RB20..WOC |
2 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-36500 |
BB20,21,23,RB20 |
4 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-36500 |
BB20,21,23,RB20 |
4 | ||
| Common parts | ||||
| 94110-41000 | ||||
| 95111-00816 | ||||
