BB20R-MDZER (1982)

Toyota Coaster

Production May 1982 - Oct 1986
Engine 3B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8205-8302)BB20..RHD..GEN ; (8302- )BB2#,30..GEN,ME ; (8610- )HB3#

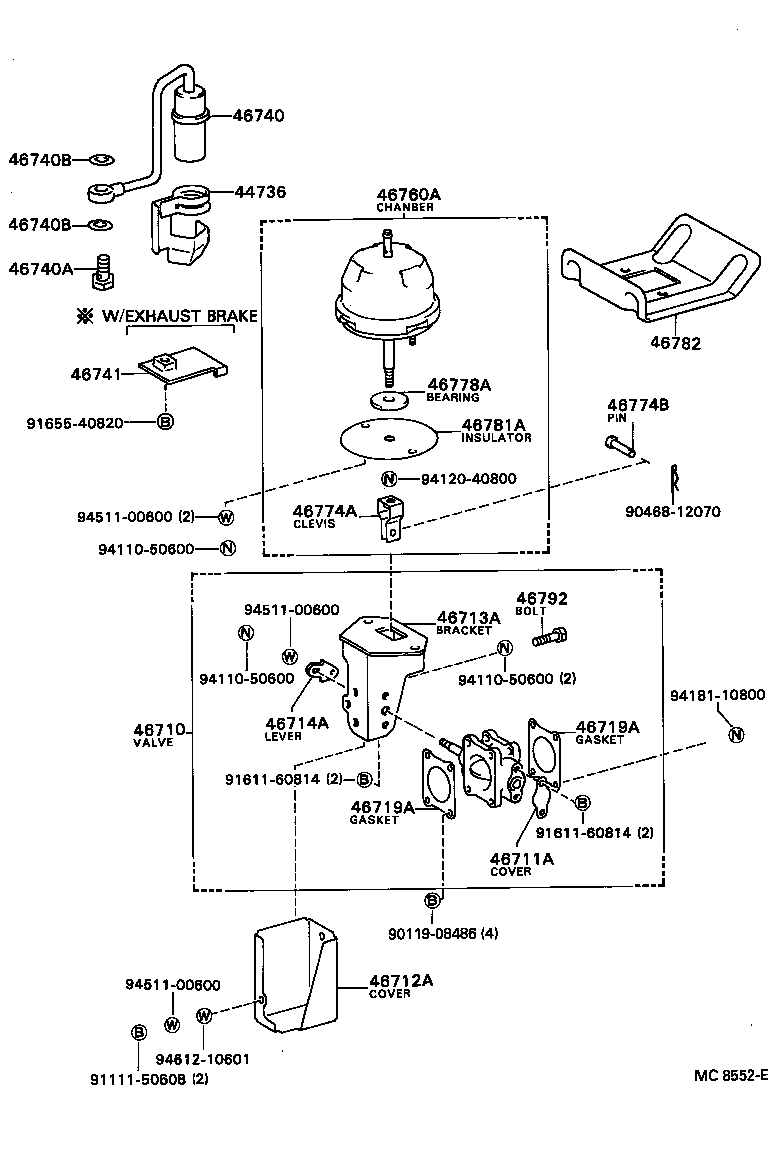

Click highlighted areas on diagram

diagram 44736 46710 46711A 46712A 46713A 46714A 46719A 46719A 46740 46740A 46740B 46740B 46741 46760A 46774A 46774B 46778A 46781A 46782 46792 9011908486 9046812070 9111150608 9161160814 9161160814 9165540820 9411050600 9411050600 9411050600 9412040800 9418110800 9451100600 9451100600 9451100600 9461210601
Part # Description Qty Price
44736 - BRACKET, AIR CLEANER
44736-36040

BB20..RHD..GEN

 1
46710 - VALVE ASSY, EXHAUST BRAKE
46710-36050

BB20..RHD..GEN

 1
46711A - COVER, EXHAUST BRAKE SHAFT
46711-36050

BB20..RHD..GEN

 1
46712A - COVER, EXHAUST BRAKE BRACKET
46712-36050

BB20..RHD..GEN

 1
46713A - BRACKET, EXHAUST BRAKE CHAMBER
46713-36050

BB20..RHD..GEN

 1
46714A - LEVER, EXHAUST BRAKE
46714-36050

BB20..RHD..GEN

 1
46719A - GASKET, EXHAUST RETARDER
46719-36050

BB20..RHD..GEN

 2
46719A - GASKET, EXHAUST RETARDER
46719-36050

BB20..RHD..GEN

 2
46740 - CLEANER ASSY, EXHAUST RETARDER
46740-36040

BB20..RHD..GEN

 1
46740A - BOLT, UNION(FOR EXHAUST BRAKE CLEANER ASSY)
90401-12005

BB20..RHD..GEN

 1
46740B - GASKET(FOR EXHAUST BRAKE CLEANER ASSY)
90430-12247

BB20..RHD..GEN

 2
46740B - GASKET(FOR EXHAUST BRAKE CLEANER ASSY)
90430-12247

BB20..RHD..GEN

 2
46760A - CHAMBER ASSY, EXHAUST BRAKE
46760-36050

BB20..RHD..GEN

 1
46774A - CLEVIS, EXHAUST BRAKE ROD
46774-36050

BB20..RHD..GEN

 1
46774B - PIN, W/HOLE(FOR EXHAUST BRAKE ROD CLEVIS)
90240-08094

BB20..RHD..GEN

 1
46778A - BEARING, EXHAUST BRAKE CHAMBER ROD
46778-36050

BB20..RHD..GEN

 1
46781A - INSULATOR, EXHAUST BRAKE CHAMBER
46781-36050

BB20..RHD..GEN

 1
46792 - BOLT, EXHAUST VALVE STOPPER
46792-36050

BB20..RHD..GEN

 2
Common parts
90119-08486
90468-12070
91111-50608
91611-60814
91655-40820
94110-50600
94120-40800
94181-10800
94511-00600
94612-10601
