BB20R-MDZER (1982)

Toyota Coaster

Production May 1982 - Oct 1986
Engine 3B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8205-8302)BB20..RHD..GEN ; (8302- )BB2#,3#,HB3#,HDB30,HZB30

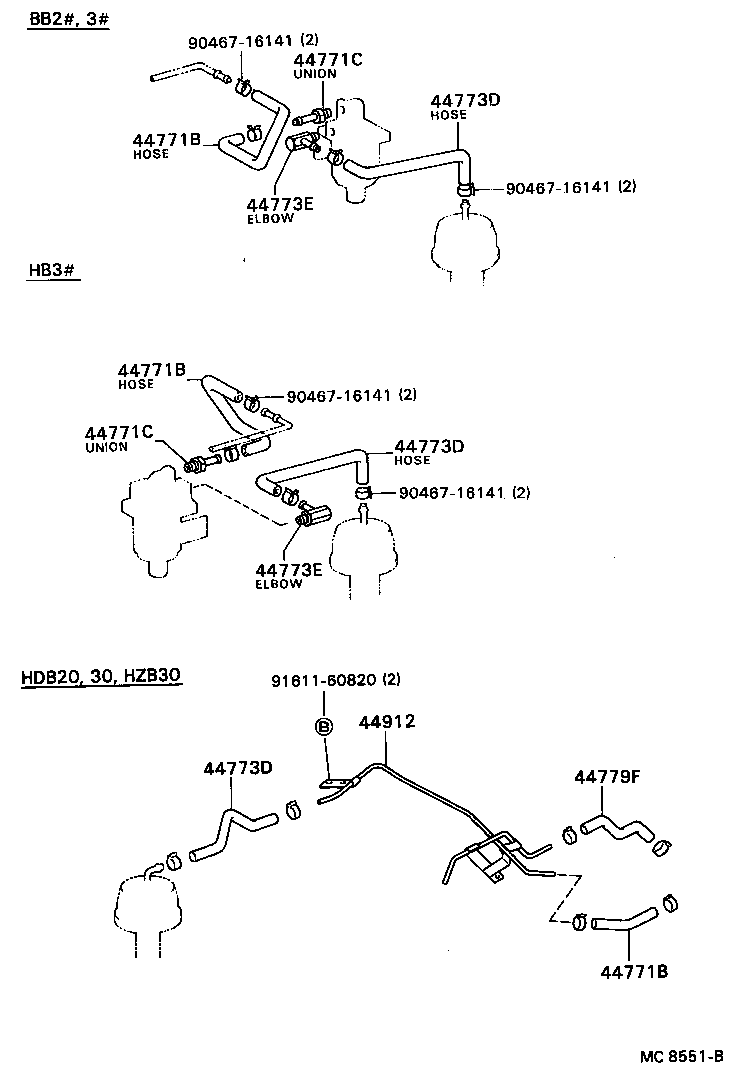

Click highlighted areas on diagram

diagram 44771B 44771B 44771B 44771C 44771C 44773D 44773D 44773D 44773E 44773E 44779F 44912 9046716141 9046716141 9046716141 9046716141 9161160820
Part # Description Qty Price
44771B - HOSE, VACUUM TUBE CONNECTOR
44771-36040

BB20..RHD..GEN

 1
44771B - HOSE, VACUUM TUBE CONNECTOR
44771-36040

BB20..RHD..GEN

 1
44771B - HOSE, VACUUM TUBE CONNECTOR
44771-36040

BB20..RHD..GEN

 1
44771C - UNION(FOR VACUUM TUBE CONNECTOR HOSE)
90404-51319

BB20..RHD..GEN

 1
44771C - UNION(FOR VACUUM TUBE CONNECTOR HOSE)
90404-51319

BB20..RHD..GEN

 1
44773D - HOSE, SOLENOIDO TO RETARDER
44773-36010

BB20..RHD..GEN

 1
44773-36010

BB20,30..GEN

 1
44773D - HOSE, SOLENOIDO TO RETARDER
44773-36010

BB20..RHD..GEN

 1
44773-36010

BB20,30..GEN

 1
44773D - HOSE, SOLENOIDO TO RETARDER
44773-36010

BB20..RHD..GEN

 1
44773-36010

BB20,30..GEN

 1
44773E - ELBOW(FOR SOLENOIDO TO RETARDER HOSE)
90407-51002

BB20..RHD..GEN

 1
44773E - ELBOW(FOR SOLENOIDO TO RETARDER HOSE)
90407-51002

BB20..RHD..GEN

 1
Common parts
90467-16141
91611-60820
