BB20R-MDZER (1982)

Toyota Coaster

Production May 1982 - Oct 1986
Engine 3B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8205-8510)

Click highlighted areas on diagram

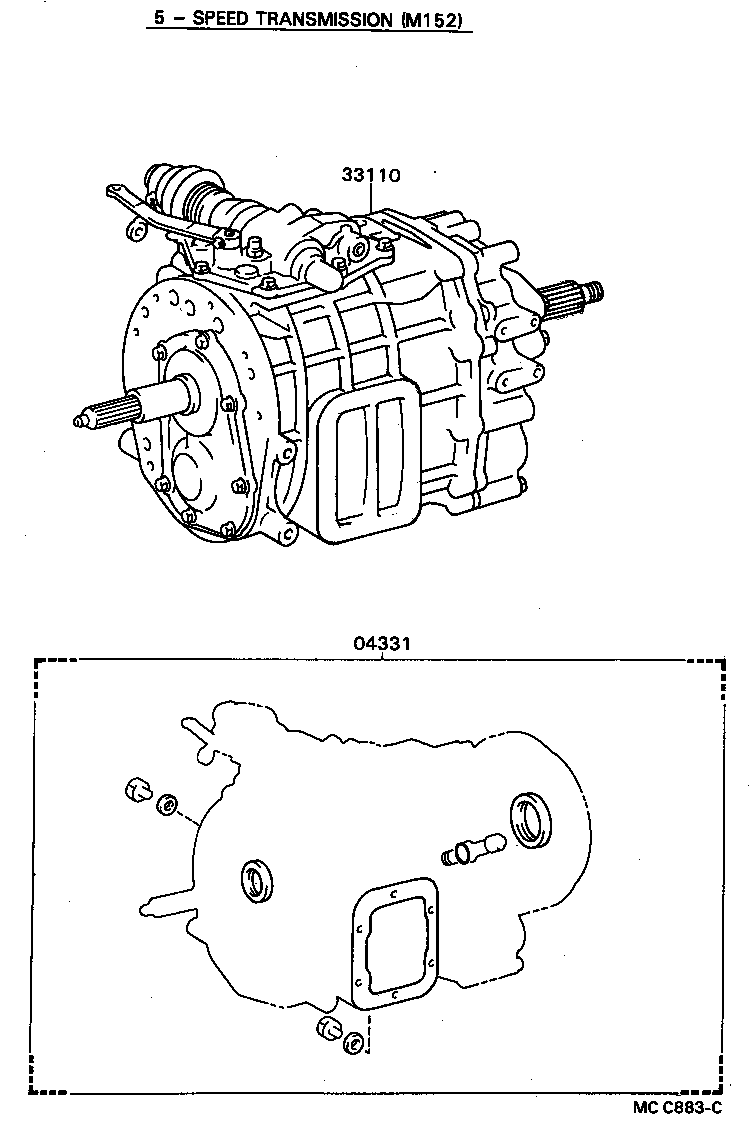

diagram 04331 33110
Part # Description Qty Price
04331 - GASKET KIT, MANUAL TRANSMISSION OVERHAUL
04331-36041

BB20,30,RB20..5F

 1
33110 - TRANSMISSION ASSY, MANUAL
33110-3C170

BB20..20S..WC;BB20..RHD..(16S,22S,26S)

SMG R=19:5

 1
33110-3C270

BB20..RHD..GEN

SMG R=19:5,W/EXHAUST BRAKE

 1
33110-3C180

BB20..RHD..WC..GEN

SMG R=16:4

 1
33110-3C280

BB20..RHD..WC..GEN

SMG R=16:4,W/EXHAUST BRAKE

 1
33120-3C902

BB20..GEN

*AXC=L154OR L264

 1
33120-3C904

BB20..GEN

*AXC=L154 OR L264,W/*EB

 1
33120-3C903

BB20..WC..GEN

*AXC=L194,W/O*EB

 1
33120-3C905

BB20..WC..GEN

*AXC=L194,W/*EB

 1
33110-3E450

BB2#..GEN

SMG=23:6,24:6,W/*EB

 1
33110-3E440

BB20..GEN,ME

SMG R=20:6,21:6,22:6,W/*EB

 1

(8510- )

Click highlighted areas on diagram

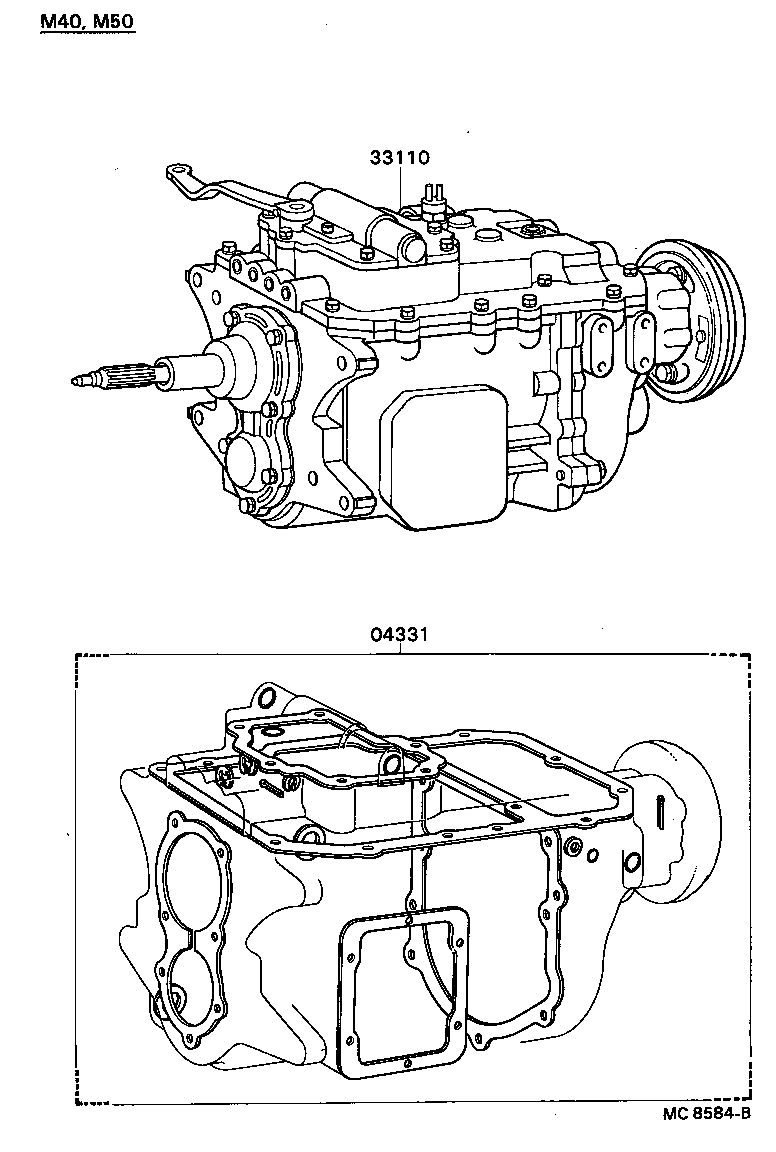

diagram 04331 33110
Part # Description Qty Price
04331 - GASKET KIT, MANUAL TRANSMISSION OVERHAUL
04331-36041

BB20,30,RB20..5F

 1
33110 - TRANSMISSION ASSY, MANUAL
33110-3C170

BB20..20S..WC;BB20..RHD..(16S,22S,26S)

SMG R=19:5

 1
33110-3C270

BB20..RHD..GEN

SMG R=19:5,W/EXHAUST BRAKE

 1
33110-3C180

BB20..RHD..WC..GEN

SMG R=16:4

 1
33110-3C280

BB20..RHD..WC..GEN

SMG R=16:4,W/EXHAUST BRAKE

 1
33120-3C902

BB20..GEN

*AXC=L154OR L264

 1
33120-3C904

BB20..GEN

*AXC=L154 OR L264,W/*EB

 1
33120-3C903

BB20..WC..GEN

*AXC=L194,W/O*EB

 1
33120-3C905

BB20..WC..GEN

*AXC=L194,W/*EB

 1
33110-3E450

BB2#..GEN

SMG=23:6,24:6,W/*EB

 1
33110-3E440

BB20..GEN,ME

SMG R=20:6,21:6,22:6,W/*EB

 1
