BB20R-MDZER (1982)
Toyota Coaster
Production
May 1982
-
Oct 1986
Engine
3B
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(8205-9001)BB2#,3#

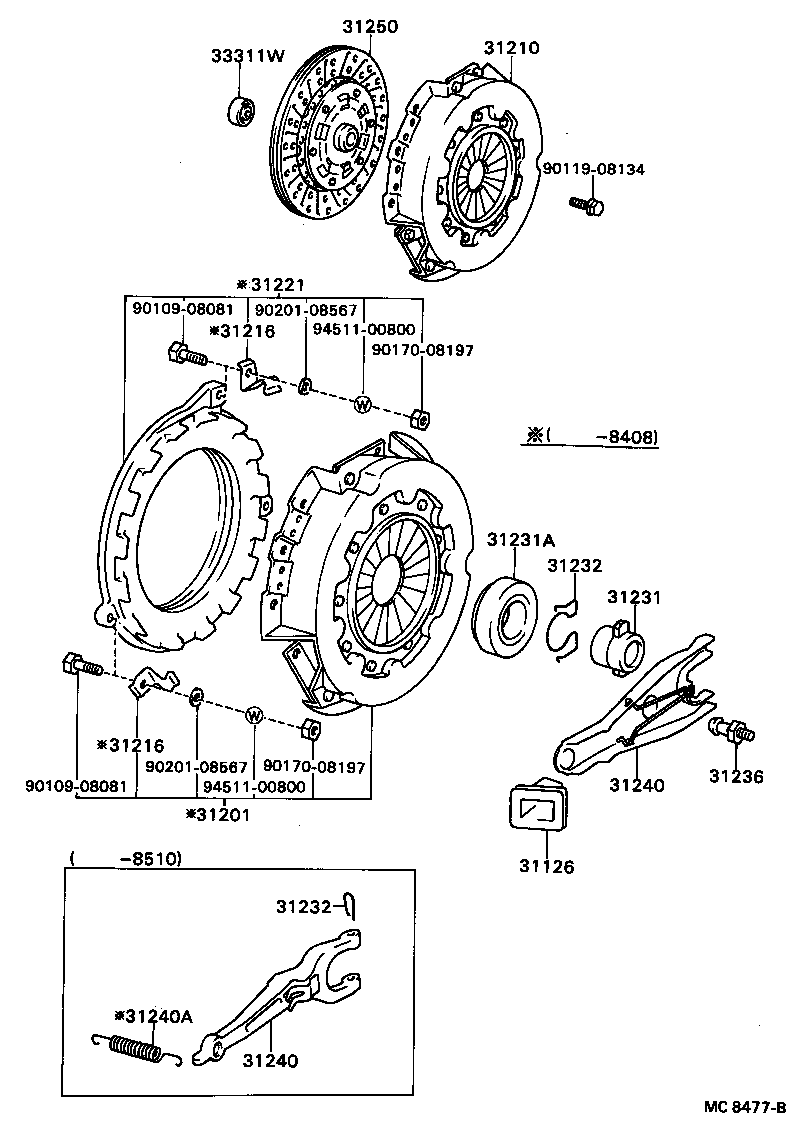

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31126 - BOOT, CLUTCH RELEASE FORK | ||||
| 31126-20050 |
BB20,30,RB20 |
1 | ||
| 31201 - COVER SUB-ASSY, CLUTCH | ||||
| 31201-39115 |
BB20,30 |
1 | ||
| 31210 - COVER ASSY, CLUTCH | ||||
| 31210-36090 |
BB20,30 |
1 | ||
| 31216 - SPRING, CLUTCH RETRACTING | ||||
| 31216-36010 |
BB20,30 |
3 | ||
| 31216 - SPRING, CLUTCH RETRACTING | ||||
| 31216-36010 |
BB20,30 |
3 | ||
| 31221 - PLATE, CLUTCH PRESSURE | ||||
| 31221-39125 |
BB20,30 |
1 | ||
| 31231 - HUB, CLUTCH RELEASE BEARING | ||||
| 31231-36062 |
BB20,30 |
1 | ||
| 31231A - BEARING, BALL(FOR CLUTCH RELEASE HUB) | ||||
| 90363-45002 |
BB2#,3# |
1 | ||
| 31232 - CLIP OR SPRING, RELEASE BEARING HUB | ||||
| 31232-30010 |
BB20,RB20 |
2 | ||
| 31232-30010 |
BB20,30 |
2 | ||
| 31232 - CLIP OR SPRING, RELEASE BEARING HUB | ||||
| 31232-30010 |
BB20,RB20 |
2 | ||
| 31232-30010 |
BB20,30 |
2 | ||
| 31236 - BALL, RELEASE FORK | ||||
| 31236-30040 |
BB20,30 |
1 | ||
| 31240 - FORK ASSY, CLUTCH RELEASE | ||||
| 31204-25010 |
BB20,30 |
1 | ||
| 31240 - FORK ASSY, CLUTCH RELEASE | ||||
| 31204-25010 |
BB20,30 |
1 | ||
| 31240A - SPRING, TENSION(FOR CLUTCH RELEASE FORK RETURN) | ||||
| 90506-16004 |
BB20,30,RB20 |
1 | ||
| 31250 - DISC ASSY, CLUTCH | ||||
| 31250-36113 |
BB20,30 |
1 | ||
| 31250-36230 |
BB20,30 |
1 | ||
| 31250-36161 |
BB20,30 |
1 | ||
| 31250-60090 |
BB2#,30 |
1 | ||
| 31250-36280 |
BB2#,30 |
1 | ||
| 31250-36300 |
BB2#,30 |
1 | ||
| 33311W - BEARING (FOR INPUT SHAFT) | ||||
| 90363-12002 |
BB2#,3#,RB20..5F |
1 | ||
| Common parts | ||||
| 90109-08081 | ||||
| 90119-08134 | ||||
| 90170-08197 | ||||
| 90201-08567 | ||||
| 94511-00800 | ||||
