BB20R-MDZER (1982)
Toyota Coaster
Production
May 1982
-
Oct 1986
Engine
3B
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

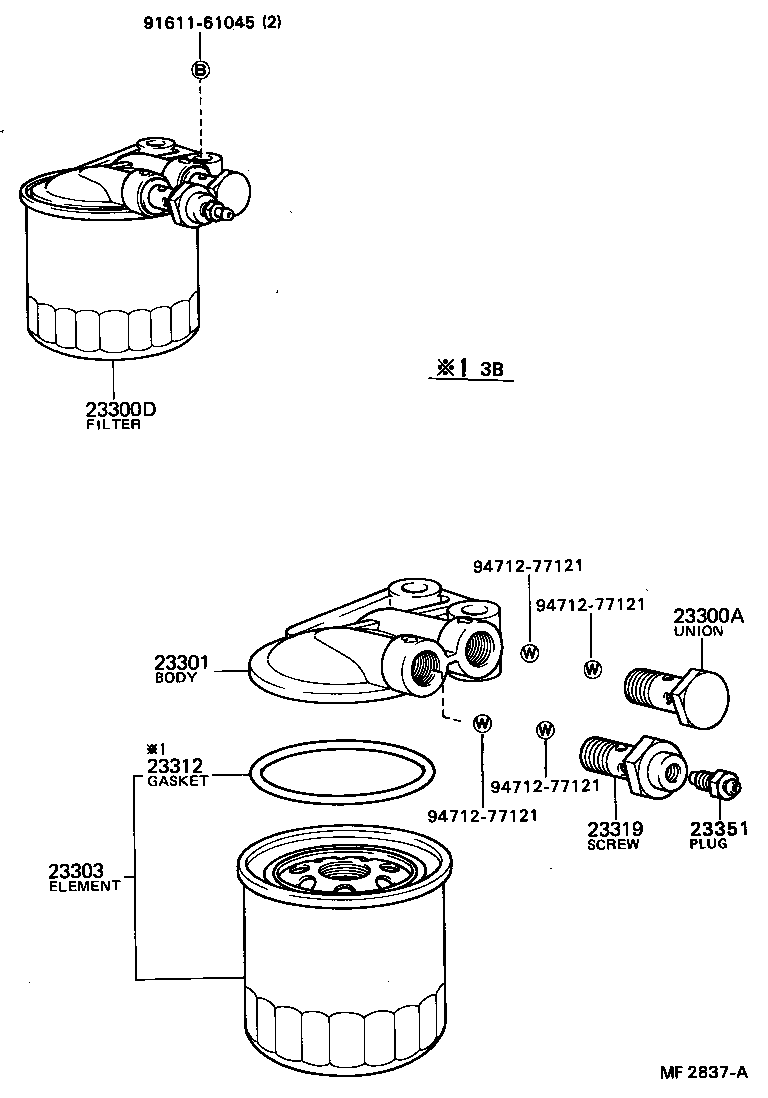

ILLUST NO. 1 OF 2(8205-8808)13B,3B
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23300A - UNION, NIPPLE(FOR FUEL FILTER INLET) | ||||
| 90401-14060 |
13B,3B..BB2#,30 |
1 | ||
| 23300D - FILTER ASSY, FUEL(FOR DIESEL) | ||||
| 23300-56040 |
3B..BB20,21,30 |
1 | ||
| 23301 - BODY SUB-ASSY, FUEL FILTER | ||||
| 23311-56040 |
3B..BB20,21,30 |
1 | ||
| 23303 - ELEMENT SUB-ASSY, FUEL FILTER | ||||
| 23303-56031 |
3B..BB20,21,30 |
1 | ||
| 23312 - GASKET, FILTER BOWL | ||||
| 23312-56021 |
3B..BB20,21,30 |
1 | ||
| 23319 - SCREW, FUEL PIPE FOLLOW | ||||
| 23319-48010 |
13B,3B..BB2#,30 |
1 | ||
| 23351 - PLUG, AIR VENT | ||||
| 47547-12030 |
13B,3B..BB2#,30 FILTER |
1 | ||
| 23351-54010 |
13B,3B..BB2#,30 SEDIMENTER |
2 | ||
| Common parts | ||||
| 91611-61045 | ||||
| 94712-77121 | ||||

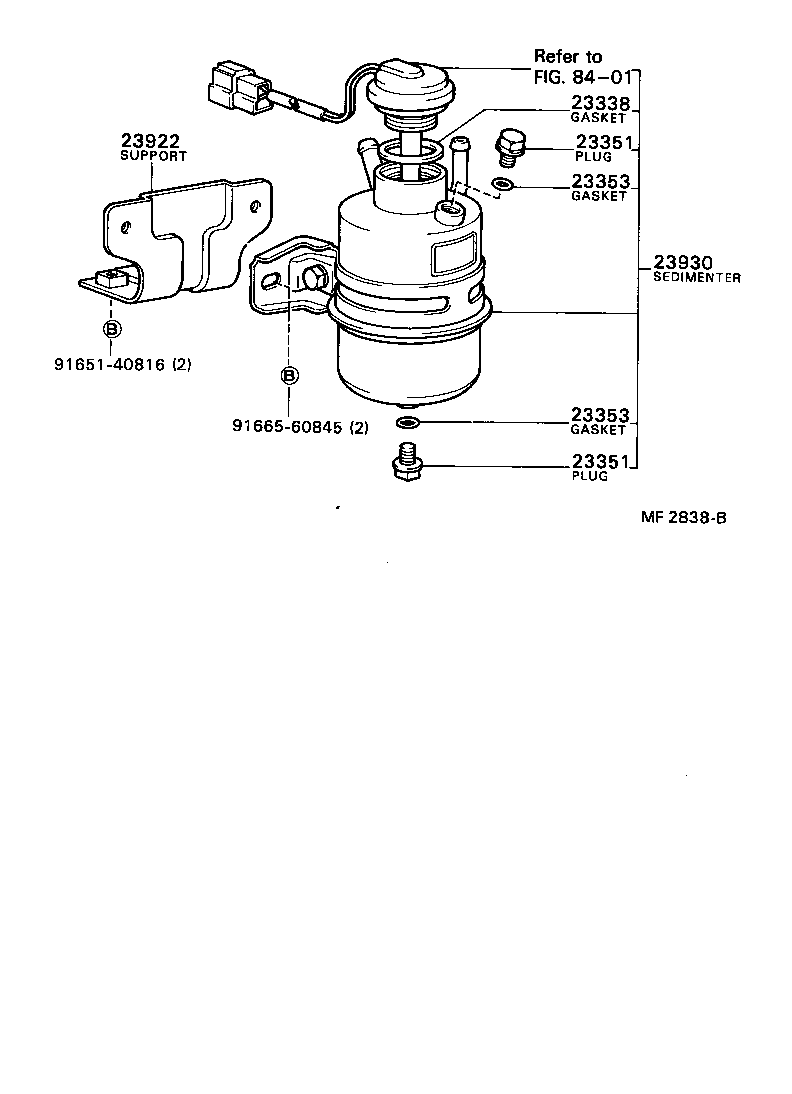

ILLUST NO. 2 OF 2(8205-8808)13B,3B
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23338 - GASKET(FOR WARNING SWITCH) | ||||
| 23338-54010 |
13B,3B..BB2#,30 |
1 | ||
| 23338-54010 |
13B,3B..BB2#,30 |
1 | ||
| 23351 - PLUG, AIR VENT | ||||
| 47547-12030 |
13B,3B..BB2#,30 FILTER |
1 | ||
| 47547-12030 |
13B,3B..BB2#,30 FILTER |
1 | ||
| 23351-54010 |
13B,3B..BB2#,30 SEDIMENTER |
2 | ||
| 23351-54010 |
13B,3B..BB2#,30 SEDIMENTER |
2 | ||
| 23351 - PLUG, AIR VENT | ||||
| 47547-12030 |
13B,3B..BB2#,30 FILTER |
1 | ||
| 47547-12030 |
13B,3B..BB2#,30 FILTER |
1 | ||
| 23351-54010 |
13B,3B..BB2#,30 SEDIMENTER |
2 | ||
| 23351-54010 |
13B,3B..BB2#,30 SEDIMENTER |
2 | ||
| 23353 - RING, O(FOR AIR VENT PLUG) | ||||
| 23353-54010 |
13B,3B..BB2#,30 W/SEDIMENTER |
2 | ||
| 23353-54010 |
13B,3B..BB2#,30 W/SEDIMENTER |
2 | ||
| 23353 - RING, O(FOR AIR VENT PLUG) | ||||
| 23353-54010 |
13B,3B..BB2#,30 W/SEDIMENTER |
2 | ||
| 23353-54010 |
13B,3B..BB2#,30 W/SEDIMENTER |
2 | ||
| 23922 - SUPPORT, FUEL SEDIMENTER | ||||
| 23922-58010 |
13B,3B..BB2#,30 |
1 | ||
| 23922-58010 |
13B,3B..BB2#,30 |
1 | ||
| 23930 - SEDIMENTER ASSY, FUEL | ||||
| 23930-58030 |
13B,3B..BB2#,30 |
1 | ||
| 23930-58030 |
13B,3B..BB2#,30 |
1 | ||
| Common parts | ||||
| 91651-40816 | ||||
| 91665-60845 | ||||
| Linked diagrams | ||||
| 8401 | ||||
