BB20R-MDZER (1982)

Toyota Coaster

Production May 1982 - Oct 1986
Engine 3B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8205-8808)13B,3B

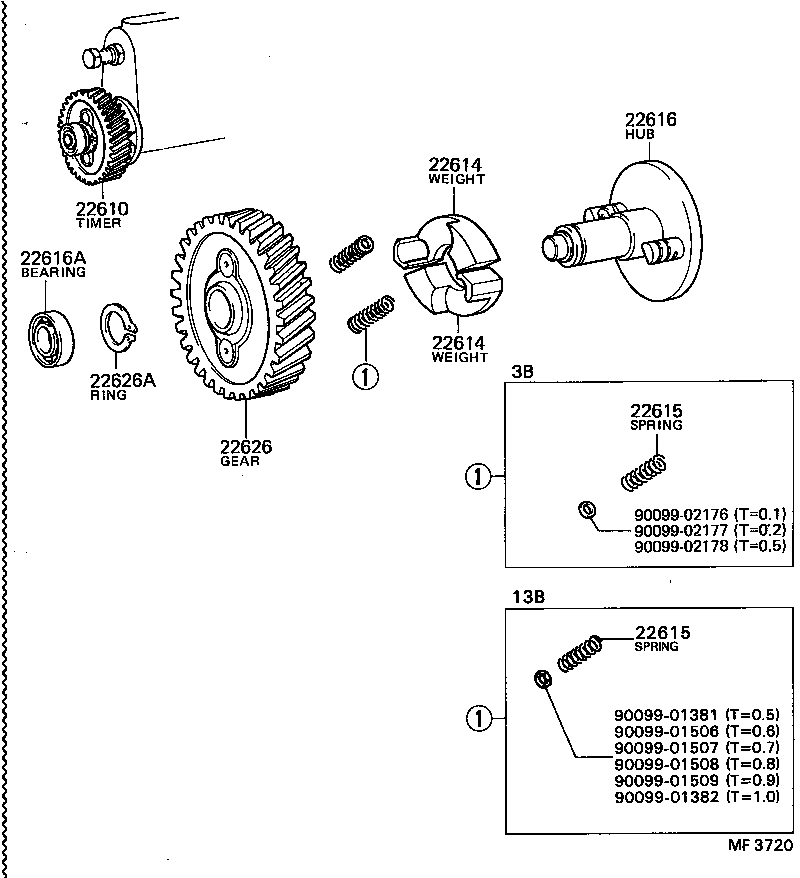

Click highlighted areas on diagram

diagram 22610 22614 22614 22615 22615 22616 22616A 22626 22626A 9009901381 9009901382 9009901506 9009901507 9009901508 9009901509 9009902176 9009902177 9009902178
Part # Description Qty Price
22610 - TIMER ASSY, AUTOMATIC
22610-56040

3B..BB20,30

 1
22614 - WEIGHT, TIMER
22614-56020

3B..BB20,21,30

 2
22614 - WEIGHT, TIMER
22614-56020

3B..BB20,21,30

 2
22615 - SPRING, TIMER
22615-56040

3B..BB20,21,30

 2
22615 - SPRING, TIMER
22615-56040

3B..BB20,21,30

 2
22616 - HUB, TIMER
22616-56030

3B..BB20,21,30

 1
22616A - BEARING(FOR TIMER HUB)
90099-10018

13B,3B..BB2#,30

 1
22626 - GEAR, DRIVE
22626-56030

3B..BB20,30

 1
22626A - RING, CLAMP(FOR DRIVE GEAR)
90096-90001

13B,3B..BB2#,30

 1
Common parts
90099-01381
90099-01382
90099-01506
90099-01507
90099-01508
90099-01509
90099-02176
90099-02177
90099-02178
