BB20R-MDZER (1982)

Toyota Coaster

Production May 1982 - Oct 1986
Engine 3B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8205-8808)3B

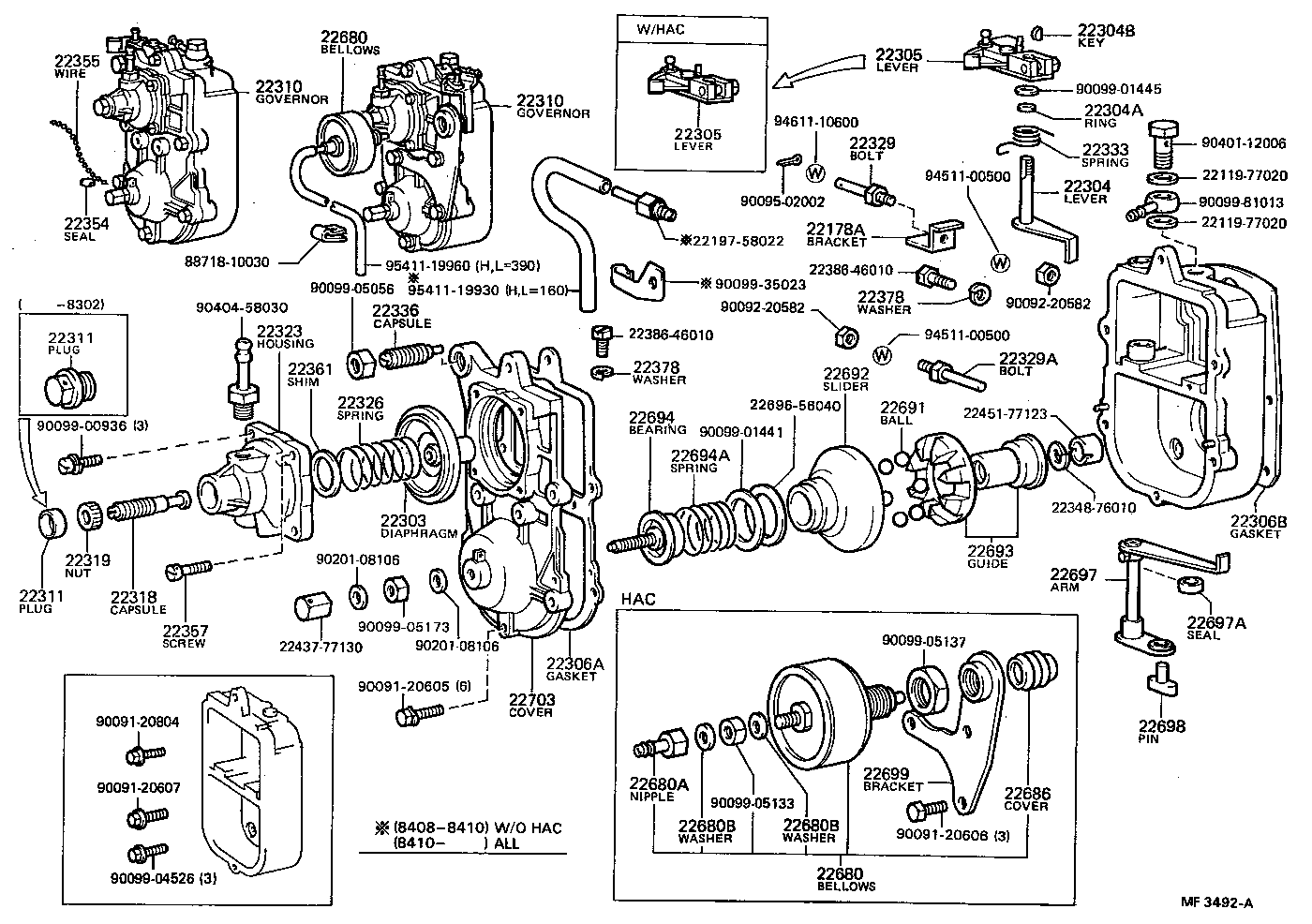

Click highlighted areas on diagram

diagram 2211977020 2211977020 22178A 2219758022 22303 22304 22304A 22304B 22305 22305 22306A 22306B 22310 22310 22311 22311 22318 22319 22323 22326 22329 22329A 22333 22336 2234876010 22354 22355 22357 22361 22378 22378 2238646010 2238646010 2243777130 2245177123 22680 22680 22680A 22680B 22680B 22686 22691 22692 22693 22694 22694A 2269656040 22697 22697A 22698 22699 22703 8871810030 9009120605 9009120606 9009120607 9009120804 9009220582 9009220582 9009502002 9009900936 9009901441 9009901445 9009904526 9009905056 9009905133 9009905137 9009905173 9009935023 9009981013 9020108106 9020108106 9040112006 9040458030 9451100500 9451100500 9461110600 9541119930 9541119960
Part # Description Qty Price
22178A - BRACKET, DIAPHRAGM CONNECTING
22178-56011

3B..BB20,21,30

 1
22303 - DIAPHRAGM SUB-ASSY, GOVERNOR
22303-47010

3B..BB20,21,30

 1
22304 - LEVER SUB-ASSY, INJECTION PUMP, NO.3
22408-68010

3B..BB20,21,30

 1
22304A - RING, O(FOR NO.3 LEVER)
96710-01008

3B..BB20,21,30

 1
22304B - KEY(FOR NO.3 LEVER)
90099-13001

3B..BB20,21,30

 1
22305 - LEVER SUB-ASSY, INJECTION PUMP, NO.1
22308-57020

3B..BB20,21..GEN,ME

W/HAC

 1
22308-56041

3B..BB20,21,30

 1
22305 - LEVER SUB-ASSY, INJECTION PUMP, NO.1
22308-57020

3B..BB20,21..GEN,ME

W/HAC

 1
22308-56041

3B..BB20,21,30

 1
22306A - GASKET(FOR GOVERNOR HOUSING)
22442-77130

3B..BB20,21,30

 1
22306B - GASKET(FOR INJECTION PUMP HOUSING)
22442-77131

3B..BB20,21,30

 1
22310 - GOVERNOR ASSY, INJECTION PUMP
22320-58010

3B..BB20,30

 1
22320-58070

3B..BB20..GEN

W/HAC

 1
22310 - GOVERNOR ASSY, INJECTION PUMP
22320-58010

3B..BB20,30

 1
22320-58070

3B..BB20..GEN

W/HAC

 1
22311 - PLUG, DIAPHRAGM HOUSING SEALING SCREW
22311-77130

3B..BB20

 1
22311 - PLUG, DIAPHRAGM HOUSING SEALING SCREW
22311-77130

3B..BB20

 1
22318 - CAPSULE, IDLING
22318-48030

3B..BB20,21,30

 1
22319 - NUT, GOVERNOR IDLING SPRING SET
22319-77010

3B..BB20,21,30

 1
22323 - HOUSING, GOVERNOR DIAPHRAGM
22323-77010

3B..BB20

 1
22326 - SPRING, GOVERNOR MAIN
22326-58010

3B..BB20,21,30

 1
22329 - BOLT, DIAPHRAGM CONNECTING
22329-77021

3B..BB20,21,30

 1
22329A - BOLT, DIAPHRAGM CONNECTING, NO.2
22329-77130

3B..BB20,21,30

 1
22333 - SPRING, DIAPHRAGM STOP LEVER RETURN
22333-56040

3B..BB20,21,30

 1
22336 - CAPSULE, FULL STOP
22336-46010

3B..BB20,30

W/O HAC

 1
22354 - SEAL, LEAD
22354-77050

3B..BB20,21,30

 4
22355 - WIRE, GOVERNOR HOUSING SEAL
22355-36010

3B..BB20,21,30

 4
22357 - SCREW, DIAPHRAGM HOUSING SET
90099-04945

3B..BB20,21,30

 1
22361 - SHIM, MAIN SPRING
22361-76010

3B..BB20,21,30

T=3.0,T=3.0

 2
22362-76010

3B..BB20,21,30

T=2.0,T=2.0

 2
22364-76010

3B..BB20,21,30

T=0.5,T=0.5

 2
22363-76010

3B..BB20,21,30

T=1.0,T=1.0

 2
22378 - WASHER, DRAIN SCREW
22378-76010

3B..BB20,30

 2
22378 - WASHER, DRAIN SCREW
22378-76010

3B..BB20,30

 2
22680 - BELLOWS ASSY, PNEUMATIC
22680-48062

3B..BB20,21..GEN,ME

W/HAC

 1
22680 - BELLOWS ASSY, PNEUMATIC
22680-48062

3B..BB20,21..GEN,ME

W/HAC

 1
22680A - NIPPLE SUB-ASSY, OVERFLOW(FOR PNEUMATIC BELLOWS)
22197-77140

3B..BB20,21..GEN,ME

W/HAC

 1
22680B - WASHER(FOR PNEUMATIC BELLOWS)
90201-08106

3B..BB20,21..GEN,ME

W/HAC

 2
22680B - WASHER(FOR PNEUMATIC BELLOWS)
90201-08106

3B..BB20,21..GEN,ME

W/HAC

 2
22686 - COVER, PNEUMATIC BELLOWS
22686-48061

3B..BB20,21..GEN,ME

W/HAC

 1
22691 - BALL, SPEED CONTROL
90099-12010

3B..BB20,21,30

 6
22692 - SLIDER(FOR SPEED CONTROL)
22692-56041

3B..BB20,21,30

 1
22693 - GUIDE, BALL
22693-77130

3B..BB20,21,30

 1
22694 - BEARING SUB-ASSY
22694-77130

3B..BB20,21,30

 1
22694A - SPRING, SPEED CONTROL
22449-48030

3B..BB20,21,30

 1
22697 - ARM SUB-ASSY
22697-56041

3B..BB20,21,30

 1
22697A - SEAL, OIL(FOR NO.3 LEVER)
85613-31010

3B..BB20,21,30

 1
22698 - PIN, SHIFTING
22698-77131

3B..BB20,21,30

 1
22699 - BRACKET SUB-ASSY, ADJUSTING
22699-58070

3B..BB20,21..GEN,ME

W/HAC

 1
22703 - COVER, GOVERNOR
22703-56040

3B..BB20,21,30

 1
22703-77140

3B..BB20,21..GEN,ME

W/HAC

 1
Common parts
22119-77020
22197-58022
22348-76010
22386-46010
22437-77130
22451-77123
22696-56040
88718-10030
90091-20605
90091-20606
90091-20607
90091-20804
90092-20582
90095-02002
90099-00936
90099-01441
90099-01445
90099-04526
90099-05056
90099-05133
90099-05137
90099-05173
90099-35023
90099-81013
90201-08106
90401-12006
90404-58030
94511-00500
94611-10600
95411-19930
95411-19960
