BB20R-MDZER (1982)

Toyota Coaster

Production May 1982 - Oct 1986
Engine 3B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8205-8808)12HT,13B,3B ; (8610-9001)2H..WOC ; (8808-9001)12HT

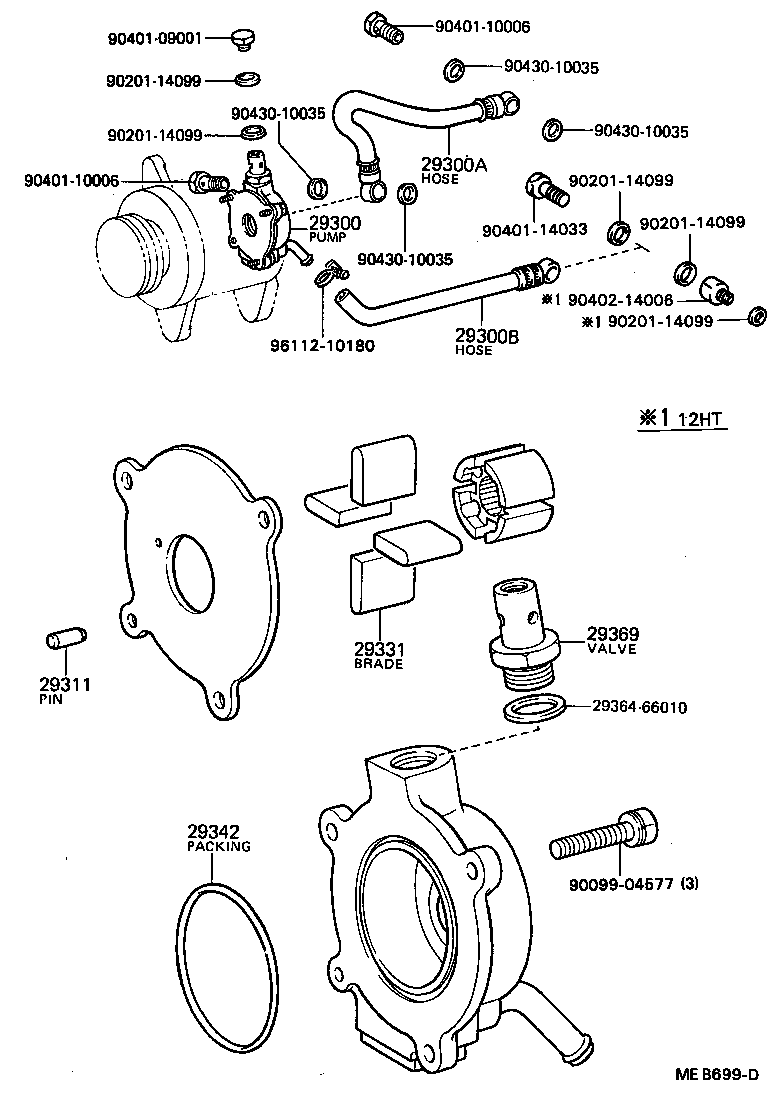

Click highlighted areas on diagram

diagram 29300 29300A 29300B 29311 29331 29342 2936466010 29369 9009904577 9020114099 9020114099 9020114099 9020114099 9020114099 9040109001 9040110006 9040110006 9040114033 9040214006 9043010035 9043010035 9043010035 9043010035 9611210180
Part # Description Qty Price
29300 - PUMP ASSY, VACUUM
29300-56070

13B,3B..BB2#,30

 1
29300A - HOSE, VACUUM PUMP OIL INLET
90923-02078

3B..BB20..15S;13B,3B..BB2#..WC

 1
29300B - HOSE, VACUUM PUMP OIL OUTLET
90923-02081

3B..BB20..15S;13B,3B..BB2#..WC

 1
29311 - PIN, VACUUM PUMP DOWEL, NO.1
29311-76010

13B,3B..BB2#,30

 1
29331 - BLADE, VACUUM PUMP, A
29331-56070

13B,3B..BB2#,30

 4
29342 - PACKING, VACUUM PUMP
96740-02063

13B,3B..BB2#,30

 1
29369 - VALVE SUB-ASSY, CHECK
29369-56070

13B,3B..BB2#,30

 1
Common parts
29364-66010
90099-04577
90201-14099
90401-09001
90401-10006
90401-14033
90402-14006
90430-10035
96112-10180
