BB20R-MDZER (1982)

Toyota Coaster

Production May 1982 - Oct 1986
Engine 3B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8205-8808)13B,3B,2H..BB2#,HB30..WC ; (8306-)12HT,3B..BB30,HB31 ; (8405-8510)3B

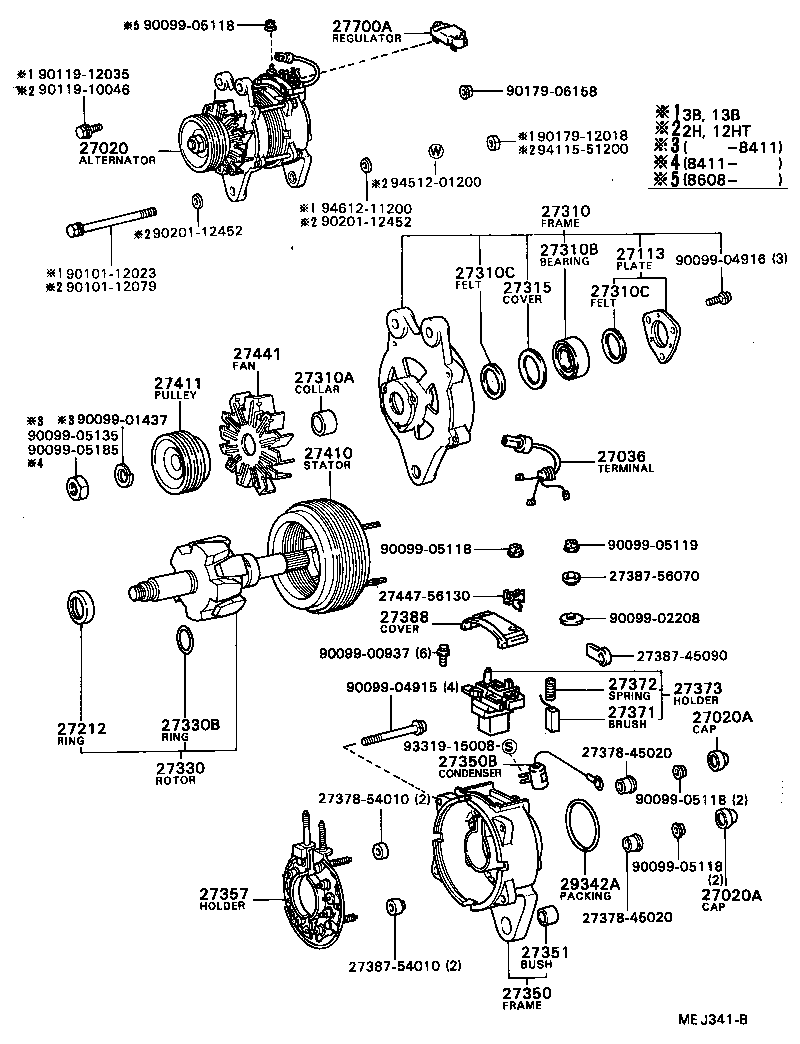

Click highlighted areas on diagram

24V 55A

diagram 27020 27020A 27020A 27036 27113 27212 27310 27310A 27310B 27310C 27310C 27315 27330 27330B 27350 27350B 27351 27357 27371 27372 27373 2737845020 2737845020 2737854010 2738745090 2738754010 2738756070 27388 27410 27411 27441 2744756130 27700A 29342A 9009900937 9009901437 9009902208 9009904915 9009904916 9009905118 9009905118 9009905118 9009905118 9009905119 9009905135 9009905185 9010112023 9010112079 9011910046 9011912035 9017906158 9017912018 9020112452 9020112452 9331915008 9411551200 9451201200 9461211200
Part # Description Qty Price
27020 - ALTERNATOR ASSY
27020-56130

3B..BB20..15S;13B,3B..BB2#..WC

24V 55A,24V 55A

 1
27020A - CAP, ALTERNATOR TERMINAL
90099-34013

3B..BB20..15S;13B,3B..BB2#..WC

24V 55A

 2
27020A - CAP, ALTERNATOR TERMINAL
90099-34013

3B..BB20..15S;13B,3B..BB2#..WC

24V 55A

 2
27036 - TERMINAL SUB-ASSY, LEAD WIRE, ALTERNATOR
27036-57121

3B..BB20..15S;13B,3B..BB2#..WC

24V 55A

 1
27113 - PLATE, BEARING RETAINER, ALTERNATOR
27312-56070

3B..BB20..15S;13B,3B..BB2#..WC

24V 55A

 1
27212 - RING, SPACE(FOR ALTERNATOR ROTOR)
27412-54040

3B..BB20..15S;13B,3B..BB2#..WC

24V 55A

 1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-56120

3B..BB20..15S;13B,3B..BB2#..WC

24V 55A

 1
27310A - COLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME)
90099-19251

3B..BB20..15S;13B,3B..BB2#..WC

24V 55A

 1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90099-10120

3B..BB20..15S;13B,3B..BB2#..WC

24V 55A

 1
27310C - FELT(FOR ALTERNATOR DRIVE END FRAME)
90099-02207

3B..BB20..15S;13B,3B..BB2#..WC

24V 55A

 2
27310C - FELT(FOR ALTERNATOR DRIVE END FRAME)
90099-02207

3B..BB20..15S;13B,3B..BB2#..WC

24V 55A

 2
27315 - COVER, ALTERNATOR FELT, INNER NO.1
27315-56070

3B..BB20..15S;13B,3B..BB2#..WC

24V 55A

 1
27330 - ROTOR ASSY, ALTERNATOR
27330-68060

3B..BB20..15S;13B,3B..BB2#..WC

24V 55A

 1
27330B - RING, SNAP(FOR ALTERNATOR ROTOR)
90099-07108

3B..BB20..15S;13B,3B..BB2#..WC

24V 55A

 1
27350 - FRAME ASSY, RECTIFIER END
27350-56120

3B..BB20..15S;13B,3B..BB2#..WC

24V 55A

 1
27350B - CONDENSER, ALTERNATOR
90099-52082

3B..BB20..15S;13B,3B..BB2#..WC

24V 55A

 1
27351 - BUSH(FOR ALTERNATOR RECTIFIER END FRAME)
27351-56070

3B..BB20..15S;13B,3B..BB2#..WC

24V 55A

 1
27357 - HOLDER, ALTERNATOR, W/RECTIFIER
27357-57120

3B..BB20..15S;13B,3B..BB2#..WC

24V 55A

 1
27371 - BRUSH, ALTERNATOR
27371-56070

13B,3B..BB2#,30

12V 40A,24V 20A,25A,55A

 2
27372 - SPRING, ALTERNATOR BRUSH
27372-56070

13B,3B..BB2#,30

12V 40A,24V 20A,25A,55A

 2
27373 - HOLDER, ALTERNATOR BRUSH, A
27373-57120

3B..BB20..15S;13B,3B..BB2#..WC

24V 55A

 1
27388 - COVER, ALTERNATOR BRUSH
27388-56130

3B..BB20..15S;13B,3B..BB2#..WC

24V 55A

 1
27410 - STATOR ASSY, ALTERNATOR
27410-57120

3B..BB20..15S;13B,3B..BB2#..WC

24V 55A

 1
27411 - PULLEY, ALTERNATOR
27411-56121

13B,3B..BB20,21,22..WC

24V 55A

 1
27441 - FAN, ALTERNATOR
27441-57030

3B..BB20..15S;13B,3B..BB2#..WC

24V 55A

 1
27700A - REGULATOR ASSY, GENERATOR
27700-57050

3B..BB20..15S;13B,3B..BB2#..WC

24V 55A

 1
29342A - PACKING, VACUUM PUMP
90099-14055

13B,3B..BB2#,30

12V 40A,24V 20A,25A,55A

 1
Common parts
27378-45020
27378-54010
27387-45090
27387-54010
27387-56070
27447-56130
90099-00937
90099-01437
90099-02208
90099-04915
90099-04916
90099-05118
90099-05119
90099-05135
90099-05185
90101-12023
90101-12079
90119-10046
90119-12035
90179-06158
90179-12018
90201-12452
93319-15008
94115-51200
94512-01200
94612-11200
