BB20R-MDZER (1982)

Toyota Coaster

Production May 1982 - Oct 1986
Engine 3B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8205-8808)13B,3B

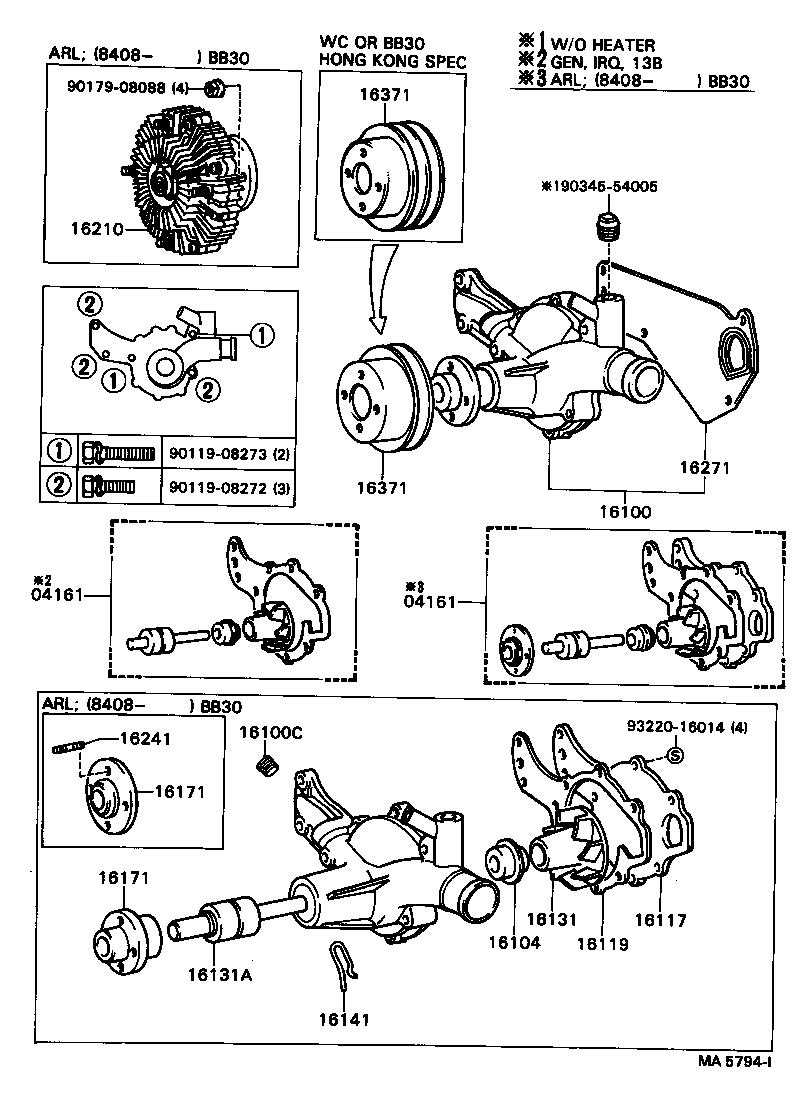

Click highlighted areas on diagram

diagram 04161 04161 16100 16100C 16104 16117 16119 16131 16131A 16141 16171 16171 16210 16241 16271 16371 16371 9011908272 9011908273 9017908088 9034554005 9322016014
Part # Description Qty Price
04161 - PUMP KIT, WATER
04161-56070

3B..BB30;3B..BB20..WC..(GEN,IRQ)

 1
04161 - PUMP KIT, WATER
04161-56070

3B..BB30;3B..BB20..WC..(GEN,IRQ)

 1
16100 - PUMP ASSY, ENGINE WATER
16100-59085

3B..BB30;3B..BB20..WC..(GEN,IRQ)

 1
16100C - PLUG, W/HEAD TAPER SCREW
15184-15010

13B,3B..BB2#,30

 1
16104 - SEAL SET, WATER PUMP
16104-52011

3B..BB30;3B..BB20..WC;3B..BB20..WOC..ARL

 1
16117 - PLATE, WATER PUMP
16117-56040

13B,3B..BB2#,30

 1
16119 - GASKET, WATER PUMP BODY
16119-56040

13B,3B..BB2#,30

 1
16131 - ROTOR, WATER PUMP
16131-56040

13B,3B..BB22,30;3B..BB20,21..WC;3B..BB20,21..(15S,20S)..WOC

 1
16131A - BEARING, WATER PUMP
90369-38001

3B..BB20..WC

 1
16141 - WIRE, WATER PUMP BEARING RETAINING
16141-76010

13B,3B..BB22,30;3B..BB20,21..WC;3B..BB20,21..(15S,20S)..WOC

 1
16171 - SEAT, WATER PUMP PULLEY
16171-57011

3B..BB30;3B..BB20..15S;3B..BB20..WC..(GEN,IRQ)

 1
16171 - SEAT, WATER PUMP PULLEY
16171-57011

3B..BB30;3B..BB20..15S;3B..BB20..WC..(GEN,IRQ)

 1
16271 - GASKET, WATER PUMP
16271-56020

13B,3B..BB2#,30

 1
16371 - PULLEY, FAN
16371-58010

3B..BB30;3B..BB20..WC..(GEN,IRQ)

 1
16371 - PULLEY, FAN
16371-58010

3B..BB30;3B..BB20..WC..(GEN,IRQ)

 1
Common parts
90119-08272
90119-08273
90179-08088
90345-54005
93220-16014
