BB20R-MDZER (1982)

Toyota Coaster

Production May 1982 - Oct 1986
Engine 3B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8205- )13B,14B,3B

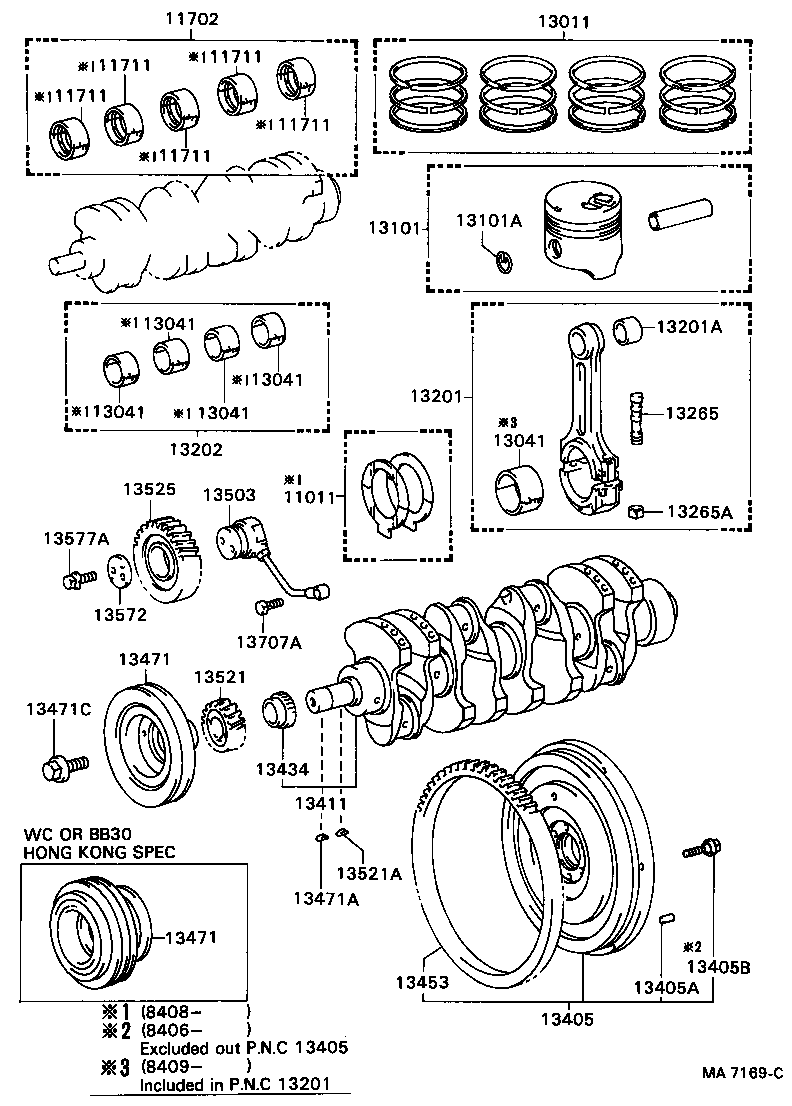

Click highlighted areas on diagram

diagram 11011 11702 11711 11711 11711 11711 11711 13011 13041 13041 13041 13041 13041 13101 13101A 13201 13201A 13202 13265 13265A 13405 13405A 13405B 13411 13434 13453 13471 13471 13471A 13471C 13503 13521 13521A 13525 13572 13577A 13707A
Part # Description Qty Price
11011 - WASHER SET, CRANKSHAFT THRUST
11011-56010

3B..BB20,30

STD,STD

 1
11013-56010

3B..BB20,30

O/S 0.250,O/S 0.250

 1
11012-56010

3B..BB20,30

O/S 0.125,O/S 0.125

 1
11702 - BEARING SET, CRANKSHAFT
11705-56010

3B..BB20,30

U/S 0.50,U/S 0.50

 1
11707-56010

3B..BB20,30

U/S 1.00,U/S 1.00

 1
11704-56010

3B..BB20,30

U/S 0.25,U/S 0.25

 1
11702-56010

3B..BB20,30

STD,STD

 1
13011 - RING SET, PISTON
13011-58010

3B..BB20,30

STD,STD

 1
13101 - PISTON SUB-ASSY, W/PIN
13101-58011

3B..BB20,30

STD,STD

 4
13101-58012

3B..BB20,30

STD,STD

 4
13101A - RING, HOLE SNAP(FOR PISTON PIN)
90521-36003

3B..BB20,30

 8
13201 - ROD SUB-ASSY, CONNECTING
13201-58010

3B..BB20,30

 4
13201A - BUSH(FOR CONNECTING ROD SMALL END)
90999-73088

3B..BB20,21,30

 4
13202 - BEARING SET, CONNECTING ROD
13204-58010

3B..BB20,30

U/S 0.25,U/S 0.25

 1
13202-58010

3B..BB20,30

STD,STD

 1
13205-58010

3B..BB20,30

U/S 0.50,U/S 0.50

 1
13207-58010

3B..BB20,30

U/S 1.00,U/S 1.00

 1
13265 - BOLT, CONNECTING ROD
13265-58010

13B,3B..BB2#,30

 8
13265A - NUT, HEXAGON(FOR CONNECTING ROD BOLT)
90170-12010

3B..BB20,30

 8
13405 - FLYWHEEL SUB-ASSY
13405-59055

3B..BB20,30

N=110

 1
13405A - PIN, STRAIGHT(FOR FLYWHEEL)
90250-10192

13B,14B,3B..BB2#,3#..5F

L=22,OD=10,L=22,OD=10

 3
13405B - BOLT, FLYWHEEL SETTING
90105-13002

3B..BB20,30

*13-1.5PX32-22

 6
13411 - CRANKSHAFT
13401-58010

3B..BB20,30

 1
13434 - SPLINE, OIL PUMP DRIVE
13519-56010

13B,14B,3B..BB2#,3#

 1
13453 - GEAR, FLYWHEEL RING
13453-56020

13B,14B,3B..BB2#,3#

N=110

 1
13471 - PULLEY, CRANKSHAFT
13470-58011

3B..BB30;3B..BB20..WC

 1
13471 - PULLEY, CRANKSHAFT
13470-58011

3B..BB30;3B..BB20..WC

 1
13471A - KEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)
95161-10416

13B,14B,3B..BB2#,3#

 1
13471C - BOLT(FOR CRANKSHAFT PULLEY SET)
90105-16003

13B,14B,3B..BB2#,3#

*16-1.5PX29-24

 1
13503 - SHAFT SUB-ASSY, IDLE GEAR
13504-56020

3B..BB20,30

 1
13521 - GEAR OR SPROCKET, CRANKSHAFT TIMING
13521-56020

3B..BB20,30

N=22

 1
13521A - KEY(FOR CRANKSHAFT TIMING GEAR)
95161-10519

13B,14B,3B..BB2#,3#

 1
13525 - GEAR, IDLE, NO.1
13525-56010

3B..BB20,30

N=35

 1
13572 - PLATE, IDLE GEAR THRUST
13572-56010

3B..BB20,30

 1
13577A - BOLT, HEXAGON(FOR IDLE GEAR BOLT LOCK)
90119-10208

13B,3B..BB2#,30

 2
13707A - UNION(FOR OIL PIPE, NO.1)
90044-01010

13B,3B..BB2#,30

 1
