BB20R-MDZER (1982)

Toyota Coaster

Production May 1982 - Oct 1986
Engine 3B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8205- )13B,14B,3B

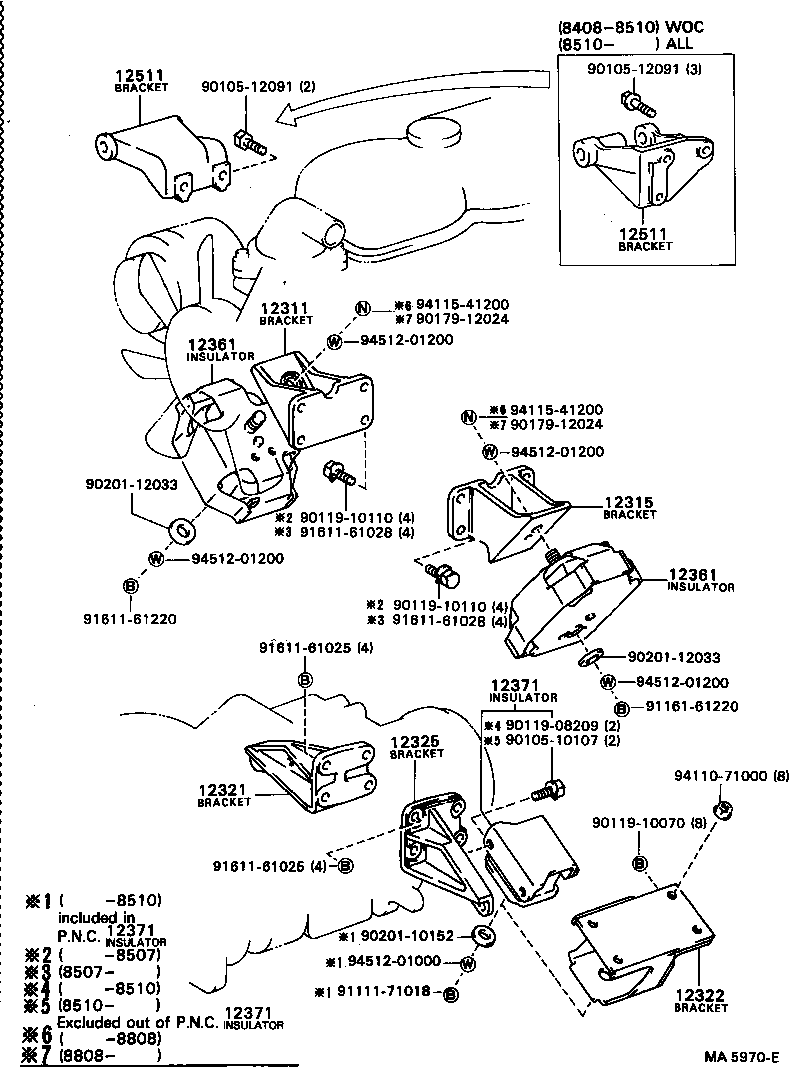

Click highlighted areas on diagram

diagram 12311 12315 12321 12322 12325 12361 12361 12371 12511 12511 9010510107 9010512091 9010512091 9011908209 9011910070 9011910110 9011910110 9017912024 9017912024 9020110152 9020112033 9020112033 9111171018 9116161220 9161161025 9161161025 9161161028 9161161028 9161161220 9411071000 9411541200 9411541200 9451201000 9451201200 9451201200 9451201200 9451201200
Part # Description Qty Price
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-58010

13B,3B..BB2#,30

 1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12311-58010

13B,3B..BB2#,30

 1
12321 - BRACKET, ENGINE MOUNTING, REAR, NO.1
12321-58010

3B..BB20,30

 1
12322 - BRACKET, ENGINE MOUNTING, REAR NO.2
12322-56060

3B..BB20,30

 2
12325 - BRACKET, ENGINE MOUNTING, NO.3
12325-58010

3B..BB20,30

 1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-58010

13B,3B..BB2#,30

 2
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-58010

13B,3B..BB2#,30

 2
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-59035

3B..BB20,30

 2
12511 - BRACKET, ALTERNATOR, NO.1
12511-58010

3B..BB30;3B..BB20..WC

 1
12511 - BRACKET, ALTERNATOR, NO.1
12511-58010

3B..BB30;3B..BB20..WC

 1
Common parts
90105-10107
90105-12091
90119-08209
90119-10070
90119-10110
90179-12024
90201-10152
90201-12033
91111-71018
91161-61220
91611-61025
91611-61028
91611-61220
94110-71000
94115-41200
94512-01000
94512-01200
