BB20L-MRE (1982)
Toyota Coaster

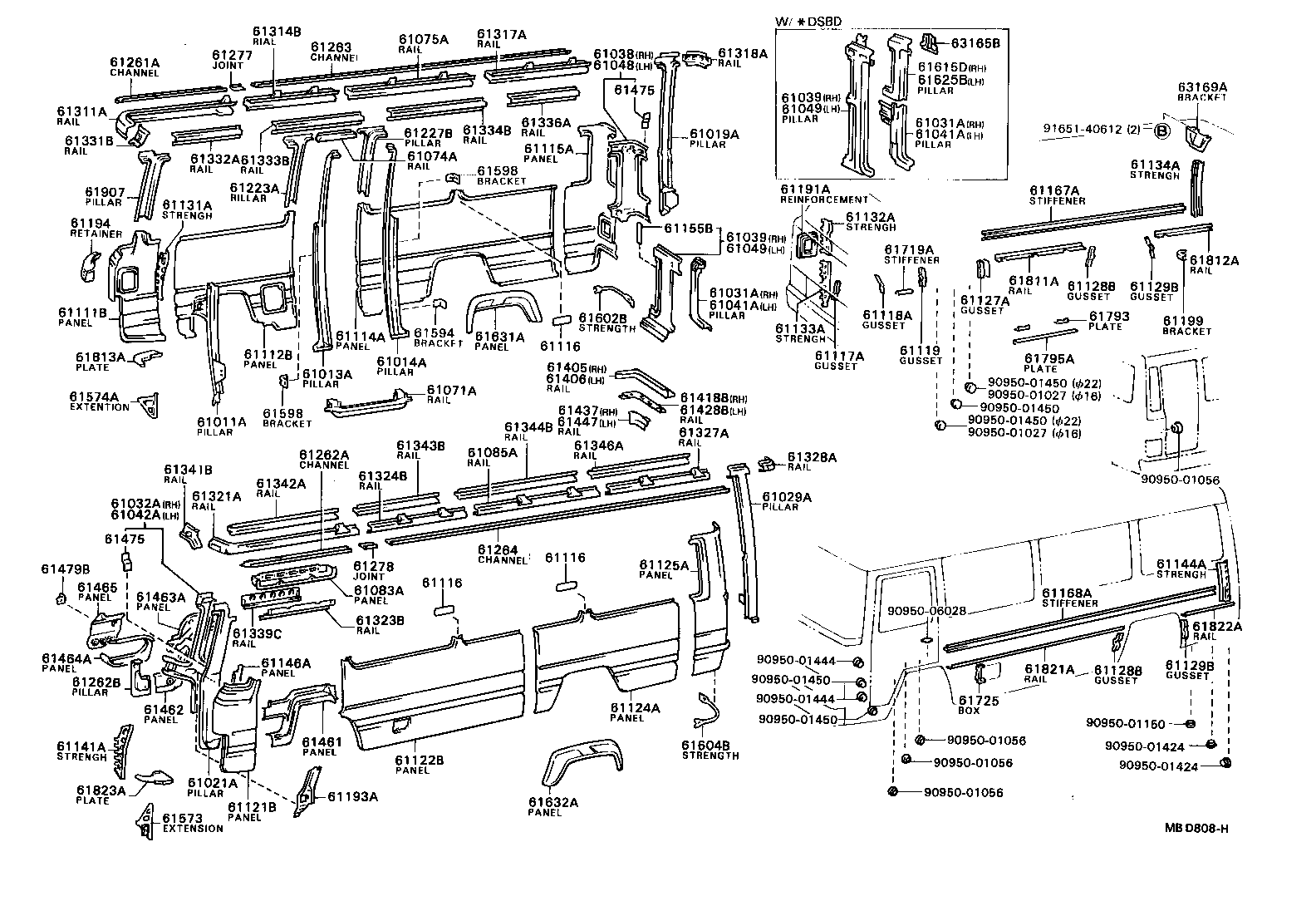

ILLUST NO. 1 OF 3(8205- )BB20,21,RB20..LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61011A - PILLAR SUB-ASSY, NO.1 RH | ||||
| 61011-90B02 |
BB20,21,FB30,HB30,HZB30,RB20..LHD |
1 | ||
| 61013A - PILLAR SUB-ASSY, NO.3 RH | ||||
| 61013-90B02 |
BB20,21,FB30,HB30,HZB30,RB20..LHD |
1 | ||
| 61014A - PILLAR SUB-ASSY, NO.4 RH | ||||
| 61014-90B02 |
BB20,21,FB30,HB30,HZB30,RB20..LHD |
1 | ||
| 61019A - PILLAR SUB-ASSY, NO.9 RH | ||||
| 61019-90B00 |
BB20,RB20..WOC |
1 | ||
| 61021A - PILLAR SUB-ASSY, NO.1 LH | ||||
| 61021-90B00 |
BB20,21,RB20..LHD..(DLX,STD) |
1 | ||
| 61029A - PILLAR SUB-ASSY, NO.9 LH | ||||
| 61029-90B00 |
BB20,RB20..WOC |
1 | ||
| 61031A - PILLAR SUB-ASSY, NO.10 RH | ||||
| 61031-90B02 |
BB20,21,HB30,HZB30,RB20..STD..WOC |
1 | ||
| 61031-90B03 |
BB20,RB20..(22S,26S)..GEN W/*DSBD |
1 | ||
| 61031A - PILLAR SUB-ASSY, NO.10 RH | ||||
| 61031-90B02 |
BB20,21,HB30,HZB30,RB20..STD..WOC |
1 | ||
| 61031-90B03 |
BB20,RB20..(22S,26S)..GEN W/*DSBD |
1 | ||
| 61032A - PILLAR SUB-ASSY, NO.1 INNER, RH | ||||
| 61032-90B01 |
BB20,21,FB30,HB30,HZB30,RB20..LHD |
1 | ||
| 61038 - PILLAR SUB-ASSY, NO.9 INNER, RH | ||||
| 61038-90B00 |
BB20,RB20..WOC |
1 | ||
| 61039 - PILLAR SUB-ASSY, NO.10 INNER, RH | ||||
| 61039-90B01 |
BB20,RB20..(22S,26S)..GEN W/FOLDING SEAT OR W/O RR SEAT |
1 | ||
| 61039-90B00 |
BB20..20S,22S,26S;BB21,RB20..DLX,STD |
1 | ||
| 61039 - PILLAR SUB-ASSY, NO.10 INNER, RH | ||||
| 61039-90B01 |
BB20,RB20..(22S,26S)..GEN W/FOLDING SEAT OR W/O RR SEAT |
1 | ||
| 61039-90B00 |
BB20..20S,22S,26S;BB21,RB20..DLX,STD |
1 | ||
| 61041A - PILLAR SUB-ASSY, NO.10, LH | ||||
| 61249-90B00 |
BB21,HB30,HZB30,RB20;BB20..16S,20S,22S,26S |
1 | ||
| 61041A - PILLAR SUB-ASSY, NO.10, LH | ||||
| 61249-90B00 |
BB21,HB30,HZB30,RB20;BB20..16S,20S,22S,26S |
1 | ||
| 61042A - PILLAR SUB-ASSY, NO.1 INNER, LH | ||||
| 61042-90B01 |
BB20,21,FB30,HB30,HZB30,RB20..LHD |
1 | ||
| 61048 - PILLAR SUB-ASSY, NO.9 INNER, LH | ||||
| 61048-90B00 |
BB20,21,RB20..STD..WOC |
1 | ||
| 61049 - PILLAR SUB-ASSY, NO.10 INNER, LH | ||||
| 61049-90B01 |
BB20,RB20..GEN W/FOLDING SEAT OR W/O RR SEAT |
1 | ||
| 61049-90B00 |
BB20..20S,22S,26S;BB21,RB20..DLX,STD |
1 | ||
| 61049 - PILLAR SUB-ASSY, NO.10 INNER, LH | ||||
| 61049-90B01 |
BB20,RB20..GEN W/FOLDING SEAT OR W/O RR SEAT |
1 | ||
| 61049-90B00 |
BB20..20S,22S,26S;BB21,RB20..DLX,STD |
1 | ||
| 61071A - RAIL SUB-ASSY, NO.2 LOWER OUTER, RH | ||||
| 61071-90B05 |
BB20,21,HB30,HZB30,RB20..LHD..STD |
1 | ||
| 61074A - RAIL SUB-ASSY, CENTER DOOR, RH | ||||
| 61074-90B00 |
BB20,21,32,FB30,HB30,HZB30,RB20..LHD |
1 | ||
| 61075A - RAIL SUB-ASSY, NO.3 UPPER OUTER, RH | ||||
| 61075-90B03 |
BB20,21,FB30,HB30,HZB30,RB20..LHD..SRF |
1 | ||
| 61075-90B04 |
BB20,21,FB30,HB30,HZB30,RB20..LHD..SRF W/ROOF RACK |
1 | ||
| 61083A - PANEL SUB-ASSY, FRONT VENTILATOR, LH | ||||
| 61083-90B00 |
BB20,21,FB30,HB30,HZB30,RB20..LHD |
1 | ||
| 61085A - RAIL SUB-ASSY, NO.3 UPPER OUTER, LH | ||||
| 61085-90B04 |
BB20,21,FB30,HB30,HZB30,RB20..LHD..SRF W/ROOF RACK |
1 | ||
| 61086-90B00 |
BB20,21,FB30,HB30,HZB30,RB20..LHD..SRF |
1 | ||
| 61111B - PANEL, NO.1 SIDE, RH | ||||
| 61111-90B02 |
BB20,21,FB30,HB30,RB20..LHD |
1 | ||
| 61112B - PANEL, NO.2 SIDE, RH | ||||
| 61112-90B03 |
BB20,21,FB30,HB30,HZB30,RB20..LHD |
1 | ||
| 61114A - PANEL, NO.3 SIDE, RH | ||||
| 61114-90B03 |
BB20,21,RB20..LHD..WOC |
1 | ||
| 61115A - PANEL, NO.4 SIDE, RH | ||||
| 61115-90B00 |
BB20,21,FB30,HB30,RB20..SRF |
1 | ||
| 61107-90B00 |
BB20,21,FB30,HB30,RB20..SRF W/ROOF RACK |
1 | ||
| 61117A - GUSSET, SIDE PANEL RELIEF, NO.1 | ||||
| 61118-90B00 |
BB20,21,FB30,HB30,RB20..LHD |
1 | ||
| 61118A - GUSSET, SIDE PANEL RELIEF, NO.2 | ||||
| 61117-90B00 |
BB2#,FB30,HB30,RB20 RH |
1 | ||
| 61118-90B00 |
BB2#,FB30,HB30,RB20 LH |
1 | ||
| 61119 - GUSSET, SIDE PANEL RELIEF, NO.3 | ||||
| 61127-90B00 |
BB20,21,FB30,HB30,HZB30,RB20..LHD |
1 | ||
| 61121B - PANEL, NO.1 SIDE, LH | ||||
| 61121-90B02 |
BB20,21,FB30,HB30,RB20..LHD |
1 | ||
| 61122B - PANEL, NO.2 SIDE, LH | ||||
| 61122-90B03 |
BB20,21,FB30,HB30,HZB30,RB20..LHD |
1 | ||
| 61124A - PANEL, NO.3 SIDE, LH | ||||
| 61124-90B04 |
BB20,21,RB20..LHD |
1 | ||
| 61125A - PANEL, NO.4 SIDE, LH | ||||
| 61125-90B00 |
BB20,21,FB30,HB30,RB20..SRF |
1 | ||
| 61127A - GUSSET, SIDE PANEL RELIEF, NO.4 | ||||
| 61119-90B00 |
BB20,21,FB30,HB30,HZB30,RB20..LHD |
1 | ||
| 61128B - GUSSET, SIDE PANEL RELIEF, NO.5 | ||||
| 61129-90B00 |
BB2#,FB30,HB30,HZB30,RB20 LH |
1 | ||
| 61128-90B00 |
BB2#,FB30,HB30,HZB30,RB20 RH |
1 | ||
| 61128B - GUSSET, SIDE PANEL RELIEF, NO.5 | ||||
| 61129-90B00 |
BB2#,FB30,HB30,HZB30,RB20 LH |
1 | ||
| 61128-90B00 |
BB2#,FB30,HB30,HZB30,RB20 RH |
1 | ||
| 61129B - GUSSET, SIDE PANEL RELIEF, NO.6 | ||||
| 61129-90B00 |
BB2#,FB30,HB30,HZB30,RB20 RH |
1 | ||
| 61128-90B00 |
BB2#,FB30,HB30,HZB30,RB20 LH |
1 | ||
| 61129B - GUSSET, SIDE PANEL RELIEF, NO.6 | ||||
| 61129-90B00 |
BB2#,FB30,HB30,HZB30,RB20 RH |
1 | ||
| 61128-90B00 |
BB2#,FB30,HB30,HZB30,RB20 LH |
1 | ||
| 61131A - STRENGTH, SIDE PANEL, NO.1 RH | ||||
| 61131-90B01 |
BB20,RB20..LHD |
1 | ||
| 61132A - STRENGTH, SIDE PANEL, NO.2 UPPER RH | ||||
| 61132-90B00 |
BB20,21,FB30,HB30,HZB30,RB20..LHD |
1 | ||
| 61133A - STRENGTH, SIDE PANEL, LOWER RH NO.2 | ||||
| 61133-90B00 |
BB20,21,FB30,HB30,HZB30,RB20..LHD |
1 | ||
| 61134A - STRENGTH, SIDE PANEL, NO.3 UPPER RH | ||||
| 61134-90B00 |
BB2#,FB30,HB30,HZB30,RB20 |
1 | ||
| 61141A - STRENGTH, SIDE PANEL, NO.1 LH | ||||
| 61141-90B01 |
BB20,RB20..LHD |
1 | ||
| 61144A - STRENGTH, SIDE PANEL, NO.3 UPPER LH | ||||
| 61144-90B00 |
BB2#,FB30,HB30,HZB30,RB20 |
1 | ||
| 61146A - PANEL, FRONT SIDE END, LH | ||||
| 61146-90B00 |
BB20,21,FB30,HB30,HZB30,RB20..LHD |
1 | ||
| 61167A - STIFFENER, SIDE PANEL, LOWER RH | ||||
| 61168-90B00 |
BB20,21,RB20..LHD |
1 | ||
| 61168A - STIFFENER, SIDE PANEL, LOWER LH | ||||
| 61167-90B00 |
BB20,21,RB20..LHD |
1 | ||
| 61191A - REINFORCEMENT, SIDE LOWER WINDOW | ||||
| 61191-90B00 |
BB2#,FB30,HB30,HZB30,RB20 |
1 | ||
| 61194 - RETAINER, OUTER SIDE MIRROR, RH | ||||
| 61194-90B00 |
BB20,21,FB30,HB30,HZB30,RB20..LHD |
1 | ||
| 61199 - BRACKET, SIDE PANEL TO REAR MUDGUARD | ||||
| 61199-90B00 |
BB2#,FB30,HB30,HZB30,RB20 |
2 | ||
| 61223A - PILLAR, NO.3 OUTER, UPPER RH | ||||
| 61224-90B00 |
BB20,21,FB30,HB30,HZB30,RB20..LHD |
1 | ||
| 61227B - PILLAR, NO.4 OUTER UPPER, RH | ||||
| 61228-90B00 |
BB20,21,FB30,HB30,HZB30,RB20..LHD |
1 | ||
| 61261A - CHANNEL, ROOF DRIP SIDE, FRONT RH | ||||
| 61356-90B01 |
BB20,FB30,HB30,HZB30,RB20..LHD |
1 | ||
| 61262A - CHANNEL, ROOF DRIP SIDE, FRONT LH | ||||
| 61366-90B00 |
BB20,21,FB30,HB30,HZB30,RB20..LHD |
1 | ||
| 61262B - PILLAR, NO.1 INNER, LOWER LH | ||||
| 61262-90B01 |
BB20,21,FB30,HB30,HZB30,RB20..LHD |
1 | ||
| 61263 - CHANNEL, ROOF DRIP, REAR RH | ||||
| 61358-90B00 |
BB2#,FB30,HB30,HZB30,RB20 |
1 | ||
| 61264 - CHANNEL, ROOF DRIP, REAR LH | ||||
| 61368-90B00 |
BB2#,FB30,HB30,HZB30,RB20 |
1 | ||
| 61277 - JOINT, ROOF DRIP CHANNEL, FRONT RH | ||||
| 61359-90B00 |
BB2#,RB20 |
1 | ||
| 61278 - JOINT, ROOF DRIP CHANNEL, FRONT LH | ||||
| 61359-90B00 |
BB2#,RB20 |
1 | ||
| 61311A - RAIL, NO.1 UPPER OUTER, RH | ||||
| 61311-90B01 |
BB20,21,FB30,HB30,HZB30,RB20..LHD..SRF |
1 | ||
| 61314B - RAIL, NO.2 UPPER OUTER, RH | ||||
| 61078-90B02 |
BB20,21,RB20..LHD..SRF W/ROOF RACK |
1 | ||
| 61314-90B01 |
BB20,21,FB30,HB30,HZB30,RB20..LHD..SRF |
1 | ||
| 61317A - RAIL, NO.3 UPPER OUTER, RH | ||||
| 61317-90B00 |
BB20,21,RB20..SRF |
1 | ||
| 61318A - RAIL, NO.6 UPPER OUTER, RH | ||||
| 61318-90B00 |
BB2#,FB30,HB30,HZB30,RB20 |
1 | ||
| 61321A - RAIL, NO.1 UPPER OUTER, LH | ||||
| 61321-90B01 |
BB20,21,FB30,HB30,HZB30,RB20..LHD..SRF |
1 | ||
| 61323B - RAIL, NO.1 UPPER OUTER, LOWER LH | ||||
| 61323-90B00 |
BB20,21,FB30,HB30,HZB30,RB20..LHD |
1 | ||
| 61324B - RAIL, NO.2 UPPER OUTER, LH | ||||
| 61088-90B03 |
BB20,21,RB20..LHD..SRF W/ROOF RACK |
1 | ||
| 61324-90B02 |
BB20,21,FB30,HB30,HZB30,RB20..LHD..SRF |
1 | ||
| 61327A - RAIL, NO.5 UPPER OUTER, LH | ||||
| 61327-90B00 |
BB20,21,RB20..SRF |
1 | ||
| 61328A - RAIL, NO.6 UPPER OUTER, LH | ||||
| 61328-90B00 |
BB2#,FB30,HB30,RB20 |
1 | ||
| 61331B - RAIL, NO.1 UPPER INNER, FRONT RH | ||||
| 61331-90B01 |
BB20,21,FB30,HB30,HZB30,RB20..LHD |
1 | ||
| 61332A - RAIL, NO.1 UPPER INNER, REAR RH | ||||
| 61332-90B01 |
BB20,21,FB30,HB30,HZB30,RB20..LHD |
1 | ||
| 61333B - RAIL, NO.2 UPPER INNER, RH | ||||
| 61333-90B01 |
BB20,21,FB30,HB30,HZB30,RB20..LHD |
1 | ||
| 61334B - RAIL, NO.3 UPPER INNER, RH | ||||
| 61334-90B01 |
BB20,21,FB30,HB30,HZB30,RB20..LHD |
1 | ||
| 61336A - RAIL, NO.5 UPPER INNER, RH | ||||
| 61336-90B00 |
BB2#,FB30,HB30,RB20 |
1 | ||
| 61339C - RAIL, NO.1 UPPER, INNER LOWER | ||||
| 61339-90B00 |
BB2#,FB30,HB30,HZB30,RB20 |
1 | ||
| 61341B - RAIL, NO.1 UPPER INNER, FRONT LH | ||||
| 61341-90B01 |
BB20,21,FB30,HB30,HZB30,RB20..LHD |
1 | ||
| 61342A - RAIL, NO.1 UPPER INNER, REAR LH | ||||
| 61342-90B02 |
BB20,21,FB30,HB30,HZB30,RB20..LHD |
1 | ||
| 61343B - RAIL, NO.2 UPPER INNER, LH | ||||
| 61343-90B02 |
BB20,21,FB30,HB30,HZB30,RB20..LHD |
1 | ||
| 61344B - RAIL, NO.3 UPPER INNER, LH | ||||
| 61344-90B01 |
BB20,21,FB30,HB30,HZB30,RB20..LHD |
1 | ||
| 61346A - RAIL, NO.5 UPPER INNER, LH | ||||
| 61346-90B00 |
BB2#,FB30,HB30,HZB30,RB20 |
1 | ||
| 61405 - RAIL SUB-ASSY, NO.7 LOWER INNER, LOWER RH | ||||
| 61405-90B00 |
BB20,RB20..GEN |
1 | ||
| 61405-90B01 |
BB20,RB20 *GIS |
1 | ||
| 61406 - RAIL SUB-ASSY, NO.7 LOWER INNER, LOWER LH | ||||
| 61406-90B00 |
BB20,RB20..GEN |
1 | ||
| 61406-90B01 |
BB20,RB20 *GIS |
1 | ||
| 61418B - RAIL, NO.8 LOWER OUTER, RH | ||||
| 61418-90B00 |
BB20,RB20..GEN |
1 | ||
| 61418-90B01 |
BB20,RB20 *GIS |
1 | ||
| 61428B - RAIL, NO.8 LOWER OUTER, LH | ||||
| 61428-90B00 |
BB20,RB20..GEN |
1 | ||
| 61428-90B01 |
BB20,RB20 *GIS |
1 | ||
| 61437 - RAIL, NO.7 LOWER INNER, RH | ||||
| 61437-90B00 |
BB2#,FB30,HB30,HZB30,RB20 |
1 | ||
| 61447 - RAIL, NO.7 LOWER INNER, LH | ||||
| 61447-90B00 |
BB2#,FB30,HB30,HZB30,RB20 |
1 | ||
| 61461 - PANEL, ROCKER, OUTER LH | ||||
| 61461-90B00 |
BB20,21,FB30,HB30,HZB30,RB20..LHD |
1 | ||
| 61462 - PANEL, ROCKER, INNER FRONT LH | ||||
| 61462-90B00 |
BB20,21,FB30,HB30,HZB30,RB20..LHD |
1 | ||
| 61463A - PANEL, ROCKER, INNER REAR LH | ||||
| 61463-90B00 |
BB20,21,FB30,HB30,HZB30,RB20..LHD |
1 | ||
| 61464A - PANEL, FRONT DOOR STEP, LH | ||||
| 61464-90B00 |
BB20,21,FB30,HB30,HZB30,RB20..LHD |
1 | ||
| 61465 - PANEL, FRONT DOOR STEP SIDE, LH | ||||
| 61465-90B00 |
BB20,21,FB30,HB30,HZB30,RB20..LHD |
1 | ||
| 61573 - EXTENSION, FLOOR PANEL, NO.1 | ||||
| 61501-90B00 |
BB20,21,FB30,HB30,HZB30,RB20..LHD |
1 | ||
| 61574A - EXTENSION, FLOOR PANEL, NO.2 RH | ||||
| 61574-90B00 |
BB20,21,FB30,HB30,HZB30,RB20..LHD |
1 | ||
| 61594 - BRACKET, STIFFENER, NO.4 | ||||
| 61594-90B00 |
BB2#,RB20 |
1 | ||
| 61615D - PILLAR, NO.10 OUTER, UPPER RH | ||||
| 61615-90B00 |
BB20,RB20..(22S,26S)..GEN W/*DSBD |
1 | ||
| 61625B - PILLAR, NO.10 OUTER, UPPER LH | ||||
| 61625-90B00 |
BB20,RB20..(22S,26S)..GEN W/*DSBD |
1 | ||
| 61631A - PANEL, QUARTER WHEEL HOUSE, OUTER RH | ||||
| 61631-90B00 |
BB2#,RB20..GEN,ME *GIS |
1 | ||
| 61631-90B02 |
BB20,RB20..16S,17S,20S,22S,26S |
1 | ||
| 61632A - PANEL, QUARTER WHEEL HOUSE, OUTER LH | ||||
| 61631-90B02 |
BB20,RB20..16S,17S,20S,22S,26S |
1 | ||
| 61631-90B00 |
BB2#,RB20..GEN,ME *GIS |
1 | ||
| 61719A - STIFFENER, BATTERY SERVICE HOLE | ||||
| 61719-90B00 |
BB2#,FB30,HB30,HZB30,RB20 |
1 | ||
| 61725 - BOX, FUEL INLET | ||||
| 61741-90B00 |
BB20,21,FB30,HB30,HZB30,RB20..LHD |
1 | ||
| 61811A - RAIL, DUSTPROOF, FRONT RH | ||||
| 61811-90B02 |
BB20,21,RB20..LHD |
1 | ||
| 61812A - RAIL, DUSTPROOF, REAR RH | ||||
| 61812-90B00 |
BB2#,FB30,HB30,HZB30,RB20 |
1 | ||
| 61813A - PLATE, DUSTPROOF, NO.1 RH | ||||
| 61813-90B01 |
BB20,RB20..LHD |
1 | ||
| 61821A - RAIL, DUSTPROOF, FRONT LH | ||||
| 61821-90B02 |
BB20,21,RB20..LHD |
1 | ||
| 61822A - RAIL, DUSTPROOF, REAR LH | ||||
| 61822-90B00 |
BB2#,FB30,HB30,HZB30,RB20 |
1 | ||
| 61823A - PANEL, DUSTPROOF, NO.1 LH | ||||
| 61823-90B01 |
BB20,RB20..LHD |
1 | ||
| 61907 - PILLAR SUB-ASSY, NO.1 OUTER, UPPER RH | ||||
| 61907-90B00 |
BB20,21,FB30,HB30,HZB30,RB20..LHD |
1 | ||
| Common parts | ||||
| 90950-01027 | ||||
| 90950-01056 | ||||
| 90950-01150 | ||||
| 90950-01424 | ||||
| 90950-01444 | ||||
| 90950-01450 | ||||
| 90950-06028 | ||||
| 91651-40612 | ||||
ILLUST NO. 3 OF 3(8205- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61538A - COVER, BACK CORNER HOLE, RH | ||||
| 61836-90B00 |
BB20,RB20..(22S,26S)..GEN W/*DSBD |
1 | ||
| 61539A - COVER, BACK CORNER HOLE, LH | ||||
| 61836-90B00 |
BB20,RB20..(22S,26S)..GEN W/*DSBD |
1 | ||
| 61701A - COVER SUB-ASSY, BATTERY SERVICE HOLE, RH | ||||
| 61701-90B00 |
BB20,21,FB30,HB30,HZB30,RB20..LHD |
1 | ||
| 61701A - COVER SUB-ASSY, BATTERY SERVICE HOLE, RH | ||||
| 61701-90B00 |
BB20,21,FB30,HB30,HZB30,RB20..LHD |
1 | ||
| 61701A - COVER SUB-ASSY, BATTERY SERVICE HOLE, RH | ||||
| 61701-90B00 |
BB20,21,FB30,HB30,HZB30,RB20..LHD |
1 | ||
| 61705P - HINGE SUB-ASSY, BATTERY COVER, RH | ||||
| 61705-90B00 |
BB20,21,FB30,HB30,HZB30,RB20..LHD |
1 | ||
| 61705P - HINGE SUB-ASSY, BATTERY COVER, RH | ||||
| 61705-90B00 |
BB20,21,FB30,HB30,HZB30,RB20..LHD |
1 | ||
| 61705P - HINGE SUB-ASSY, BATTERY COVER, RH | ||||
| 61705-90B00 |
BB20,21,FB30,HB30,HZB30,RB20..LHD |
1 | ||
| 61707J - BRACKET SUB-ASSY, BATTERY COVER LOCK | ||||
| 61707-90B00 |
BB2#,FB30,HB30,RB20 |
1 | ||
| 61707J - BRACKET SUB-ASSY, BATTERY COVER LOCK | ||||
| 61707-90B00 |
BB2#,FB30,HB30,RB20 |
1 | ||
| 61707J - BRACKET SUB-ASSY, BATTERY COVER LOCK | ||||
| 61707-90B00 |
BB2#,FB30,HB30,RB20 |
1 | ||
| 61733D - HINGE, BATTERY COVER LOCK, RH | ||||
| 61733-90B00 |
BB20,21,FB30,HB30,HZB30,RB20..LHD |
1 | ||
| 61733D - HINGE, BATTERY COVER LOCK, RH | ||||
| 61733-90B00 |
BB20,21,FB30,HB30,HZB30,RB20..LHD |
1 | ||
| 61734D - LEVER, BATTERY COVER LOCK | ||||
| 61734-90B00 |
BB2#,RB20 |
1 | ||
| 61734D - LEVER, BATTERY COVER LOCK | ||||
| 61734-90B00 |
BB2#,RB20 |
1 | ||
| 61739A - CUSHION, BATTERY COVER STOPPER | ||||
| 61739-90B00 |
BB2#,FB30,HB30,HZB30,RB20 |
1 | ||
| 61739A - CUSHION, BATTERY COVER STOPPER | ||||
| 61739-90B00 |
BB2#,FB30,HB30,HZB30,RB20 |
1 | ||
| 61739A - CUSHION, BATTERY COVER STOPPER | ||||
| 61739-90B00 |
BB2#,FB30,HB30,HZB30,RB20 |
1 | ||
| 61836 - COVER, PILLAR INNER SERVICE HOLE | ||||
| 61836-90B00 |
BB2#,FB30,HB30,HZB30,RB20 |
2 | ||
| 61838 - COVER, RAIL LOWER INNER SERVICE HOLE | ||||
| 61838-90B00 |
BB2#,FB30,HB30,RB20 |
2 | ||
| 61869 - COVER, FRONT DOOR STEP, LH | ||||
| 61869-90B00 |
BB20,21,FB30,HB30,HZB30,RB20..LHD |
1 | ||
| Common parts | ||||
| 90149-40003 | ||||
| 90149-40016 | ||||
| 90202-07008 | ||||
| 90202-10007 | ||||
| 90386-08077 | ||||
| 90467-08008 | ||||
| 90508-20049 | ||||
| 90508-20050 | ||||
| 90508-20077 | ||||
| 90508-20078 | ||||
| 90541-05080 | ||||
| 90560-12028 | ||||
| 91651-40612 | ||||
| 93315-14010 | ||||
| 93316-14010 | ||||
| 93385-15012 | ||||
| 93540-14008 | ||||
| 93540-14014 | ||||
| 93560-54012 | ||||
| 94541-00600 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
