BB10L-QDZER (1977)
Toyota Coaster
Production
Aug 1977
-
Nov 1979
Engine
2B
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(7708-7911)2B..BC

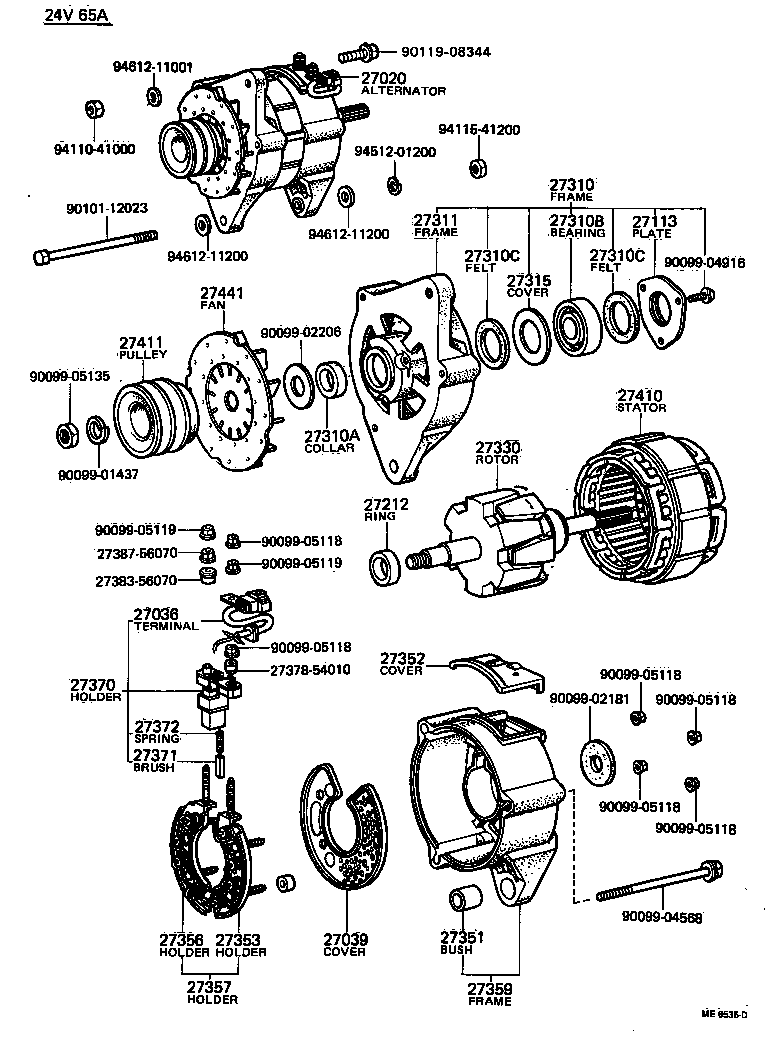

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27020-56070 |
2B..BB10..BC 24V 65A |
1 | ||
| 27036 - TERMINAL SUB-ASSY, LEAD WIRE, ALTERNATOR | ||||
| 27036-56070 |
2B..BB10..BC 24V 65A |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-56070 |
2B..BB10..BC 24V 65A |
1 | ||
| 27113 - PLATE, BEARING RETAINER, ALTERNATOR | ||||
| 27312-56070 |
2B..BB10..BC 24V 65A |
1 | ||
| 27212 - RING, SPACE(FOR ALTERNATOR ROTOR) | ||||
| 90099-20014 |
2B..BB10..BC 24V 65A |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-56070 |
2B..BB10..BC 24V 65A |
1 | ||
| 27310A - COLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-20014 |
2B..BB10..BC 24V 65A |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10120 |
2B..BB10..BC 24V 65A |
1 | ||
| 27310C - FELT(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-02207 |
2B..BB10..BC 24V 65A |
2 | ||
| 27310C - FELT(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-02207 |
2B..BB10..BC 24V 65A |
2 | ||
| 27311 - FRAME, ALTERNATOR DRIVE END | ||||
| 27311-56070 |
2B..BB10..BC 24V 65A |
1 | ||
| 27315 - COVER, ALTERNATOR FELT, INNER NO.1 | ||||
| 27315-56070 |
2B..BB10..BC 24V 20A,65A |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-56070 |
2B..BB10..BC 24V 65A |
1 | ||
| 27351 - BUSH(FOR ALTERNATOR RECTIFIER END FRAME) | ||||
| 27351-56070 |
2B..BB10..BC 24V 55A,65A |
1 | ||
| 27352 - COVER, FRAME BRUSH | ||||
| 27388-56070 |
2B..BB10..BC 24V 20A,65A |
1 | ||
| 27353 - HOLDER, W/RECTIFIER POSITIVE, ALTERNATOR | ||||
| 27353-56070 |
2B..BB10..BC 24V 65A |
1 | ||
| 27356 - HOLDER, W/RECTIFIER NEGATIVE, ALTERNATOR | ||||
| 27356-56070 |
2B..BB10..BC 24V 65A |
1 | ||
| 27357 - HOLDER, ALTERNATOR, W/RECTIFIER | ||||
| 27357-56070 |
2B..BB10..BC 24V 65A |
1 | ||
| 27359 - FRAME, ALTERNATOR RECTIFIER END | ||||
| 27359-56070 |
2B..BB10..BC 24V 65A |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-56070 |
2B..BB10..BC 24V 65A |
1 | ||
| 27410 - STATOR ASSY, ALTERNATOR | ||||
| 27410-56070 |
2B..BB10..BC 24V 65A |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-56070 |
2B..BB10..BC 24V 65A |
1 | ||
| 27441 - FAN, ALTERNATOR | ||||
| 27441-56070 |
2B..BB10..BC 24V 65A |
1 | ||
| Common parts | ||||
| 27378-54010 | ||||
| 27383-56070 | ||||
| 27387-56070 | ||||
| 90099-01437 | ||||
| 90099-02181 | ||||
| 90099-02206 | ||||
| 90099-04568 | ||||
| 90099-04916 | ||||
| 90099-05118 | ||||
| 90099-05119 | ||||
| 90099-05135 | ||||
| 90101-12023 | ||||
| 90119-08344 | ||||
| 94110-41000 | ||||
| 94115-41200 | ||||
| 94512-01200 | ||||
| 94612-11001 | ||||
| 94612-11200 | ||||
