BB10L-MDZ (1979)
Toyota Coaster

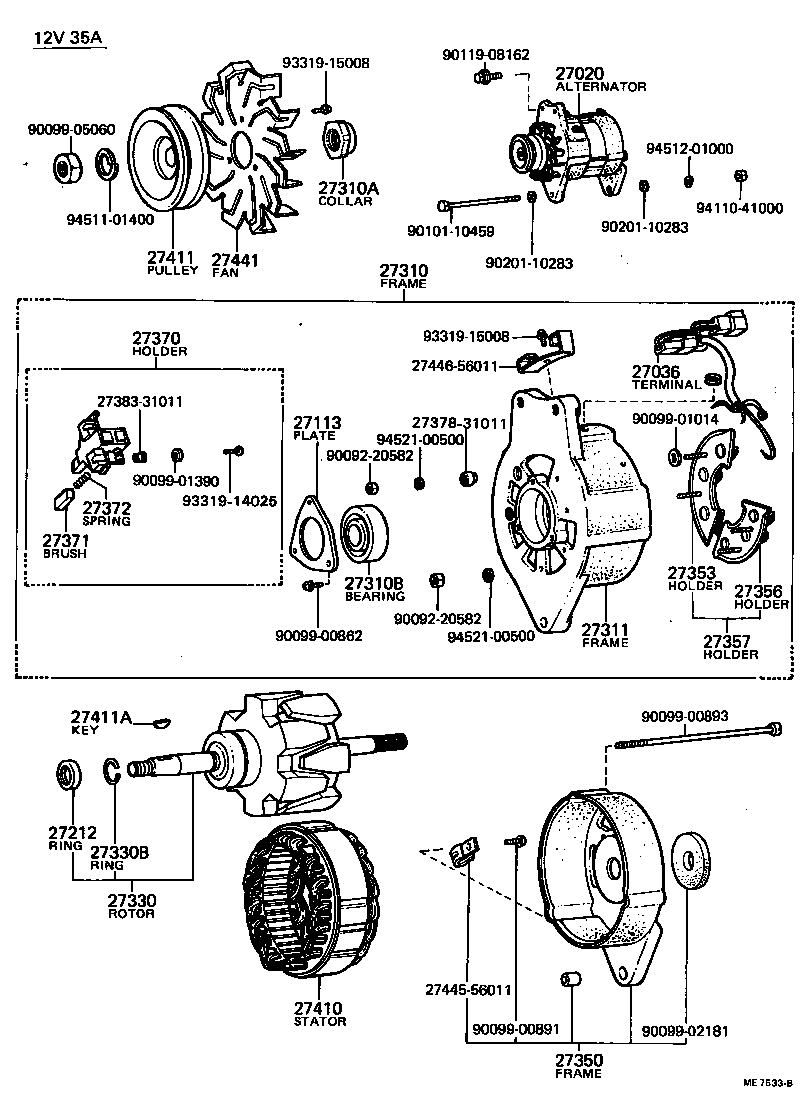

(7708-8008)2B..DLX,STD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27020-56032 |
2B..BB10..(DLX,STD)..GEN 24V 20A |
1 | ||
| 27020-57010 |
2B..BB10..(DLX,STD)..GEN 24V 20A |
1 | ||
| 27020-56023 |
2B..BB10..DLX,STD 12V 35A |
1 | ||
| 27020-57061 |
2B..BB10..DLX,STD 12V 40A |
1 | ||
| 27020-57091 |
2B..BB10..(DLX,STD)..GEN 24V 20A |
1 | ||
| 27036 - TERMINAL SUB-ASSY, LEAD WIRE, ALTERNATOR | ||||
| 27036-54010 |
2B..BB10..(DLX,STD)..GEN 24V 20A |
1 | ||
| 27036-56011 |
2B..BB10..DLX,STD 12V 35A,24V 20A |
1 | ||
| 27036-56011 |
2B..BB10..DLX,STD 12V 35A |
1 | ||
| 27036-57060 |
2B..BB10..DLX,STD 12V 40A,24V 20A |
1 | ||
| 27113 - PLATE, BEARING RETAINER, ALTERNATOR | ||||
| 27312-56011 |
2B..BB10..DLX,STD 12V 35A,24V 20A |
1 | ||
| 27312-56011 |
2B..BB10..DLX,STD 12V 35A |
1 | ||
| 27312-56070 |
2B..BB10..DLX,STD 12V 40A |
1 | ||
| 27212 - RING, SPACE(FOR ALTERNATOR ROTOR) | ||||
| 27412-54040 |
2B..BB10..(DLX,STD)..GEN 24V 20A |
1 | ||
| 27212-56010 |
2B..BB10..DLX,STD 12V 35A,24V 20A |
1 | ||
| 27212-56010 |
2B..BB10..DLX,STD 12V 35A |
1 | ||
| 27412-54040 |
2B..BB10..DLX,STD 12V 40A,24V 20A;12V 40A |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-54011 |
2B..BB10..(DLX,STD)..GEN 24V 20A |
1 | ||
| 27310-56011 |
2B..BB10..DLX,STD 12V 35A,24V 20A |
1 | ||
| 27310-56011 |
2B..BB10..DLX,STD 12V 35A |
1 | ||
| 27310-57061 |
2B..BB10..DLX,STD 12V 40A,24V 20A |
1 | ||
| 27310A - COLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 27314-56010 |
2B..BB10..DLX,STD 12V 35A & 24V 20A |
1 | ||
| 90099-19251 |
2B..BB10..(DLX,STD)..GEN 24V 20A |
1 | ||
| 27314-56010 |
2B..BB10..DLX,STD 12V 35A |
1 | ||
| 90099-19251 |
2B..BB10..DLX,STD 12V 40A,24V 20A |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10082 |
2B..BB10..DLX,STD 12V 35A |
1 | ||
| 90099-10120 |
2B..BB10 12V 40A,24V 20A,55A |
1 | ||
| 90099-10120 |
2B..BB10..GEN 24V 20A |
1 | ||
| 27311 - FRAME, ALTERNATOR DRIVE END | ||||
| 27311-56012 |
2B..BB10..DLX,STD 12V 35A,24V 20A |
1 | ||
| 27311-54011 |
2B..BB10..(DLX,STD)..GEN 24V 20A |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-56030 |
2B..BB10..(DLX,STD)..GEN 24V 20A |
1 | ||
| 27330-54040 |
2B..BB10..DLX,STD 12V 40A,24V 20A |
1 | ||
| 27330-46031 |
2B..BB10..DLX,STD 12V 35A |
1 | ||
| 27330-54050 |
2B..BB10..(DLX,STD)..GEN 24V 20A |
1 | ||
| 27330B - RING, SNAP(FOR ALTERNATOR ROTOR) | ||||
| 90099-07103 |
2B..BB10..DLX,STD 12V 35A,24V 20A |
1 | ||
| 90099-07103 |
2B..BB10..DLX,STD 12V 35A |
1 | ||
| 90099-07108 |
2B..BB10 12V 40A,24V 20A,55A |
1 | ||
| 27350 - FRAME ASSY, RECTIFIER END | ||||
| 27350-56013 |
2B..BB10..DLX,STD 12V 35A,24V 20A |
1 | ||
| 27350-56090 |
2B..BB10..(DLX,STD)..GEN 24V 20A |
1 | ||
| 27350-56013 |
2B..BB10..DLX,STD 12V 35A |
1 | ||
| 27350-57061 |
2B..BB10..DLX,STD 12V 40A,24V 20A |
1 | ||
| 27353 - HOLDER, W/RECTIFIER POSITIVE, ALTERNATOR | ||||
| 27353-56011 |
2B..BB10..DLX,STD 12V 35A,24V 20A |
1 | ||
| 27353-54020 |
2B..BB10..(DLX,STD)..GEN 24V 20A |
1 | ||
| 27353-56011 |
2B..BB10..DLX,STD 12V 35A |
1 | ||
| 27353-54020 |
2B..BB10..DLX,STD 12V 40A,24V 20A |
1 | ||
| 27356 - HOLDER, W/RECTIFIER NEGATIVE, ALTERNATOR | ||||
| 27356-56011 |
2B..BB10..DLX,STD 12V 35A |
1 | ||
| 27356-54020 |
2B..BB10..(DLX,STD)..GEN 24V 20A |
1 | ||
| 27356-56011 |
2B..BB10..DLX,STD 12V 35A,24V 20A |
1 | ||
| 27356-54020 |
2B..BB10..DLX,STD 12V 40A,24V 20A |
1 | ||
| 27357 - HOLDER, ALTERNATOR, W/RECTIFIER | ||||
| 27357-56011 |
2B..BB10..DLX,STD 12V 35A,24V 20A |
1 | ||
| 27357-56011 |
2B..BB10..DLX,STD 12V 35A |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-60080 |
2B..BB10..DLX,STD 12V 35A |
1 | ||
| 27370-60080 |
2B..BB10..DLX,STD 12V 35A,24V 20A |
1 | ||
| 27370-54010 |
2B..BB10..(DLX,STD)..GEN 24V 20A |
1 | ||
| 27370-57060 |
2B..BB10..DLX,STD 12V 40A,24V 20A |
1 | ||
| 27371 - BRUSH, ALTERNATOR | ||||
| 27371-56070 |
2B..BB10 12V 40A,24V 20A,55A |
2 | ||
| 27371-56070 |
2B..BB10..GEN 24V 20A,65A |
2 | ||
| 27371-31011 |
20R..RB11;2B,5R..BB10,RB10..DLX,STD 12V 40A,45A,55A,65A |
2 | ||
| 27372 - SPRING, ALTERNATOR BRUSH | ||||
| 27372-56070 |
2B..BB10 12V 40A,24V 20A,55A |
2 | ||
| 27372-31011 |
20R..RB11;2B,5R..BB10,RB10..DLX,STD 12V 40A,45A,55A,65A |
2 | ||
| 27372-56070 |
2B..BB10..GEN 24V 20A,65A |
2 | ||
| 27410 - STATOR ASSY, ALTERNATOR | ||||
| 27410-56030 |
2B..BB10..(DLX,STD)..GEN 24V 20A |
1 | ||
| 27410-46031 |
2B..BB10..DLX,STD 12V 35A |
1 | ||
| 27410-54030 |
2B..BB10..(DLX,STD)..GEN 24V 20A |
1 | ||
| 27410-54020 |
2B..BB10..DLX,STD 12V 40A |
1 | ||
| 27410-54030 |
2B..BB10..(DLX,STD)..GEN 24V 20A |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-56020 |
2B..BB10..DLX,STD 12V 35A |
1 | ||
| 27411-57061 |
2B..BB10..DLX,STD 12V 40A,24V 20A |
1 | ||
| 27411-56020 |
2B..BB10..DLX,STD 12V 35A,24V 20A |
1 | ||
| 27411-57010 |
2B..BB10..(DLX,STD)..GEN 24V 20A |
1 | ||
| 27411A - KEY(FOR ALTERNATOR PULLEY) | ||||
| 90097-00465 |
2B..BB10..DLX,STD 12V 35A,24V 20A |
1 | ||
| 27441 - FAN, ALTERNATOR | ||||
| 27441-54040 |
2B..BB10..DLX,STD 12V 40A,24V 20A |
1 | ||
| 27441-46031 |
2B..BB10..DLX,STD 12V 35A |
1 | ||
| 27441-54040 |
2B..BB10..(DLX,STD)..GEN 24V 20A |
1 | ||
| 27441-46031 |
2B..BB10..DLX,STD 12V 35A,24V 20A |
1 | ||
| Common parts | ||||
| 27378-31011 | ||||
| 27383-31011 | ||||
| 27445-56011 | ||||
| 27446-56011 | ||||
| 90092-20582 | ||||
| 90099-00862 | ||||
| 90099-00891 | ||||
| 90099-00893 | ||||
| 90099-01014 | ||||
| 90099-01390 | ||||
| 90099-02181 | ||||
| 90099-05060 | ||||
| 90101-10459 | ||||
| 90119-08162 | ||||
| 90201-10283 | ||||
| 93319-14025 | ||||
| 93319-15008 | ||||
| 94110-41000 | ||||
| 94511-01400 | ||||
| 94512-01000 | ||||
| 94521-00500 | ||||

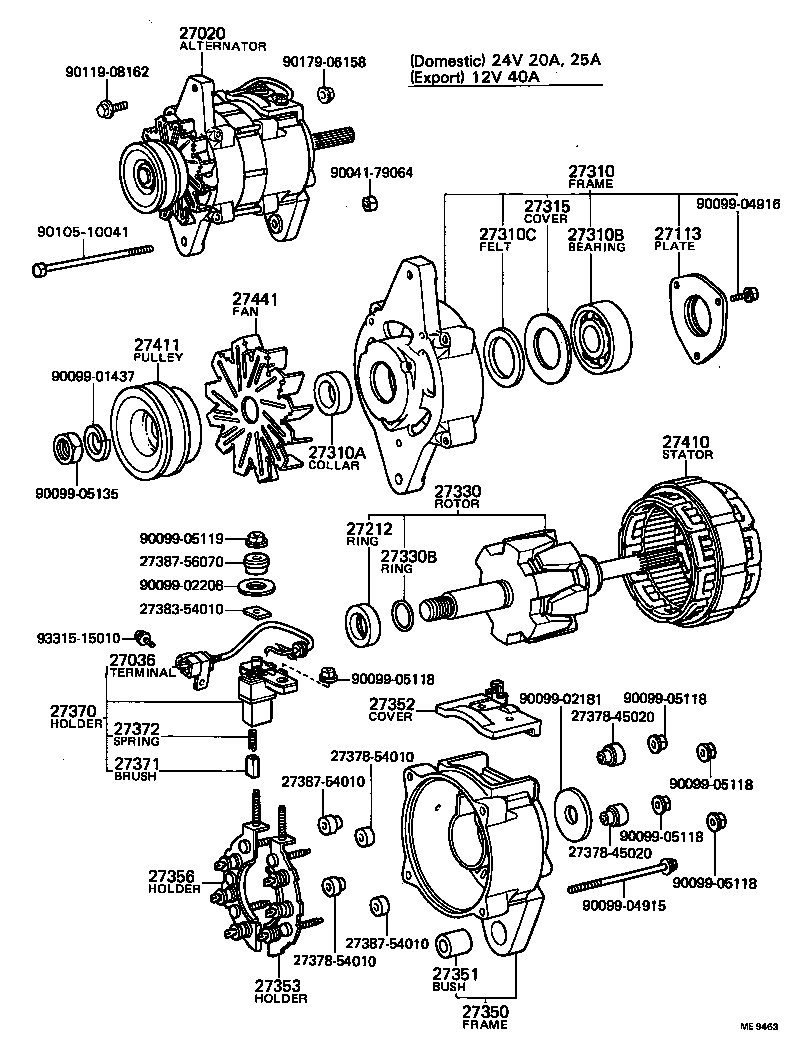

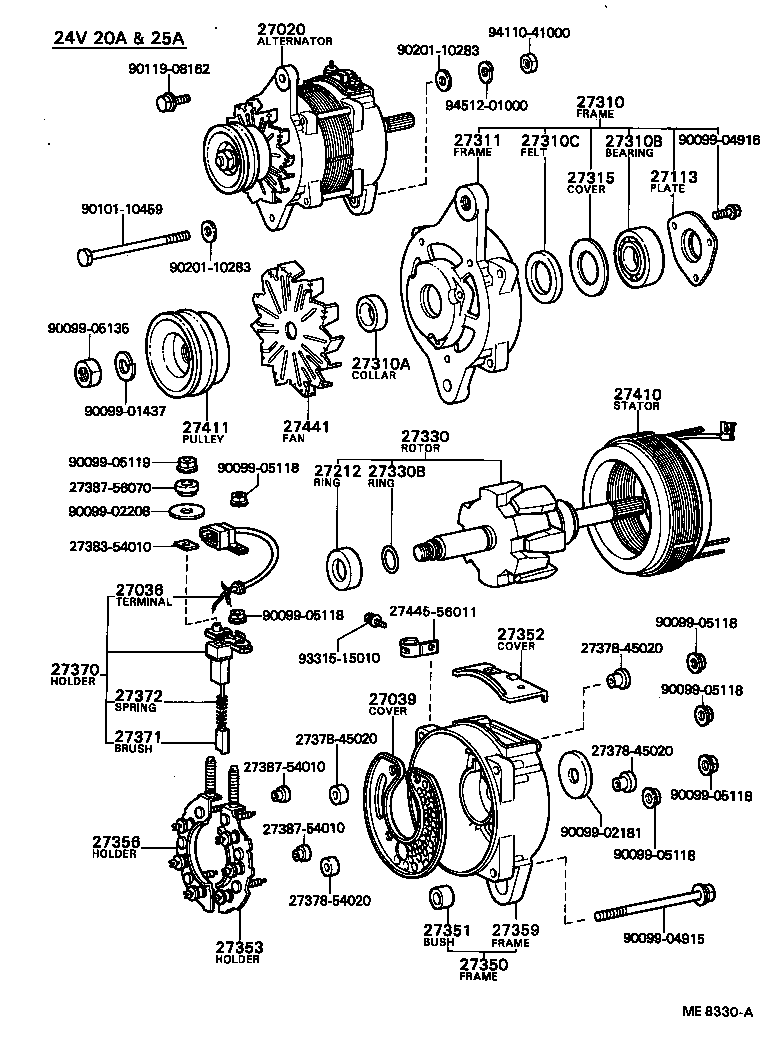

(7911-8008)2B..DLX,STD..GEN
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27020-56032 |
2B..BB10..(DLX,STD)..GEN 24V 20A |
1 | ||
| 27020-57010 |
2B..BB10..(DLX,STD)..GEN 24V 20A |
1 | ||
| 27020-56023 |
2B..BB10..DLX,STD 12V 35A |
1 | ||
| 27020-57061 |
2B..BB10..DLX,STD 12V 40A |
1 | ||
| 27020-57091 |
2B..BB10..(DLX,STD)..GEN 24V 20A |
1 | ||
| 27036 - TERMINAL SUB-ASSY, LEAD WIRE, ALTERNATOR | ||||
| 27036-54010 |
2B..BB10..(DLX,STD)..GEN 24V 20A |
1 | ||
| 27036-56011 |
2B..BB10..DLX,STD 12V 35A,24V 20A |
1 | ||
| 27036-56011 |
2B..BB10..DLX,STD 12V 35A |
1 | ||
| 27036-57060 |
2B..BB10..DLX,STD 12V 40A,24V 20A |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-56090 |
2B..BB10..(DLX,STD)..GEN 24V 20A |
1 | ||
| 27113 - PLATE, BEARING RETAINER, ALTERNATOR | ||||
| 27312-56011 |
2B..BB10..DLX,STD 12V 35A,24V 20A |
1 | ||
| 27312-56011 |
2B..BB10..DLX,STD 12V 35A |
1 | ||
| 27312-56070 |
2B..BB10..DLX,STD 12V 40A |
1 | ||
| 27212 - RING, SPACE(FOR ALTERNATOR ROTOR) | ||||
| 27412-54040 |
2B..BB10..(DLX,STD)..GEN 24V 20A |
1 | ||
| 27212-56010 |
2B..BB10..DLX,STD 12V 35A,24V 20A |
1 | ||
| 27212-56010 |
2B..BB10..DLX,STD 12V 35A |
1 | ||
| 27412-54040 |
2B..BB10..DLX,STD 12V 40A,24V 20A;12V 40A |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-54011 |
2B..BB10..(DLX,STD)..GEN 24V 20A |
1 | ||
| 27310-56011 |
2B..BB10..DLX,STD 12V 35A,24V 20A |
1 | ||
| 27310-56011 |
2B..BB10..DLX,STD 12V 35A |
1 | ||
| 27310-57061 |
2B..BB10..DLX,STD 12V 40A,24V 20A |
1 | ||
| 27310A - COLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 27314-56010 |
2B..BB10..DLX,STD 12V 35A & 24V 20A |
1 | ||
| 90099-19251 |
2B..BB10..(DLX,STD)..GEN 24V 20A |
1 | ||
| 27314-56010 |
2B..BB10..DLX,STD 12V 35A |
1 | ||
| 90099-19251 |
2B..BB10..DLX,STD 12V 40A,24V 20A |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10082 |
2B..BB10..DLX,STD 12V 35A |
1 | ||
| 90099-10120 |
2B..BB10 12V 40A,24V 20A,55A |
1 | ||
| 90099-10120 |
2B..BB10..GEN 24V 20A |
1 | ||
| 27310C - FELT(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-02207 |
2B..BB10..DLX,STD 12V 40A,24V 20A |
2 | ||
| 90099-02207 |
2B..BB10..(DLX,STD)..GEN 24V 20A |
1 | ||
| 27311 - FRAME, ALTERNATOR DRIVE END | ||||
| 27311-56012 |
2B..BB10..DLX,STD 12V 35A,24V 20A |
1 | ||
| 27311-54011 |
2B..BB10..(DLX,STD)..GEN 24V 20A |
1 | ||
| 27315 - COVER, ALTERNATOR FELT, INNER NO.1 | ||||
| 27315-56070 |
2B..BB10..GEN 24V 20A & 65A |
1 | ||
| 27313-57060 |
2B..BB10..DLX,STD 12V 40A,NO.2 |
1 | ||
| 27315-56070 |
2B..BB10..DLX,STD 24V 20A,55A |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-56030 |
2B..BB10..(DLX,STD)..GEN 24V 20A |
1 | ||
| 27330-54040 |
2B..BB10..DLX,STD 12V 40A,24V 20A |
1 | ||
| 27330-46031 |
2B..BB10..DLX,STD 12V 35A |
1 | ||
| 27330-54050 |
2B..BB10..(DLX,STD)..GEN 24V 20A |
1 | ||
| 27330B - RING, SNAP(FOR ALTERNATOR ROTOR) | ||||
| 90099-07103 |
2B..BB10..DLX,STD 12V 35A,24V 20A |
1 | ||
| 90099-07103 |
2B..BB10..DLX,STD 12V 35A |
1 | ||
| 90099-07108 |
2B..BB10 12V 40A,24V 20A,55A |
1 | ||
| 27350 - FRAME ASSY, RECTIFIER END | ||||
| 27350-56013 |
2B..BB10..DLX,STD 12V 35A,24V 20A |
1 | ||
| 27350-56090 |
2B..BB10..(DLX,STD)..GEN 24V 20A |
1 | ||
| 27350-56013 |
2B..BB10..DLX,STD 12V 35A |
1 | ||
| 27350-57061 |
2B..BB10..DLX,STD 12V 40A,24V 20A |
1 | ||
| 27351 - BUSH(FOR ALTERNATOR RECTIFIER END FRAME) | ||||
| 27351-56070 |
2B..BB10..(DLX,STD)..GEN 24V 20A |
1 | ||
| 27351-56013 |
2B..BB10..DLX,STD 12V 35A,40A 24V 20A |
1 | ||
| 27352 - COVER, FRAME BRUSH | ||||
| 27388-57060 |
2B..BB10..DLX,STD 12V 40A,24V 20A |
1 | ||
| 27388-56090 |
2B..BB10..(DLX,STD)..GEN 24V 20A |
1 | ||
| 27353 - HOLDER, W/RECTIFIER POSITIVE, ALTERNATOR | ||||
| 27353-56011 |
2B..BB10..DLX,STD 12V 35A,24V 20A |
1 | ||
| 27353-54020 |
2B..BB10..(DLX,STD)..GEN 24V 20A |
1 | ||
| 27353-56011 |
2B..BB10..DLX,STD 12V 35A |
1 | ||
| 27353-54020 |
2B..BB10..DLX,STD 12V 40A,24V 20A |
1 | ||
| 27356 - HOLDER, W/RECTIFIER NEGATIVE, ALTERNATOR | ||||
| 27356-56011 |
2B..BB10..DLX,STD 12V 35A |
1 | ||
| 27356-54020 |
2B..BB10..(DLX,STD)..GEN 24V 20A |
1 | ||
| 27356-56011 |
2B..BB10..DLX,STD 12V 35A,24V 20A |
1 | ||
| 27356-54020 |
2B..BB10..DLX,STD 12V 40A,24V 20A |
1 | ||
| 27359 - FRAME, ALTERNATOR RECTIFIER END | ||||
| 27359-56090 |
2B..BB10..(DLX,STD)..GEN 24V 20A |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-60080 |
2B..BB10..DLX,STD 12V 35A |
1 | ||
| 27370-60080 |
2B..BB10..DLX,STD 12V 35A,24V 20A |
1 | ||
| 27370-54010 |
2B..BB10..(DLX,STD)..GEN 24V 20A |
1 | ||
| 27370-57060 |
2B..BB10..DLX,STD 12V 40A,24V 20A |
1 | ||
| 27371 - BRUSH, ALTERNATOR | ||||
| 27371-56070 |
2B..BB10 12V 40A,24V 20A,55A |
2 | ||
| 27371-56070 |
2B..BB10..GEN 24V 20A,65A |
2 | ||
| 27371-31011 |
20R..RB11;2B,5R..BB10,RB10..DLX,STD 12V 40A,45A,55A,65A |
2 | ||
| 27372 - SPRING, ALTERNATOR BRUSH | ||||
| 27372-56070 |
2B..BB10 12V 40A,24V 20A,55A |
2 | ||
| 27372-31011 |
20R..RB11;2B,5R..BB10,RB10..DLX,STD 12V 40A,45A,55A,65A |
2 | ||
| 27372-56070 |
2B..BB10..GEN 24V 20A,65A |
2 | ||
| 27410 - STATOR ASSY, ALTERNATOR | ||||
| 27410-56030 |
2B..BB10..(DLX,STD)..GEN 24V 20A |
1 | ||
| 27410-46031 |
2B..BB10..DLX,STD 12V 35A |
1 | ||
| 27410-54030 |
2B..BB10..(DLX,STD)..GEN 24V 20A |
1 | ||
| 27410-54020 |
2B..BB10..DLX,STD 12V 40A |
1 | ||
| 27410-54030 |
2B..BB10..(DLX,STD)..GEN 24V 20A |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-56020 |
2B..BB10..DLX,STD 12V 35A |
1 | ||
| 27411-57061 |
2B..BB10..DLX,STD 12V 40A,24V 20A |
1 | ||
| 27411-56020 |
2B..BB10..DLX,STD 12V 35A,24V 20A |
1 | ||
| 27411-57010 |
2B..BB10..(DLX,STD)..GEN 24V 20A |
1 | ||
| 27441 - FAN, ALTERNATOR | ||||
| 27441-54040 |
2B..BB10..DLX,STD 12V 40A,24V 20A |
1 | ||
| 27441-46031 |
2B..BB10..DLX,STD 12V 35A |
1 | ||
| 27441-54040 |
2B..BB10..(DLX,STD)..GEN 24V 20A |
1 | ||
| 27441-46031 |
2B..BB10..DLX,STD 12V 35A,24V 20A |
1 | ||
| Common parts | ||||
| 27378-45020 | ||||
| 27378-54020 | ||||
| 27383-54010 | ||||
| 27387-54010 | ||||
| 27387-56070 | ||||
| 27445-56011 | ||||
| 90099-01437 | ||||
| 90099-02181 | ||||
| 90099-02208 | ||||
| 90099-04915 | ||||
| 90099-04916 | ||||
| 90099-05118 | ||||
| 90099-05119 | ||||
| 90099-05135 | ||||
| 90101-10459 | ||||
| 90119-08162 | ||||
| 90201-10283 | ||||
| 93315-15010 | ||||
| 94110-41000 | ||||
| 94512-01000 | ||||
(8008- )2B..DLX,STD..GEN
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27020-56032 |
2B..BB10..(DLX,STD)..GEN 24V 20A |
1 | ||
| 27020-57010 |
2B..BB10..(DLX,STD)..GEN 24V 20A |
1 | ||
| 27020-56023 |
2B..BB10..DLX,STD 12V 35A |
1 | ||
| 27020-57061 |
2B..BB10..DLX,STD 12V 40A |
1 | ||
| 27020-57091 |
2B..BB10..(DLX,STD)..GEN 24V 20A |
1 | ||
| 27036 - TERMINAL SUB-ASSY, LEAD WIRE, ALTERNATOR | ||||
| 27036-54010 |
2B..BB10..(DLX,STD)..GEN 24V 20A |
1 | ||
| 27036-56011 |
2B..BB10..DLX,STD 12V 35A,24V 20A |
1 | ||
| 27036-56011 |
2B..BB10..DLX,STD 12V 35A |
1 | ||
| 27036-57060 |
2B..BB10..DLX,STD 12V 40A,24V 20A |
1 | ||
| 27113 - PLATE, BEARING RETAINER, ALTERNATOR | ||||
| 27312-56011 |
2B..BB10..DLX,STD 12V 35A,24V 20A |
1 | ||
| 27312-56011 |
2B..BB10..DLX,STD 12V 35A |
1 | ||
| 27312-56070 |
2B..BB10..DLX,STD 12V 40A |
1 | ||
| 27212 - RING, SPACE(FOR ALTERNATOR ROTOR) | ||||
| 27412-54040 |
2B..BB10..(DLX,STD)..GEN 24V 20A |
1 | ||
| 27212-56010 |
2B..BB10..DLX,STD 12V 35A,24V 20A |
1 | ||
| 27212-56010 |
2B..BB10..DLX,STD 12V 35A |
1 | ||
| 27412-54040 |
2B..BB10..DLX,STD 12V 40A,24V 20A;12V 40A |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-54011 |
2B..BB10..(DLX,STD)..GEN 24V 20A |
1 | ||
| 27310-56011 |
2B..BB10..DLX,STD 12V 35A,24V 20A |
1 | ||
| 27310-56011 |
2B..BB10..DLX,STD 12V 35A |
1 | ||
| 27310-57061 |
2B..BB10..DLX,STD 12V 40A,24V 20A |
1 | ||
| 27310A - COLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 27314-56010 |
2B..BB10..DLX,STD 12V 35A & 24V 20A |
1 | ||
| 90099-19251 |
2B..BB10..(DLX,STD)..GEN 24V 20A |
1 | ||
| 27314-56010 |
2B..BB10..DLX,STD 12V 35A |
1 | ||
| 90099-19251 |
2B..BB10..DLX,STD 12V 40A,24V 20A |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10082 |
2B..BB10..DLX,STD 12V 35A |
1 | ||
| 90099-10120 |
2B..BB10 12V 40A,24V 20A,55A |
1 | ||
| 90099-10120 |
2B..BB10..GEN 24V 20A |
1 | ||
| 27310C - FELT(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-02207 |
2B..BB10..DLX,STD 12V 40A,24V 20A |
2 | ||
| 90099-02207 |
2B..BB10..(DLX,STD)..GEN 24V 20A |
1 | ||
| 27315 - COVER, ALTERNATOR FELT, INNER NO.1 | ||||
| 27315-56070 |
2B..BB10..GEN 24V 20A & 65A |
1 | ||
| 27313-57060 |
2B..BB10..DLX,STD 12V 40A,NO.2 |
1 | ||
| 27315-56070 |
2B..BB10..DLX,STD 24V 20A,55A |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-56030 |
2B..BB10..(DLX,STD)..GEN 24V 20A |
1 | ||
| 27330-54040 |
2B..BB10..DLX,STD 12V 40A,24V 20A |
1 | ||
| 27330-46031 |
2B..BB10..DLX,STD 12V 35A |
1 | ||
| 27330-54050 |
2B..BB10..(DLX,STD)..GEN 24V 20A |
1 | ||
| 27330B - RING, SNAP(FOR ALTERNATOR ROTOR) | ||||
| 90099-07103 |
2B..BB10..DLX,STD 12V 35A,24V 20A |
1 | ||
| 90099-07103 |
2B..BB10..DLX,STD 12V 35A |
1 | ||
| 90099-07108 |
2B..BB10 12V 40A,24V 20A,55A |
1 | ||
| 27350 - FRAME ASSY, RECTIFIER END | ||||
| 27350-56013 |
2B..BB10..DLX,STD 12V 35A,24V 20A |
1 | ||
| 27350-56090 |
2B..BB10..(DLX,STD)..GEN 24V 20A |
1 | ||
| 27350-56013 |
2B..BB10..DLX,STD 12V 35A |
1 | ||
| 27350-57061 |
2B..BB10..DLX,STD 12V 40A,24V 20A |
1 | ||
| 27351 - BUSH(FOR ALTERNATOR RECTIFIER END FRAME) | ||||
| 27351-56070 |
2B..BB10..(DLX,STD)..GEN 24V 20A |
1 | ||
| 27351-56013 |
2B..BB10..DLX,STD 12V 35A,40A 24V 20A |
1 | ||
| 27352 - COVER, FRAME BRUSH | ||||
| 27388-57060 |
2B..BB10..DLX,STD 12V 40A,24V 20A |
1 | ||
| 27388-56090 |
2B..BB10..(DLX,STD)..GEN 24V 20A |
1 | ||
| 27353 - HOLDER, W/RECTIFIER POSITIVE, ALTERNATOR | ||||
| 27353-56011 |
2B..BB10..DLX,STD 12V 35A,24V 20A |
1 | ||
| 27353-54020 |
2B..BB10..(DLX,STD)..GEN 24V 20A |
1 | ||
| 27353-56011 |
2B..BB10..DLX,STD 12V 35A |
1 | ||
| 27353-54020 |
2B..BB10..DLX,STD 12V 40A,24V 20A |
1 | ||
| 27356 - HOLDER, W/RECTIFIER NEGATIVE, ALTERNATOR | ||||
| 27356-56011 |
2B..BB10..DLX,STD 12V 35A |
1 | ||
| 27356-54020 |
2B..BB10..(DLX,STD)..GEN 24V 20A |
1 | ||
| 27356-56011 |
2B..BB10..DLX,STD 12V 35A,24V 20A |
1 | ||
| 27356-54020 |
2B..BB10..DLX,STD 12V 40A,24V 20A |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-60080 |
2B..BB10..DLX,STD 12V 35A |
1 | ||
| 27370-60080 |
2B..BB10..DLX,STD 12V 35A,24V 20A |
1 | ||
| 27370-54010 |
2B..BB10..(DLX,STD)..GEN 24V 20A |
1 | ||
| 27370-57060 |
2B..BB10..DLX,STD 12V 40A,24V 20A |
1 | ||
| 27371 - BRUSH, ALTERNATOR | ||||
| 27371-56070 |
2B..BB10 12V 40A,24V 20A,55A |
2 | ||
| 27371-56070 |
2B..BB10..GEN 24V 20A,65A |
2 | ||
| 27371-31011 |
20R..RB11;2B,5R..BB10,RB10..DLX,STD 12V 40A,45A,55A,65A |
2 | ||
| 27372 - SPRING, ALTERNATOR BRUSH | ||||
| 27372-56070 |
2B..BB10 12V 40A,24V 20A,55A |
2 | ||
| 27372-31011 |
20R..RB11;2B,5R..BB10,RB10..DLX,STD 12V 40A,45A,55A,65A |
2 | ||
| 27372-56070 |
2B..BB10..GEN 24V 20A,65A |
2 | ||
| 27410 - STATOR ASSY, ALTERNATOR | ||||
| 27410-56030 |
2B..BB10..(DLX,STD)..GEN 24V 20A |
1 | ||
| 27410-46031 |
2B..BB10..DLX,STD 12V 35A |
1 | ||
| 27410-54030 |
2B..BB10..(DLX,STD)..GEN 24V 20A |
1 | ||
| 27410-54020 |
2B..BB10..DLX,STD 12V 40A |
1 | ||
| 27410-54030 |
2B..BB10..(DLX,STD)..GEN 24V 20A |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-56020 |
2B..BB10..DLX,STD 12V 35A |
1 | ||
| 27411-57061 |
2B..BB10..DLX,STD 12V 40A,24V 20A |
1 | ||
| 27411-56020 |
2B..BB10..DLX,STD 12V 35A,24V 20A |
1 | ||
| 27411-57010 |
2B..BB10..(DLX,STD)..GEN 24V 20A |
1 | ||
| 27441 - FAN, ALTERNATOR | ||||
| 27441-54040 |
2B..BB10..DLX,STD 12V 40A,24V 20A |
1 | ||
| 27441-46031 |
2B..BB10..DLX,STD 12V 35A |
1 | ||
| 27441-54040 |
2B..BB10..(DLX,STD)..GEN 24V 20A |
1 | ||
| 27441-46031 |
2B..BB10..DLX,STD 12V 35A,24V 20A |
1 | ||
| Common parts | ||||
| 27378-45020 | ||||
| 27378-54010 | ||||
| 27383-54010 | ||||
| 27387-54010 | ||||
| 27387-56070 | ||||
| 90041-79064 | ||||
| 90099-01437 | ||||
| 90099-02181 | ||||
| 90099-02208 | ||||
| 90099-04915 | ||||
| 90099-04916 | ||||
| 90099-05118 | ||||
| 90099-05119 | ||||
| 90099-05135 | ||||
| 90105-10041 | ||||
| 90119-08162 | ||||
| 90179-06158 | ||||
| 93315-15010 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
