GZG50R-AEPGKW (1998)
Toyota Century
Production
Oct 1998
-
Jan 2017
Engine
1GZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

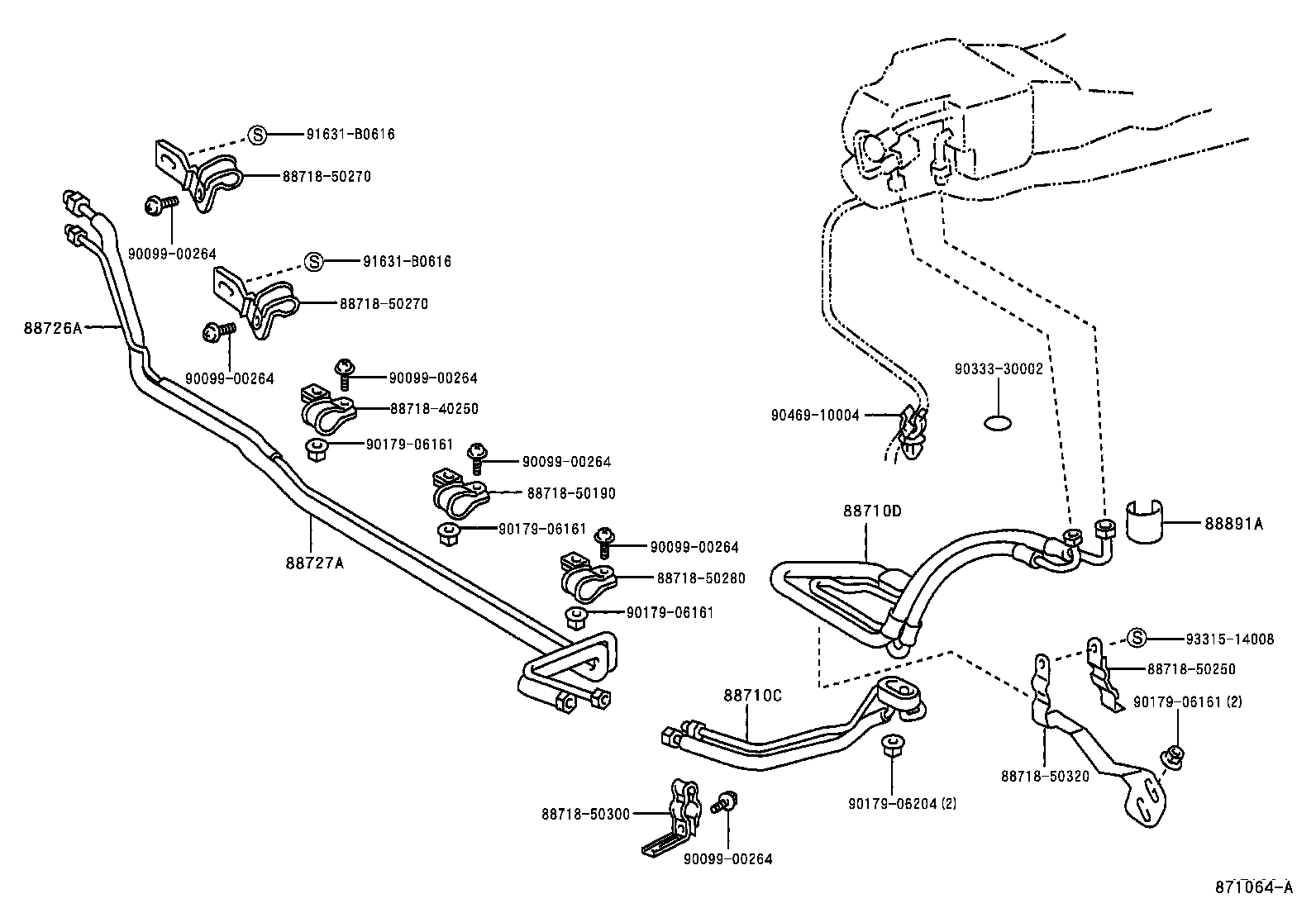

ILLUST NO. 2 OF 3(9810- )
Click highlighted areas on diagram
REAR COOLER PIPE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88710C - TUBE ASSY, AIR CONDITIONER | ||||
| 88710-40250 |
GZG50 |
1 | ||
| 88710D - TUBE ASSY, AIR CONDITIONER | ||||
| 88720-50060 |
GZG50 |
1 | ||
| 88726A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-40720 |
GZG50..RHD |
1 | ||
| 88727A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-40360 |
GZG50..RHD |
1 | ||
| 88891A - PACKING A (FOR COOLER) | ||||
| 88578-50030 |
GZG50 |
1 | ||
| Common parts | ||||
| 88718-40250 | ||||
| 88718-50190 | ||||
| 88718-50250 | ||||
| 88718-50270 | ||||
| 88718-50280 | ||||
| 88718-50300 | ||||
| 88718-50320 | ||||
| 90099-00264 | ||||
| 90179-06161 | ||||
| 90179-06204 | ||||
| 90333-30002 | ||||
| 90469-10004 | ||||
| 91631-B0616 | ||||
| 93315-14008 | ||||

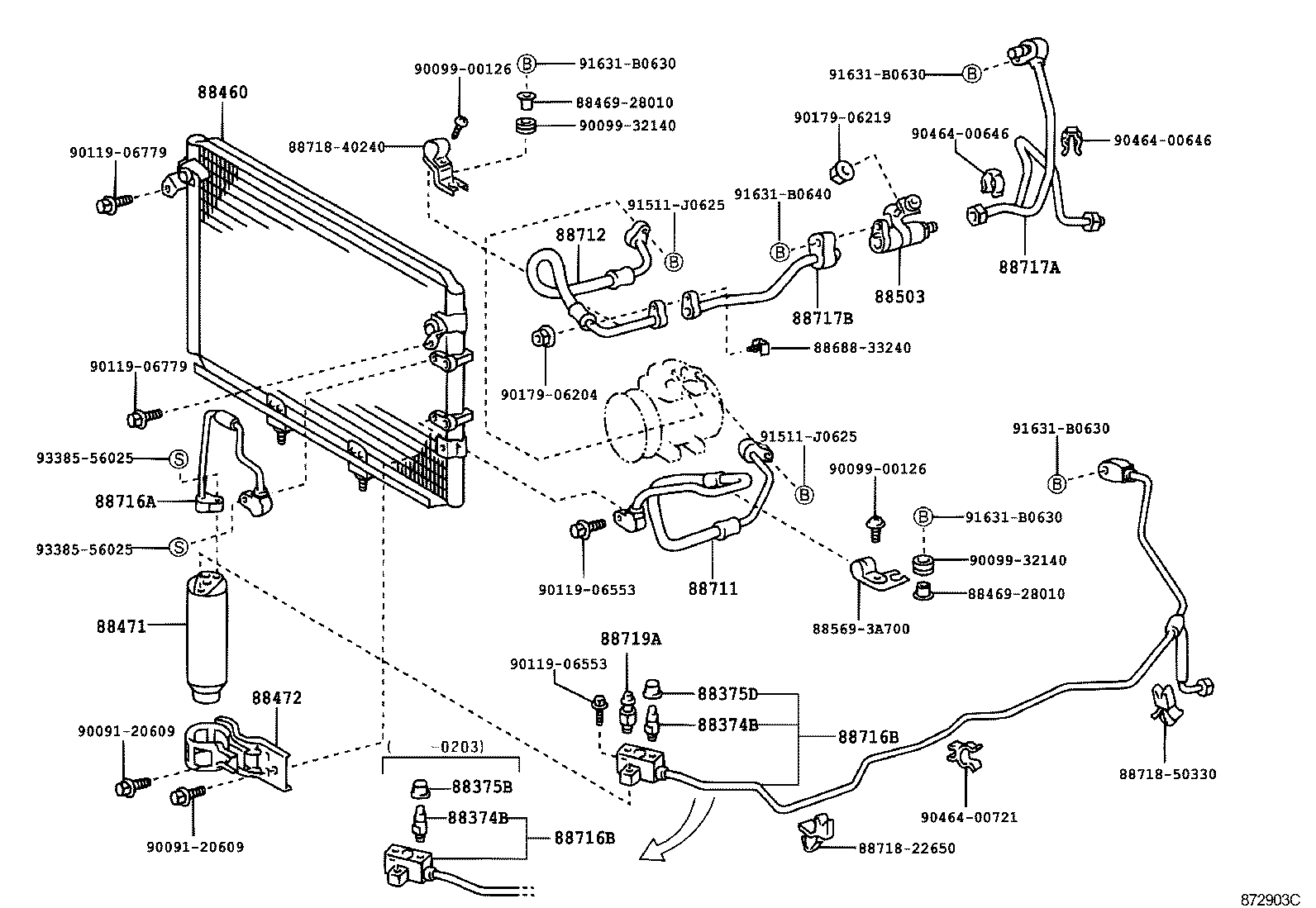

ILLUST NO. 1 OF 3(9810- )RHD
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-30010 |
GZG50 |
1 | ||
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-30010 |
GZG50 |
1 | ||
| 88375B - CAP, SERVICE VALVE, NO.1 | ||||
| 88375-30280 |
GZG50..RHD |
1 | ||
| 88375D - CAP, SERVICE VALVE, NO.2 | ||||
| 88375-30280 |
GZG50 |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-40090 |
GZG50 |
1 | ||
| 88471 - TANK, RECEIVER AIR CONDITIONER | ||||
| 88471-30370 |
GZG50 |
1 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88472-40080 |
GZG50 |
1 | ||
| 88503 - REGULATOR ASSY, PRESSURE | ||||
| 88503-40040 |
GZG50 |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-40160 |
GZG50 |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-40120 |
GZG50 |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-40700 |
GZG50 |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-40711 |
GZG50..RHD |
1 | ||
| 88716-40710 |
GZG50..RHD |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-40711 |
GZG50..RHD |
1 | ||
| 88716-40710 |
GZG50..RHD |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-40370 |
GZG50..RHD |
1 | ||
| 88717B - PIPE, COOLER REFRIGERANT SUCTION, B | ||||
| 88717-40350 |
GZG50 |
1 | ||
| 88719A - SENSOR, AIR CONDITIONER PRESSURE | ||||
| 88719-40020 |
GZG50 |
1 | ||
| Common parts | ||||
| 88469-28010 | ||||
| 88569-3A700 | ||||
| 88688-33240 | ||||
| 88718-22650 | ||||
| 88718-40240 | ||||
| 88718-50330 | ||||
| 90091-20609 | ||||
| 90099-00126 | ||||
| 90099-32140 | ||||
| 90119-06553 | ||||
| 90119-06779 | ||||
| 90179-06204 | ||||
| 90179-06219 | ||||
| 90464-00646 | ||||
| 90464-00721 | ||||
| 91511-J0625 | ||||
| 91631-B0630 | ||||
| 91631-B0640 | ||||
| 93385-56025 | ||||

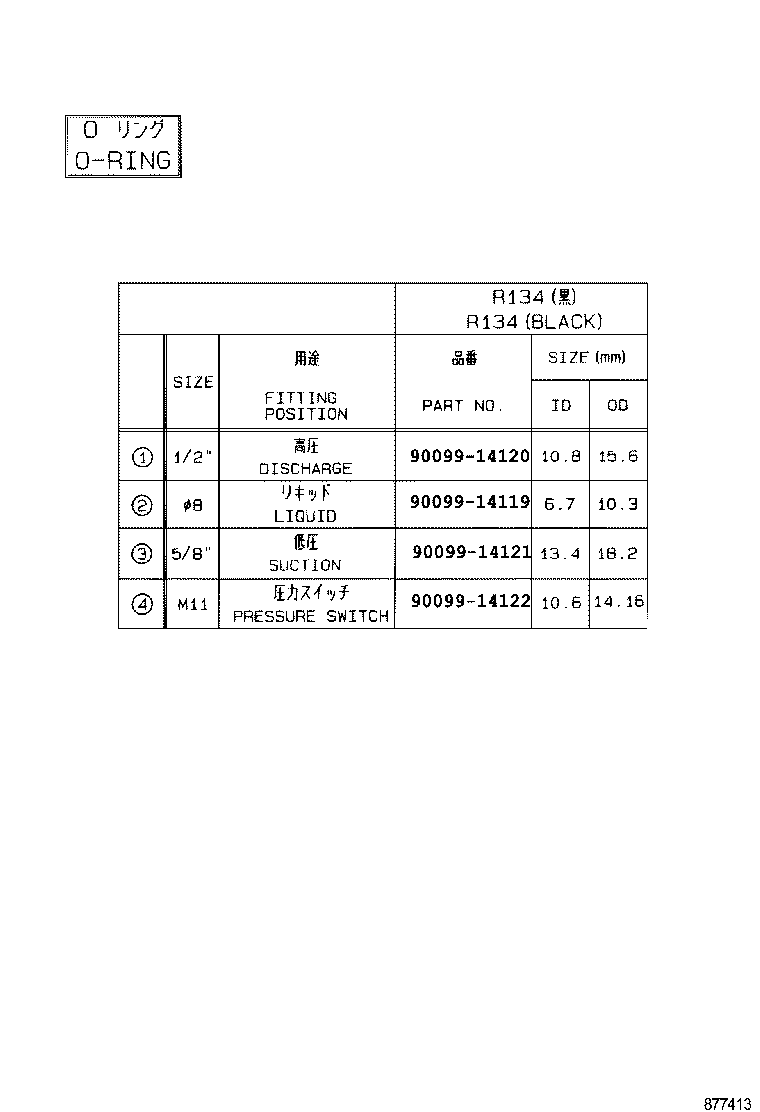

ILLUST NO. 3 OF 3(9810- )
Click highlighted areas on diagram
O RING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90099-14122 | ||||
