GZG50R-AEPGKW (1998)
Toyota Century
Production
Oct 1998
-
Jan 2017
Engine
1GZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

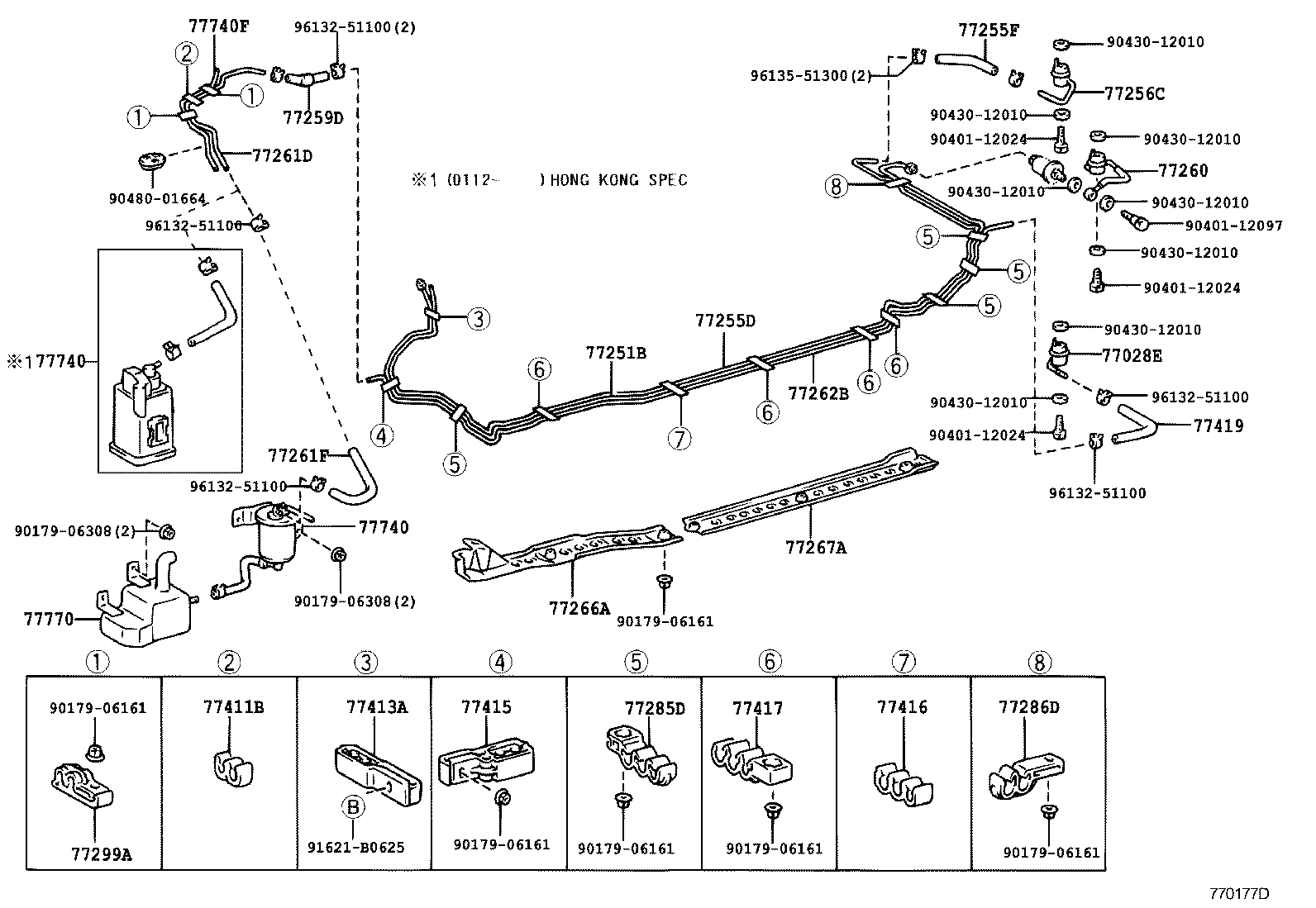

ILLUST NO. 2 OF 2(9810- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77028E - TUBE SUB-ASSY, FUEL TANK TO CANISTER, REAR | ||||
| 77028-50010 |
GZG50 |
1 | ||
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-40040 |
GZG50..RHD |
1 | ||
| 77255D - TUBE, FUEL RETURN | ||||
| 77255-40040 |
GZG50..RHD |
1 | ||
| 77255F - HOSE, FUEL, NO.2 (FOR FUEL RETURN TUBE) | ||||
| 95333-08020 |
GZG50 *H,L=140 |
1 | ||
| 77256C - TUBE, FUEL RETURN, NO.2 | ||||
| 77208-50020 |
GZG50 |
1 | ||
| 77259D - HOSE, FUEL, NO.1 | ||||
| 77259-50050 |
GZG50 |
1 | ||
| 77260 - HOSE ASSY, FUEL MAIN | ||||
| 77260-50020 |
GZG50 |
1 | ||
| 77261D - TUBE, FUEL TANK TO CANISTER | ||||
| 77261-50020 |
GZG50 |
1 | ||
| 77261F - HOSE, FUEL, NO.2 (FOR FUEL TANK TO CANISTER TUBE) | ||||
| 77279-40010 |
GZG50..RHD HONG KONG SPEC |
1 | ||
| 77279-30070 |
GZG50 |
1 | ||
| 77262B - TUBE, FUEL TANK TO CANISTER, NO.2 | ||||
| 77262-40010 |
GZG50..RHD |
1 | ||
| 77266A - PROTECTOR, FUEL TUBE, NO.1 | ||||
| 77266-40010 |
GZG50 |
1 | ||
| 77267A - PROTECTOR, FUEL TUBE, NO.2 | ||||
| 77267-40010 |
GZG50 |
1 | ||
| 77285D - CLAMP, FUEL TUBE, NO.1 | ||||
| 77286-30040 |
GZG50 |
4 | ||
| 77286D - CLAMP, FUEL TUBE, NO.2 | ||||
| 77286-24020 |
GZG50 |
1 | ||
| 77299A - CLAMP, FUEL TUBE, NO.5 | ||||
| 77299-50010 |
GZG50 |
2 | ||
| 77411B - SUPPORT, FUEL TUBE GROMMET, NO.1 | ||||
| 77411-50010 |
GZG50 |
1 | ||
| 77413A - SUPPORT, FUEL TUBE GROMMET, NO.3 | ||||
| 77413-30060 |
GZG50 |
1 | ||
| 77415 - SUPPORT, FUEL TUBE GROMMET, NO.5 | ||||
| 77415-30020 |
GZG50 |
1 | ||
| 77416 - SUPPORT, FUEL TUBE GROMMET, NO.6 | ||||
| 77416-30040 |
GZG50 |
1 | ||
| 77417 - SUPPORT, FUEL TUBE GROMMET, NO.7 | ||||
| 77417-50010 |
GZG50 |
4 | ||
| 77419 - HOSE, FUEL, NO.3 | ||||
| 95333-06020 |
GZG50 |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77740-32090 |
GZG50 |
1 | ||
| 77740-40060 |
GZG50..RHD HONG KONG SPEC |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77740-32090 |
GZG50 |
1 | ||
| 77740-40060 |
GZG50..RHD HONG KONG SPEC |
1 | ||
| 77740F - TUBE, FUEL, NO.1(FOR CHARCOAL CANISTER) | ||||
| 25737-32010 |
GZG50 |
1 | ||
| 77770 - TANK ASSY, CHARCOAL CANISTER | ||||
| 77770-32010 |
GZG50 |
1 | ||
| Common parts | ||||
| 90179-06161 | ||||
| 90179-06308 | ||||
| 90401-12024 | ||||
| 90401-12097 | ||||
| 90430-12010 | ||||
| 90480-01664 | ||||
| 91621-B0625 | ||||
| 96132-51100 | ||||
| 96135-51300 | ||||

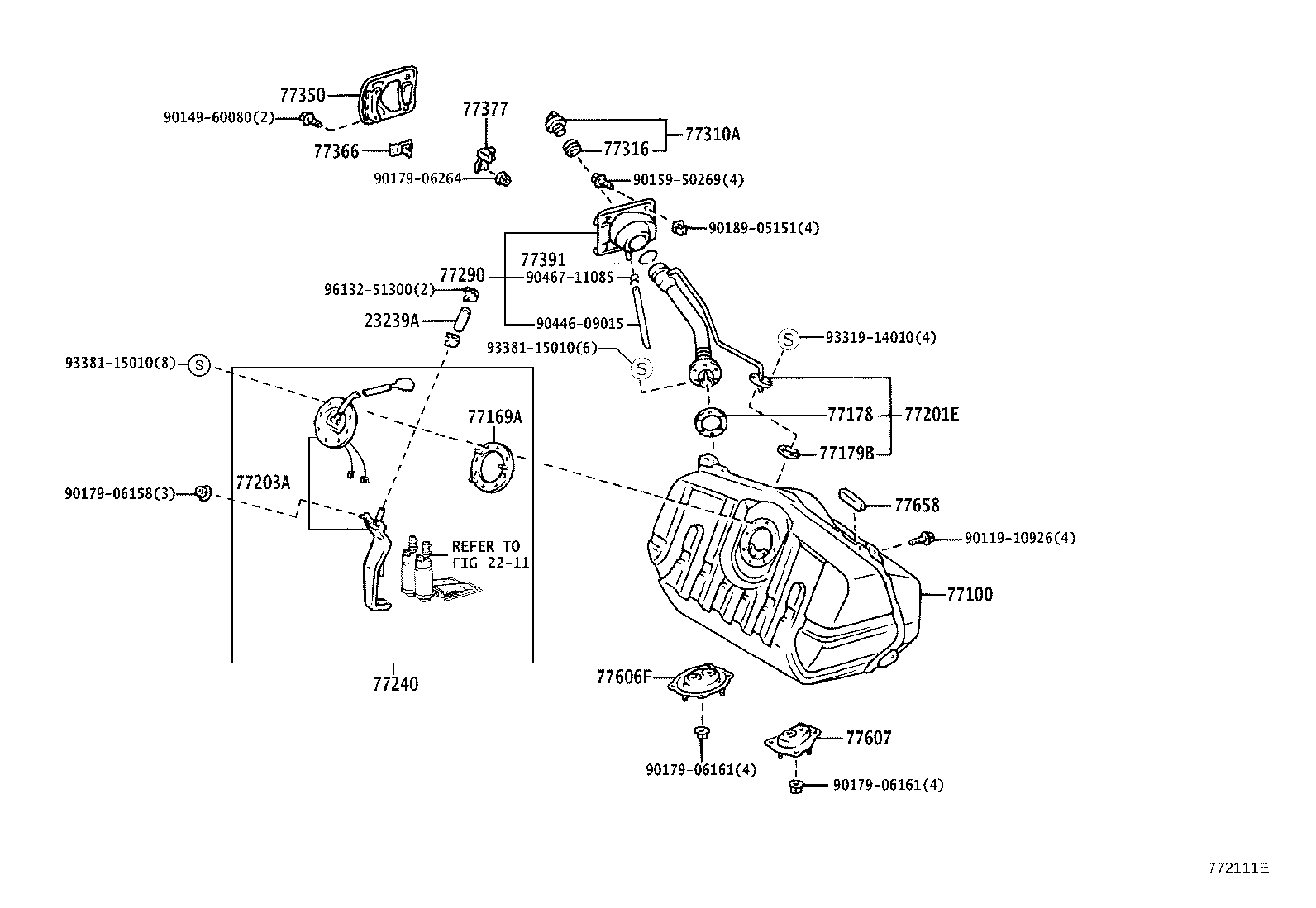

ILLUST NO. 1 OF 2(9810- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23239A - HOSE | ||||
| 23239-16010 |
1GZFE..GZG50 |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-40051 |
GZG50 |
1 | ||
| 77001-40050 |
GZG50 |
1 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-50020 |
GZG50 |
1 | ||
| 77178 - GASKET, FUEL TANK FILLER PIPE, LOWER | ||||
| 77178-20010 |
GZG50 |
1 | ||
| 77179B - GASKET, FUEL TANK EVAPORATION VENT TUBE | ||||
| 77179-50010 |
GZG50 |
1 | ||
| 77201E - PIPE SUB-ASSY, FUEL TANK FILLER | ||||
| 77201-40021 |
GZG50 |
1 | ||
| 77201-40020 |
GZG50 |
1 | ||
| 77203A - TUBE SUB-ASSY, FUEL SUCTION | ||||
| 77203-40020 |
GZG50 |
1 | ||
| 77240 - TUBE ASSY, FUEL SUCTION | ||||
| 77240-40020 |
GZG50 |
1 | ||
| 77290 - SHIELD ASSY, FUEL TANK FILLER PIPE | ||||
| 77290-40020 |
GZG50 |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77310-48010 |
GZG50 |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-16010 |
GZG50 |
1 | ||
| 77350 - LID ASSY, FUEL FILLER OPENING | ||||
| 77350-40010 |
GZG50 |
1 | ||
| 77350-40011 |
GZG50 |
1 | ||
| 77366 - SPRING, FUEL FILLER OPENING LID HINGE | ||||
| 77360-40010 |
GZG50 |
1 | ||
| 77377 - RETAINER, FUEL FILLER OPENING LID LOCK | ||||
| 77377-40010 |
GZG50 |
1 | ||
| 77391 - RING, FUEL INLET BOX | ||||
| 77391-30010 |
GZG50 |
1 | ||
| 77606F - CASE SUB-ASSY, FUEL TANK COVER VENT | ||||
| 77606-50020 |
GZG50 |
1 | ||
| 77607 - CASE SUB-ASSY, FUEL TANK COVER VENT, LH | ||||
| 77607-50020 |
GZG50 |
1 | ||
| 77658 - MOULDING, FUEL TANK EDGE | ||||
| 77658-40010 |
GZG50 |
1 | ||
| Common parts | ||||
| 90119-10926 | ||||
| 90149-60080 | ||||
| 90159-50269 | ||||
| 90179-06158 | ||||
| 90179-06161 | ||||
| 90179-06264 | ||||
| 90189-05151 | ||||
| 90446-09015 | ||||
| 90467-11085 | ||||
| 93319-14010 | ||||
| 93381-15010 | ||||
| 96132-51300 | ||||
| Linked diagrams | ||||
| 2211 | ||||
