GZG50R-AEPGKW (1998)
Toyota Century
Production
Oct 1998
-
Jan 2017
Engine
1GZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(9810- )

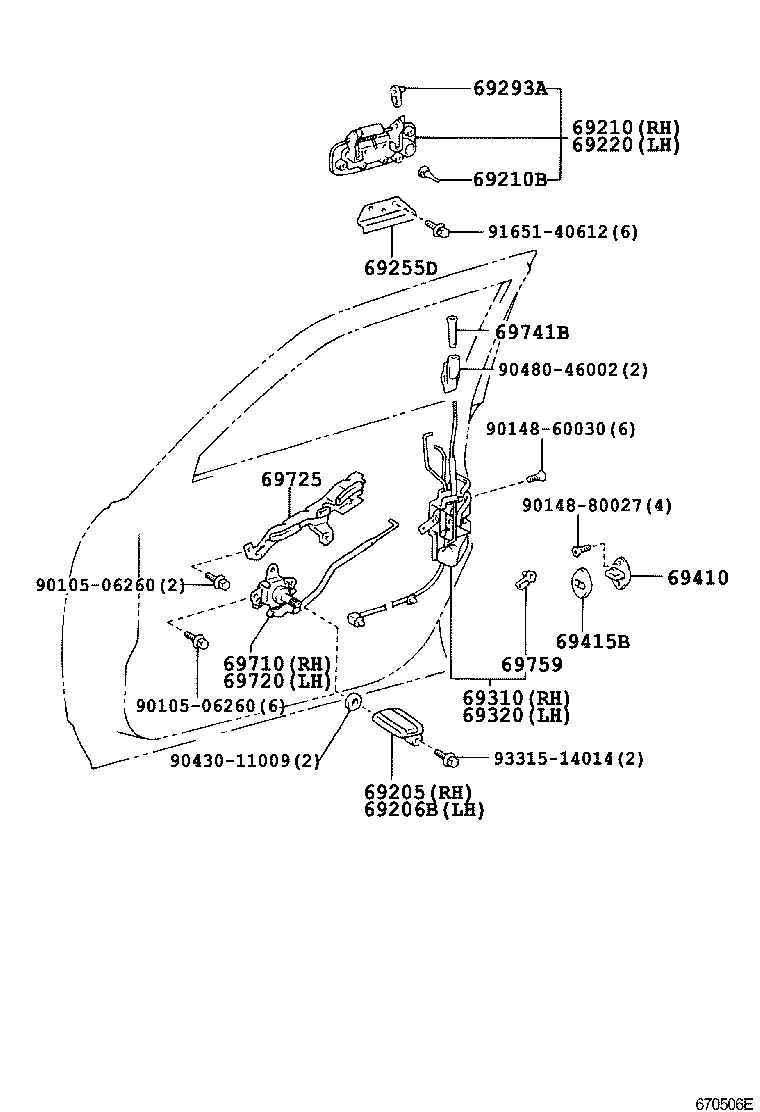

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69205 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH | ||||
| 69205-40020 |
GZG50 |
1 | ||
| 69206B - HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH | ||||
| 69206-40020 |
GZG50 |
1 | ||
| 69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH | ||||
| 69210-40041 |
GZG50 |
1 | ||
| 69210-40040 |
GZG50 |
1 | ||
| 69210B - CUSHION(FOR FRONT DOOR OUTSIDE HANDLE) | ||||
| 90541-04018 |
GZG50 |
4 | ||
| 69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH | ||||
| 69220-40040 |
GZG50 |
1 | ||
| 69220-40041 |
GZG50 |
1 | ||
| 69255D - PROTECTOR, DOOR OUTSIDE HANDLE | ||||
| 69255-30030 |
GZG50 |
2 | ||
| 69293A - SNAP, FRONT DOOR OUTSIDE HANDLE | ||||
| 69293-12050 |
GZG50 RH |
1 | ||
| 69293-12060 |
GZG50 LH |
1 | ||
| 69310 - LOCK ASSY, FRONT DOOR, RH | ||||
| 69030-40070 |
GZG50..RHD |
1 | ||
| 69320 - LOCK ASSY, FRONT DOOR, LH | ||||
| 69040-40070 |
GZG50..RHD |
1 | ||
| 69410 - PLATE ASSY, FRONT DOOR LOCK STRIKER | ||||
| 69410-50010 |
GZG50 |
2 | ||
| 69415B - COVER, DOOR LOCK STRIKER, FRONT | ||||
| 69415-50010 |
GZG50 |
2 | ||
| 69710 - LINK ASSY, FRONT DOOR OPEN CONTROL, RH | ||||
| 69710-40050 |
GZG50 |
1 | ||
| 69720 - LINK ASSY, FRONT DOOR OPEN CONTROL, LH | ||||
| 69720-40050 |
GZG50 |
1 | ||
| 69725 - PROTECTOR, FRONT DOOR INSIDE LOCKING LINK, RH | ||||
| 69725-40010 |
GZG50..RHD |
1 | ||
| 69741B - KNOB, FRONT DOOR LOCK CONTROL | ||||
| 69077-40010 |
GZG50 |
2 | ||
| 69759 - SNAP, DOOR LOCK CONTROL LINK, NO.1 | ||||
| 69759-24070 |
GZG50 LH |
1 | ||
| 69759-14050 |
GZG50 RH |
1 | ||
| Common parts | ||||
| 90105-06260 | ||||
| 90148-60030 | ||||
| 90148-80027 | ||||
| 90430-11009 | ||||
| 90480-46002 | ||||
| 91651-40612 | ||||
| 93315-14014 | ||||
