GZG50R-AEPGKW (1998)

Toyota Century

Production Oct 1998 - Jan 2017
Engine 1GZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9810- )

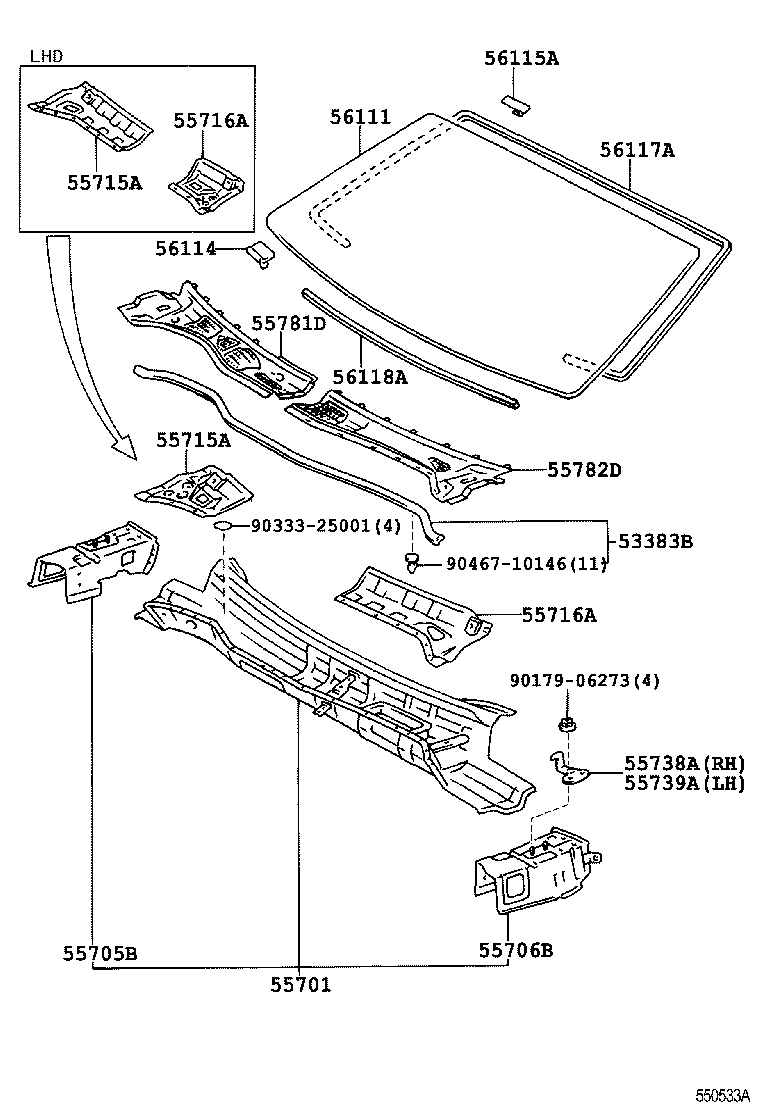

Click highlighted areas on diagram

diagram 53383B 55701 55705B 55706B 55715A 55715A 55716A 55716A 55738A 55739A 55781D 55782D 56111 56114 56115A 56117A 56118A 9017906273 9033325001 9046710146
Part # Description Qty Price
53383B - SEAL, HOOD TO COWL TOP
53383-40011

GZG50..RHD

 1
55701 - PANEL SUB-ASSY, COWL
55700-40010

GZG50..RHD

 1
55705B - PANEL SUB-ASSY, COWL TOP SIDE, RH
55705-40010

GZG50..RHD

 1
55706B - PANEL SUB-ASSY, COWL TOP SIDE, LH
55706-40010

GZG50..RHD

 1
55715A - BRACE, COWL TOP TO APRON, RH
55715-40010

GZG50..RHD

 1
55715A - BRACE, COWL TOP TO APRON, RH
55715-40010

GZG50..RHD

 1
55716A - BRACE, COWL TOP TO APRON, LH
55716-40010

GZG50..RHD

 1
55716A - BRACE, COWL TOP TO APRON, LH
55716-40010

GZG50..RHD

 1
55738A - STOPPER, HOOD, RH
55738-30020

GZG50

 1
55739A - STOPPER, HOOD, LH
55739-30030

GZG50

 1
55781D - LOUVER, COWL TOP VENTILATOR, RH
55781-40030

GZG50..RHD

 1
55781-40010

GZG50..RHD

BRUNEI OR HONG KONG OR THAILAND SPEC;CHINA SPEC OR SINGAPORE SPEC

 1
55782D - LOUVER, COWL TOP VENTILATOR, LH
55782-40010

GZG50..RHD

 1
56111 - GLASS, WINDSHIELD
56111-40110

GZG50..RHD

*IRCL,T=5.3,GREEN

 1
56111-40040

GZG50..RHD

*SERL,T=5.3,BRONZE

 1
56111-40030

GZG50..RHD

*TL,T=5.3,GREEN

 1
56111-40100

GZG50..RHD

*TL,T=5.3,BRONZE

 1
56114 - RETAINER, WINDSHIELD GLASS
56114-50020

GZG50

 2
56115A - STOPPER, WINDSHIELD GLASS, NO.1
56116-35050

GZG50

 2
56117A - DAM, WINDOW GLASS ADHESIVE
56117-44030

GZG50

*D,L=3474

 1
56118A - DAM, WINDOW GLASS ADHESIVE, NO.2
56118-44020

GZG50

*D,L=460

 1
Common parts
90179-06273
90333-25001
90467-10146
